A welding carriage carries the torch at a set speed along the joint, so one welder produces long, uniform fillet, butt and circumferential welds with less spatter, less rework and no fatigue.
8 products
A welding carriage carries the torch at a set speed along the joint, so one welder produces long, uniform fillet, butt and circumferential welds with less spatter, less rework and no fatigue. Cruxweld welding automation covers trackless carriages for straight fillet welds, magnetic and rail-mounted oscillating carriages for wide grooves and thick plate, flexible-track carriages for tanks and vessels, a dual-torch carriage that welds both sides of a web at once, and a tube-to-tubesheet system for heat exchangers. Choose by joint type, how the carriage is guided and whether you need weaving.
| System | Guidance | Weld type | Oscillation | Typical job |
|---|---|---|---|---|

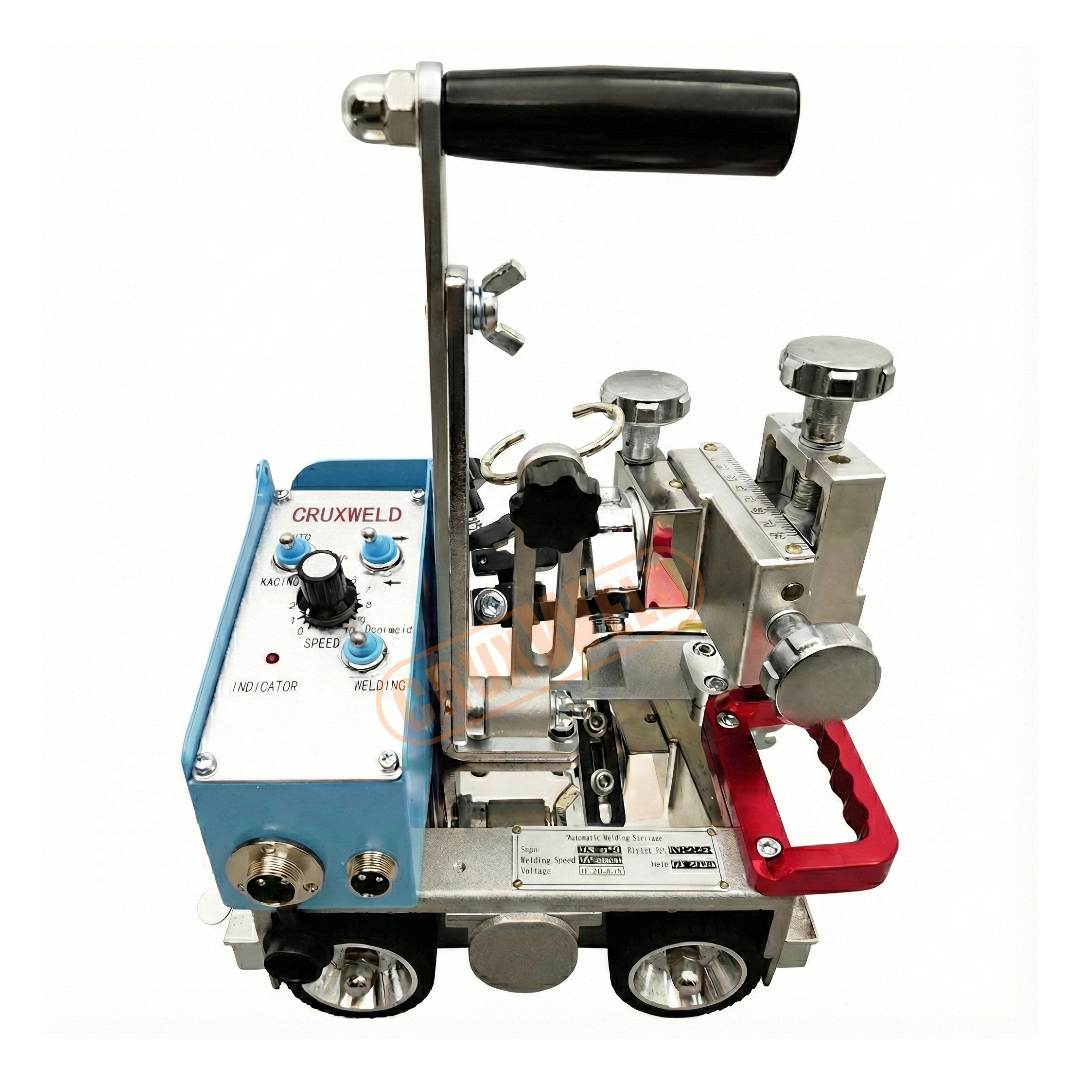

| WeldyFi | Trackless, follows the vertical plate | Fillet, straight | No | Stiffeners, beams, box sections |
| Dynex 5M | Trackless | Fillet and butt | Yes, 5 modes | Long fillet welds with wide legs |
| DynaSwing 100K | Magnetic, rack-and-pinion drive | Fillet and groove | Yes, 5 modes | Thick plate, multi-pass grooves |
| DynaMove 45K | Rail mounted | Fillet, butt, groove | Yes | Heavy sections on a fixed rail |
| DynaFlex 100S | Flexible track on curved or flat surfaces | Circumferential and longitudinal | Yes, 5 modes | Storage tanks, vessels, pipes |
| WeldOrbit 360 | Circular track | Circumferential | Yes, 5 modes | Nozzles, flanges, circular seams and cuts |
| DynaTwin 200M | Trackless, two torches | Double fillet and butt in one pass | Yes, 5 modes | T-beams and webs welded both sides at once |
| TubeSeal H89 | Mounted on the tube | Tube-to-tubesheet | — | Heat exchangers, boilers, condensers |
Trackless or track?
Trackless carriages set up in seconds for straight fillet welds; a track or rail gives repeatability on curved surfaces, grooves and long runs.
Does the carriage work with my existing MIG machine?
Yes. The carriage holds and moves the torch of your power source; our team confirms torch and cable fit.
Can one carriage weld both sides of a web?
The DynaTwin 200M carries two torches and welds both fillets in one pass.
What is the saving over manual welding?
Uniform speed means fewer stops, less over-welding and less grinding. Send your joint length and daily metres for a worked estimate.
How do I get a price?
WhatsApp the joint type, plate thickness and weld length for a same-day quote.
