Tube to Tubesheet Welding Machine – Powerful & Reliable | Cruxweld TubeSeal H89

Name: Tube to Tubesheet Welding Machine TubeSeal H89 – Automatic MIG/MAG
Brand: Cruxweld
SKU: TubeSeal H89

TubeSeal H89

Run screen

READY

Tube-to-tubesheet · MIG/MAG · touch-screen

Clamp in the Tube. Set the Degrees. Press Start.

The CRUXWELD TubeSeal H89 is a portable tube to tubesheet welding machine. Its head clamps inside the tube, a stepper motor turns the MIG/MAG torch round the tube end through the angle you set on the touch screen, and the torch returns to its start point — ready for the next tube.

28–76 mm

tube ID clamp

±60 mm

torch X / Y

±90°

torch angle

Set°

rotation angle

STARTPAUSESTOPRETURN TO ZERO

✓Every tube welded the same way

✓Touch-screen controller

Full specifications →

Get a Quote → WhatsApp +91 88008 82983

Price, delivery & technical help — get a fast response.

Overview
Specifications
Video
Related Items
Question & Answers

Overview

Screen 01 ▸ Overview

TUBESEAL H89

One Tube at a Time — Every Tube the Same

A heat exchanger or boiler tubesheet can carry hundreds of tube-to-tubesheet joints, and every one has to seal. Welded by hand, the welder walks the torch round each tube end, and the result changes with fatigue, access and torch angle. The TubeSeal H89 takes the hand out of the circle.

The head locks inside the tube on an expanding tensioning block, the torch is set once on its X-Y slide and angle fixture, and a stepper motor carries it round the joint at the speed and through the angle set on the controller. Pause, resume, stop and return to zero are one touch away.

Internal clamp

Expanding tensioning blocks for tube ID 28–76 mm.

Stepper rotation

Steady, repeatable travel round the tube end.

Touch-screen control

Run, Manual and Parameter screens.

Portable head

Lift it out, move to the next tube, clamp again.

Welding head and touch-screen controller

PRODUCTION VIEW · TUBESHEET

Screen 02 ▸ Welding head

TUBESEAL H89

Seven Parts That Hold the Torch on the Circle

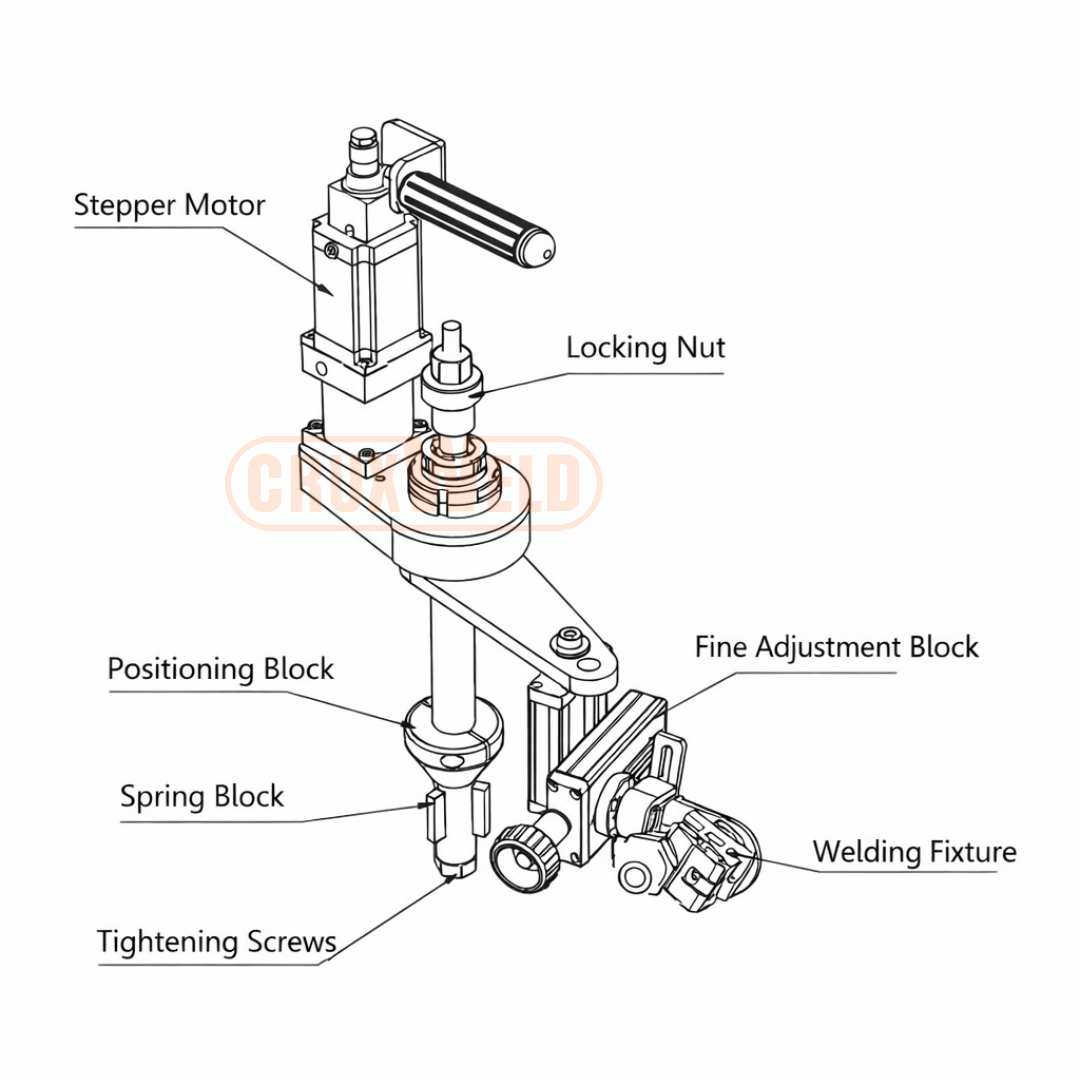

Welding head, labelled

Stepper motor

Drives the torch round the tube end.

Locking nut

Turn right to expand the tensioning block and clamp; turn left to release.

Positioning block

Seats on the tubesheet face, so the head sits at the same depth in every tube.

Tensioning (spring) block

Expands inside the tube; choose the block that covers the measured ID, 28–76 mm.

Tightening screws

Secure the tensioning block to the shaft.

Fine adjustment block

X ±60 mm and Y ±60 mm to place the torch on the joint.

Welding fixture

Holds the torch; angle adjustable ±90°.

Screen 03 ▸ Controller

TUBESEAL H89

Three Screens Run the Whole Cycle

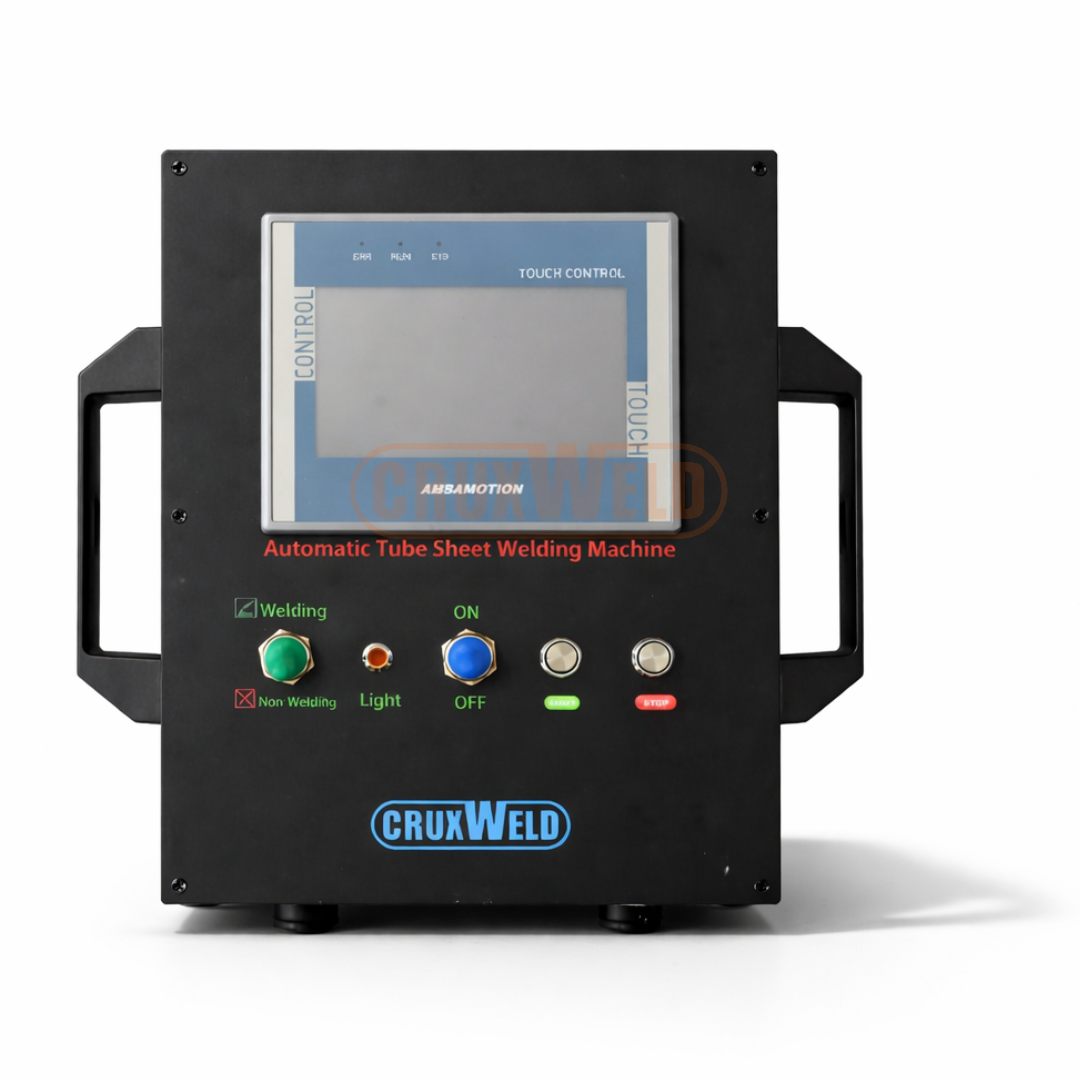

Touch-screen controller

Run screen

STARTPAUSESTOPEMERGENCY STOPSINGLE DIRECTION

Start strikes the arc and turns the torch. Pause stops arc and rotation; press again to finish the rest of the seam. Welding speed is set here.

Manual screen

FORWARDREVERSESET ZERO POINTRETURN TO ZERO

Jog the torch without welding to the start of the joint and store it as the zero point.

Parameter screen

SET POSITIONMANUAL SPEEDZERO POINT SPEED

Set the rotation angle for the weld — for example 180°, 360° or 720° for two turns — and the jog and return speeds.

▶ TRY THE CONTROLLER

RUN SCREENWELDINGRETURN TO ZERODONE · NEXT TUBEPAUSEDSTOPPED

PARAMETER · SET POSITION

180°360°720°

RUN

STARTPAUSESTOP

Welding speed is set on the Run screen; the angle on the Parameter screen.

TUBE END · FRONT VIEW

START. The arc strikes and the torch turns round the tube end through the set angle, then returns to zero for the next tube.

PAUSE. Arc and rotation stop where they are — press START to finish the rest of the seam.

STOP. The cycle ends; set the angle and press START to run again.

Screen 04 ▸ Weld cycle

TUBESEAL H89

From Tube to Tube in Six Steps

1Fit the block

Measure the tube ID and fit the tensioning block that covers it.

2Insert and lock

Push the head in until the positioning block sits on the tubesheet; turn the locking nut right.

3Aim the torch

Set the torch angle (±90°) and its X / Y position (±60 mm) on the joint.

4Set zero

On the Manual screen, jog to the start point and press Set Zero Point.

5Set the degrees

On the Parameter screen, enter the rotation angle; on the Run screen, the welding speed.

6Start

Press Start. At the end the torch stops and returns to zero. Unlock, lift out, next tube.

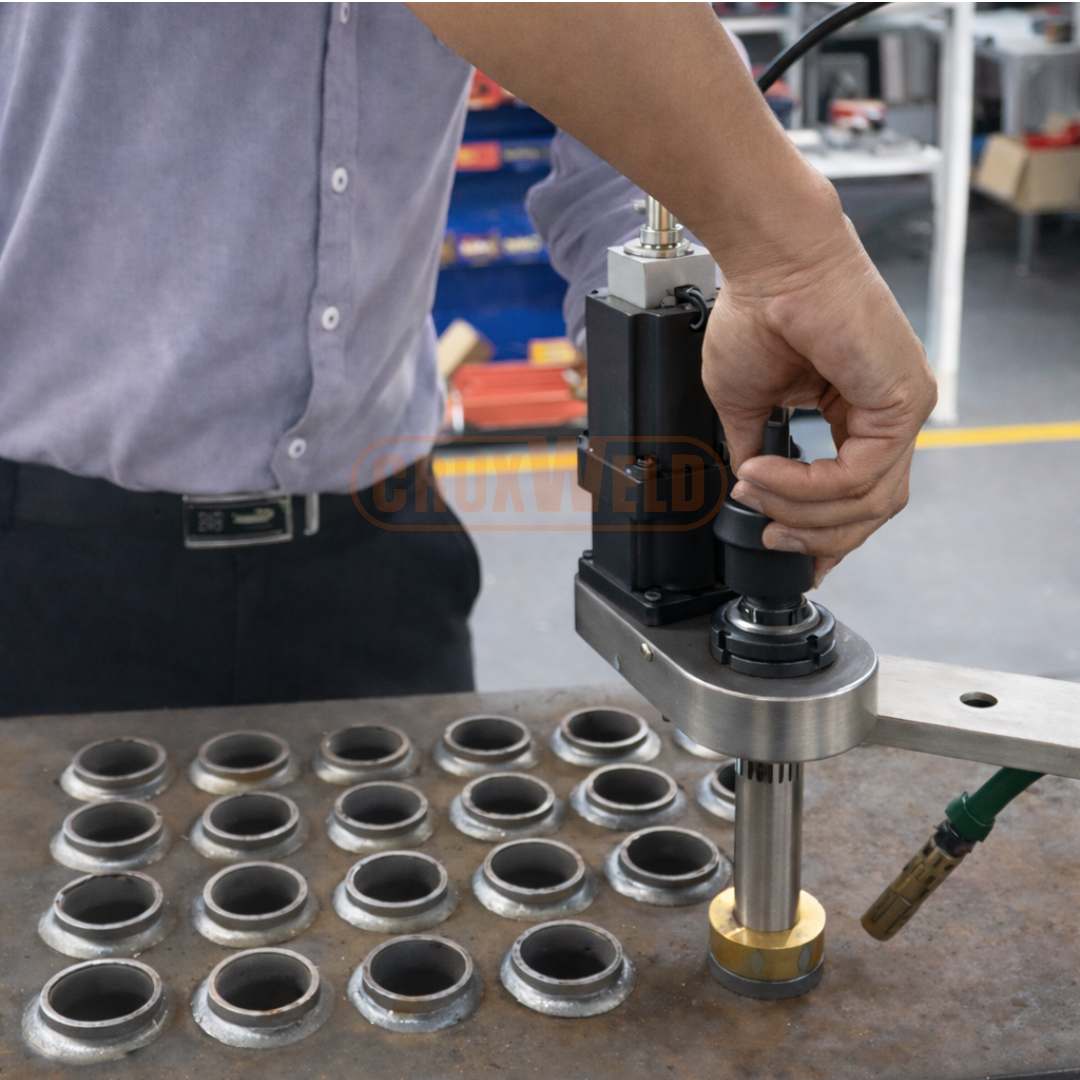

Operator inserting the TubeSeal H89 head into a tube on the tubesheet

1–2 · Insert and lock

TubeSeal H89 head clamped in a tube with the torch set on the joint

3–4 · Aim and set zero

TubeSeal H89 welding round a tube end on a tubesheet

6 · Weld round the tube end

Screen 05 ▸ Joints & applications

TUBESEAL H89

Two Joint Types, Four Kinds of Tubesheet

Corner weld, tube extended

Flat corner weld where the tube end stands proud of the tubesheet.

Butt weld, tube aligned

Tube end flush with the tubesheet face.

✓Heat-exchanger tubesheets

✓Boiler tubesheets

✓Tube-box tubesheets

✓Air pre-heater tubesheets

Screen 06 ▸ Set-up

TUBESEAL H89

Connect It to Your MIG/MAG Machine

What you connect

MIG/MAG welding power sourceFor CO2 gas-shielded welding

Wire feederFeeds the torch on the welding head

Shielding gasSupply and hose to the torch

Torch cableFrom the wire feeder to the head

AC 220 VPower for the controller and stepper motor

Need the welding machine too? See CRUXWELD MIG/MAG welding machines, or send us the one you have and we will confirm it.

Which CRUXWELD automation?

Tube ends on a tubesheetTubeSeal H89 ✓

Pipes, flanges, circular jointsWeldOrbit 360 →

Two long seams at onceDynaTwin 200M →

Straight fillet weldsWeldyFi →

See the full welding automation range.

Screen 07 ▸ Why buy from CRUXWELD

TUBESEAL H89

Automation Support from People Who Weld

45+ years of welding expertise

Help with block selection, torch set-up and cycle settings from our technical team on WhatsApp and video call.

GeM Registered OEM Manufacturer

Tender-ready documentation for government, PSU and institutional buyers.

Tested before dispatch

Every machine is checked and run before it ships.

Supported Worldwide

Dispatched across India and exported, with spares on request.

Request a Quote →WhatsApp +91 88008 82983

Having a problem with this machine? Lamps, fault codes and the checks you can do yourself: Tube-to-tubesheet welding problems →
Weld or cut not right? MIG welding problems → · Order spares →

Specifications

Screen 08 ▸ Specifications

TUBESEAL H89

TubeSeal H89 Tube to Tubesheet Welding Machine — Technical Data

PARAMETER	TUBESEAL H89
General
Model	TubeSeal H89
Type	Automatic tube-to-tubesheet welding machine
Welding process	CO2 gas-shielded MIG/MAG (melting electrode)
Power supply	AC 220 V
Weight	7 kg
Clamping
Tube ID clamping range	28 – 76 mm
Clamping method	Internal expanding tensioning block, locking nut
Depth setting	Positioning block on the tubesheet face
Torch
Torch fine adjustment	X ±60 mm, Y ±60 mm
Torch angle	±90°
Drive & control
Drive	Stepper motor
Controller	Programmable controller with touch-screen
Rotation angle	Freely settable (e.g. 180°, 360°, 720°)
Speed settings	Welding speed, manual speed, return-to-zero speed
Run functions	Start / Pause / Stop / Emergency stop / Single direction
Manual functions	Forward / Reverse / Set zero point / Return to zero
Joints
Weld types	Flat corner welds with tube extension; butt welds with tube aligned
Applications	Boiler, heat-exchanger, tube-box and air pre-heater tubesheets

Welding current, voltage and wire feed come from the connected MIG/MAG power source and your qualified procedure. Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.

Video

WeldOrbit 360 Automated Oscillation Carriage for professional welding and cutting automation

WeldOrbit 360 Automated Oscillation Carriage | Ultimate 3-in-1 Solution

dual torch welding carriage Cruxweld DynaTwin 200M

Dual Torch Welding Carriage – Powerful Industrial Automation | DynaTwin 200M

Portable Trackless Fillet Welding Carriage WeldyFi

Portable Trackless Fillet Welding Carriage – 5 Proven Features for Faster Fillet Welds

Dynex 5M Trackless Welding Carriage – Best Weaving Automation for Fillet Welds

Question & Answers

Screen 09 ▸ FAQ

TUBESEAL H89

Tube to Tubesheet Welding Machine — FAQs

What is the TubeSeal H89 tube to tubesheet welding machine?

A portable automatic machine that clamps inside a tube and turns a MIG/MAG torch round the tube end, so every tube-to-tubesheet joint on a boiler or heat exchanger is welded with the same path, speed and angle.

What tube sizes does it fit?

Tubes with an inner diameter of 28–76 mm. The head clamps on an internal expanding tensioning block; you fit the block whose range covers the measured tube ID.

Which welding process does it use?

CO2 gas-shielded MIG/MAG welding. It connects to your MIG/MAG power source and wire feeder; current, voltage and wire feed are set on the power source to suit your qualified procedure.

How is the torch set on the joint?

With a fine adjustment block of X ±60 mm and Y ±60 mm and a welding fixture that sets the torch angle through ±90°. A positioning block on the tubesheet face keeps the head at the same depth in every tube.

Can I set how far it turns?

Yes. The rotation angle is set freely on the touch screen — for example 180° for half a turn, 360° for one turn or 720° for two. At the end of the weld the torch returns to its zero point.

What controls does it have?

Start, Pause (press again to finish the rest of the seam), Stop, Emergency stop and Single direction on the Run screen; Forward, Reverse, Set zero point and Return to zero on the Manual screen; rotation angle and speeds on the Parameter screen.

Which joints and tubesheets can it weld?

Flat corner welds where the tube stands proud of the tubesheet, and butt welds with the tube aligned to the face — on boiler, heat-exchanger, tube-box and air pre-heater tubesheets.

How do I get the TubeSeal H89 price and delivery time?

Request a quote on this page or message +91 88008 82983 on WhatsApp with your tube ID, tube count and joint type. You will receive a GST quotation with delivery time, usually the same working day.

Send your tube ID, tube count and joint — we will suggest the set-up and quote today.
