The CRUXWELD WeldyFi is a portable fillet welding carriage that needs no track. A lever-switched magnet holds it on the steel, brass guide rollers run against the web plate, and four-wheel drive carries your MIG/MAG torch along the fillet at a steady 5–1100 mm/min.
Price, delivery & technical help — get a fast response.

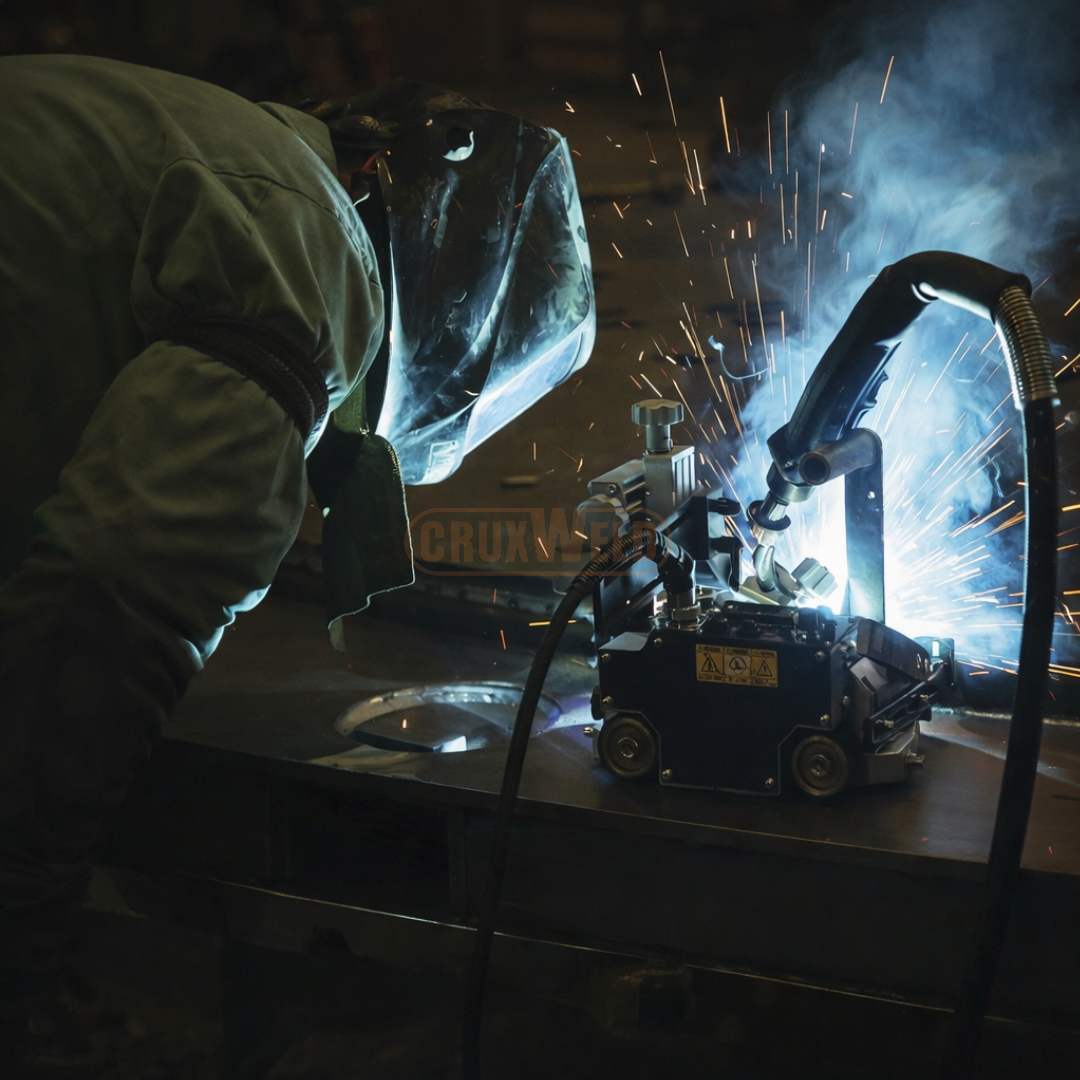

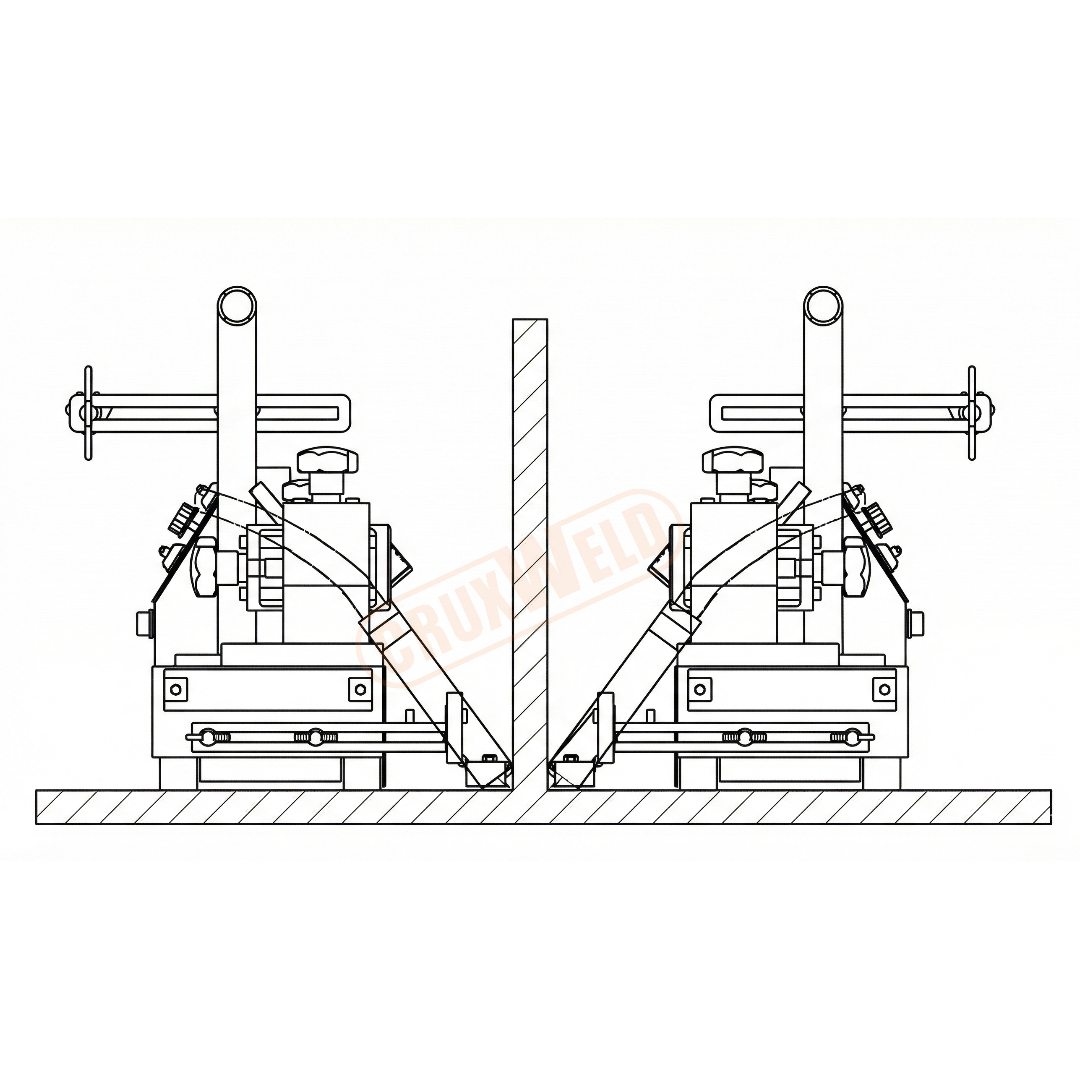

Long fillet welds on stiffeners, beams and panels are where hand welding loses time and consistency: the welder tires, travel speed drifts and the leg size wanders. The WeldyFi takes over the travel. Set it on the plate, drop the magnet lever, let the guide rollers rest against the web and press start.

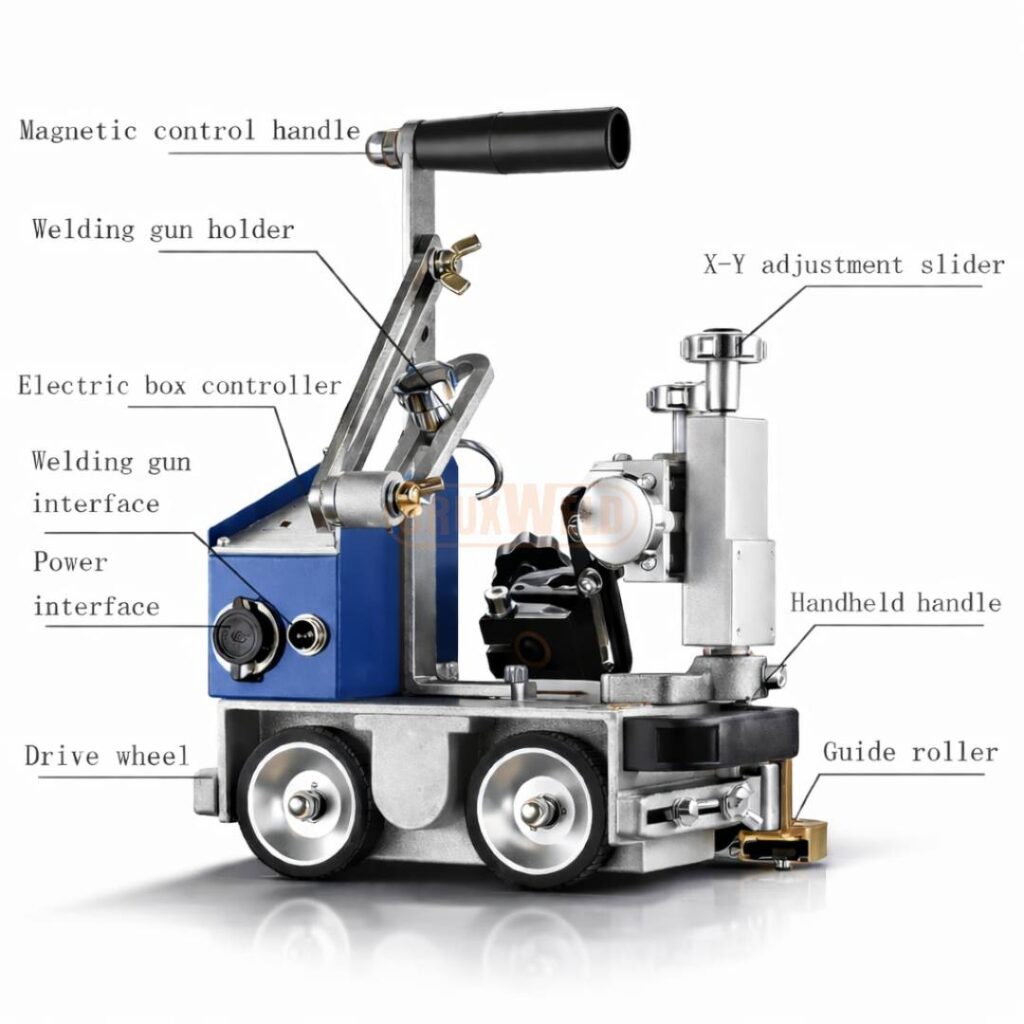

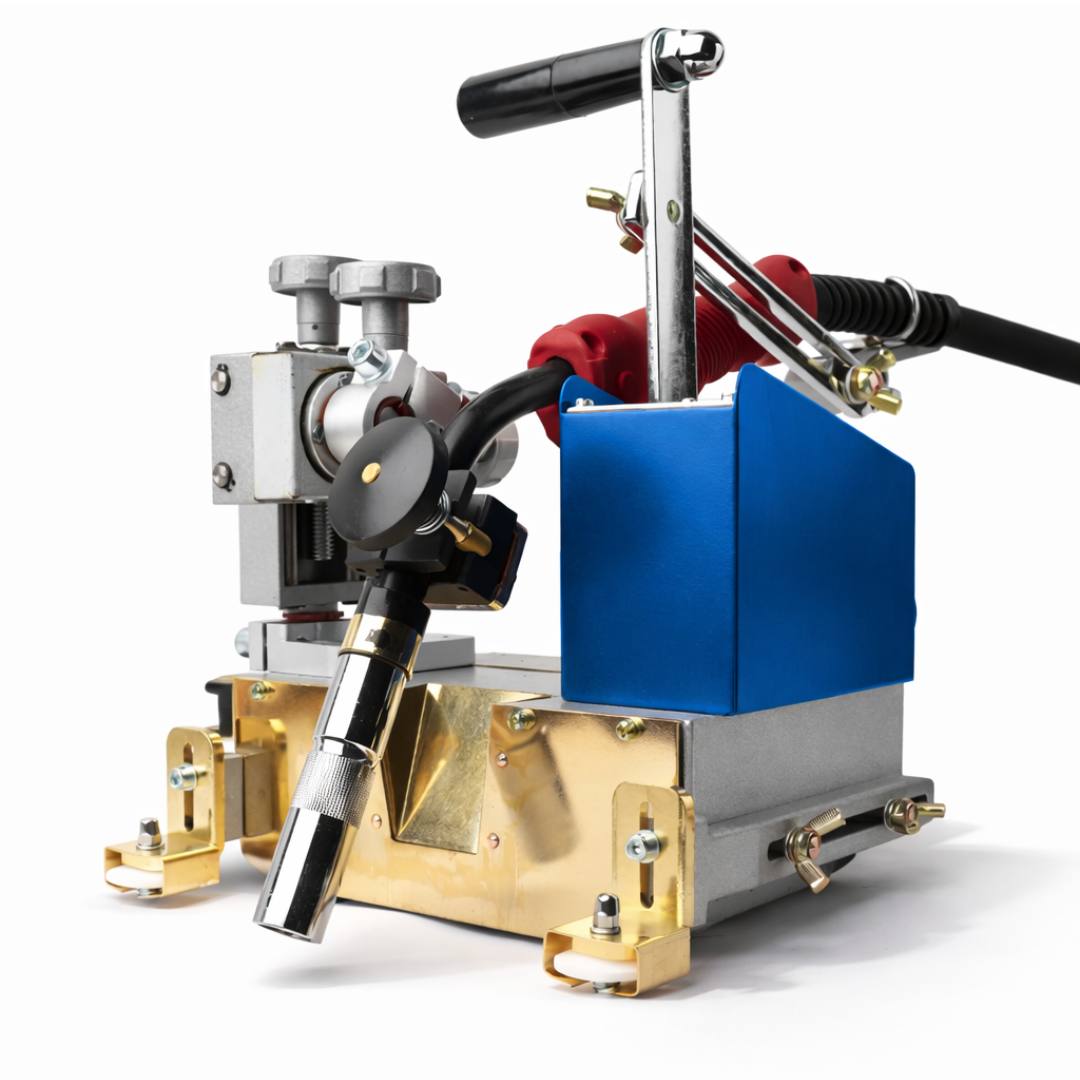

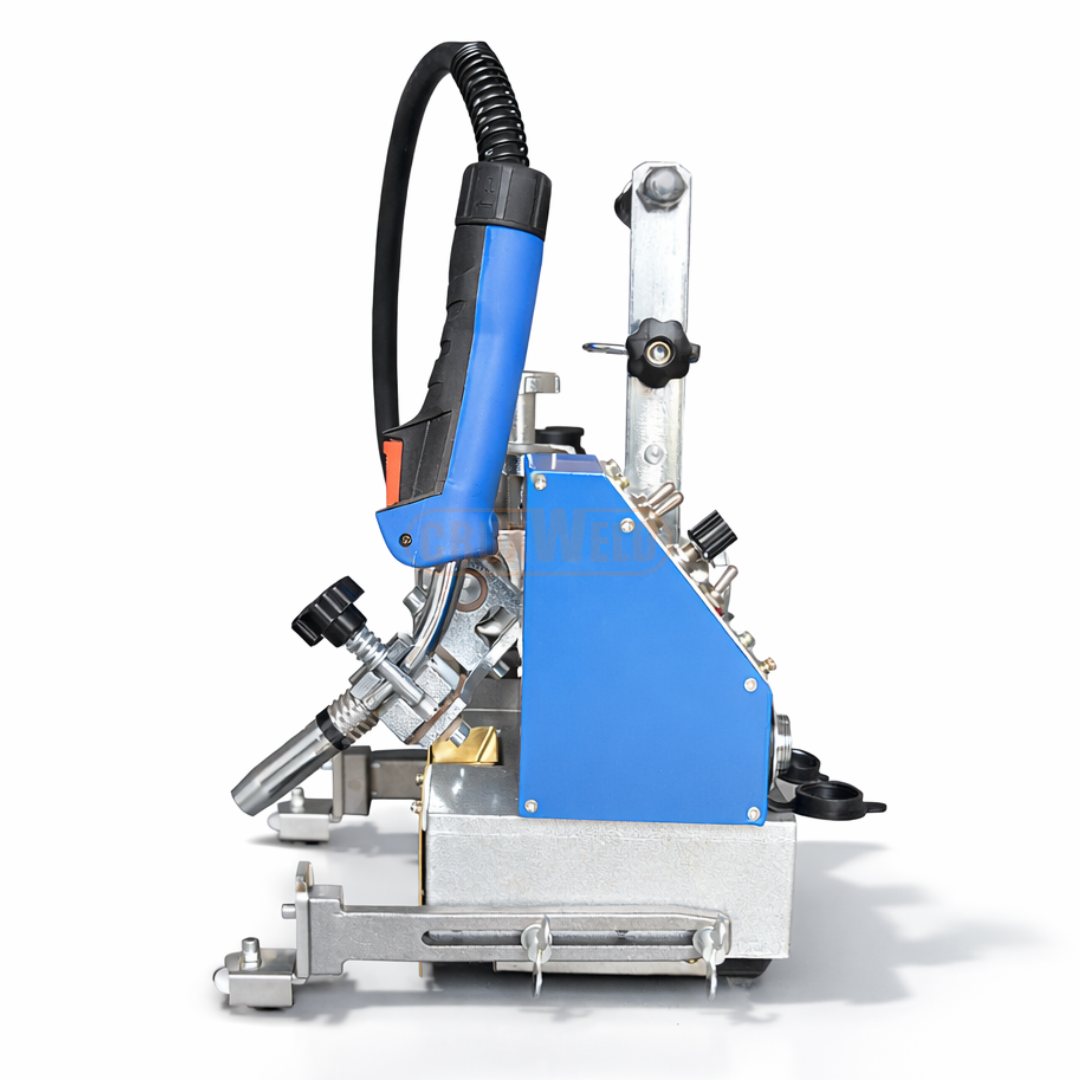

Its motor runs with encoder feedback through a planetary gearbox, so the speed you set on the knob is the speed it holds along the joint. The torch sits in a quick-attach clamp on an X-Y slide, so the wire lands exactly in the root of the fillet and stays there.
Typical work: stiffeners on deck and side panels, I-beam and H-beam fabrication, girders, frames, tanks and vessels — any carbon or low-alloy steel structure with long, repeated fillet welds.
New to welding automation? These are the flush-fillet settings our technical team starts from with 1.2 mm wire on 6 mm plate. Strike the arc, watch the bead for the first few hundred millimetres and fine-tune travel speed on the knob.
Different plate or leg size? Send it on WhatsApp and we will suggest a starting point.
For long seams on tanks with a flexible track, see the DynaFlex 100S.
| PARAMETER | WELDYFI |
|---|---|
| Travel & drive | |
| Model | WeldyFi |
| Type | Portable trackless fillet welding carriage |
| Travel speed | 5 – 1100 mm/min |
| Driving system | Four-wheel drive rubber tires, motor encoder with planetary gearbox |
| Traction | 4-wheel drive, solid rubber tires |
| Motor | DC 110 V, 30 W, 4200 rpm |
| Guiding system | Fillet tacking guide roller |
| Ground clearance | 5.5 mm |
| Max wheel heating allowed | 70 °C |
| Magnet | |
| Magnet type | Lifting handle integrated |
| Magnetic force | 35 kg |
| Torch | |
| Torch support | Universal with quick attach |
| Torch holder diameter | 16 – 25 mm |
| Torch adjustment | 50 mm up/down, 50 mm left/right |
| Up/down angle | 45° ± 10° |
| Running angle | ±10° |
| Working angle range | 360° |
| Welding | |
| Welding processes | MIG, MAG (CO2), FCAW |
| Welding method | Continuous welding |
| Types of welds | Fillet, V-groove, overhead, out of position |
| Workpiece | Magnetic steel (carbon and low-alloy steel) |
| Controls | |
| Operating state | IDLE / AUTO / STOP |
| Direction | Forward / backward |
| Speed setting | Knob, scale 0 – 14 |
| Welding state | WELD / NON-WELD |
| General | |
| Power source | AC 110 – 230 V, 50/60 Hz |
| Power consumption | 22 W |
| Dimensions (L × W × H) | 220 × 280 × 230 mm |
| Weight | 8.5 kg |
Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.
