A battery spot welder joins nickel strip to cell terminals with a short, controlled pulse, so the cell stays cool and the tab holds.
5 products
A battery spot welder joins nickel strip to cell terminals with a short, controlled pulse, so the cell stays cool and the tab holds. Cruxweld builds five models for lithium-ion pack assembly: the CLB5 series (hand, pedal and pneumatic operation) for 0.03–0.45 mm strip, and the 10 kVA double-pulse CBS10M and CBS10P for 0.02–0.3 mm pure nickel or nickel-alloy strip at production speed. Choose by strip thickness, how the operator works (hand lever, foot pedal or pneumatic cylinder) and daily volume.
| Model | Operation | Strip thickness | Pulse | Best for |
|---|---|---|---|---|
| CLB5H | Hand operated | 0.03–0.45 mm | Single | Pack repair, prototypes, small batches |
| CLB5D | Pedal operated | 0.03–0.45 mm | Single | Bench production with both hands free for the pack |
| CLB5P | Pneumatic | 0.03–0.45 mm | Single | Consistent pressure for repeat work |

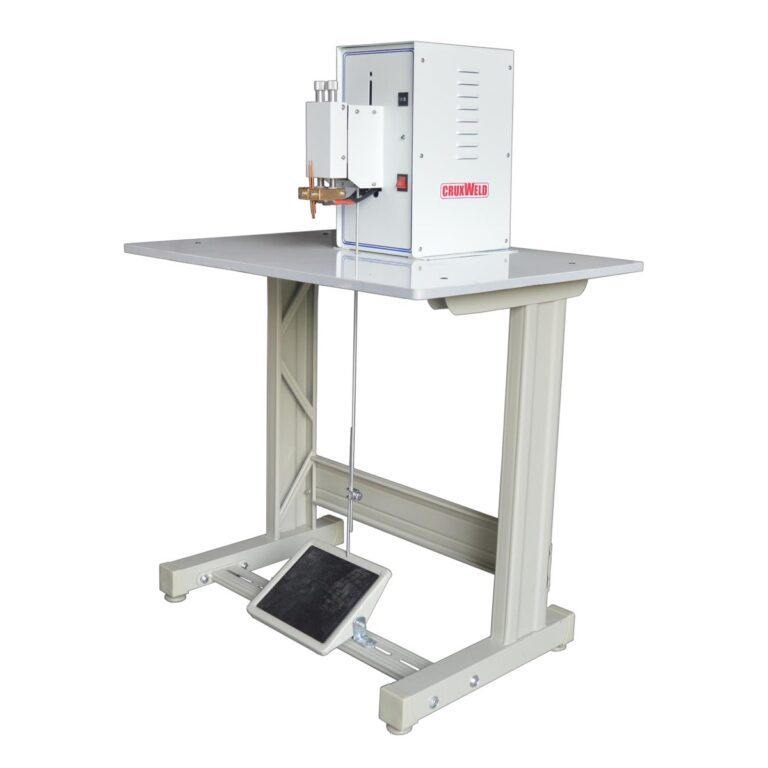

| CBS10M | Pedal operated, 10 kVA | 0.02–0.3 mm nickel | Double pulse, 3500 A max | E-bike, e-rickshaw and power-tool packs |

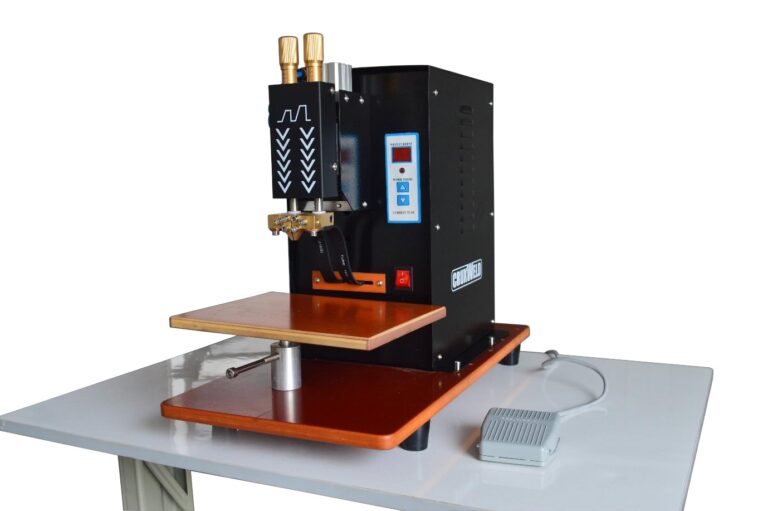

| CBS10P | Pneumatic, foot switch, 10 kVA | 0.02–0.3 mm nickel | Double pulse, 3500 A max | Production lines, 18650 / 21700 / 32650 cells |
Which model for 0.15 mm nickel strip?
Any of the five. For a few packs a day the CLB5H; for daily production the CBS10M or CBS10P with double pulse.
Single pulse or double pulse?
Double pulse pre-heats the strip and then welds, giving a stronger, more consistent nugget on plated or nickel-alloy strip.
Can I weld copper tabs?
Pure copper needs nickel-plated strip or a copper-nickel sandwich. Send your strip spec to our team for a test.
What power supply is needed?
The CLB5 series runs on 220/230 V single phase; the supply for CBS10M and CBS10P is listed on each product page.
How do I get a price?
WhatsApp the strip thickness, cell type and packs per day for a same-day quote.
Read more: how to choose a battery spot welder.
Need help choosing? WhatsApp our technical team on +91 88008 82983 with your material and thickness. GeM Registered OEM Manufacturer. Supported Worldwide.
