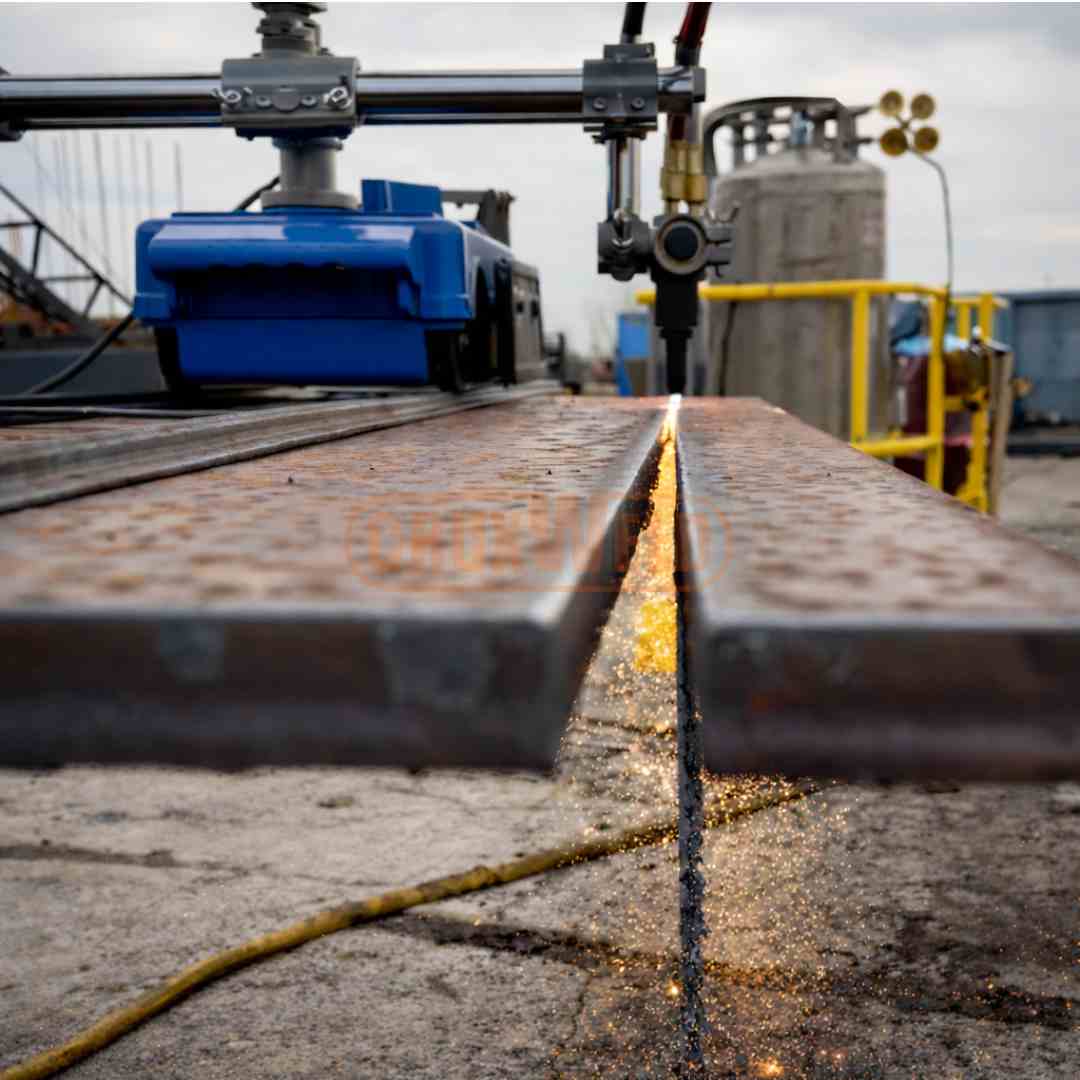

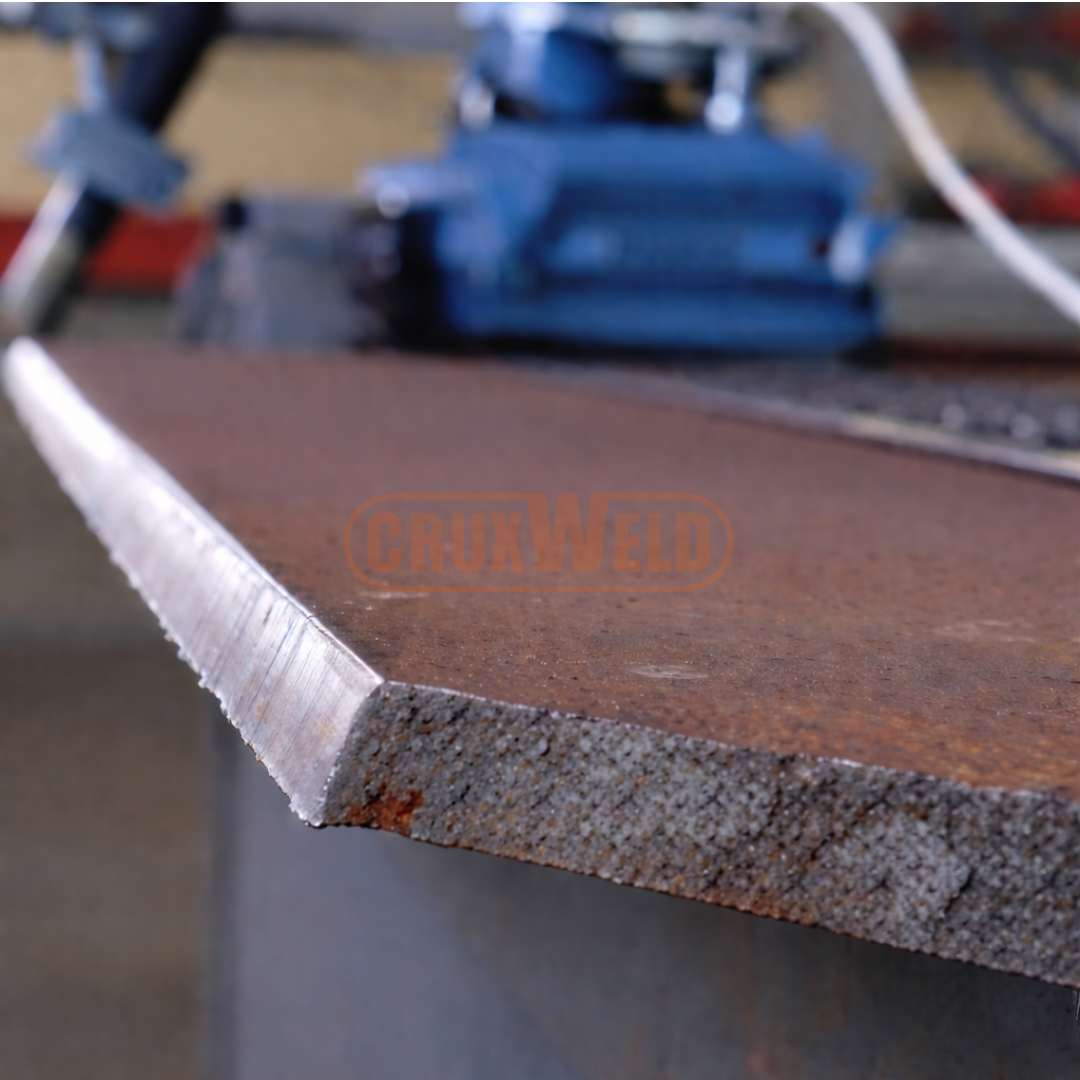

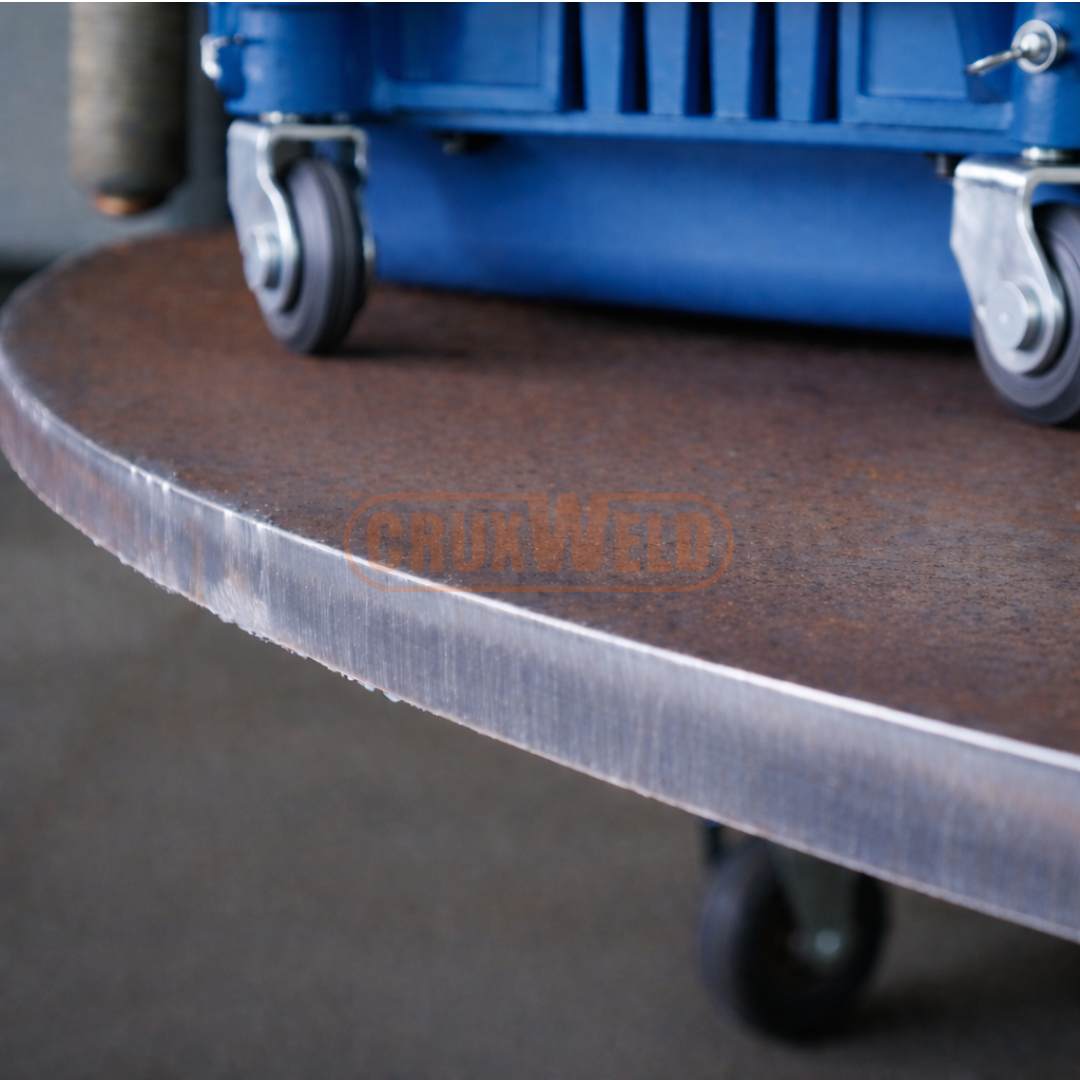

The CRUXWELD DynaMove 45K is a rail-guided oscillating welding carriage that also cuts. Mount a MIG/MAG torch and it welds at 50–1100 mm/min with a linear weave up to 50 mm wide. Swap to a plasma or oxy-fuel torch and it cuts straight, bevels from 0 to 45° and cuts circles from 200 to 2000 mm.
Price, delivery & technical help — get a fast response.
Maximum cutting thickness is up to 150 mm, depending on the cutting process.

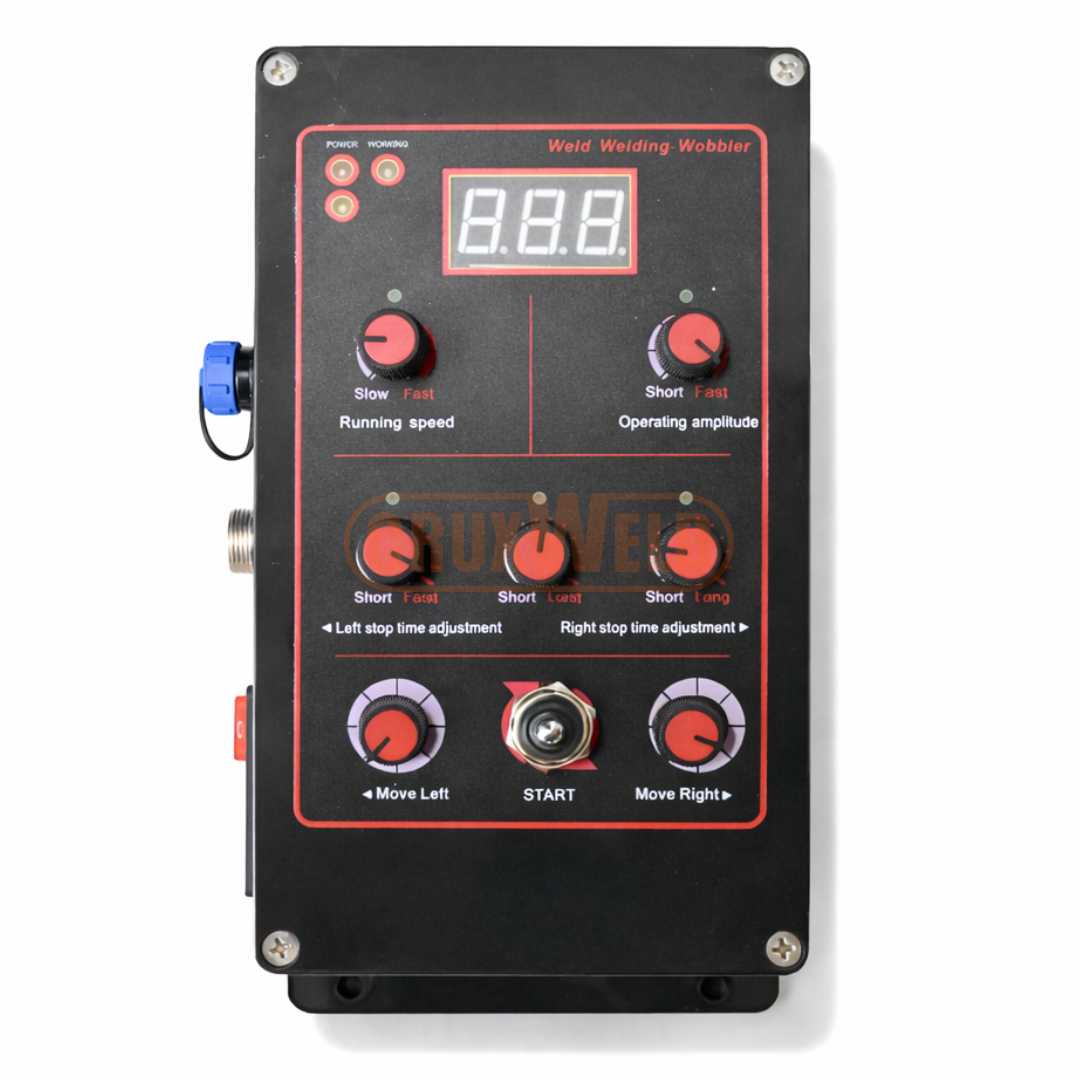

The linear oscillator swings the torch across the joint while the carriage travels, pausing at each side for sidewall fusion. Even heat across the groove helps reduce porosity and undercut, and a controlled weave cuts over-welding and wasted filler metal.
A DC 110 V, 30 W motor (4200 r/min) drives the carriage. Speed is set on the controller, and the quick clutch frees the carriage for fast positioning on the rail.
The exact scope of supply is confirmed on the quotation.
Need CNC shapes instead of straight lines? See the portable CNC plasma cutting machine. For welding only, compare the DynaSwing 100K, DynaFlex 100S, Dynex 5M and WeldOrbit 360.
| PARAMETER | DYNAMOVE 45K |
|---|---|
| Power & drive | |
| Model | DynaMove 45K |
| Power source | AC 220 V ±10%, single phase, 50/60 Hz |
| Motor | DC 110 V, 30 W, 4200 r/min |
| Speed control | Silicon-controlled, microprocessor controller |
| Track | Rigid rail, quick clutch |
| Speeds | |
| Welding speed | 50 – 1100 mm/min |
| Cutting speed | 50 – 4500 mm/min |
| Cutting | |
| Cutting processes | Plasma and oxy-fuel |
| Max cutting thickness | Up to 150 mm (process dependent) |
| Groove / bevel angle | 0 – 45° |
| Circle cutting diameter | 200 – 2000 mm |
| Oscillation | |
| Oscillation type | Linear |
| Oscillation width | 0 – 50 mm |
| Oscillator arm stroke | 0 – 100 mm |
| Oscillation speed | 0 – 1500 mm/min |
| Max oscillator pulling force | 100 N |
| General | |
| Welding processes | MIG/MAG, TIG |
| Torch clamp | Rack type, adjustable height, angle within ±45° |
| Dimensions | 435 × 220 × 240 mm |
| Weight | 12.5 kg |
Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.
