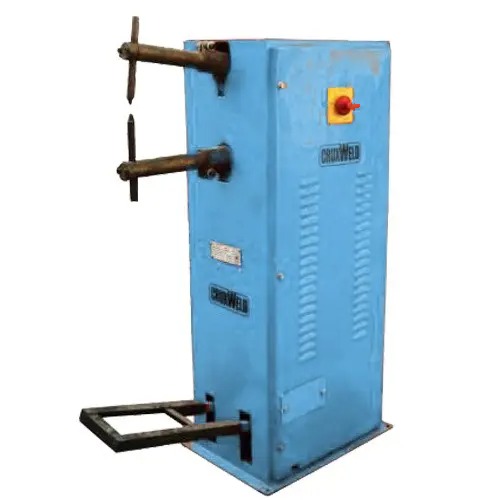

| Specification | Unit | CSP-5 |
| Input supply | Volt | AC220/415±15% |
| Phase | No | 1/2 |
| Rating @ 50% duty cycle | KVA | 5 |
| Nominal throat clearance | mm | 230 |
| Throat depth | mm | 450 |
| Maximum electrode stroke | mm | 40 |
| Nominal electrode force (approx) | kgf | 150 |
| Maximum available short circuit current | KA | 6.5 |
| Mild steel welding thickness range (min. to max.) | 2 x mm | 0.16 to 1.6 |
| Stainless steel welding thickness range (min. to max.) | 2 x mm | 0.15 to 1.5 |
| Brass welding thickness range (min. to max.) | 2 x mm | 0.1 to 0.6 |
| Insulation | Class | H |
| Transformer cooling | – | Air cooled |
| Cooling for arms and electrodes | – | Water |
| Main supply copper cable size | mm² | 8 |
| Main disconnection switch | Amp | 15 |
| Dimensions (LxWxH) | mm | 1100x550x350 |
| Weight (approx) | kg | 110 |
Load More
Hi Can you know the price of csp_5 welder
Thank for the enquiry we will contact you.
we require spot welding for making 6 mm rod to joint with 2-3 wire for
making colom for concrete
Thank you for the interest shown in our welding machine. We will send you the required information.
Hello sir,
I am wahid from Decor & Design. we want information about spot Welding machine for manufacturing of ss kitchen baskets.
The team cruxweld thank you for the interest in our welding machine. We will revert with techno commercial of this welding machine.
Ik zoek een puntlas machine voor ronde staafjes van 3mmen 2mm op elkaar te lassen of punten zoals jullie dat noemen.
Enkel enkel een klein probleem hier is maar 220 volt in de woning voorzien ik dank u
