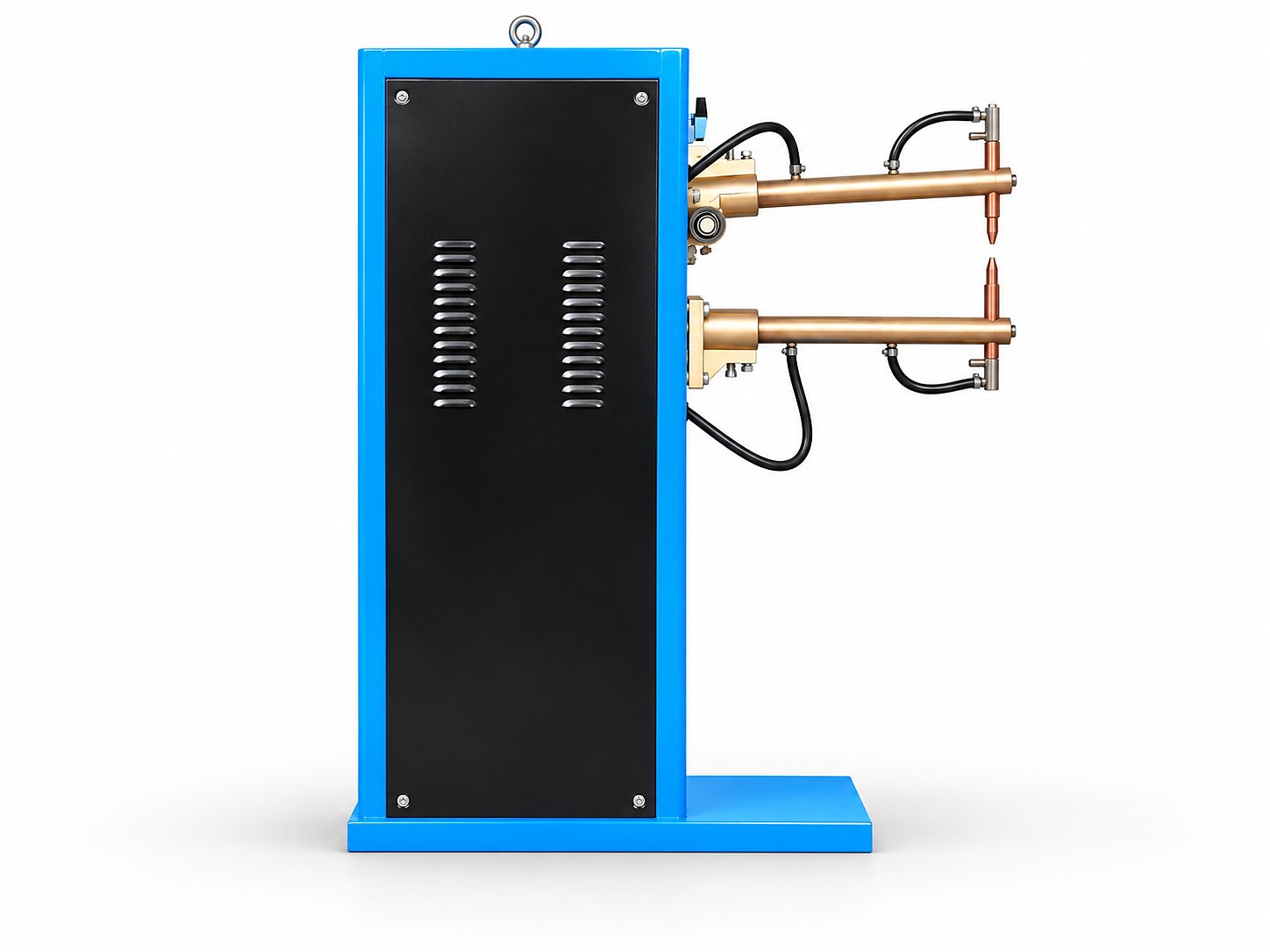

The CRUXWELD ROKR 16K is a 16 kVA pedal operated spot welding machine for sheet-metal shops that want production-grade spots without a compressor. Water-cooled copper arms, a six-tap current selector, a solid-state weld timer and a heavy spring-loaded electrode force of about 150 kgf give repeatable spots on mild steel up to 3 + 3 mm, stainless to 2.8 + 2.8 mm and brass to 1.5 + 1.5 mm. Press the pedal: the switch fires only after the pre-set force is reached.
GeM Registered OEM Manufacturer · Made in India · Supported Worldwide · 45+ years of welding expertise
Price, delivery & technical help — get a fast response.
A pedal operated spot welding machine is the workhorse of the sheet-metal shop: no compressed air, no hydraulics, nothing to maintain except electrodes.

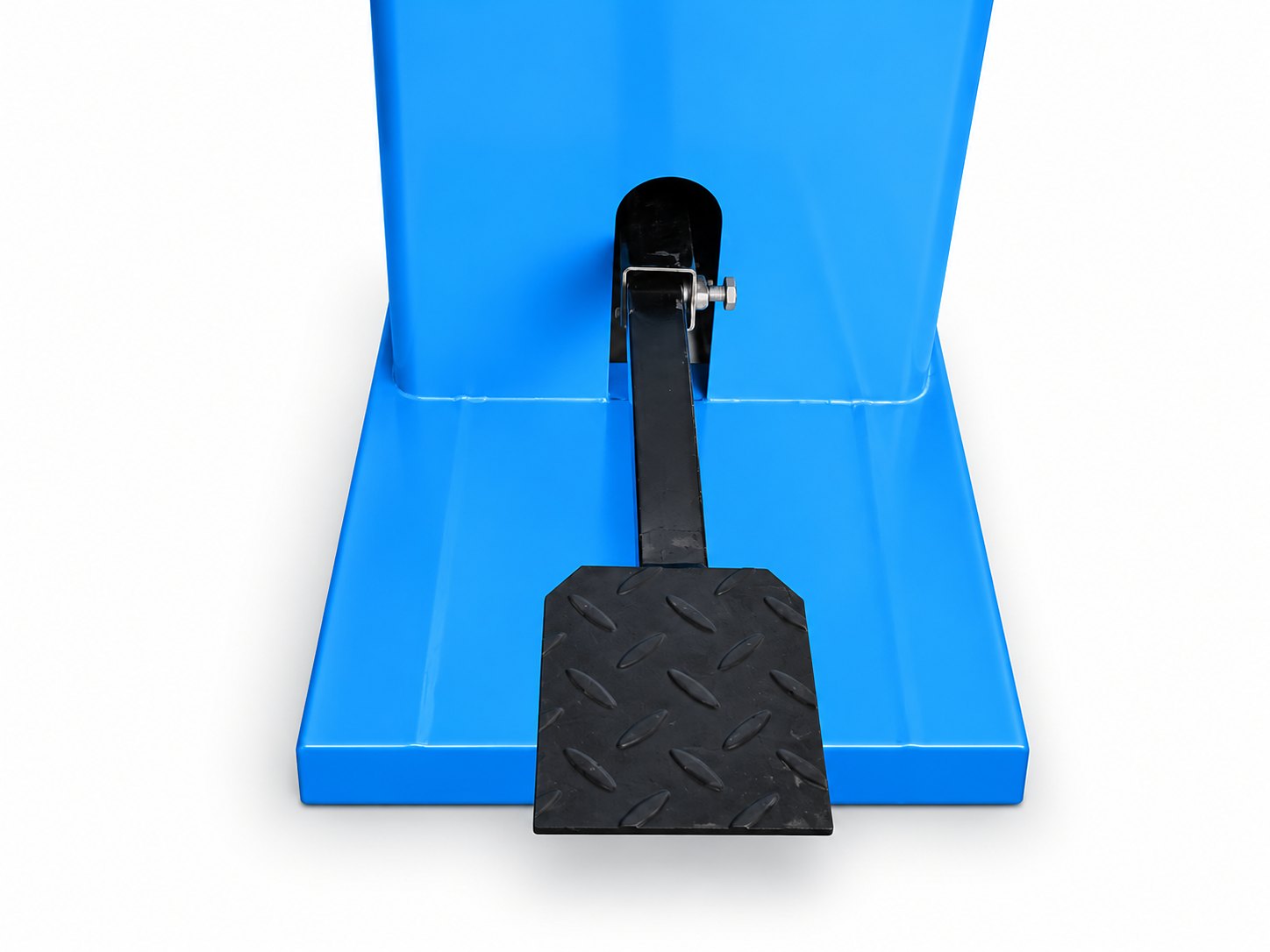

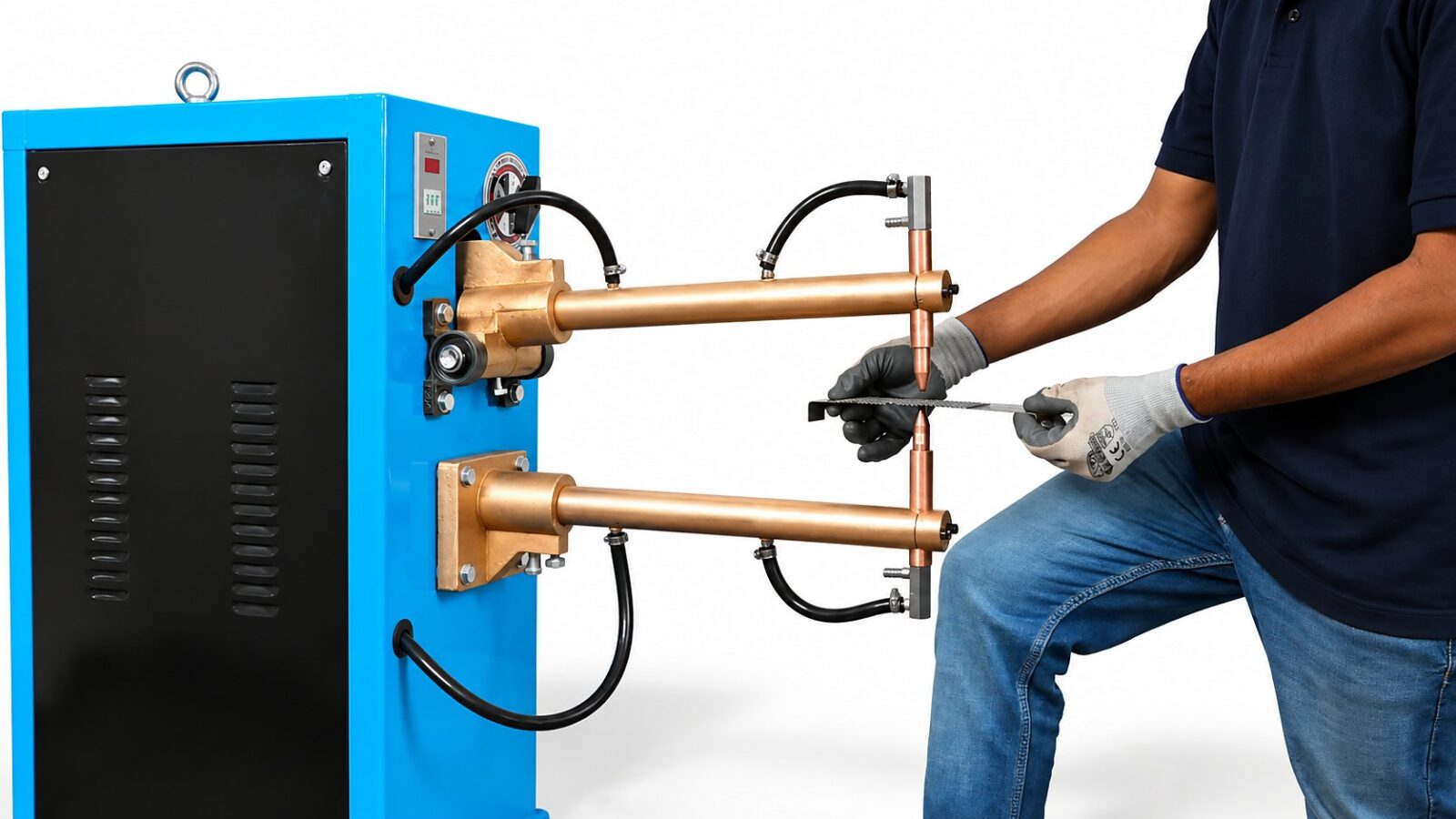

The operator positions the parts between two copper electrodes and presses the pedal; the rocker arm closes, a spring on the pressure rod builds the electrode force, and only then does the switch fire the weld, so every spot is made under the same pressure.

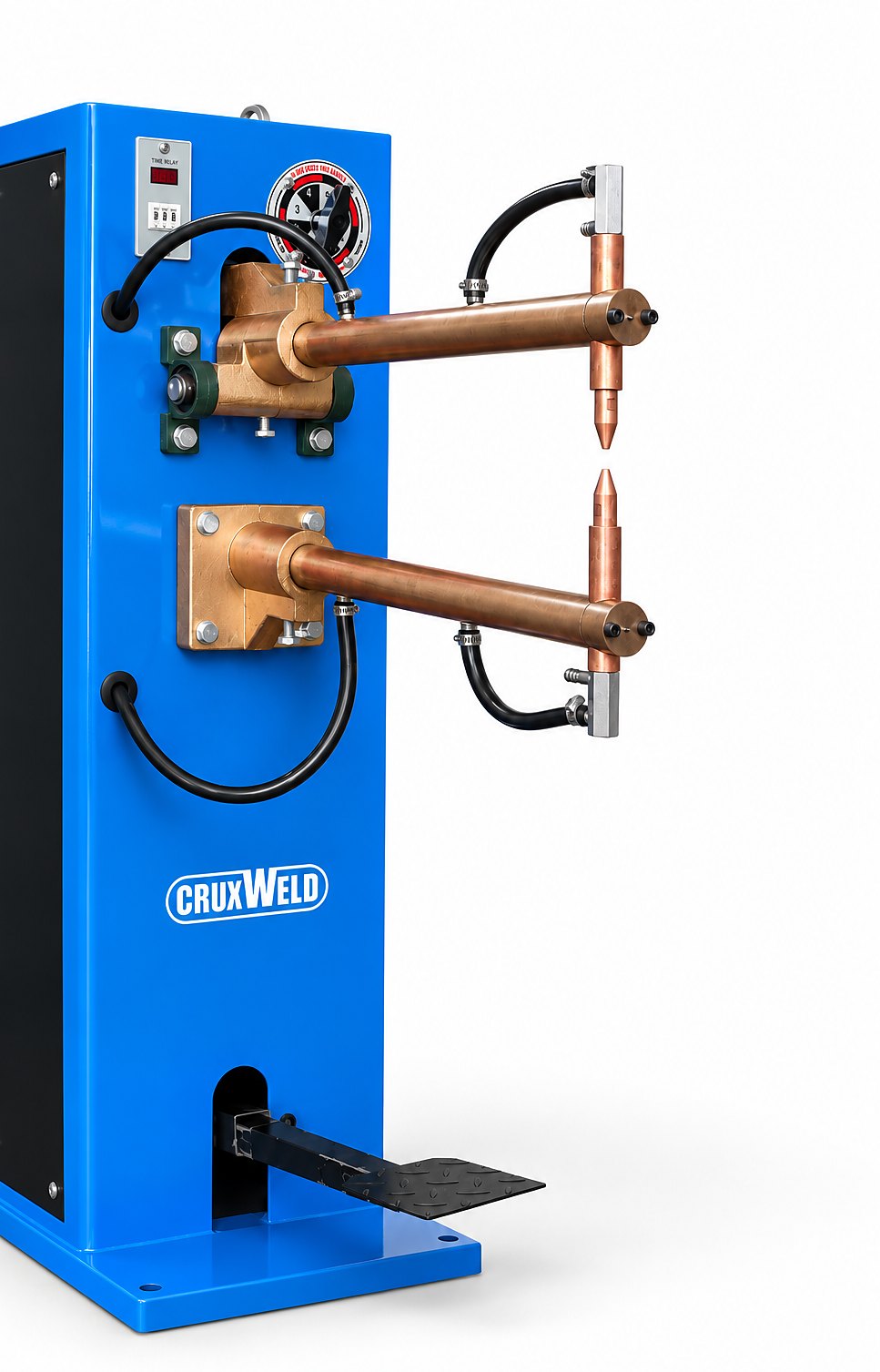

The ROKR 16K carries a 16 kVA high-linkage transformer, six current taps from 50% to 100% and a solid-state timer that controls the weld from 5 to 50 cycles (or 1 to 10 s). Arms, holders and electrodes are water-cooled, so the machine holds its settings through a full shift of cabinets, panels, wire mesh, brackets and ducting.
Electrode force comes from a heavy spring on the pressure rod at the back of the machine; electrode stroke is adjusted vertically at the holder. One pair of Morse taper II straight electrodes is supplied as standard.
The hero animation slowed down: watch the force build first, and the current fire only after it.
Resistance spot welding needs no filler and no gas: the joint is the parent metal, fused by the resistance heat of the sheets themselves.
Pick a material to see the two sheets, the electrodes closing and the weld nugget forming.
Range: 0.3–3.0 mm each sheet.

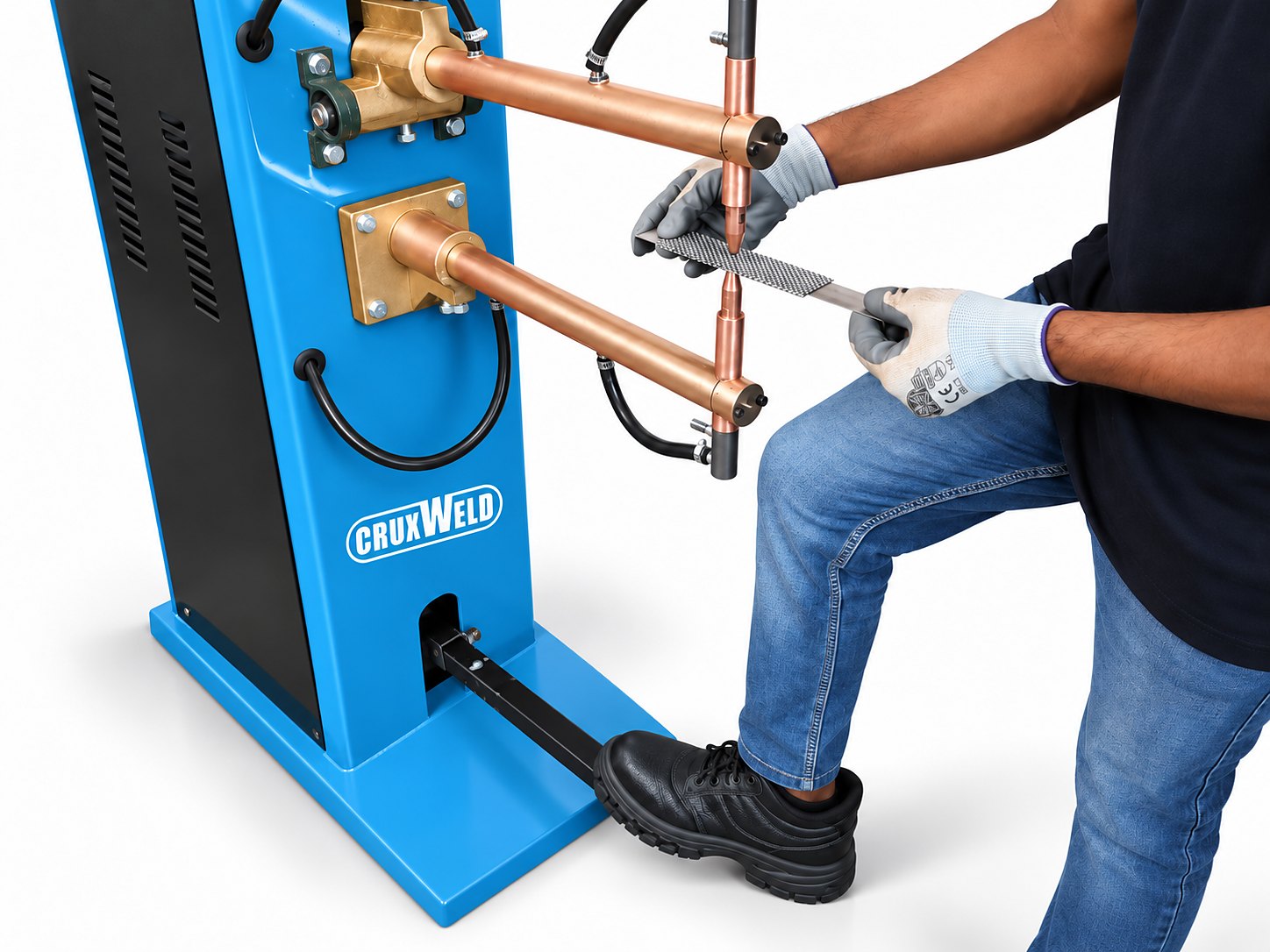

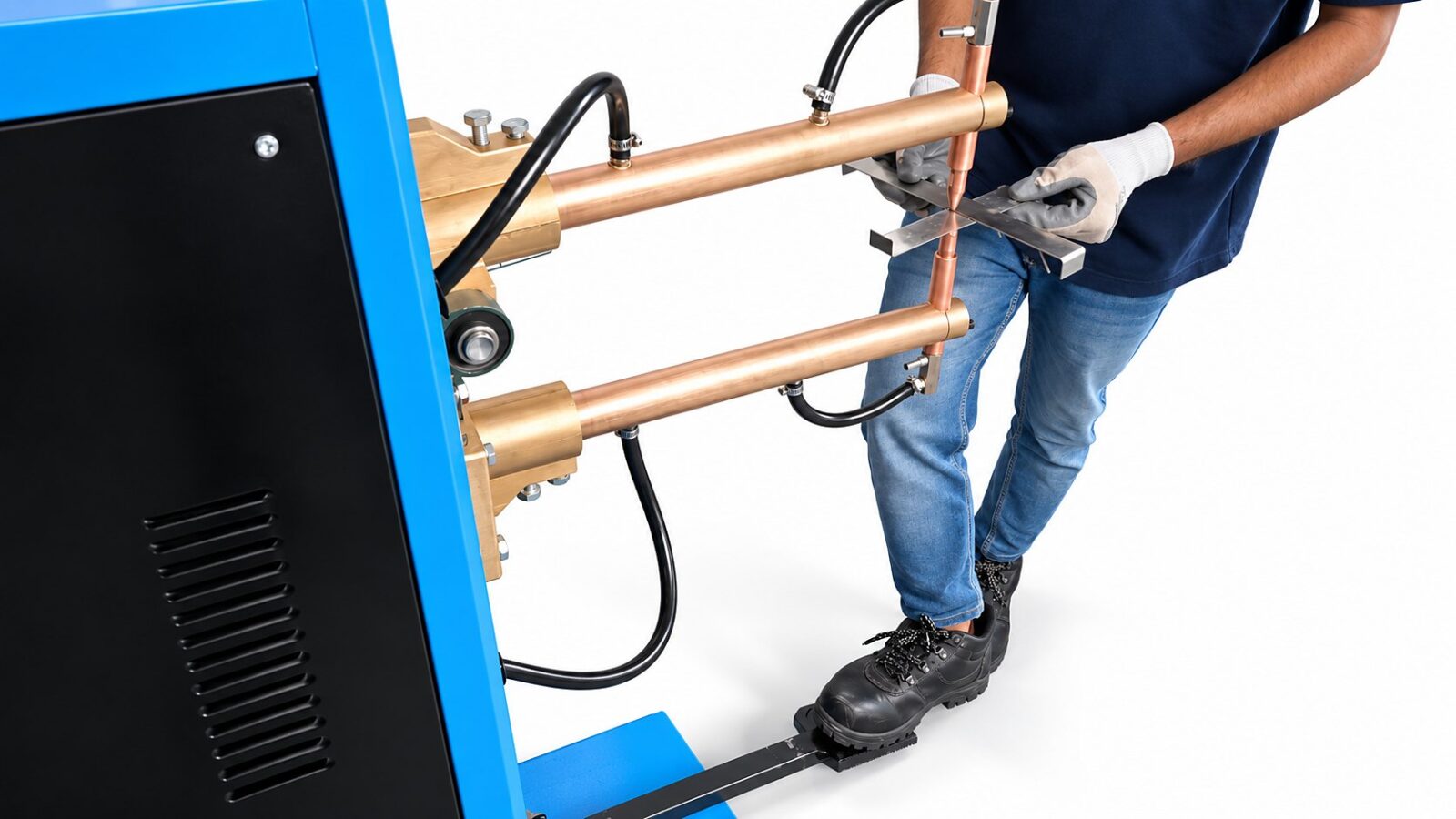

Typical jobs: Cabinets, panels, brackets, ducting, wire mesh.
Range: 0.3–2.8 mm each sheet.
Typical jobs: Kitchen equipment, pharma trays, tanks.
Range: 0.2–1.5 mm each sheet.
Typical jobs: Fittings, electrical hardware.
Capacities are for two sheets of equal thickness on a pedal operated spot welding machine with the standard electrodes. Dissimilar thicknesses, galvanised sheet and coated material are welded with adjusted tap and time settings; our technical team will confirm them for your parts.

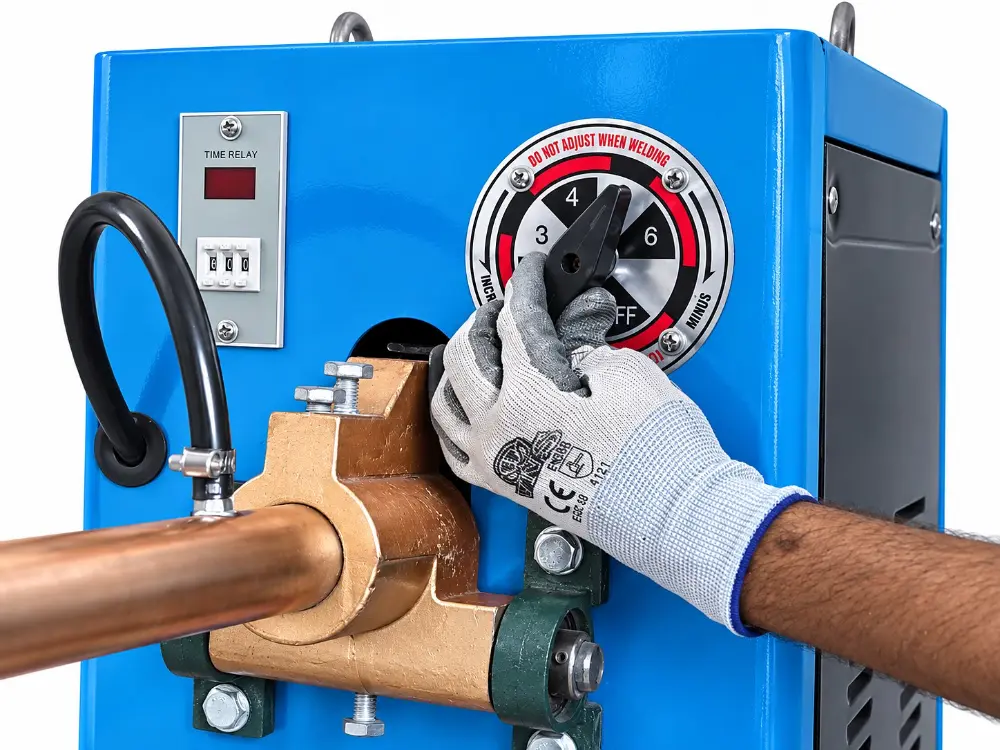

Tap-change links set 50–100% of rated current; the timer sets the weld from 5 to 50 cycles (or 1 to 10 s). Tap a setting to see what changes.
Thin sheet and small parts: less current, a small, neat spot with no marking.
Everyday sheet-metal work. Set the timer so every spot gets the same weld time.
Thick sheet up to 3 + 3 mm mild steel: full current for a bigger nugget.

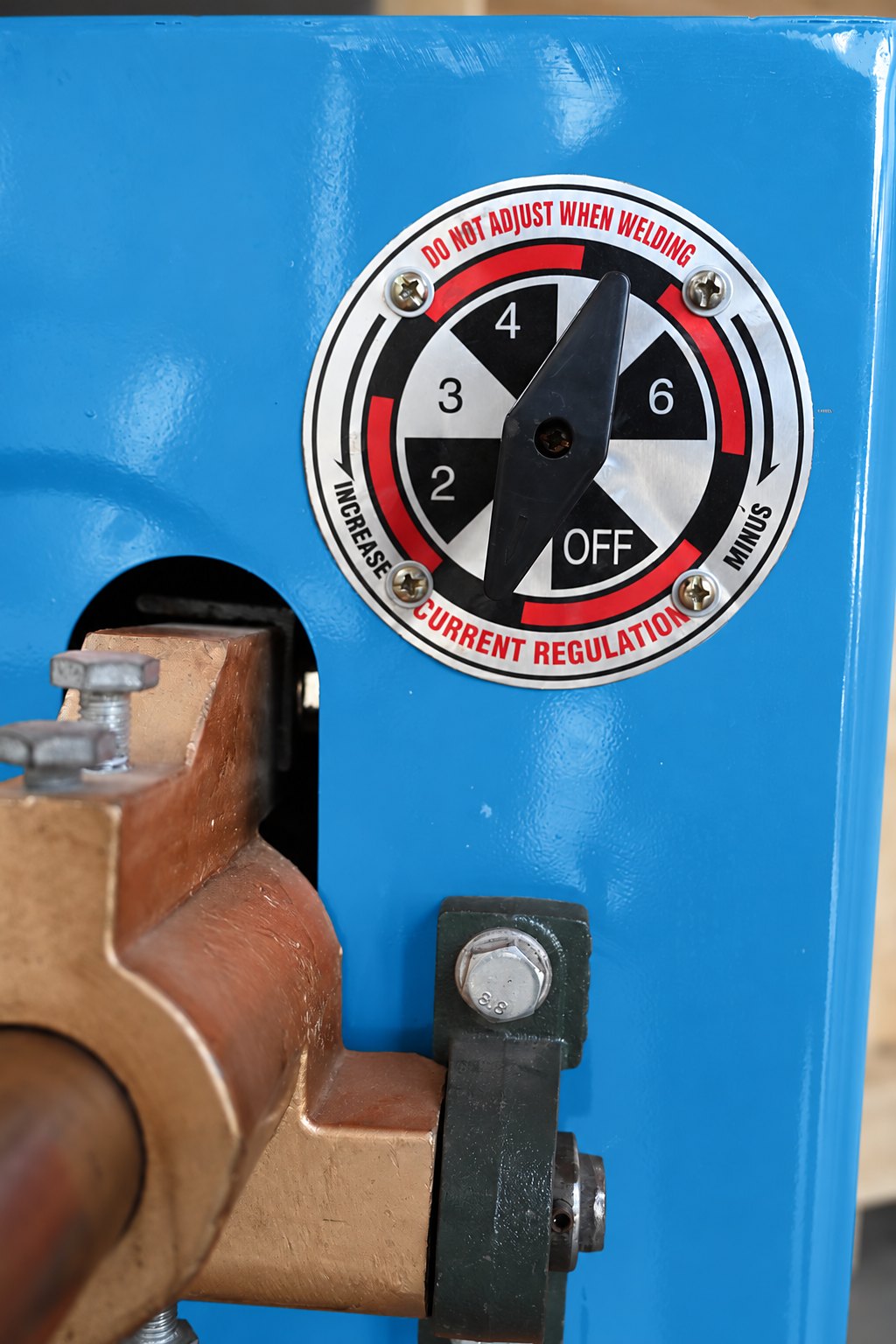

Change taps only with the machine off: the dial says so. Our technical team gives you the tap and time settings for your sheet thickness at commissioning.
For small electrical and battery tabs see the hand-operated tab welders; for nut and stud projection welding see our projection welders.
Connect a 415 V supply (30 A disconnect switch, 15 mm² copper cable) and a water line and the pedal operated spot welding machine is ready to weld. Special electrodes and holders are quoted separately; the exact scope is confirmed on the quotation. See the full range on our products page.
Tell us your material and sheet thickness: we will confirm the settings and send a quotation.
| PARAMETER | ROKR 16K |
|---|---|
| Model | ROKR 16K |
| Type | Pedal operated, rocker-arm, pedestal |
| Input supply | AC 380 / 415 V ±15% |
| Phase | 2 of 3 (single-phase load) |
| Frequency | 50 Hz |
| Rating @ 50% duty cycle | 16 kVA |
| Maximum short-circuit current | 8.5 kA |
| Nominal throat clearance | 230 mm |
| Throat depth | 450 mm |
| Maximum electrode stroke | 40 mm |
| Nominal electrode force (approx.) | 150 kgf |
| Weld time control | Solid-state timer, 5 – 50 cycles / 1 – 10 s |
| Current control | 6 tap-change links, 50 – 100% |
| Weld initiation | Mechanical switch after pre-set force |
| Mild steel (2 sheets, each) | 0.3 – 3.0 mm |
| Stainless steel (2 sheets, each) | 0.3 – 2.8 mm |
| Brass (2 sheets, each) | 0.2 – 1.5 mm |
| Electrodes | 1 pair Morse taper II straight |
| Insulation | Class H |
| Transformer cooling | Air cooled |
| Arms & electrode cooling | Water |
| Main supply copper cable | 15 mm² |
| Main disconnection switch | 30 A |
| Dimensions (L × W × H) | 660 × 450 × 1200 mm |
| Weight (approx.) | 160 kg |
Short-circuit current (8.5 kA) is what is available at the electrodes to make the spot. Throat depth and clearance set how far into a panel the pedal operated spot welding machine can reach. Electrode force of about 150 kgf is what squeezes the sheets together before the current flows.
Specifications are subject to improvement without notice. The quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.
