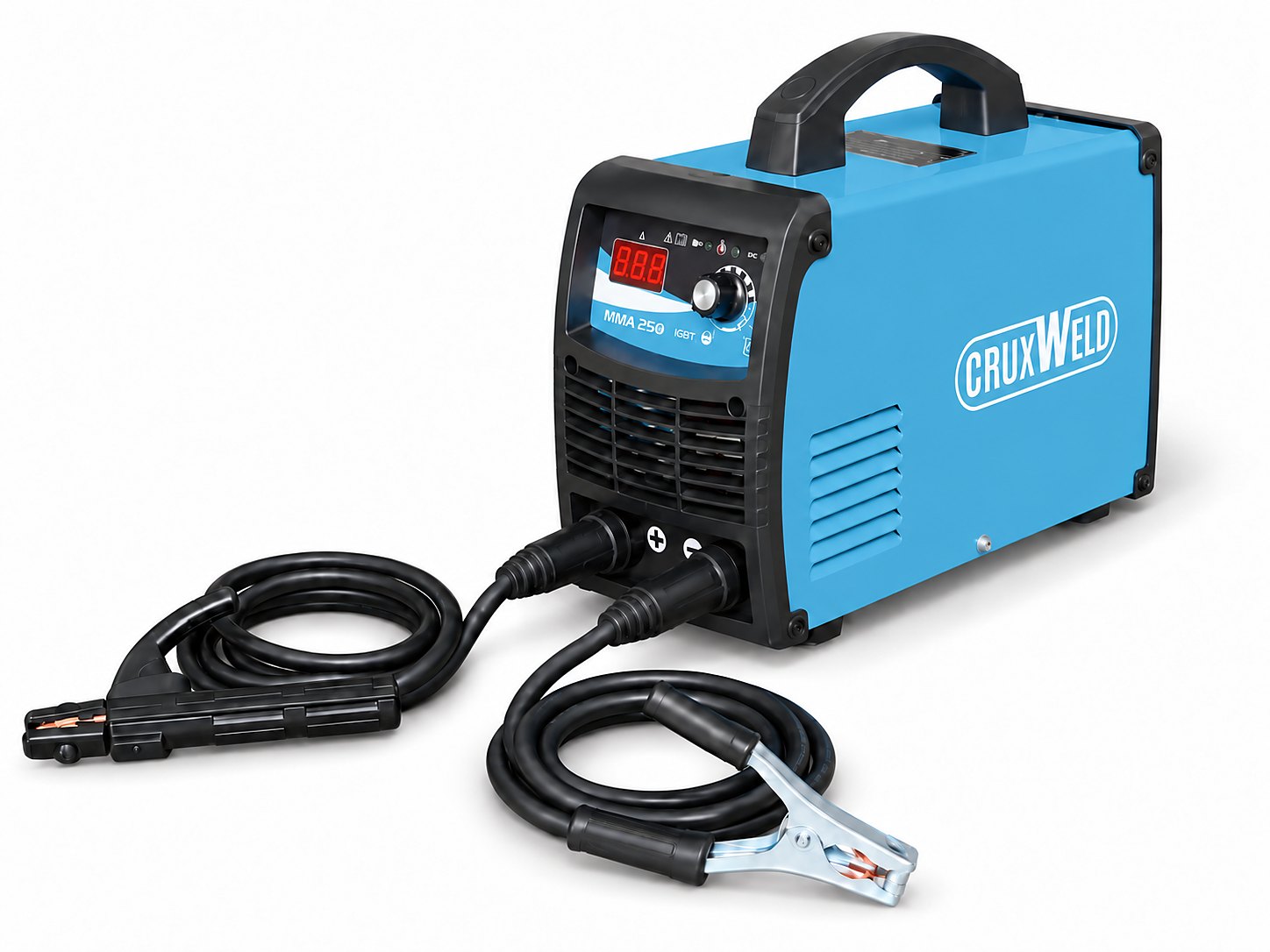

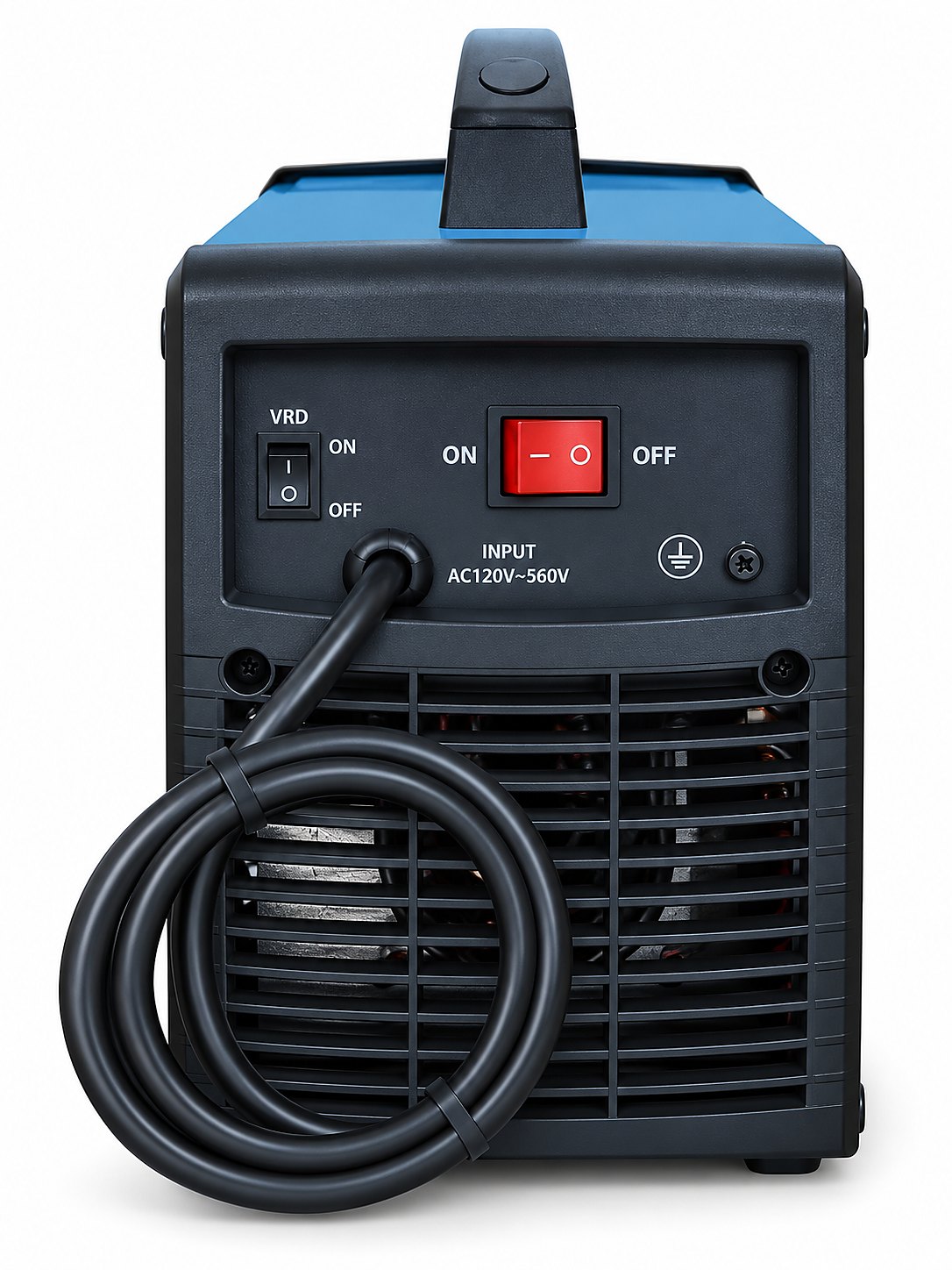

The CRUXWELD ARC251iS is a 250A inverter welding machine for the 230 V single-phase socket every workshop and site already has. An IGBT digital inverter gives a smooth, low-spatter DC arc from 10 to 250 A; a VRD switch on the back drops the holder voltage to a safe level between welds; anti-stick releases a frozen rod. It runs 1.6, 2.5 and 3.2 mm electrodes all day and 4 mm for intermittent work, on mains or on a generator. Engineered, assembled and tested in India by a GeM Registered OEM Manufacturer.
Price, delivery & technical help — get a fast response.
Most of the welding in India happens where there is no three-phase supply: a fabrication shop on a 230 V connection, a customer’s site board, a farm shed, a hire-fleet generator. The ARC251iS 250A inverter welding machine is built for exactly that. It draws a maximum of 7.5 kVA from a single-phase socket, compensates for mains fluctuations of ±20%, and holds a steady arc while the supply sags under other loads.

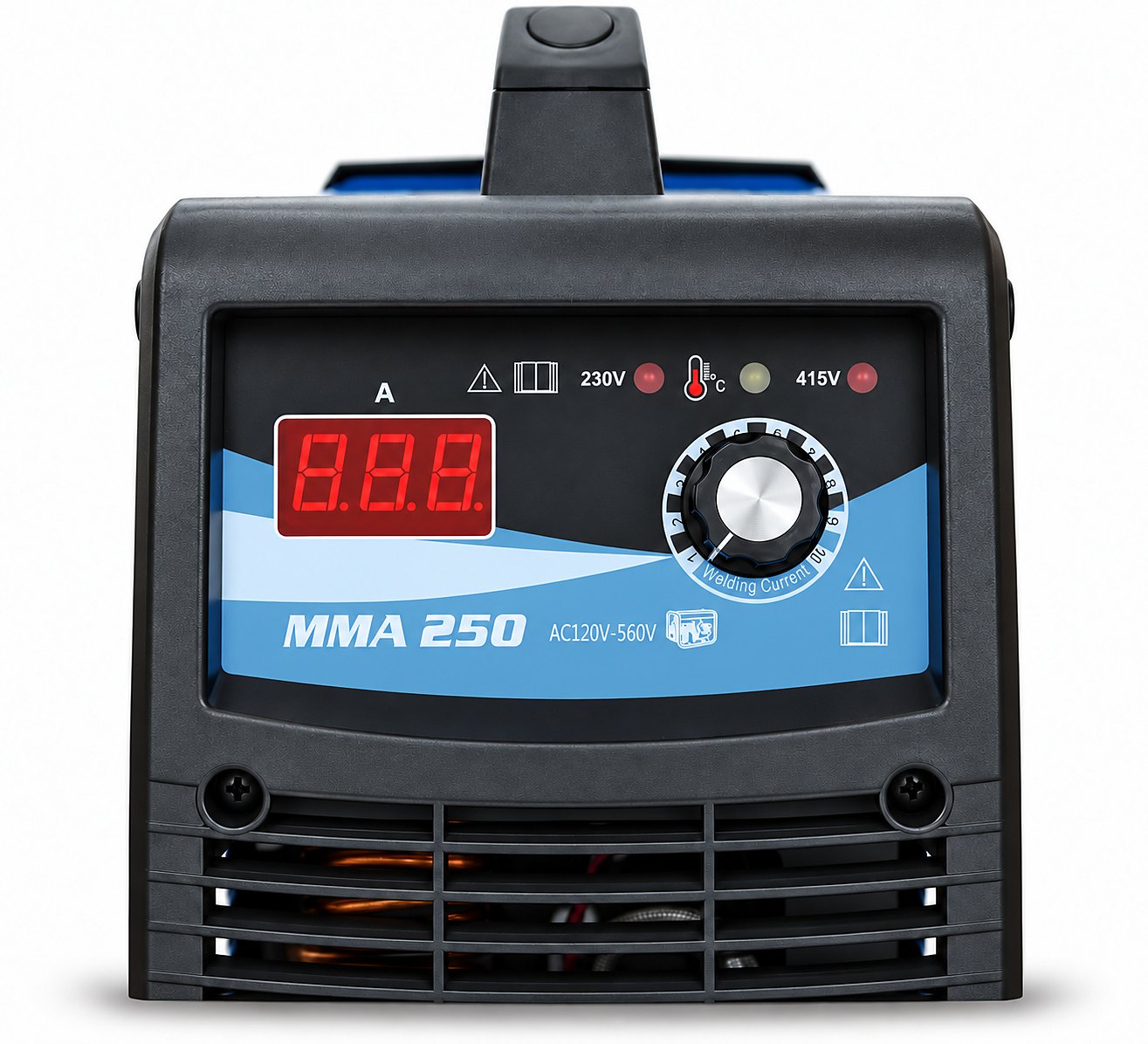

Inside is an IGBT inverter with digital current control for a stable, low-spatter DC arc, reliable ignition with rutile and basic electrodes, and anti-stick to release a frozen electrode without burning the holder. A three-digit display shows the set current; a single knob sets it. Nothing to learn, nothing to misadjust.

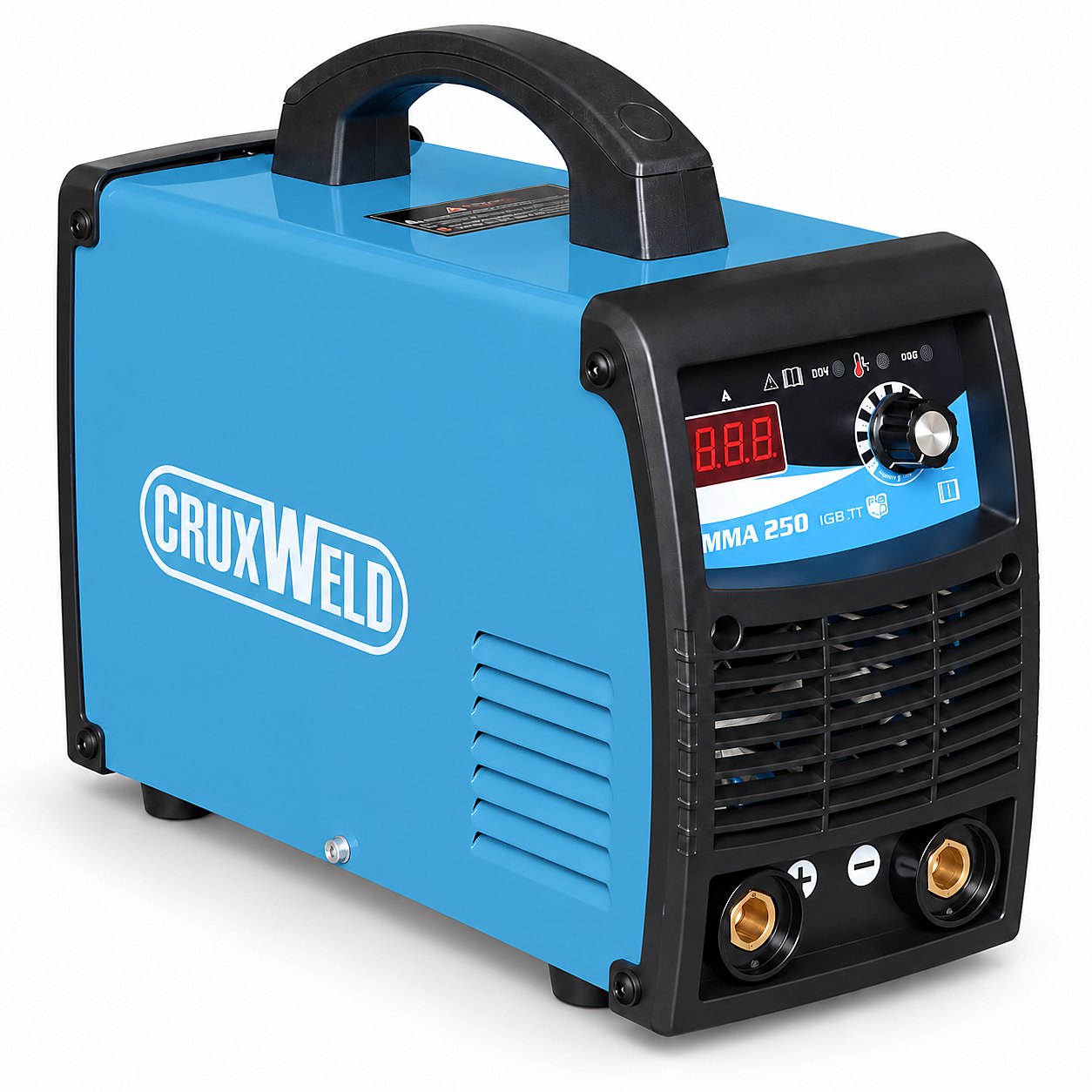

The 250A inverter welding machine sits in a steel case with moulded impact bumpers front and rear, louvred sides and forced-air cooling; class H insulation and IP23S protection for outdoor work.
A 250 A class used to mean three phase. The ARC251iS 250A inverter welding machine takes its full output from an ordinary 230 V single-phase supply — a 32 A socket in the shop, a site distribution board or a portable generator — because the inverter, not the transformer, sets the arc.

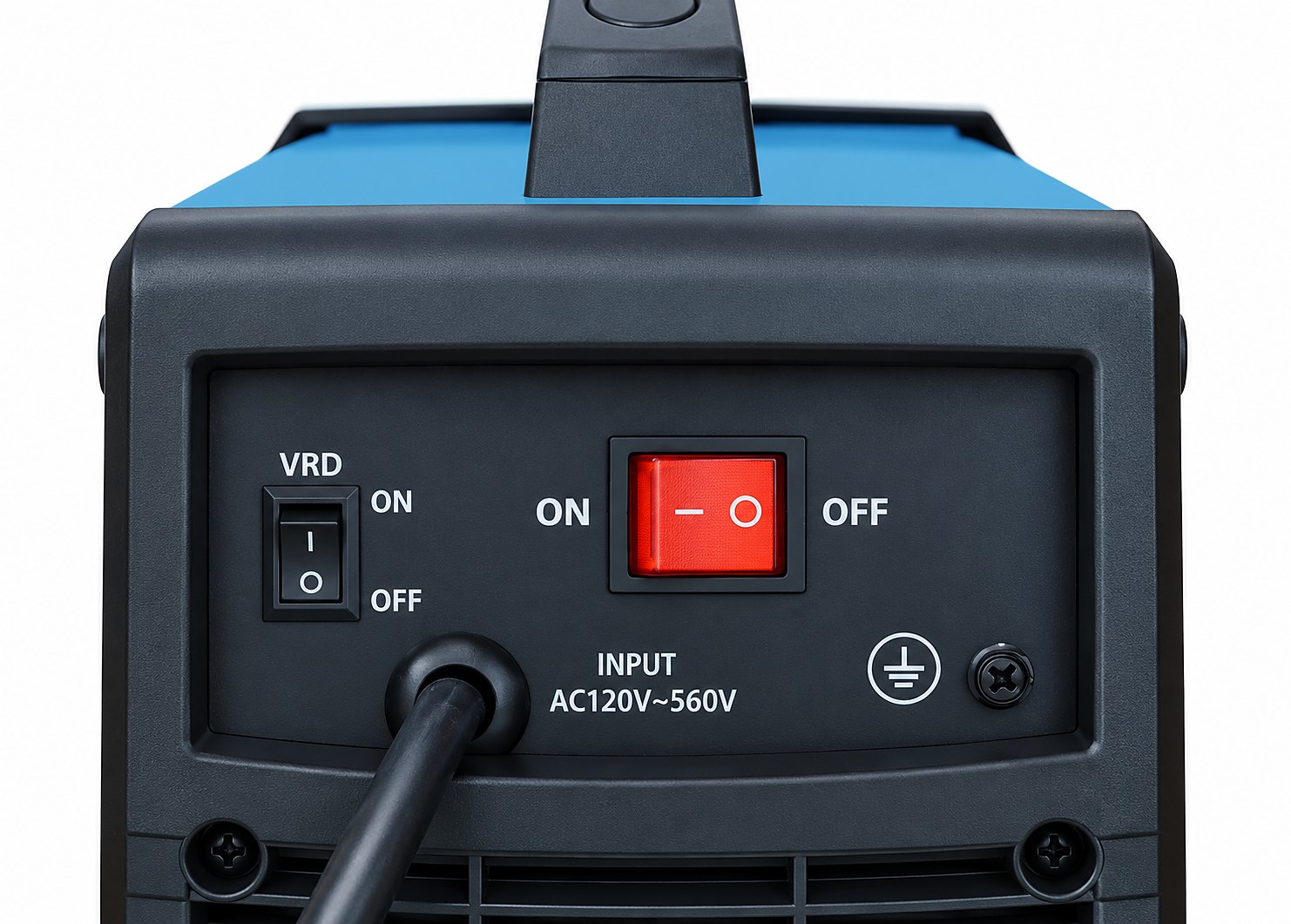

An arc welder’s open-circuit voltage is what sits on the electrode holder whenever you are not welding. On a dry shop floor it is harmless; in a ship’s double bottom, a wet trench or a boiler drum it is the voltage that goes through a sweating welder lying on steel. A Voltage Reduction Device watches the output and, whenever no arc is burning, reduces the holder voltage to a safe level. The moment the rod touches the plate the full open-circuit voltage returns and the arc strikes normally.
If your tender or safety officer asks for “VRD-equipped” welding sets, the ARC251iS qualifies as supplied.
Typical DC ranges; follow the electrode box for the exact setting. 7018 low-hydrogen, 6013 rutile, stainless and cast-iron rods all run on the ARC251iS.
Need less? The ARC 200 is the lighter single-phase workshop choice. Need 4 and 5 mm rods all day? The three-phase ARC 300 and ARC400iS are built for it.
Longer leads, a hand shield and a carry strap are optional; the exact scope is confirmed on the quotation. See the full range on our products page.
| Parameter | ARC251iS |
|---|---|
| Model | ARC251iS |
| Type | 250A inverter welding machine, IGBT, DC |
| Welding process | MMA / SMAW (stick) |
| Input voltage | 230 V ±20%, single phase |
| Frequency | 50 / 60 Hz |
| Max input power | 7.5 kVA |
| Rated input current | 32 A |
| Open-circuit voltage | 65 V (reduced with VRD on) |
| Welding current range | 10 – 250 A |
| Welding current @ 60% duty | 250 A |
| Welding current @ 100% duty | 195 A |
| Power factor | 0.94 |
| Suitable electrodes | 1.6, 2.5, 3.2 mm; 4 mm intermittent |
| Anti-stick | Yes |
| VRD (voltage reduction device) | Yes, switchable |
| Generator compatible | Yes |
| Protection | Over-voltage, under-voltage, over-current, thermal |
| Cooling | Forced air |
| Degree of protection | IP23S |
| Insulation class | H |
| Dimensions (L × W × H) | 455 × 202 × 372 mm |
| Weight (approx.) | 9 kg |
Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.
