01

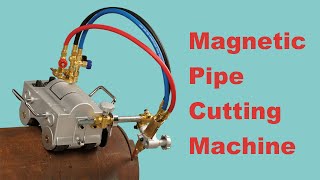

A Magnetic Pipe Cutting Machine for Cuts a Chain Cannot Reach
A chain-driven cutter is excellent for one job: a circumferential cut around the outside of a pipe. A magnetic pipe cutting machine does that job too — and then keeps going. Because the TUBOCUT-MS grips the steel with permanent magnets rather than a chain, it can travel lengthwise along a pipe for a parallel cut, work around an end face, run on the inside of a large-diameter shell, and cut circles and openings in the pipe wall.
Set-up takes seconds: place the machine on the pipe, the magnets take hold, align the torch, set the speed on the dial and start. At 20 kg it is a one-person machine, and its 220/110 V drive runs from a site generator.
No chain, no tensioning
Double permanent-magnet drive, front and rear, keeps the machine stable and tracking true.
Four kinds of cut
Circumferential, parallel (along the pipe), end-face and circular cut-outs — square or bevelled up to 45°.
Oxy-fuel or plasma
Injector torch for 5–100 mm wall; plasma torch for stainless and thin wall.
Both directions
Clockwise or anti-clockwise travel, so the operator can always work from the comfortable side.
02
How a Magnetic Cutter Holds the Line
The drive unit carries magnet wheels at the front and rear. Each wheel is a permanent magnet, so the holding force is there the moment the machine touches steel — no power is needed to hold on, and a power cut does not drop the machine. The 70 W motor, fed by a 158 W inverter with SCR speed control, turns the wheels at a constant speed between 50 and 1150 mm/min; the torch, set square or at the chosen bevel angle, follows at exactly that speed, which is what keeps the kerf uniform and the edge clean.
1
Place
Set the machine on the pipe; the magnet wheels grip. For inside cuts, place it on the inner wall of the shell.
2
Align
Fit the oxy-fuel or plasma torch, set square or bevel up to 45°, and adjust nozzle distance.
3
Set speed
Dial in 50–1150 mm/min for the wall thickness and process; choose clockwise or anti-clockwise.
4
Cut
Pre-heat, start cutting, switch on the drive. Lift off when the cut is complete and move to the next pipe.
03
Why Fabricators Choose the TUBOCUT-MS
“Wrapping a chain on every pipe wastes time.”
Magnets hold instantly. Set-up is placing the machine, not dressing it.
“I need to cut along the pipe, not just around it.”
Lengthwise, end-face and inside cuts are all possible on magnet wheels.
“Hand bevels never pass inspection.”
A constant-speed, fixed-angle torch gives a uniform bevel up to 45° in a single pass.
“Site power is unreliable.”
158 W inverter-fed drive on 220 V or 110 V runs from any small generator; the magnets need no power at all.
04
Key Features
Double permanent-magnet wheels
Front and rear magnetic drive for stable movement on curved and flat steel.
SCR speed control, 50–1150 mm/min
70 W motor, 158 W inverter; speed set on the dial.
45° bevel adjustment
Torch holder tilts for square cuts and single-V preparations.
Clockwise / anti-clockwise
Direction switch for working from either side of the pipe.
Injector-type torch
Oxy-acetylene or oxy-LPG for 5–100 mm wall; plasma torch mountable.
20 kg, 350 × 310 × 280 mm
Compact enough to work inside shells and between pipe runs.
05
Applications
Oil, gas & petrochemical piping
Field cutting and bevelling of seamless line pipe and process pipe.
Pressure vessels & shells
Inside and outside cuts on large-diameter shells and nozzles.
Power plant & boiler piping
Header, tube and duct preparation on site.
Shipbuilding & offshore
Pipe spools, jacket legs and penetrations.
Mining & mineral processing
Heavy-wall pipe and chute cutting in the plant.
Structural steel
Tubular columns and trusses — parallel and circumferential cuts.
Oxy-acetyleneOxy-LPGPlasma (torch mountable)Carbon steel pipeStainless (plasma)Outside / inside / lengthwise
06
Standard Scope of Supply
The TUBOCUT-MS is supplied ready to cut; torch type and any optional items for your order are confirmed on the quotation.
Magnetic drive unit
Double permanent-magnet wheels, 70 W motor, SCR control with speed dial and direction switch.
Torch holder with bevel adjustment
With injector-type cutting torch.
Power cable, user manual & test certificate
Gas supply, hoses and regulators are customer-supplied.
Optional
Plasma torch mounting, longer power cable.
Related machines: the TUBOCUT-CS chain-driven pipe cutter for circumferential cuts on pipes of any diameter with extendable chain, and the portable cutting trolley for plate.
07
Why Buy from CRUXWELD
45+ years of welding & cutting expertise
Designed and tested by CRUXWELD engineers; our technical team answers your questions on WhatsApp.
ISO 9001:2015
Every machine is inspected and run-tested before dispatch.
GeM Registered OEM Manufacturer
Tender-ready documentation for government, PSU and institutional buyers.
Pan-India supply, export ready
Dispatch across India and export packing for overseas orders; nozzles and spares in stock.
01
TUBOCUT-MS Technical Data
Input voltage
AC 220 V / 110 V, 50/60 Hz
Effective pipe diameter
100 mm onwards
Cutting thickness (wall)
5 – 100 mm
Cutting shape
Square and bevel; circumferential, parallel, end-face and circular cuts
Cut / bevel angle
Variable up to 45°
Cutting speed
50 – 1150 mm/min
Drive method
Motorised, double permanent-magnet wheels
Direction
Clockwise / anti-clockwise
Speed control
SCR; adjustment by dial
Cutting torch
Injector type (oxy-fuel); plasma torch mountable
Dimensions (L × W × H)
350 × 310 × 280 mm
Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.
