G00 → G01Plasma or oxy-fuel · 1500 × 3000 mm · embedded CNC
CNC-Accurate Profiles on Any Plate, Anywhere You Can Carry It.
The CRUXWELD DynaCut ProX is a portable CNC plasma cutting machine that lays its own rail on the plate, runs a plasma torch to 30 mm or an oxy-fuel torch to 110 mm, and takes its programs from FastCAM or the built-in shape library — no gantry, no pit, no separate PC.
The CNC traces a nest at the real ratio of cutting speed (up to 3000 mm/min, plasma) to moving speed (up to 4000 mm/min): holes first, then outlines. Illustration.
1500 × 3000
mm cutting area
1–30 mm
plasma, MS & SS
5–110 mm
oxy-fuel
±0.1 mm
programming accuracy
✓Length extendable to 6000 mm with extra rail
✓Automatic torch height control with arc-voltage and ohmic sensing
✓7” colour LCD, keypad or USB program input, 96-shape library
A gantry CNC table needs floor space, a pit and a crane to load it. Many fabrication shops have none of those — but they still need flanges, gussets, brackets and profiles cut straight, square and to drawing, in quantity.
The DynaCut ProX is the answer: a 96.5 kg CNC drive unit that rides its own longitudinal rail across a 1500 mm transverse beam. Lay the rail beside the plate, clamp the torch, load a program and it cuts. Switch the torch and the same machine cuts 110 mm plate with oxy-fuel. When the next job is on site, it goes with you.
Two processes
Plasma 1–30 mm or oxy-fuel 5–110 mm on the same rail.
Embedded CNC
7” display, keypad, USB — no PC on the shop floor.
Auto height
Arc-voltage THC with ohmic touch keeps the torch at the right gap.
Grows with you
Add rail to 6000 mm, add a second torch.
DynaCut ProX on a 1500 × 3000 mm slat table
N020Watch it cut
Three Minutes of Steel Turning Into Parts
Precision steel cutting demo
Decorative profile on plate

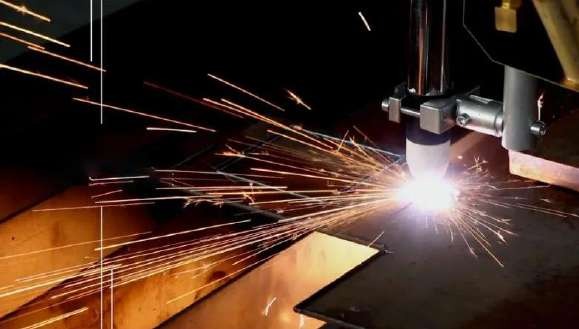

Plasma cutting stainless steel
Plasma cutting mild steel plate
N030Plasma or oxy-fuel
Thin Sheet at 3000 mm/min, or 110 mm Plate With a Flame
Plasma: thin to medium plate, fast
Cutting speedup to 3000 mm/min
Thickness1–30 mm
Mild steel and stainless steel
Arc-voltage torch height control with ohmic sensing
Plug-and-play plasma interface: one pre-wired cable
Oxy-fuel: thick plate, up to 110 mm
Cutting speedup to 600 mm/min
Thickness5–110 mm
Acetylene or LPG, gas pressure max. 0.1 MPa
Motorised torch lifter, 100 mm lift
Same rail and CNC as plasma
Plate thickness drawn to scale for the maximum of each process; the plate moves at the real 5 : 1 speed ratio. Illustration.
Automatic torch height control
Plate is rarely flat. Before each cut the torch touches the plate to find it (ohmic sensing), lifts to cutting height, and then the arc-voltage control raises and lowers the torch so the gap stays the same over bowed or uneven plate.
Arc voltage with ohmic sensing
Torch lift distance 100 mm
Square edges, longer consumable life
Illustration; plate waviness exaggerated.
PLASMA MODE
✓1–30 mm mild steel and stainless steel
✓Cutting speed up to 3000 mm/min
✓Plug-and-play plasma interface: one pre-wired cable
✓Arc-voltage torch height control with ohmic sensing
Plasma cutting a nest of parts
FLAME MODE
✓5–110 mm plate with acetylene or LPG
✓Cutting speed up to 600 mm/min
✓Motorised torch lifter — no hand cranking
✓Gas pressure max. 0.1 MPa

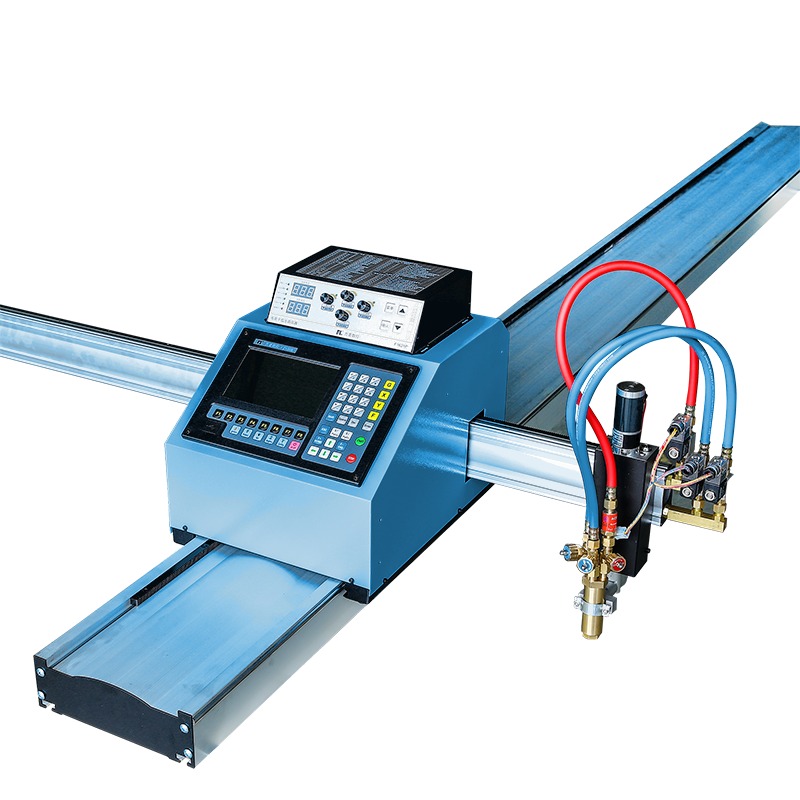

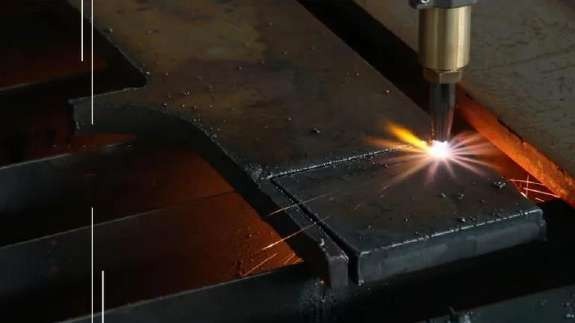

Oxy-fuel cutting with the DynaCut ProX
Plasma torch fitted
Oxy-fuel torch fitted
N040Cutting samples
What Comes Off the Plate
Flanges, discs, brackets and profiles

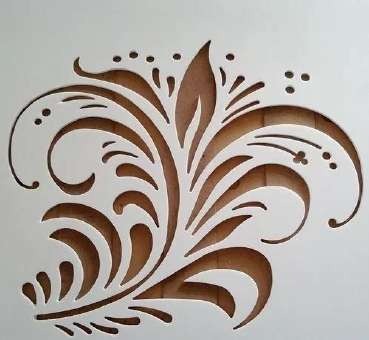

Decorative panel

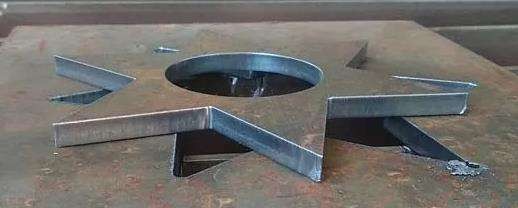

Star profile

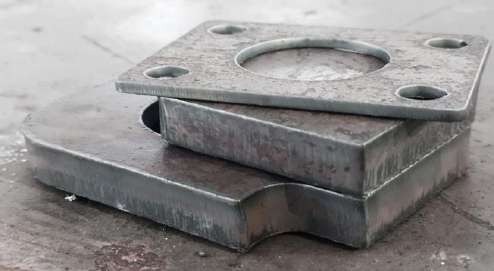

Flange

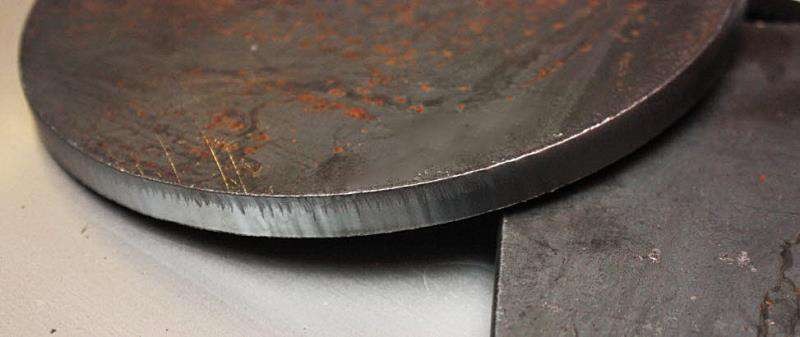

Circle

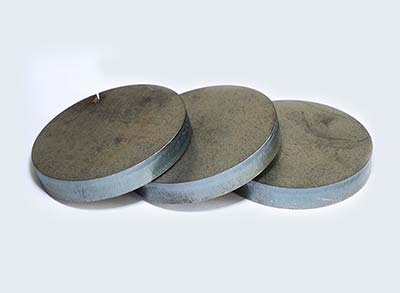

Discs
Square plates with holes
Send us your DXF or a sketch — we will tell you the thickness, speed and nest it will cut.
Program at the Machine, or Bring a Nest on a USB Stick

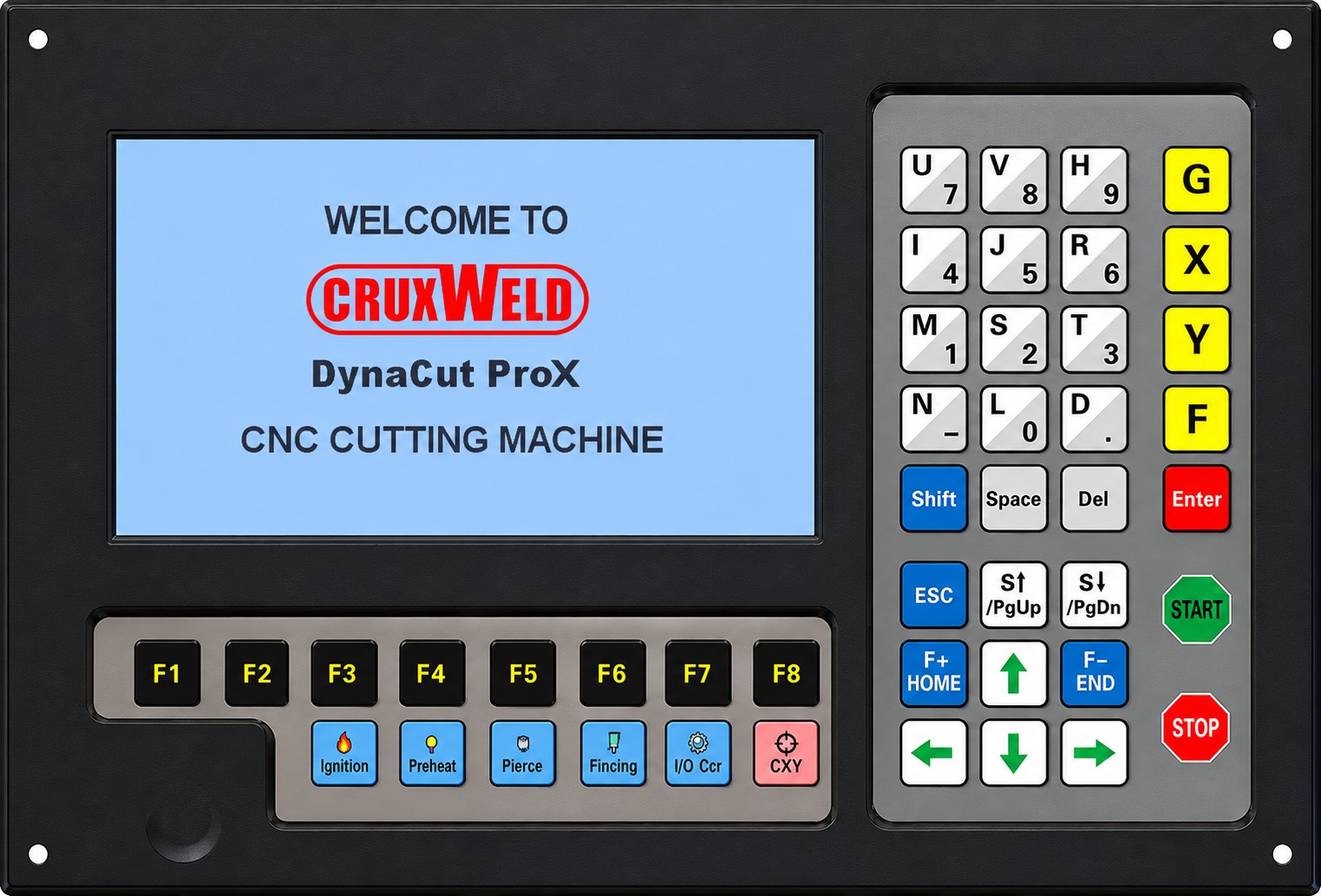

7” colour display and keypad
FastCAM
Converts CAD drawings to G-code and nests parts on the plate; standard version supplied.
96-shape library
Flanges, rings, gussets and more — type the sizes and cut, no drawing needed.
USB and keypad
Load nests from an offline PC, or key in a part at the machine.
Operation functions
Trial run, reverse, plate alignment, mirror and array.
2-axis contouring
X and Y interpolation, ±0.1 mm programming, ±0.2 mm repeatability.
Drive inhibit
Disengage the drive to push the torch to a new start point by hand.
From one shape to a full nest, at the machine
Type the sizes of a part from the 96-shape library, then use the operation functions to mirror and array it across the plate. Trial run checks the path before you strike an arc.
96-shape library, no drawing needed
Mirror, array, plate alignment, reverse, trial run
Or load a FastCAM nest by USB
Illustration of the controller workflow.

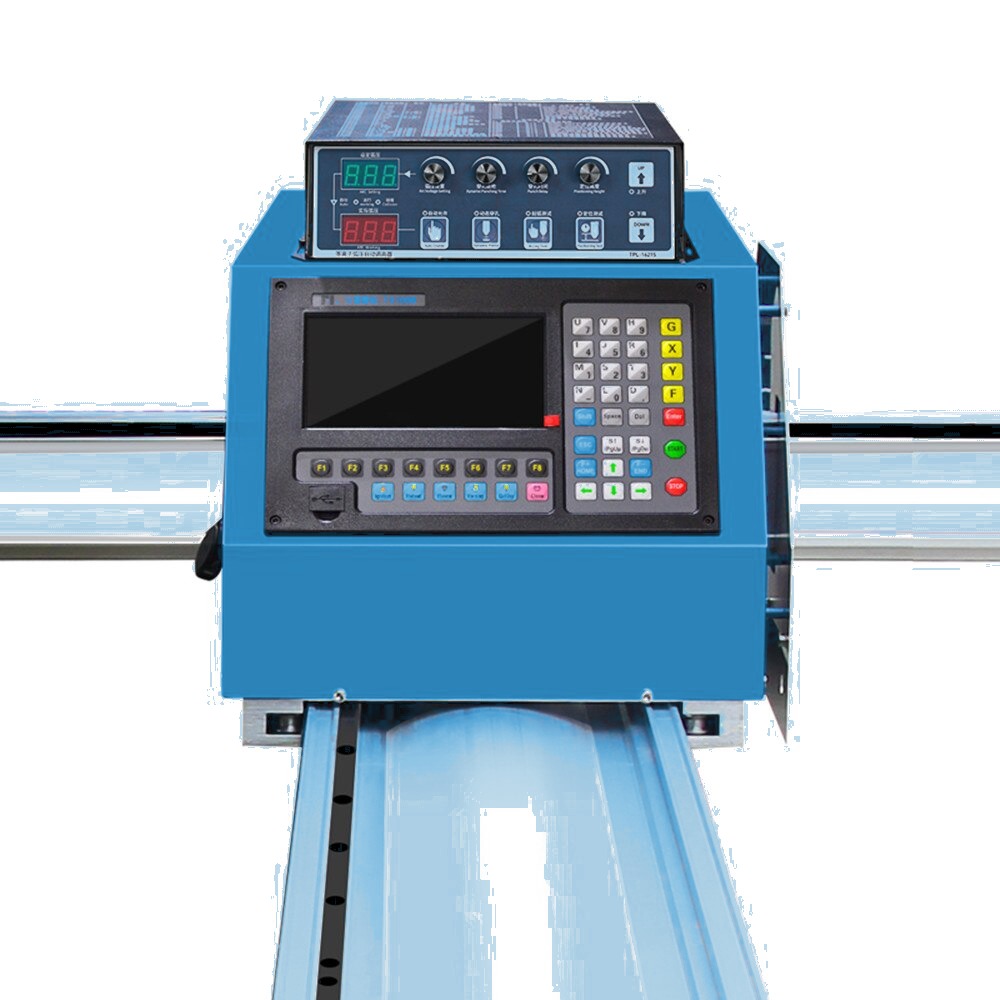

CNC drive unit with torch height controller on top

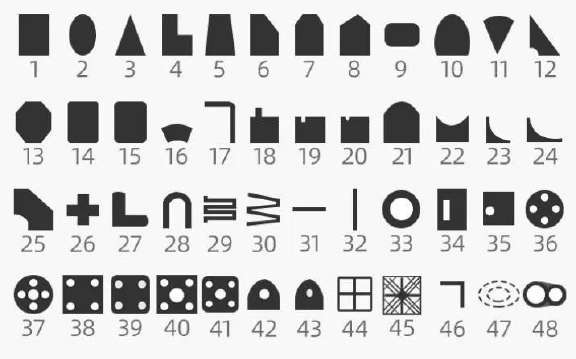

Part of the built-in shape library
N060Built to travel
Rails, Bearings and a Heat Shield That Shrug Off the Shop Floor
The drive unit rides on linear rails with eight bearings across and six along, on a widened, thickened rail with a chrome-plated hard shaft. A heat shield keeps pierce spatter off the CNC, and the whole unit lifts off the rail for transport.
✓220 V / 110 V single phase, 1500 W
✓Drive unit 610 × 458 × 418 mm, 96.5 kg in total
✓Optional rotary attachment for pipe profiling

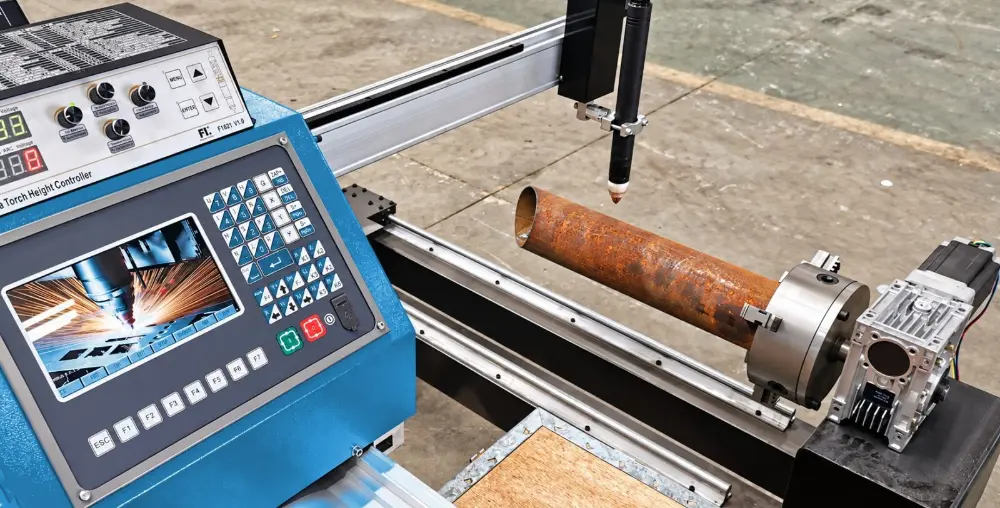

Rotary attachment for pipe profiling
Oxy-fuel and plasma on one machine
N070Where it works
From the Fabrication Shop to the Site Office Door
Fabrication shops
Flanges, gussets, brackets and base plates to drawing.
Structural steel
Cleats, splice plates and stiffeners cut on site.
Shipyards & repair
Profiles cut beside the hull, not in a shop across town.
Tank & vessel makers
Nozzle holes and saddle plates in thick plate.
Pipeline & pipe racks
Pipe profiling with the rotary attachment.
Decorative metalwork
Gates, screens and signage from one program.
Which CRUXWELD cutting machine?
Profiles on plate, portable, up to 6 mDynaCut ProX ✓
What the price depends on, the supply you need and where the machine stops.
What decides the price?
Cutting length (3000 mm standard, 6000 mm extended), plasma or oxy-fuel torch or both, whether a plasma power source is included in the package, and quantity. The CNC drive unit with FastCAM standard software is the base.
Power requirement
The CNC drive unit runs on 220 V / 110 V, 50/60 Hz, rated 1500 W. A plasma power source has its own supply requirement, which we state in the quotation.
Material and thickness
Plasma: mild steel and stainless steel 1–30 mm. Oxy-fuel: 5–110 mm with acetylene or LPG. Effective cutting width 1500 mm.
What it is not for
Plate wider than 1500 mm, or plate above 30 mm with plasma. For large plate and multi-torch work see the gantry CNC plasma cutting machine.
Delivery
Delivery time depends on configuration and stock and is confirmed with the quotation. The machine is tested before dispatch.
Warranty and spares
Warranty terms are stated in the quotation. Consumables and spares are supplied by Cruxweld, and our technical team supports set-up on WhatsApp and video call.
Specifications are subject to improvement without notice; the quotation supplied with the machine is the governing document. Warranty terms are stated on the quotation / invoice.
N100What is a portable CNC plasma cutting machine?
A CNC cutter whose drive unit rides on its own rail laid beside the plate, instead of a fixed gantry table. The CRUXWELD DynaCut ProX cuts a 1500 × 3000 mm area (extendable to 6000 mm), weighs 96.5 kg and can be moved between shop and site.
N110What thickness can it cut?
With a plasma torch, 1–30 mm mild steel and stainless steel at up to 3000 mm/min. With an oxy-fuel torch, 5–110 mm plate at up to 600 mm/min.
N120Is a plasma power source included?

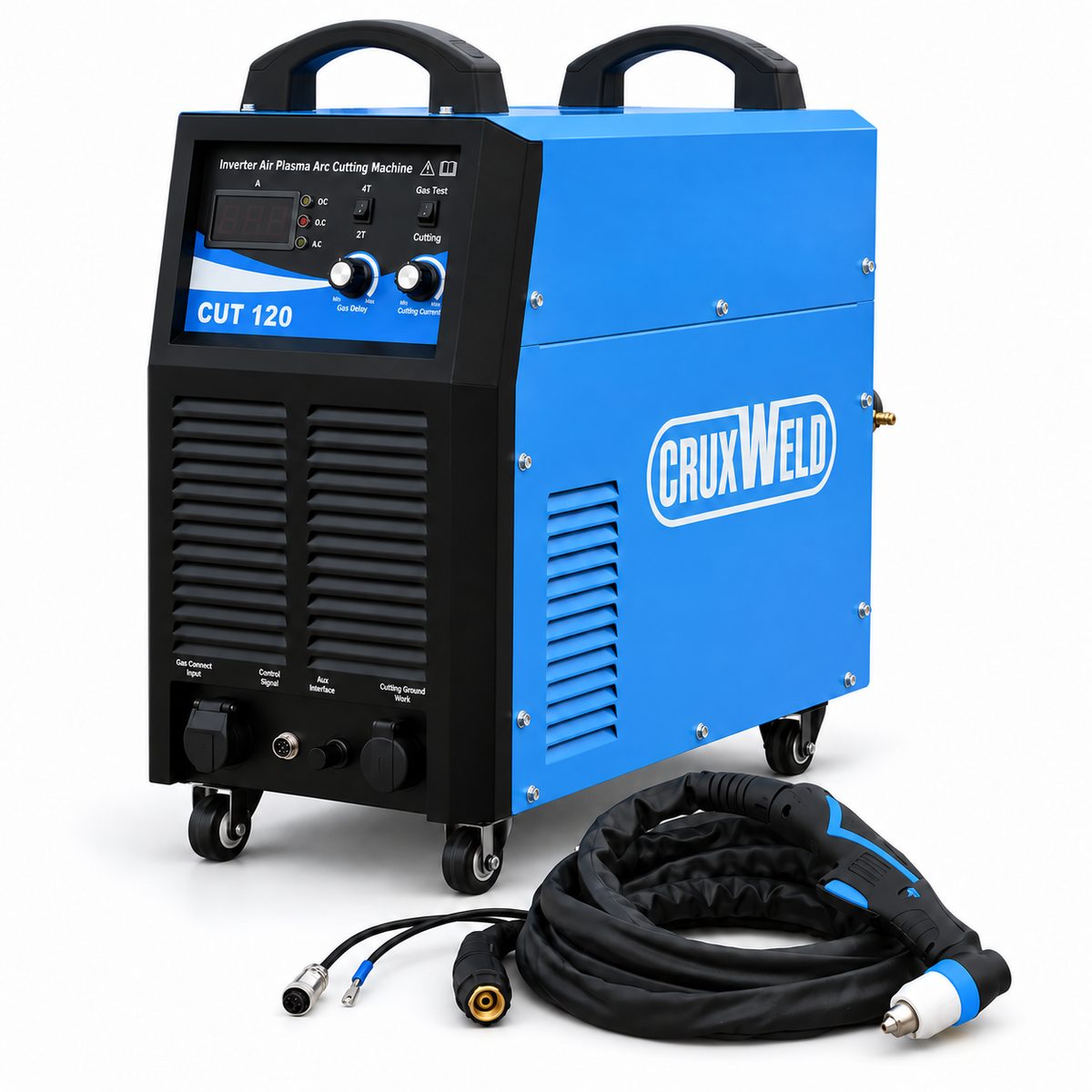

The DynaCut ProX is the CNC cutting machine; the plasma power source is matched to your thickness and quoted with it. The plug-and-play interface connects it with one pre-wired cable.
N130Do I need a computer to run it?
No. The CNC is embedded, with a 7” colour display and keypad. Program at the machine from the 96-shape library, or nest parts in FastCAM on any PC and load them by USB.
N140How accurate is it?
Programming accuracy is ±0.1 mm and repeatability ±0.2 mm, with 2-axis X–Y contouring on linear rails.
N150Can it cut pipes?
Yes, with the optional rotary attachment, which turns the pipe under the torch for saddle cuts and holes.
N160What power does it need?
220 V or 110 V single phase, 50/60 Hz, 1500 W for the CNC drive unit. The plasma power source has its own supply requirement.
N170How do I get the DynaCut ProX price and delivery time?
Request a quote on this page or message +91 88008 82983 on WhatsApp with the plate thickness and the parts you cut. You will receive a GST quotation with delivery time, usually the same working day.
