(1 votes, average: 5.00 out of 5)If your workshop still marks plates by hand, cuts with a pug machine, and grinds every edge afterwards, you already know where your hours go. The CRUXWELD ProGantry 2560 gantry CNC plasma cutting machine exists to take that entire routine off your plate — literally. It carries a precision cutting torch across a full 2500 × 6000 mm working area on dual-side driven rails, following your drawing to a fraction of a millimetre while your team gets on with welding, fitting, and dispatch.

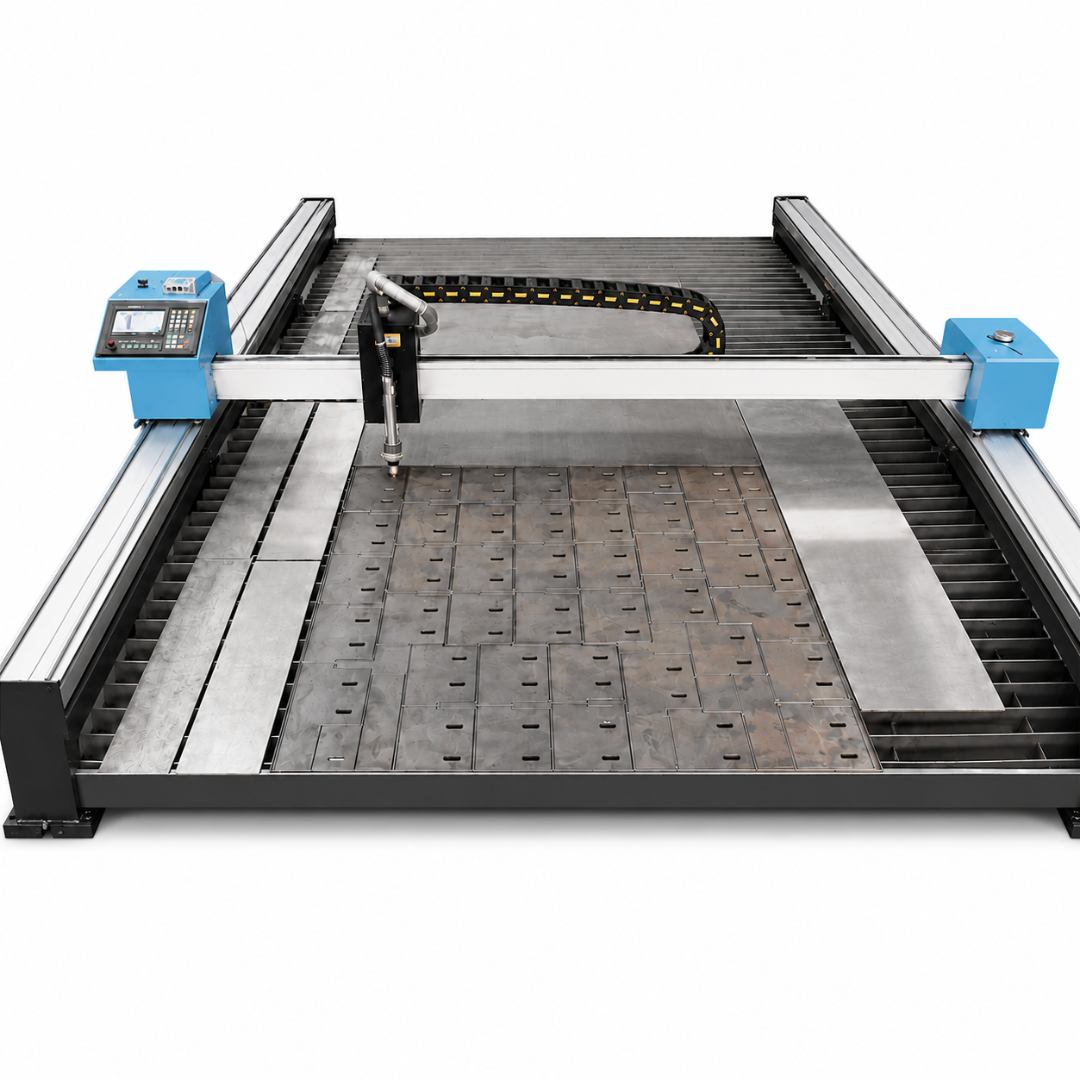

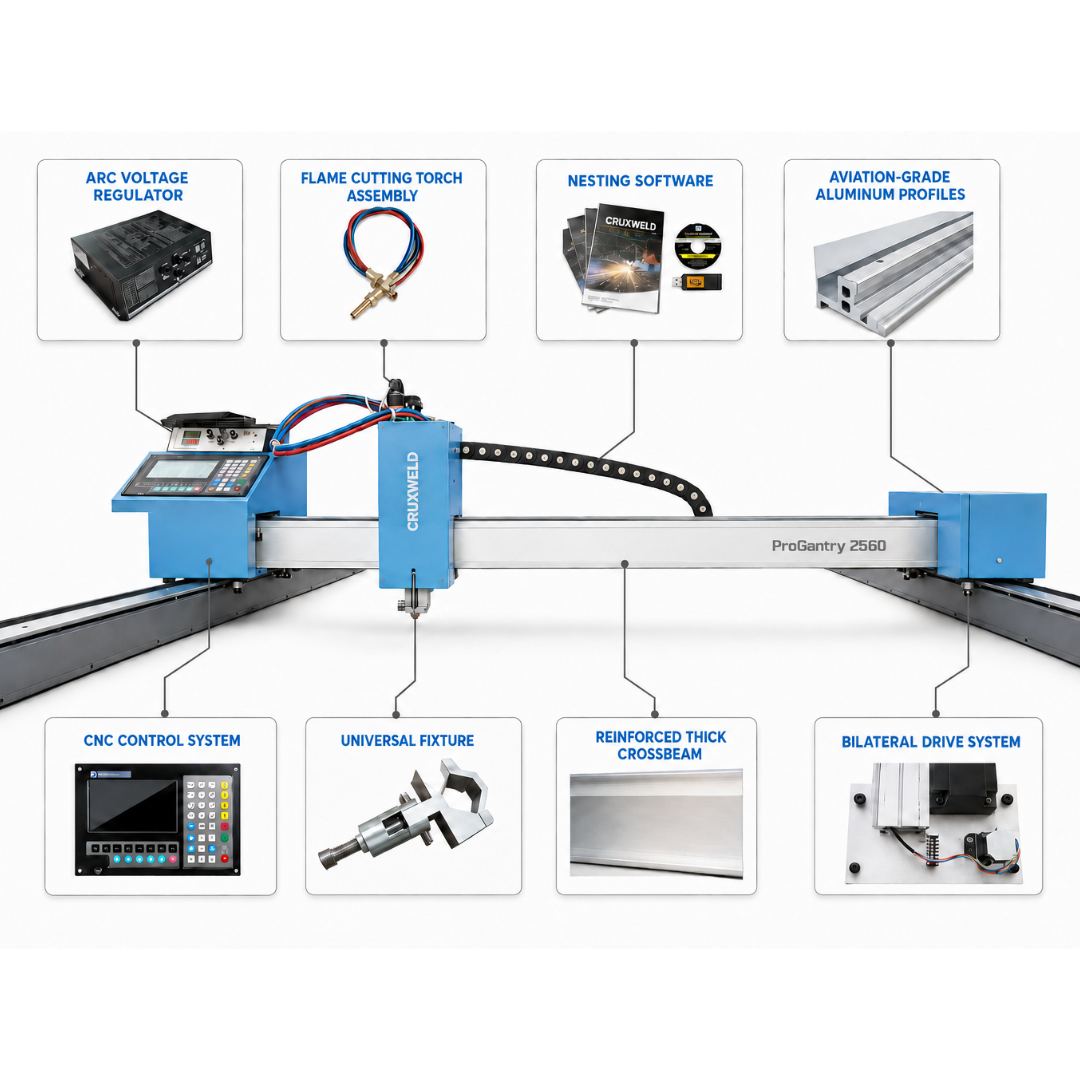

The machine is a classic table-type gantry: a heavy fabricated steel base with replaceable sawtooth slats, twin longitudinal rails, and a rigid cross beam that carries the torch station. Both sides of the gantry are driven together, so the beam stays square even at high traverse speeds — the difference you see in clean corners and true circles instead of ovals. An industrial CNC controller sits at the operator station, and an automatic torch height controller keeps the arc at the ideal distance over every wave and warp in the sheet.
What makes the ProGantry 2560 a genuinely practical buy for Indian fabrication shops is its dual-process design. Fit a plasma torch for fast, clean cutting of mild steel, stainless steel, and aluminium sheets, or switch to the oxy-fuel flame torch when a thick carbon steel plate lands in the yard. One machine, one operator, one footprint — and the full range of jobs your customers actually bring you. It belongs to the same family as our CNC cutting systems, engineered and supported in India by CRUXWELD.
Standard 8 × 4 ft and larger plates fit without repositioning. Nest dozens of parts on one sheet, cut the whole layout in a single run, and cut plate wastage along with it.
Fast plasma for sheets and medium plate, oxy-fuel flame for thick carbon steel. You stop turning away thick-plate jobs — and stop paying outside cutting vendors.
Arc-voltage THC with initial height sensing tracks uneven and warped plates automatically. Consistent cut quality, longer consumable life, and far fewer torch crashes.
Bright industrial display, built-in shape library, and USB transfer of DXF-based programs. A new operator can be cutting confidently within a day — no CNC background needed.
Synchronised drives on both rails keep the gantry square at speed. Precision guide rails and a stress-relieved beam deliver straight lines, sharp corners, and true circles.
Local manufacturing, spares off the shelf, and CRUXWELD service engineers a phone call away. No waiting weeks for imported parts while your table sits idle.

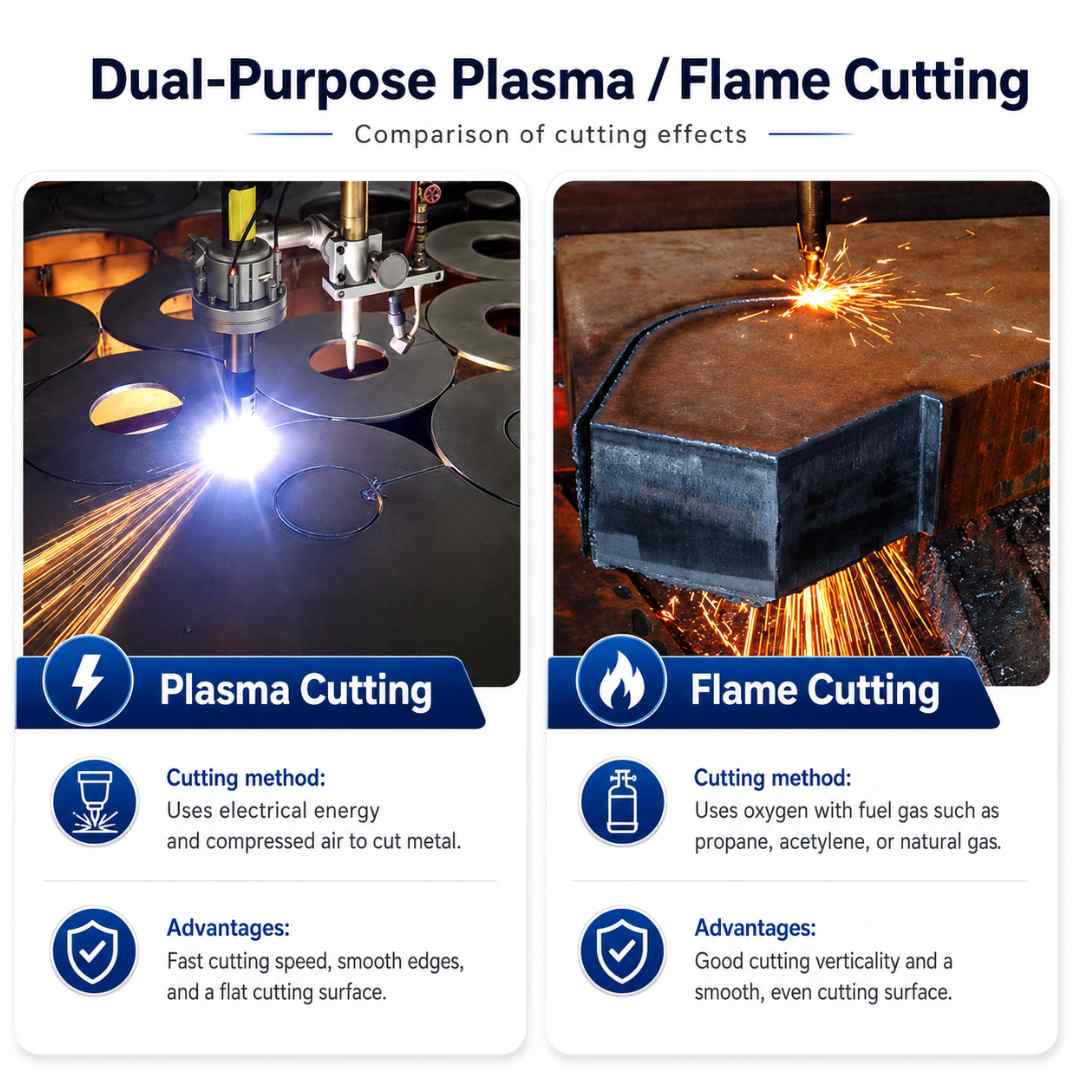

Most workshops don’t cut just one thickness of steel — so why buy a machine that handles just one? The ProGantry 2560 is built as a dual-purpose plasma and flame cutting machine, letting you match the process to the plate on the table.
How it works: a high-temperature electric arc and compressed air ionise into a plasma jet that melts and blows metal out of the kerf.
Best for: mild steel, stainless steel, and aluminium from thin sheet to medium plate. Expect high cutting speeds, smooth edges, a narrow kerf, and minimal post-cut grinding — ideal for production parts, brackets, gussets, and flanges.
How it works: oxygen combined with a fuel gas such as LPG, propane, or acetylene preheats the steel, then a pure oxygen stream burns cleanly through the section.
Best for: thick carbon steel plates where plasma becomes uneconomical. Flame cutting delivers excellent edge squareness on heavy sections — base plates, machine frames, crusher parts, and structural billets.
Switching processes is a torch and parameter change, not a new machine purchase. If you’d like the deeper theory behind the arc, this independent overview of plasma cutting explains the physics well — but on the shop floor, all you’ll notice is clean parts coming off the table faster.
Specifications are indicative for the standard configuration and may be customised. Please confirm the final datasheet with our sales team before ordering.

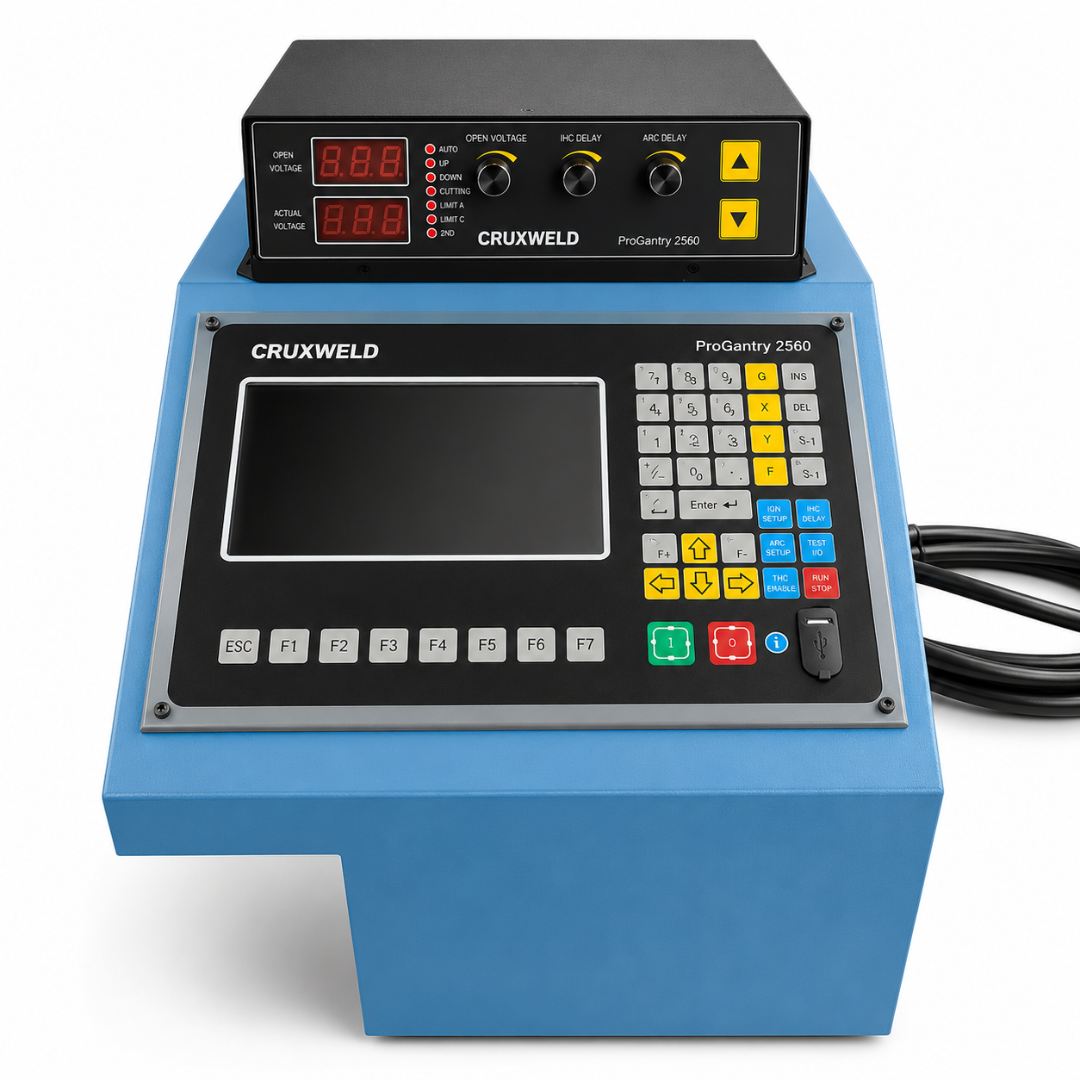

The brain of the ProGantry 2560 is an industrial CNC controller built for real shop floors — dusty air, ungloved and gloved hands, and operators who want results, not menus. The bright LCD screen shows the part, the toolpath, and the live cutting position at a glance. A built-in library of common shapes (flanges, rings, rectangles, gussets and more) means everyday parts are cut by simply entering dimensions — no computer required at all.
For full nested layouts, your team prepares drawings in CAD, nests them in the supplied nesting software to squeeze maximum parts from every sheet, and carries the program to the machine on a USB drive. Kerf compensation, lead-ins, and cutting sequence are handled in software, so the first part off the table is a good part.
Working alongside the controller is the automatic torch height controller (THC). Before each pierce, initial height sensing finds the plate surface and sets the exact pierce height. During the cut, the THC reads arc voltage continuously and floats the torch over every bow and ripple in the sheet. The result: uniform kerf, square edges, dramatically longer nozzle and electrode life, and no more crashed torches when a cut part tips upward. Open voltage, IHC delay, and arc delay are all adjustable from the panel, so experienced operators can fine-tune behaviour for tricky jobs.
A cutting machine earns its price in year three, not week one — which is why the ProGantry 2560 is deliberately over-built. The base is a heavy fabricated steel structure that stays put and stays level. The cutting bed uses replaceable sawtooth slats: they take the arc strikes and slag so the structure never does, and when they wear after years of service, you slide in new ones instead of repairing a table.
Cables and hoses run through an enclosed drag chain, protected from sparks and spatter instead of dangling in them. The rails are guarded from slag splash, drives are sealed, and the operator station sits at the machine corner where the operator has a clear view of the torch with easy reach of the emergency stop. Everything about the layout says the same thing: this machine was designed by people who have stood next to one for years.
Any business that starts with steel plate and ends with fabricated parts is a fit for this gantry CNC plasma cutting machine. Our customers use it every day for:
Flange and ring cutting deserves a special mention: nested circles are where CNC cutting embarrasses manual methods most. A full sheet of flanges — outer circles, bolt holes, inner bores — cuts unattended in a fraction of the time, with every piece identical. For job-work shops, the 2560 bed size itself is a business model: charge per cut on full-size plates your competitors with smaller tables simply can’t take.
It’s the most common question we hear, and the honest answer depends on your volume. A portable CNC plasma cutting machine is a brilliant entry point: low investment, small footprint, easy to shift between sites, and perfect for occasional cutting or space-starved workshops.
The ProGantry 2560 is the step up for shops where cutting is a daily production activity. The dedicated table with sawtooth slats supports plates properly and manages slag; the dual-side driven gantry holds accuracy at higher speeds; the wider, longer working envelope handles full sheets without repositioning; and the machine runs hour after hour without babysitting. If your cutting backlog is measured in sheets per day rather than parts per week — or you’re refusing thick-plate work a flame torch would win — the gantry pays for itself quickly. Not sure which side you fall on? Tell us your typical plate sizes and monthly volume, and we’ll give you a straight recommendation, even if it’s the smaller machine.
Owners who move from manual cutting or outsourced job work to a gantry CNC machine describe the same three changes. First, throughput: layouts that took a marker, a straightedge, and half a day now cut themselves in under an hour, and one operator supervises the machine while it works. Second, material savings: nesting software packs parts tighter than any hand layout ever will, and over a year those saved kilos of plate quietly add up to serious money. Third, consistency: every part matches the drawing, so fit-up at the welding bay gets faster and rework almost disappears.
There’s also the revenue side. With a 2500 × 6000 mm bed and dual-process cutting in-house, you stop paying outside cutting vendors, stop waiting on their schedules, and can start quoting cutting job work for other fabricators in your area. Many of our customers find the machine effectively pays its own EMI within the first year of disciplined use — and keeps earning long after.
A CNC cutting machine is only as good as the support behind it. CRUXWELD Industrial Equipments has been building welding and cutting machinery for over four decades, with equipment running in demanding plants across India and exported to 80+ countries. When you buy the ProGantry 2560, you get factory-direct pricing from the manufacturer, installation and commissioning at your site, hands-on operator training, and a genuine spares pipeline — consumables, slats, torches, and electronics — available locally, backed by our warranty policy and authorised service network.
Just as importantly, you get honest configuration advice. We’ll ask about your materials, thickness range, monthly tonnage, and available space before recommending a plasma source and options — because a correctly sized machine is what actually delivers the ROI you’re buying it for.
Switching processes is a torch and parameter change, not a new machine purchase. If you’d like the deeper theory behind the arc, this independent overview of plasma cutting explains the physics well — but on the shop floor, all you’ll notice is clean parts coming off the table faster.
The standard effective cutting area is 2500 mm × 6000 mm — comfortably covering full-size commercial plates. Custom table lengths can be discussed for special production requirements.
Yes. It is a dual-purpose machine: a plasma torch for fast, clean cutting of sheets and medium plate, and an oxy-fuel flame torch for thick carbon steel. Both are managed by the same CNC controller.
With plasma, typical capacity is around 1–30 mm depending on the plasma source amperage you choose (63 A – 200 A supported). With the oxy-fuel flame torch, thick carbon steel plates in the 6–150 mm range can be cut economically.
Plasma cuts any electrically conductive metal — mild steel, stainless steel, and aluminium are the everyday materials. Flame cutting is used for carbon steel only. Non-conductive materials cannot be plasma cut.
Prepare drawings in any CAD software, nest them in the supplied nesting software, and transfer the program by USB. For simple everyday parts, the controller’s built-in shape library lets the operator enter dimensions directly at the machine — no computer needed.
Pricing depends on the plasma source amperage, torch configuration (plasma only or plasma + flame), and any customisation. As the manufacturer, CRUXWELD offers factory-direct pricing — request a quotation and we’ll respond with a detailed offer within 24 hours.
Yes. CRUXWELD handles installation and commissioning at your site, trains your operators hands-on, and supports the machine through our pan-India service network with genuine spares and consumables readily available.
