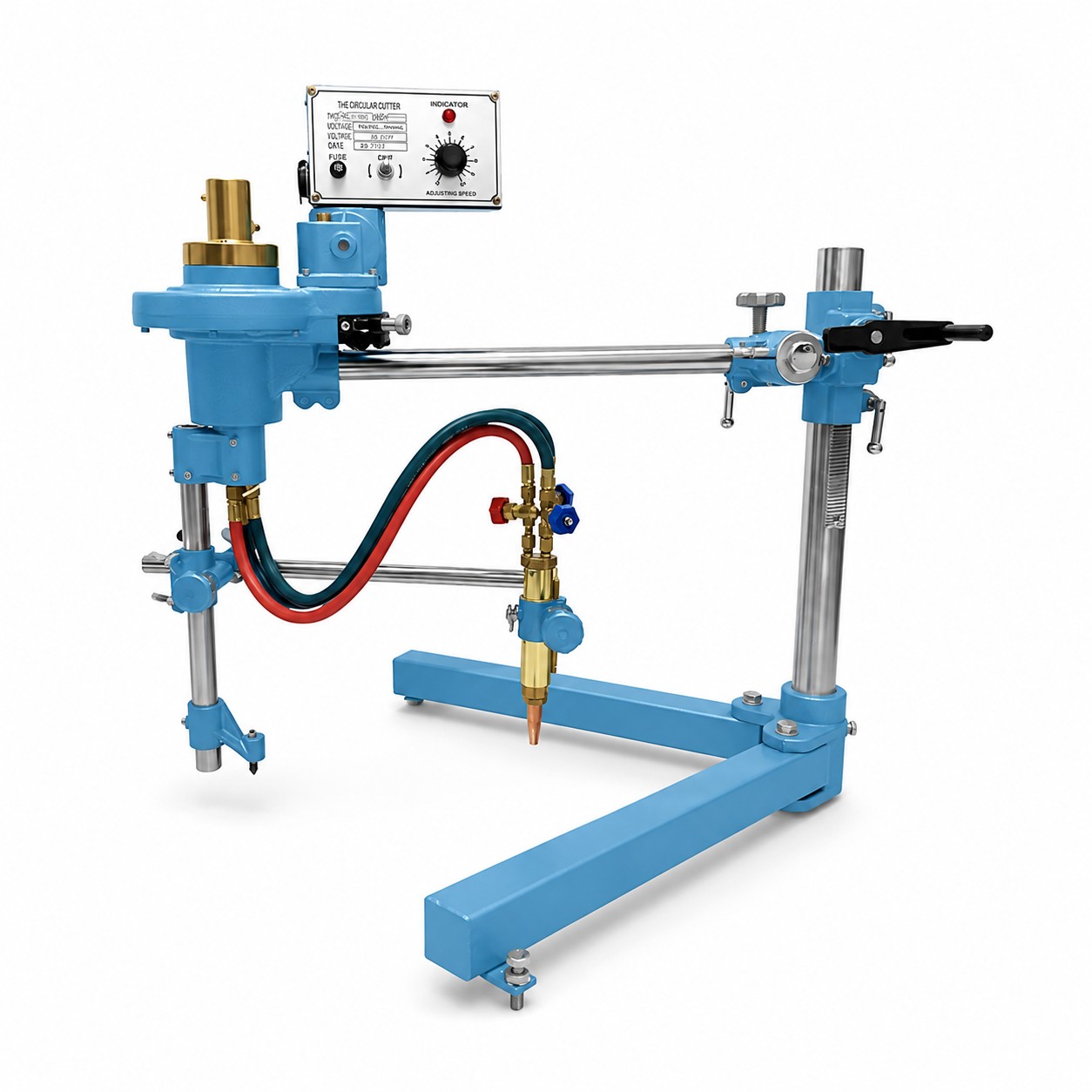

The CRUXWELD CIRCO is a circle cutting machine that swings an oxy-fuel torch around a centre pin at a steady, stepless speed, cutting discs, flanges, rings and holes from Ø30 mm up to 600 or 1000 mm in 6–100 mm plate, with a bevel up to 45° when the joint needs one.
GeM Registered OEM Manufacturer · Supported Worldwide · 45+ years of welding expertise
Price, delivery & technical help — get a fast response.
A hand-cut circle wanders, a template-cut circle still needs a steady wrist, and a flange that is 2 mm out of round goes back to the grinder.

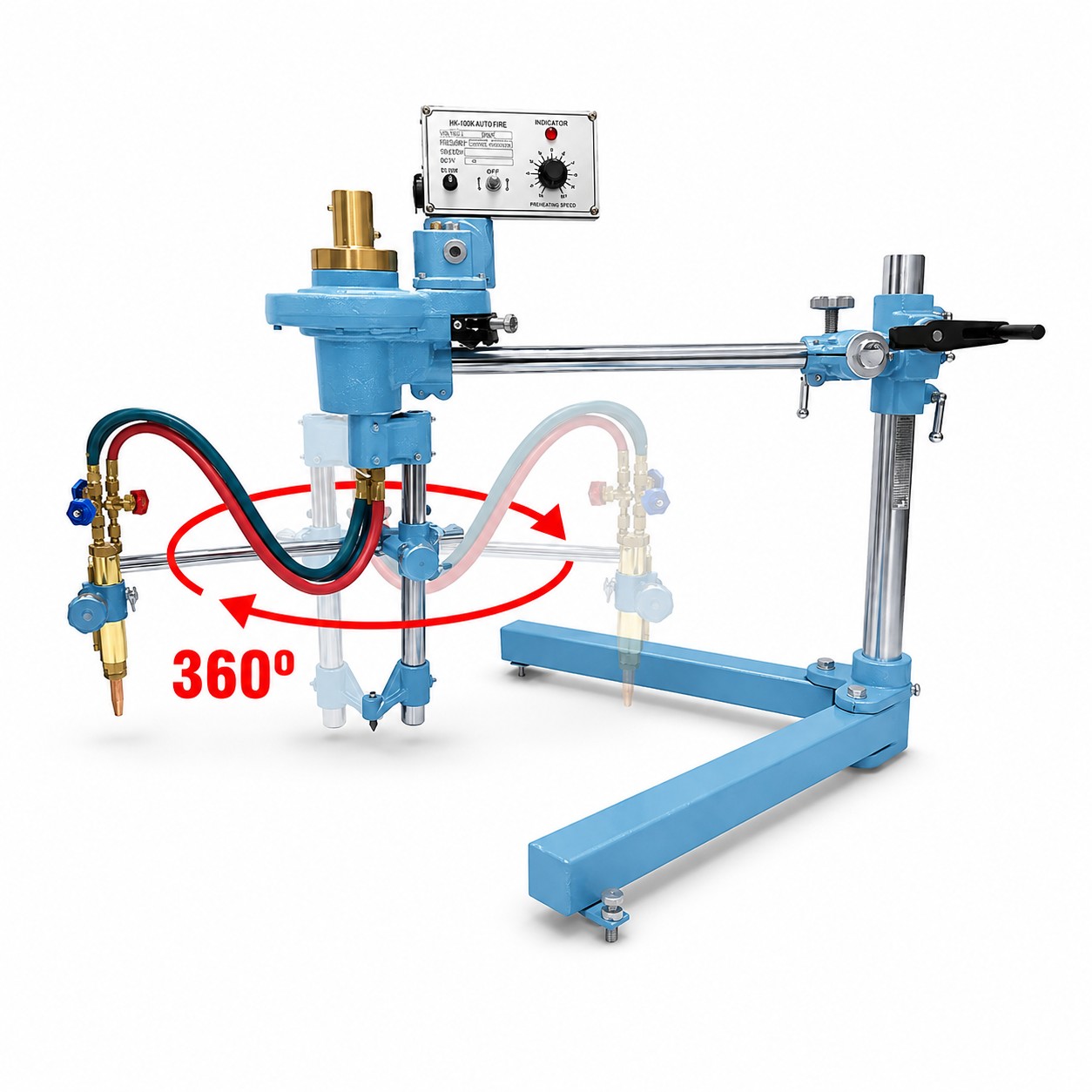

The CIRCO circle cutting machine takes the operator out of the loop: a centre pin fixes the point, the arm sets the radius, and a DC motor turns the torch at one speed from the first degree to the last.
Two sizes cover most plate work. The CIRCO 600 cuts up to Ø600 mm; the CIRCO 1000 reaches Ø1000 mm for larger blanks and tank ends. Both run from an ordinary 220 V socket, cut 6–100 mm with the three nozzles supplied, and tilt the torch to 45° for bevelled edges.

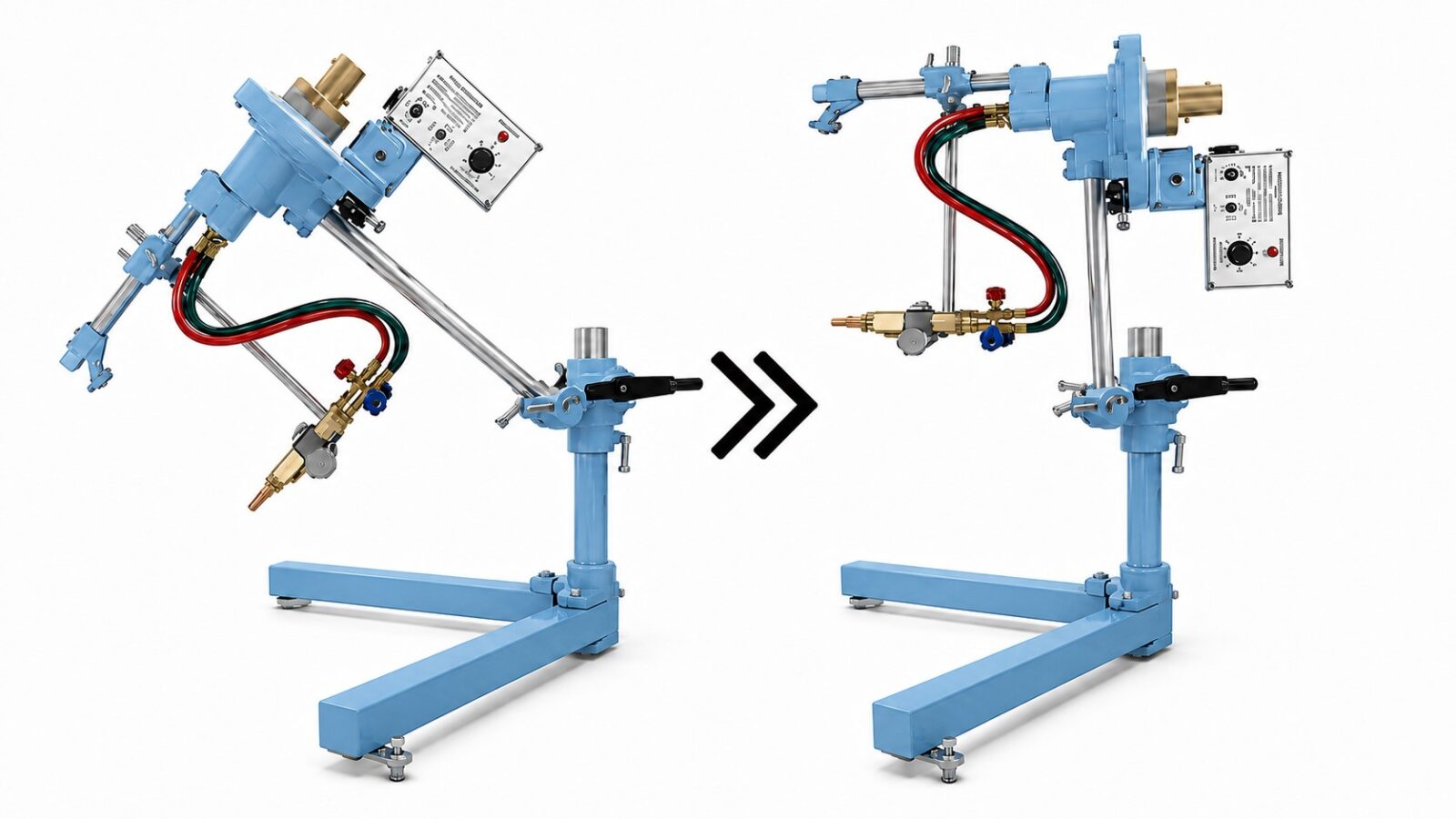

Slide the torch along the arm to the radius you need and the circle cutting machine does the rest. Tap a diameter to see the lap and the CIRCO that covers it:
Within the CIRCO 600 range (Ø30–600 mm) and the CIRCO 1000 range (Ø30–1000 mm).
Within the CIRCO 600 range (Ø30–600 mm) and the CIRCO 1000 range (Ø30–1000 mm).
Within the CIRCO 600 range (Ø30–600 mm) and the CIRCO 1000 range (Ø30–1000 mm).
Beyond the CIRCO 600; the CIRCO 1000 cuts up to Ø1000 mm.
Beyond the CIRCO 600; the CIRCO 1000 cuts up to Ø1000 mm.
Smallest circle on both models: Ø30 mm. Accuracy: under 1 mm per revolution.
The torch holder tilts from 0 to 45°, so flange and nozzle edges come off the plate ready for welding.

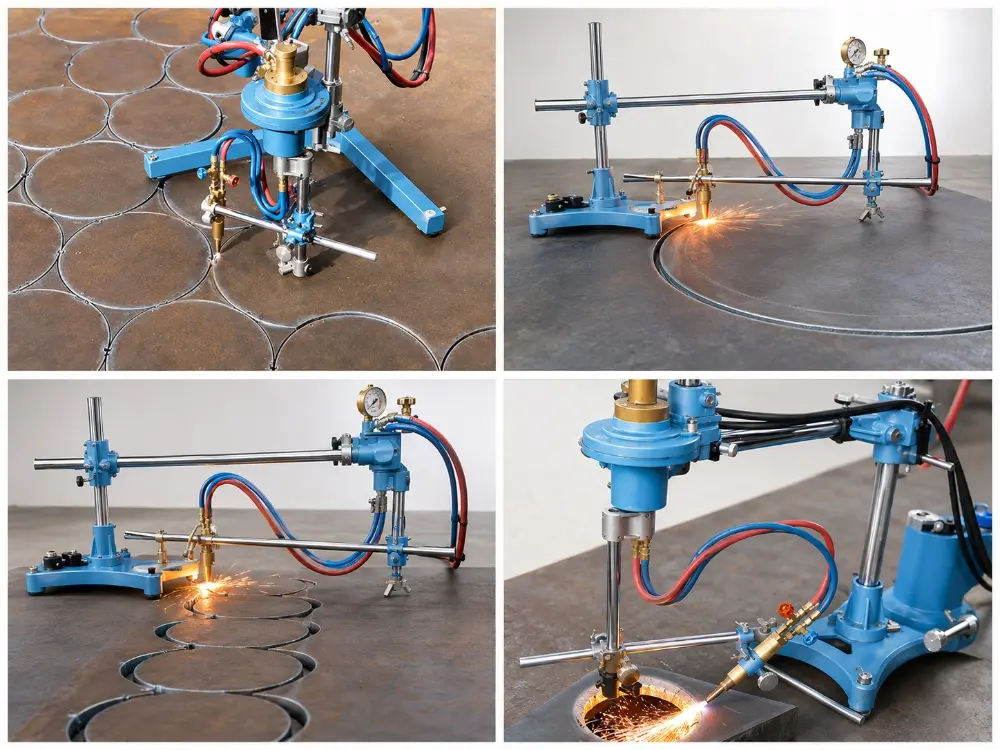

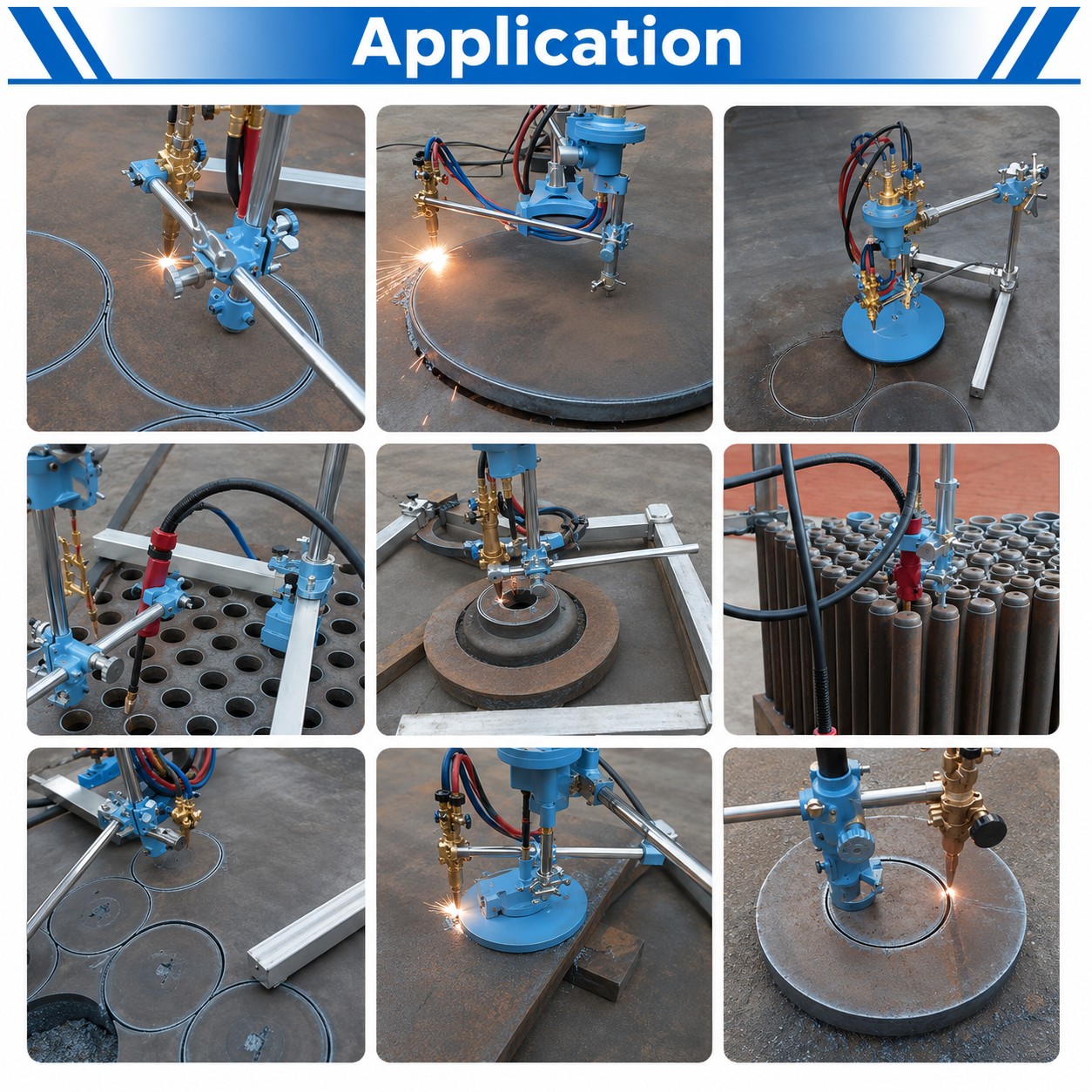

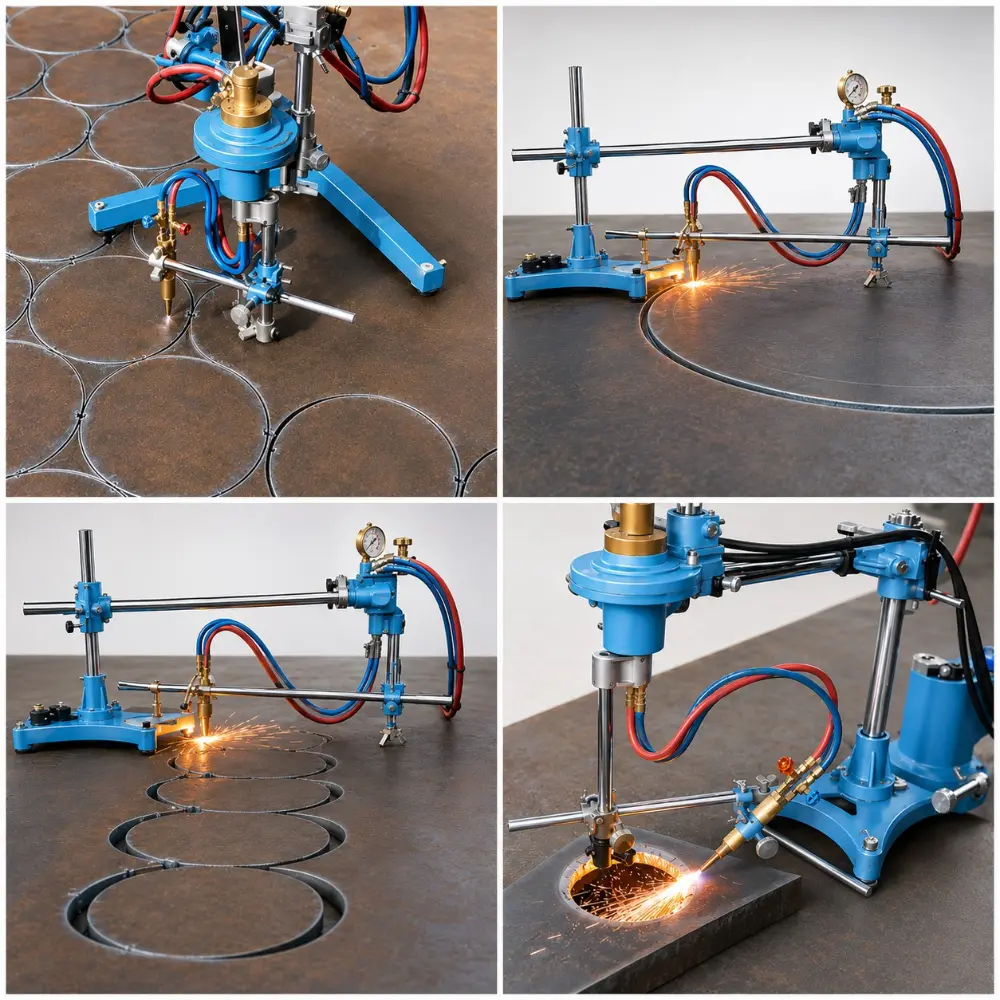

Flanges, blanks, holes and small tank ends.

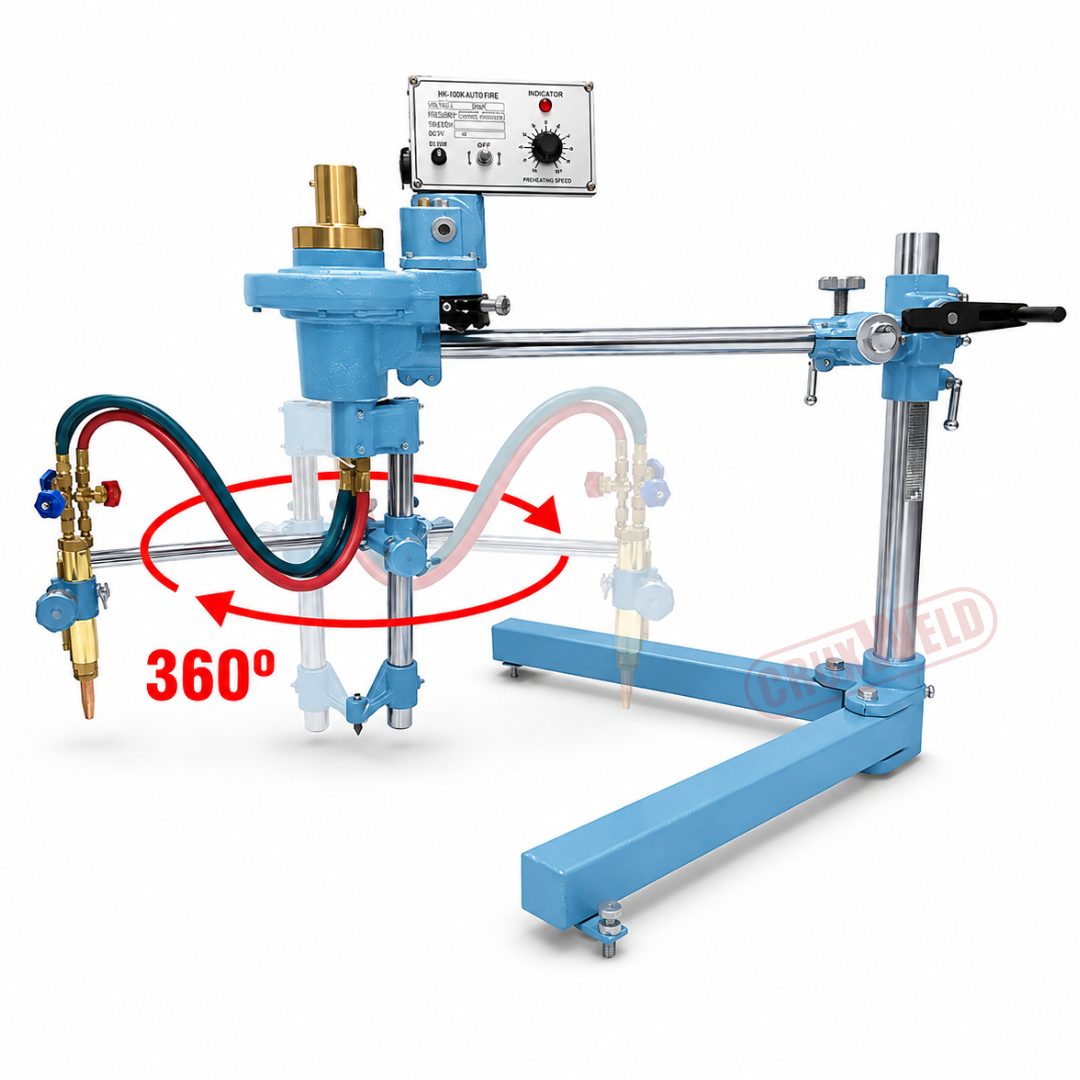

Large blanks, dished-end openings and big flanges.
Everything else (thickness, speed, bevel, motor, power and nozzles) is the same on both. See the full specifications.

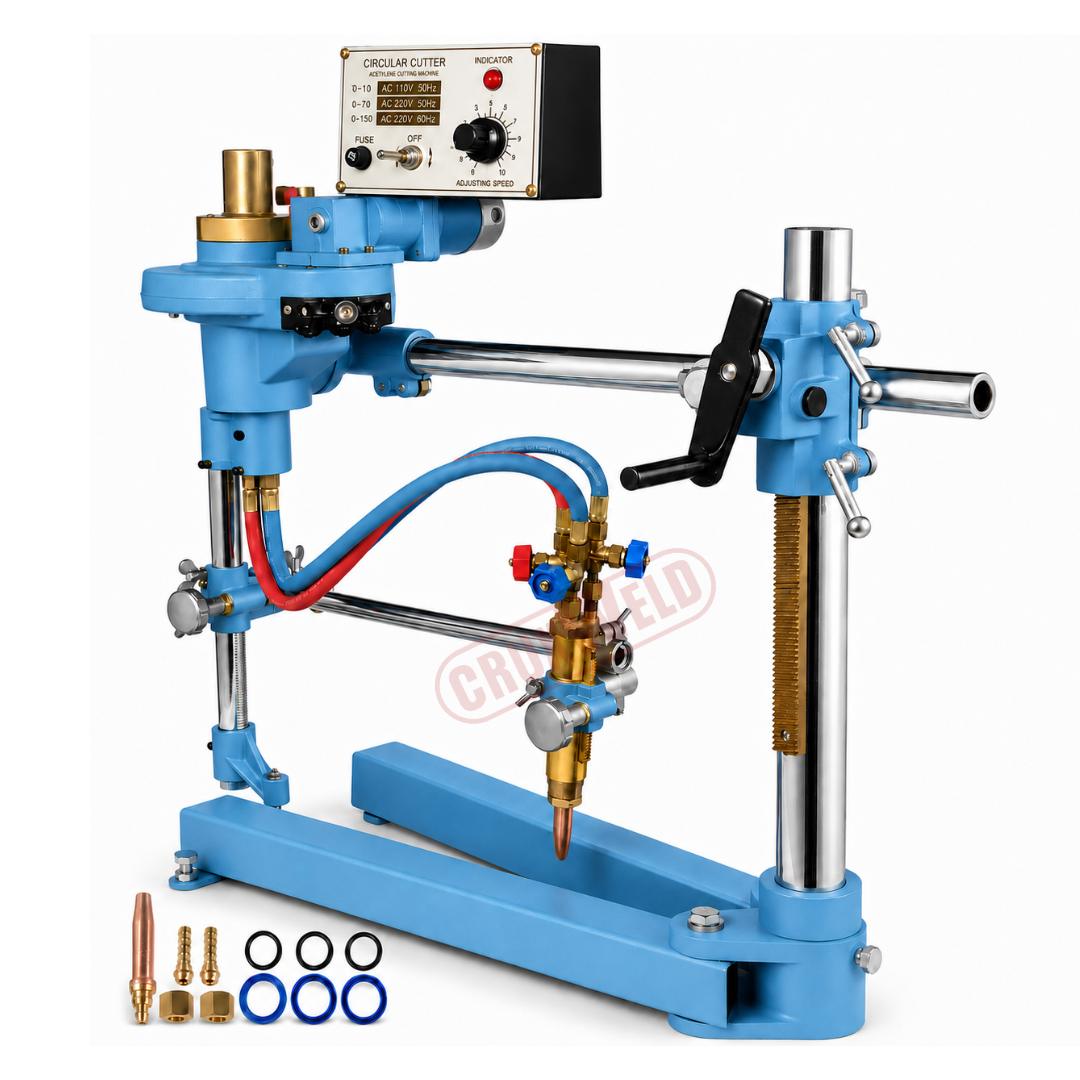

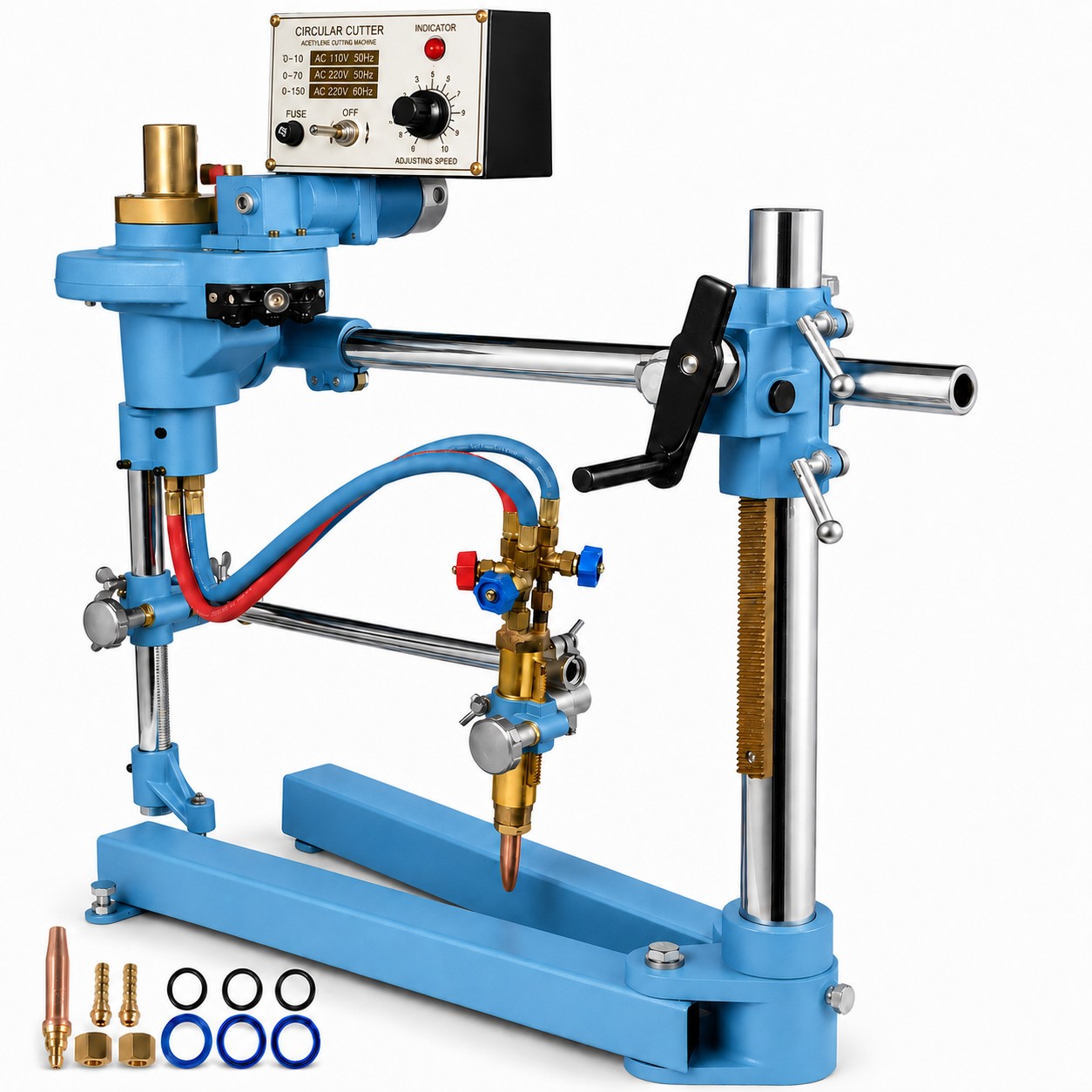

Indicator, fuse, switch, speed dialSupplied with nozzles, hose nipples and seals
Straight and bevel cuts on a railWING1800 →Straight cuts with a pug cutterCPG-NM →Any shape, CNC programmedDynaCut ProX →Hand cutting, brazing, heatingCut-n-Weld ProX →
Tell us the diameters and plate thickness: we will pick the model and send a quotation.
| PARAMETER | CIRCO 600 | CIRCO 1000 |
|---|---|---|
| Cutting circle diameter | Ø30 – 600 mm | Ø30 – 1000 mm |
| Cutting thickness (MS plate) | 6 – 100 mm | 6 – 100 mm |
| Torch rotation speed | 0.2 – 6 rpm, stepless | 0.2 – 6 rpm, stepless |
| Cutting accuracy | < 1 mm / revolution | < 1 mm / revolution |
| Bevel cutting angle | 0 – 45° | 0 – 45° |
| Input power | 220 V, 1-ph, 50 Hz | 220 V, 1-ph, 50 Hz |
| Drive motor | DC permanent magnet, worm-gear reduction | DC permanent magnet, worm-gear reduction |
| Fuel gas | LPG / propane (acetylene optional) | LPG / propane (acetylene optional) |
| Cutting nozzles included | 3 (No. 1, 2, 3) | 3 (No. 1, 2, 3) |
| Body material | Cast aluminium alloy | Cast aluminium alloy |
| Dimensions (approx.) | 750 × 300 × 700 mm | 1120 × 350 × 730 mm |
| Net weight (approx.) | 38 kg | 56 kg |
Specifications are subject to improvement without notice; the quotation supplied with the machine is the governing document. Warranty terms are stated on the quotation / invoice.
