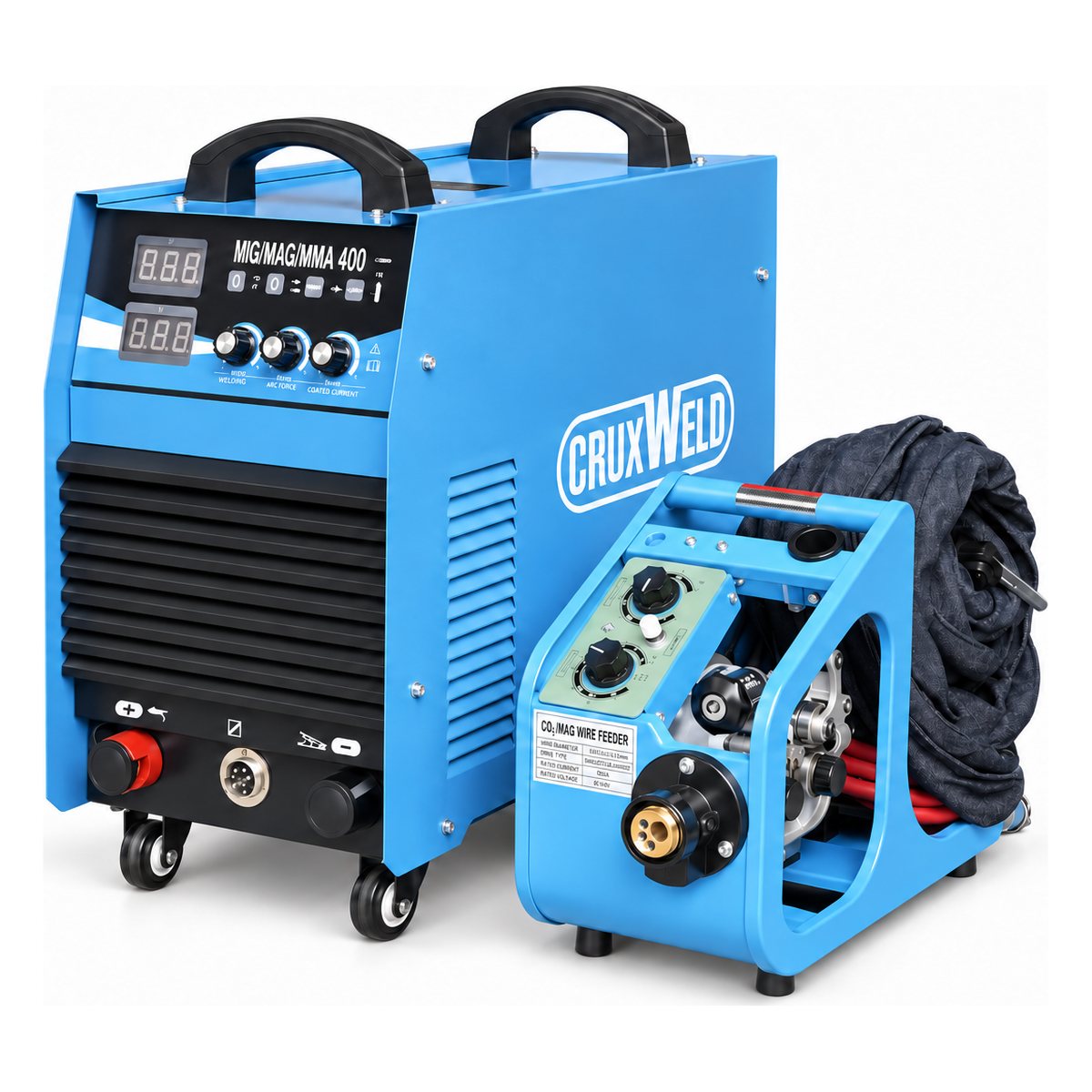

The CRUXWELD CWMIG400iJ is an IGBT inverter MIG welding machine with a separate wire feeder and a built-in MMA function. Weld mild steel with gas or gasless flux-cored wire, weld stainless steel and aluminium with the right wire and gas, and switch to stick electrodes for site work — all from one 415 V three-phase power source.
GeM Registered OEM Manufacturer · Supported Worldwide · 45+ years of welding expertise
Price, delivery & technical help — get a fast response.
The CWMIG400iJ is a MIG welding machine 400 amp class inverter for medium to heavy fabrication. It pairs ultra-smooth arc characteristics with a separate wire feeder, so one welder can run long production seams in the shop and take the same machine to site.
Its IGBT inverter runs cool and efficiently, holds a stable output across a wide supply tolerance, and adds crater controls to fine-tune the start and end of each weld.
From thin sheet at the low end to multi-pass welds on heavy plate at the top.
MIG/MAG with gas, gasless flux-cored (FCAW) and stick (MMA) from one power source.
Stepless wire speed, 1.5–20 m/min. Carry the feeder to the job; the power source stays at the mains.
Variable inductance and crater controls for less spatter and cleaner starts and stops.
Pick the process for the job, not the machine.
Solid wire with shielding gas for clean, fast welds in the shop.
Self-shielded flux-cored wire makes its own shield, so there is no gas cylinder to carry.
Switch the selector to MMA and weld with stick electrodes.
| Job | Process | Wire or electrode | Shielding gas |
|---|---|---|---|
| Mild steel, in the shop | MIG / MAG | Solid copper-coated MS wire | CO2 or argon/CO2 mix |
| Mild steel, outdoors or on site | FCAW gasless | Self-shielded flux-cored wire | None — no cylinder |
| Stainless steel | MIG | Stainless steel wire | Argon-rich mix |
| Aluminium | MIG | Aluminium wire, with U-groove rolls and a PTFE liner | Pure argon |
| Rusty, painted or hard-to-reach work | MMA | Stick electrodes | None |
Typical setups. Send your material and thickness on WhatsApp and our technical team confirms the wire, rolls, liner and gas.

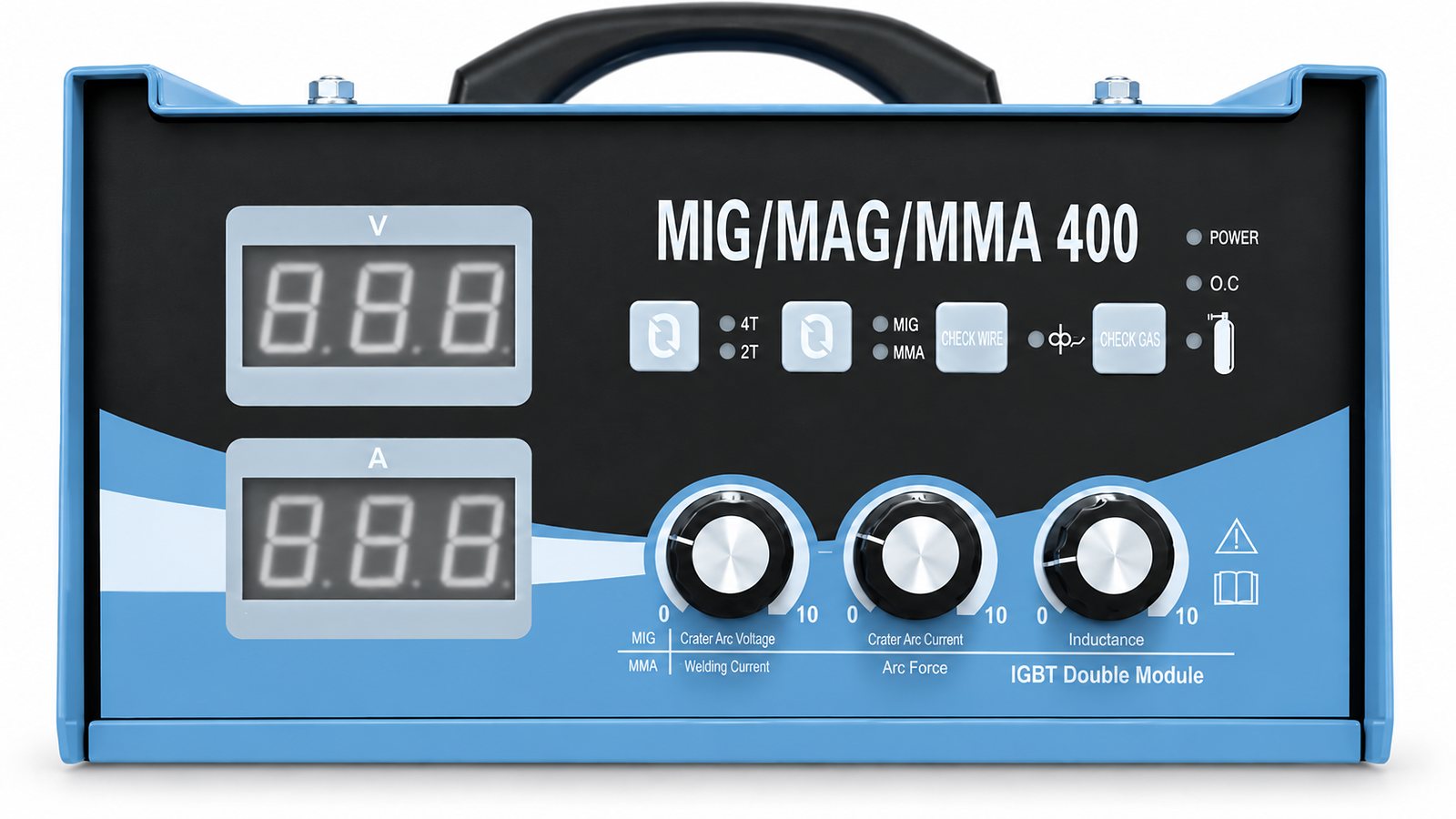

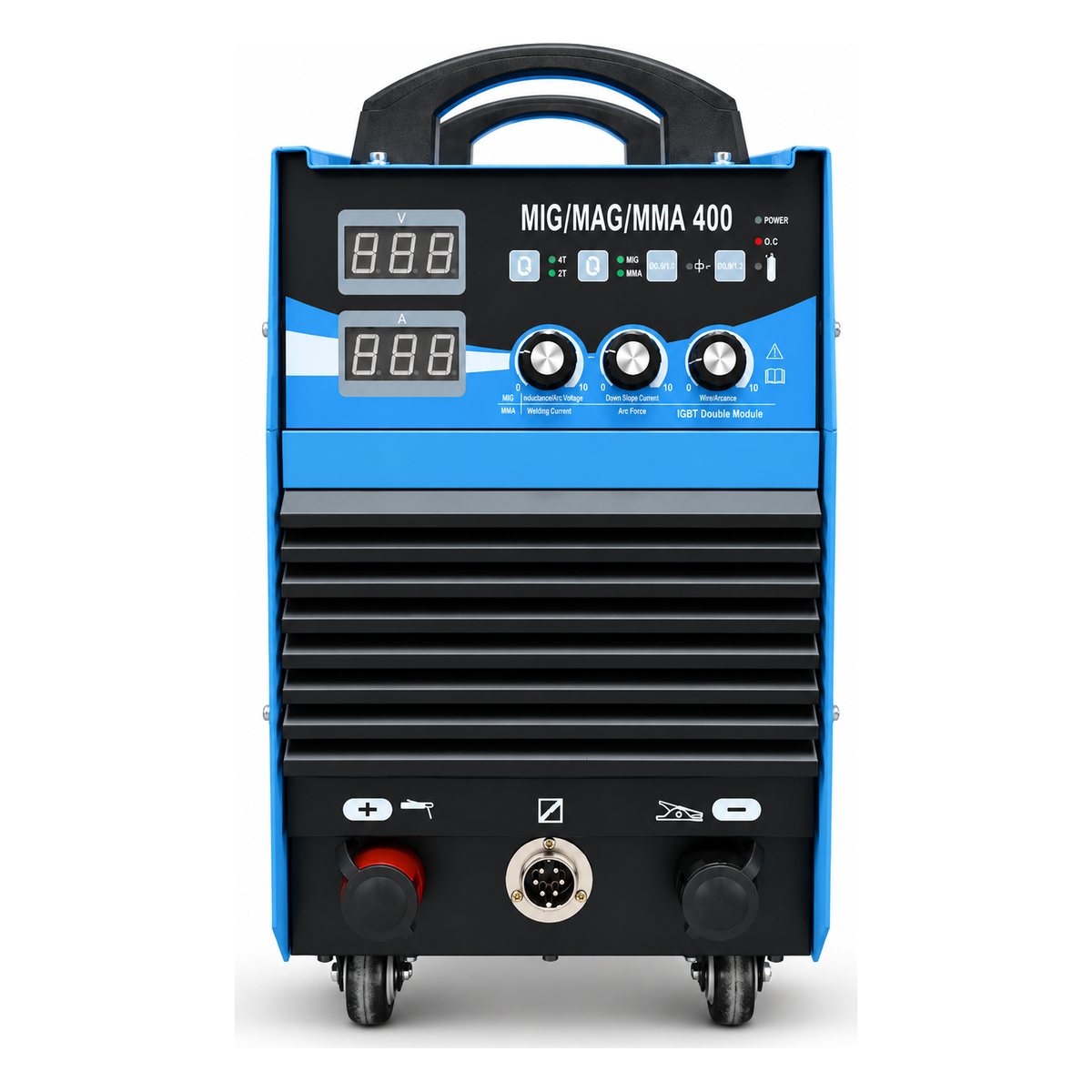

Two digital displays and three knobs. Here is what each control does.

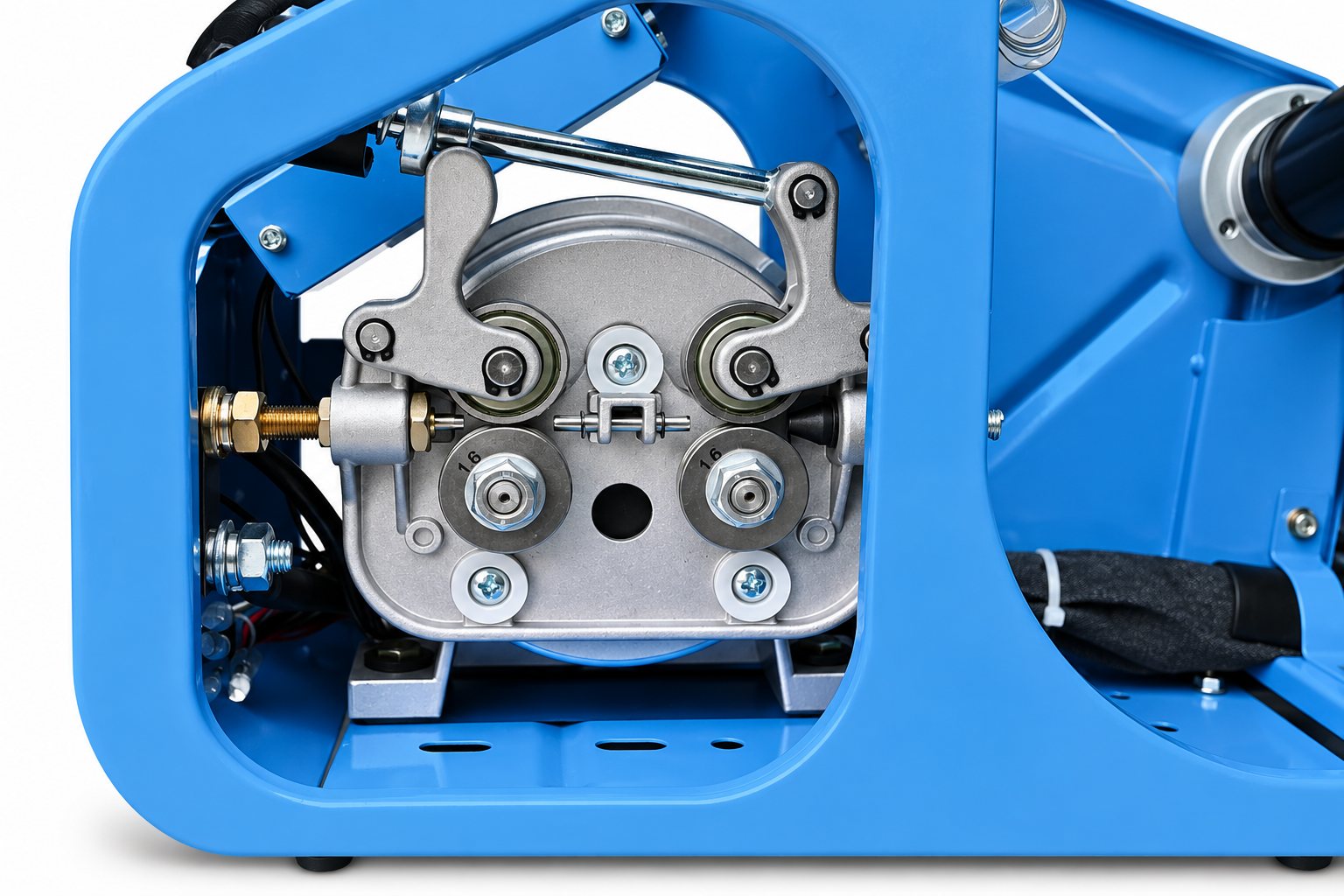

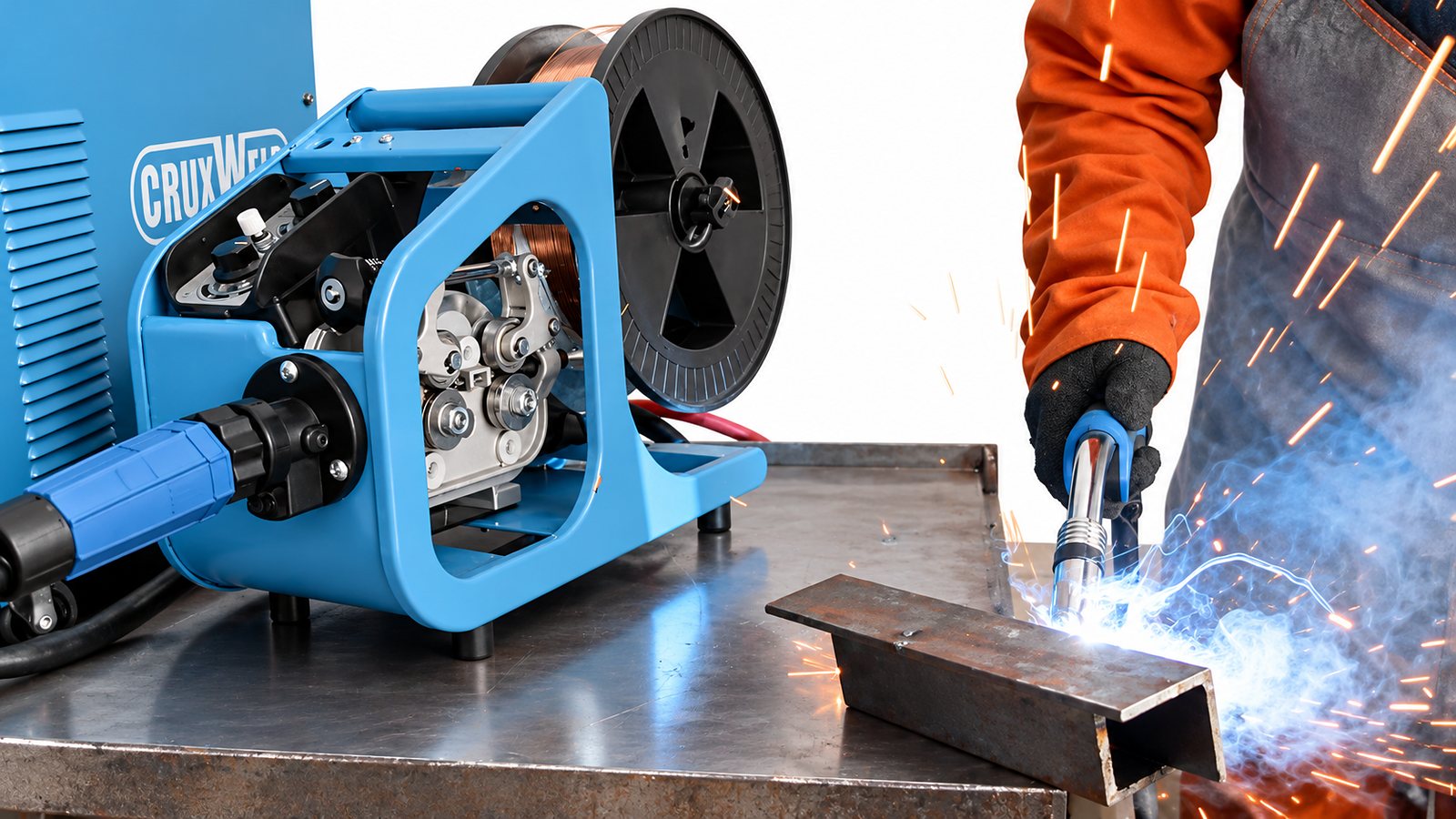

123456789A four-roll drive pushes the wire steadily to the torch, with stepless speed from 1.5 to 20 m/min.
Two pairs of rolls grip the wire for a steady feed, with a pressure arm on each pair.

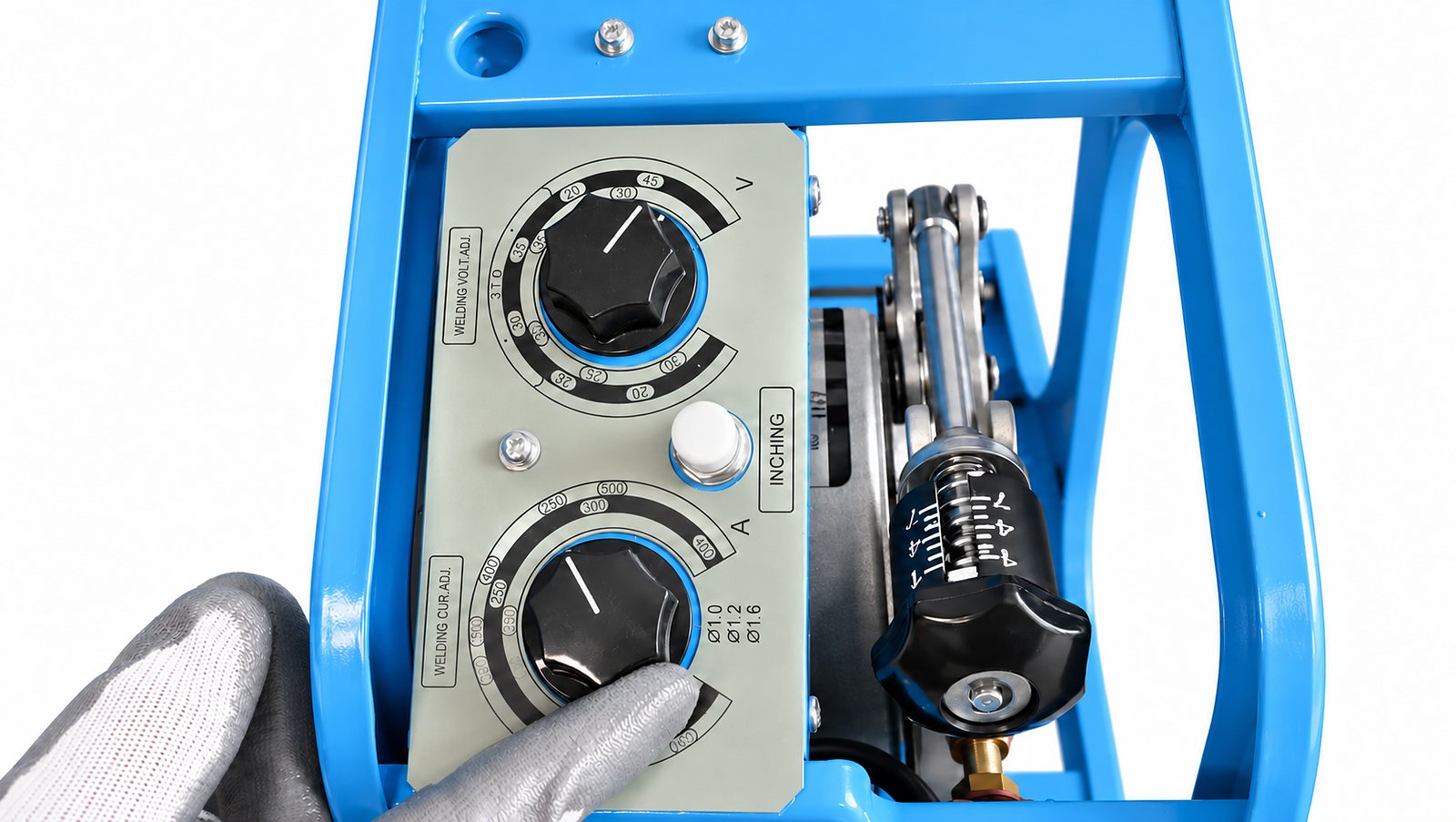

Welding voltage and current dials and an inching button on the feeder, right where you work.

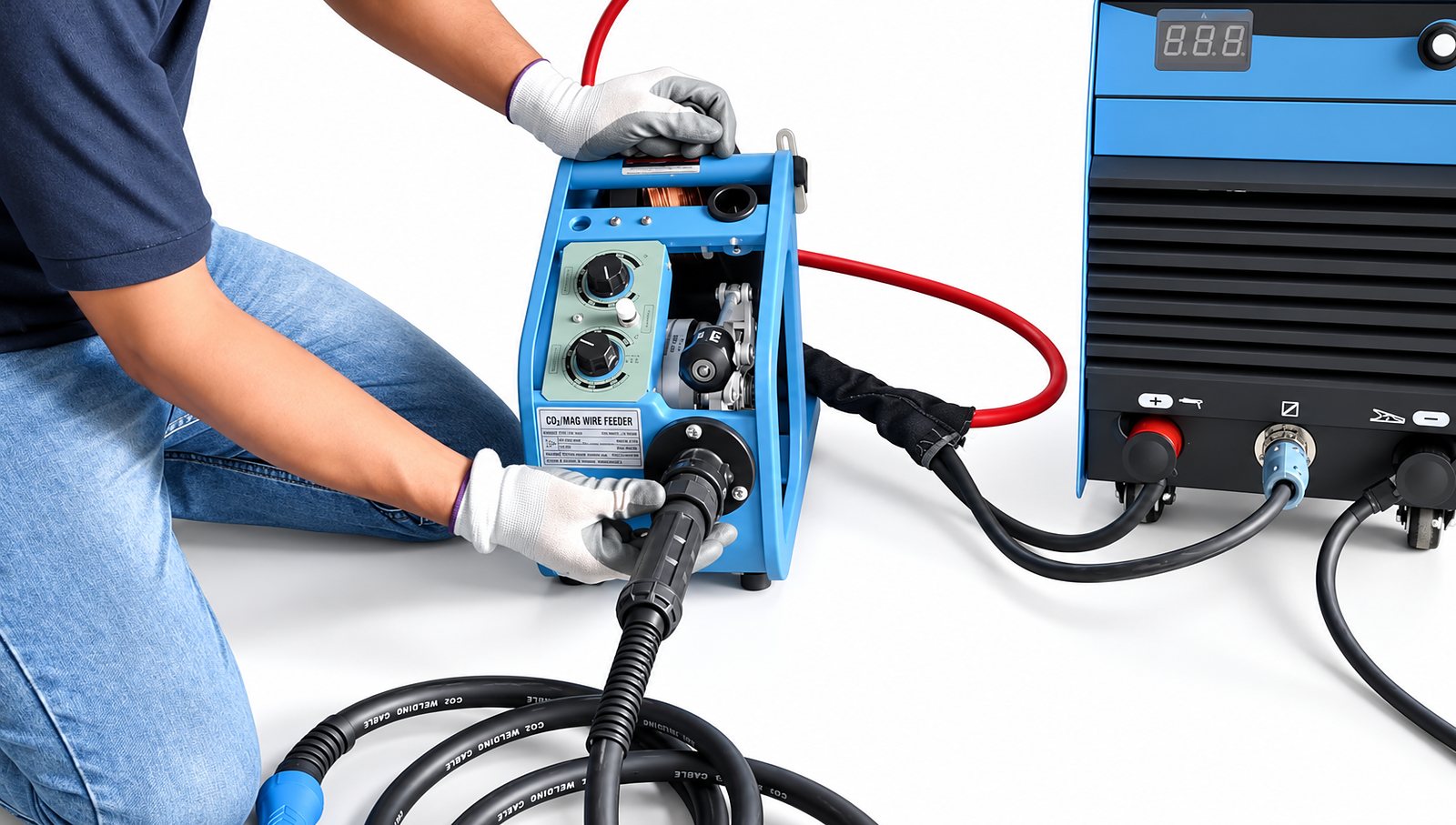

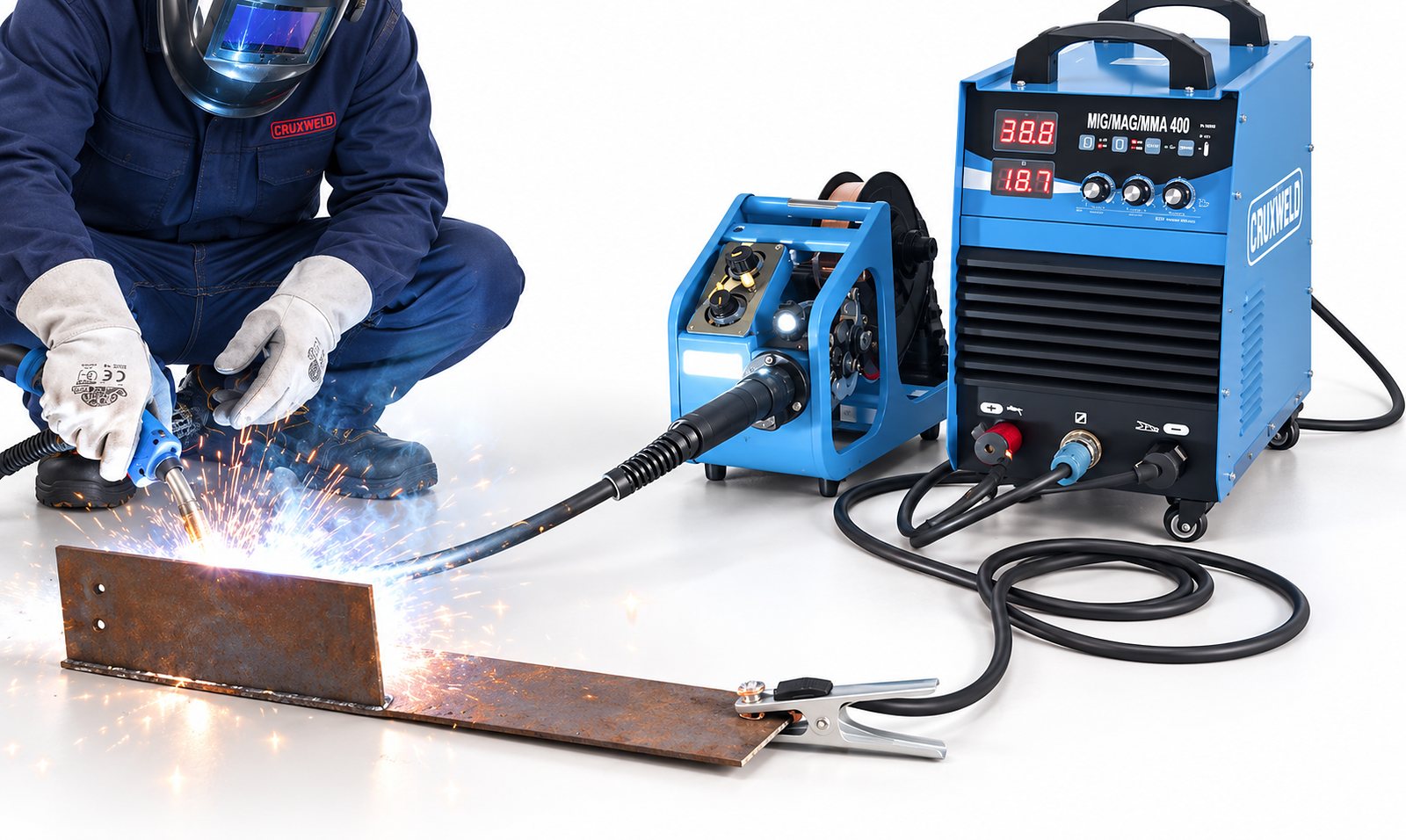

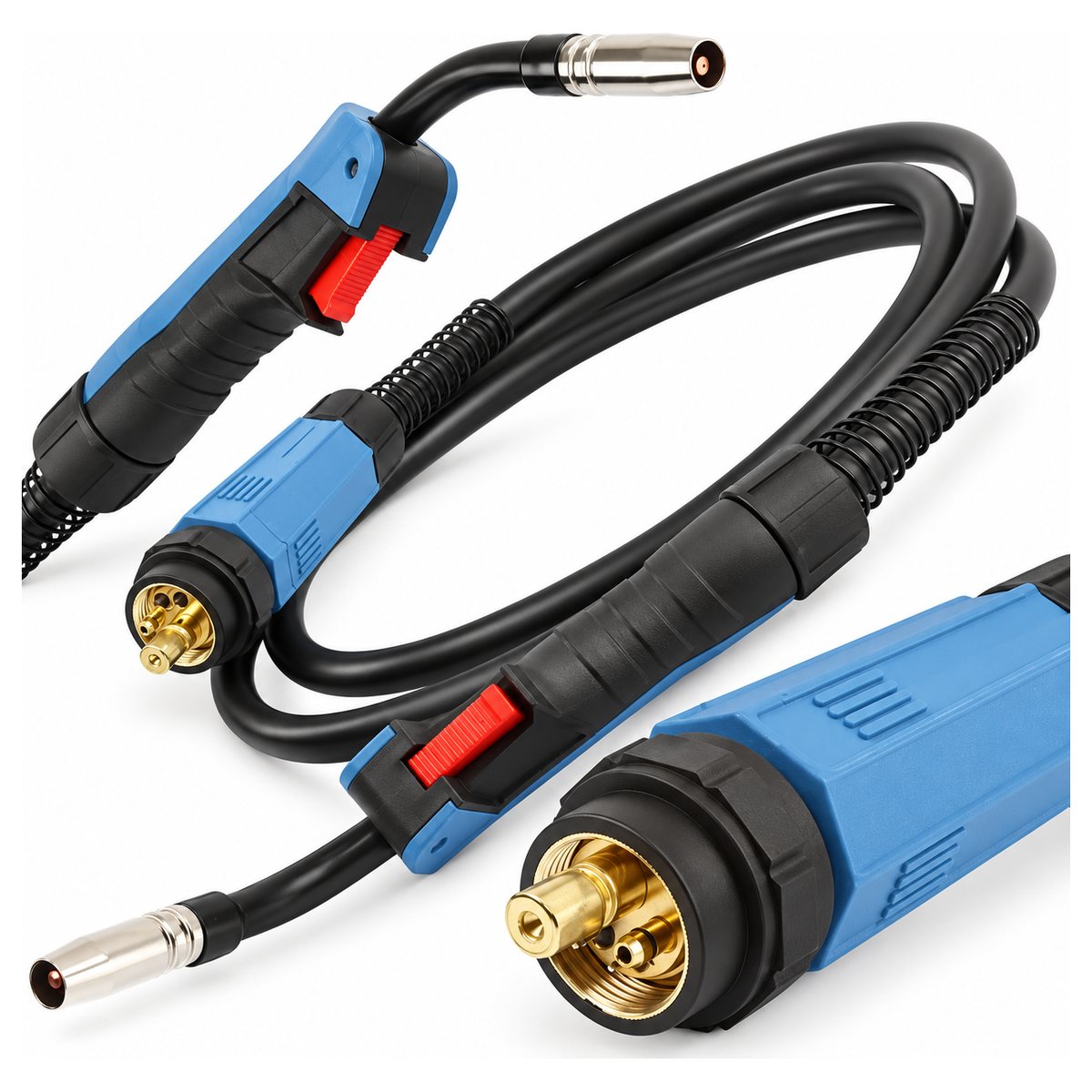

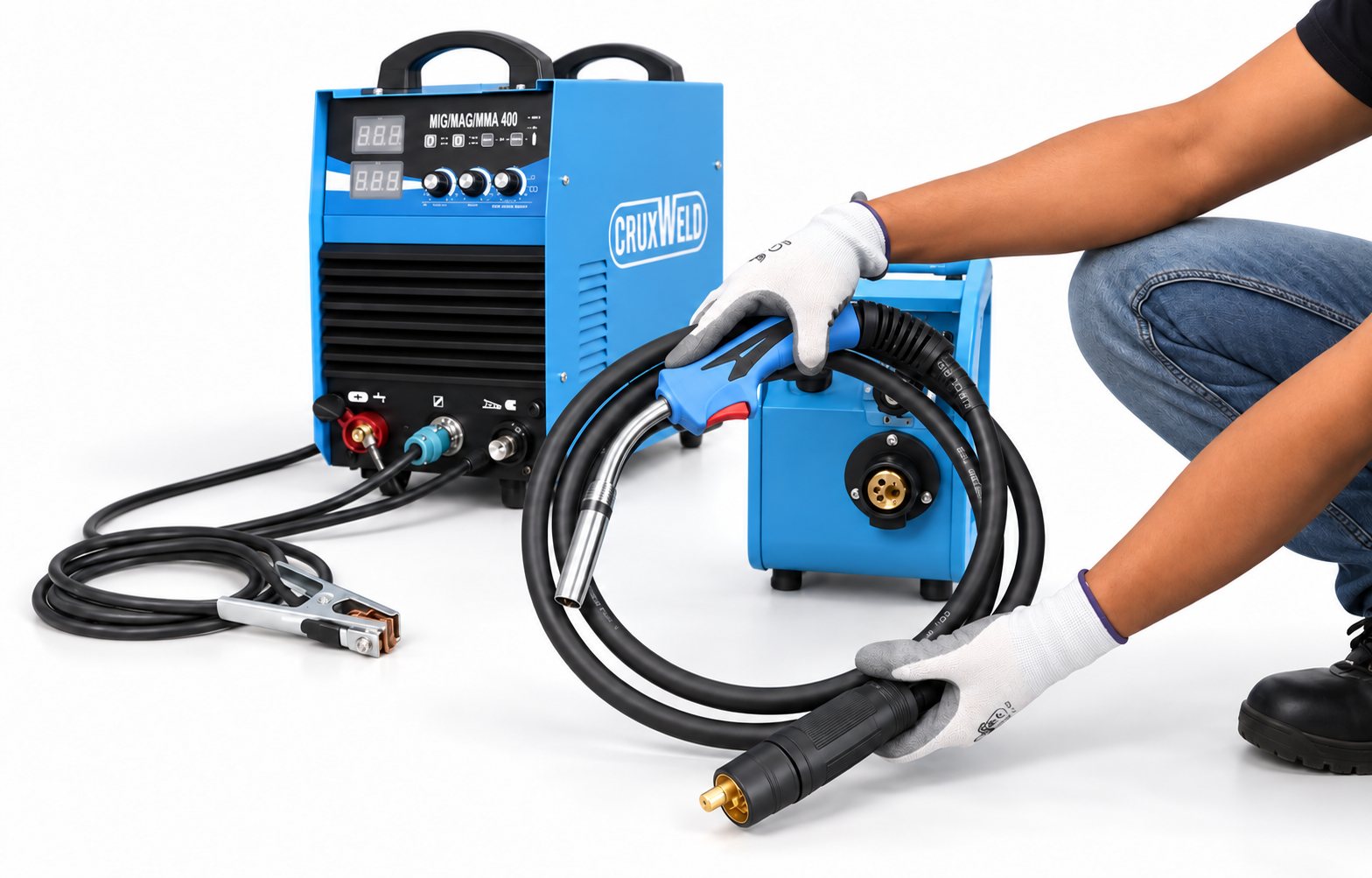

Fit the MIG torch to the feeder, the interconnection cable to the power source, and the earth clamp to the job.

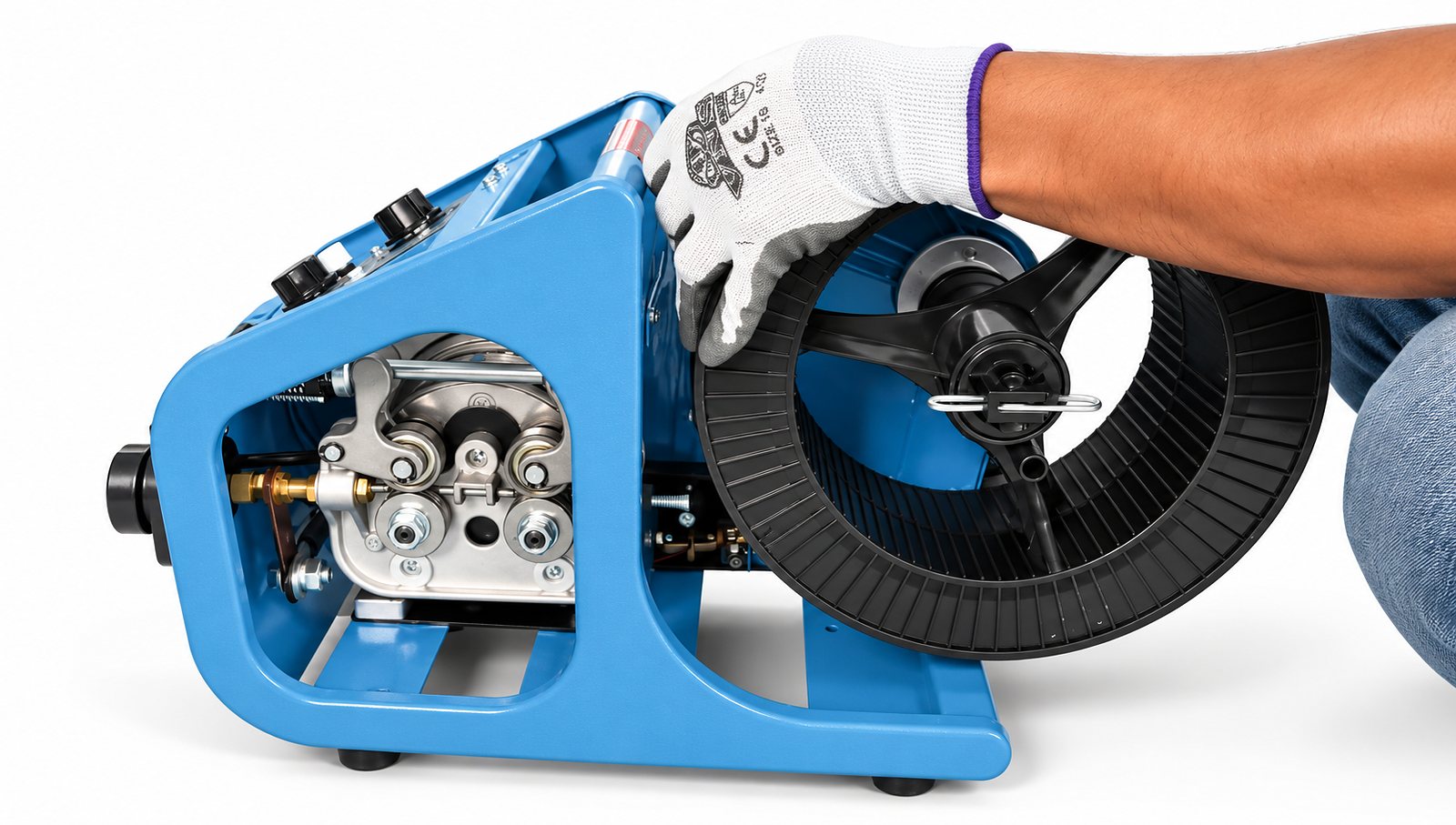

Mount the spool, fit drive rolls for your wire size and thread the wire with Check wire.

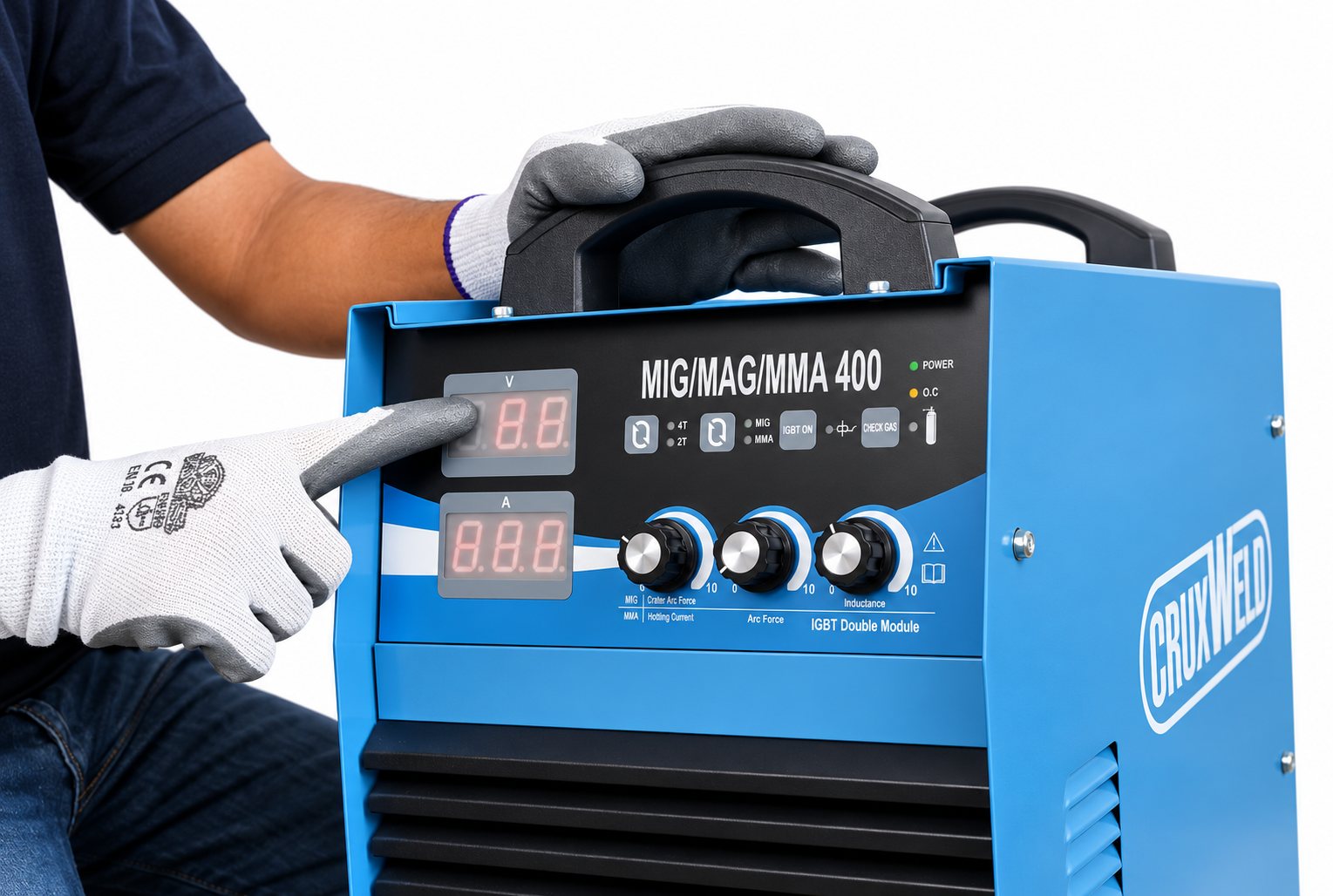

Choose MIG or MMA and 2T or 4T, then set voltage, wire speed and inductance for the plate.
Check gas flow (or skip it for gasless wire), strike the arc and run the bead.
Start with our featured video, then see real jobs in the shop and on site.
From functional designs to artistic pieces: see what a MIG welding machine can build, and get ideas for your own projects with the MIG 400 welding machine.
Gas metal arc welding away from the shop.

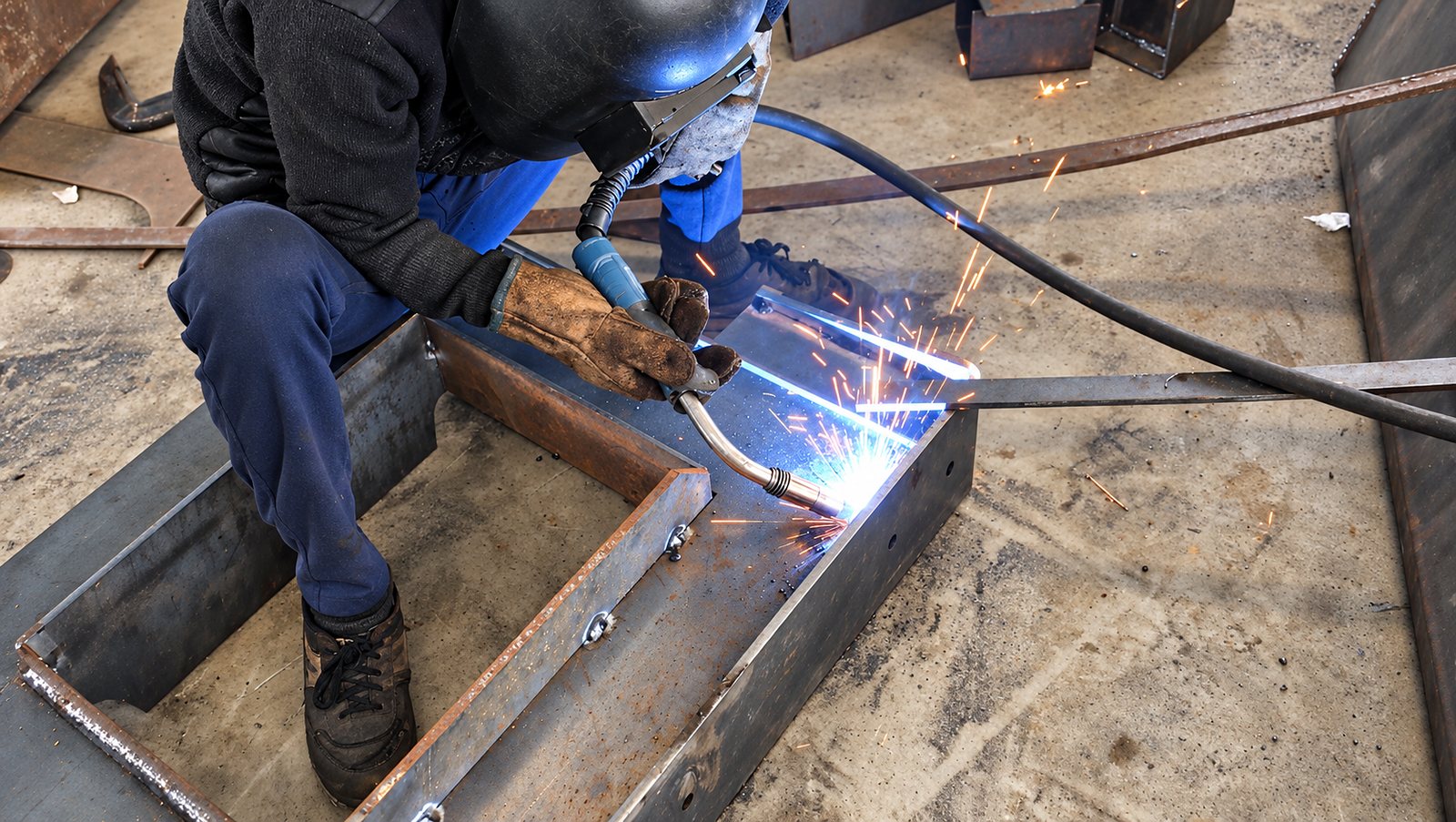

Basic MIG technique on industrial jobs.

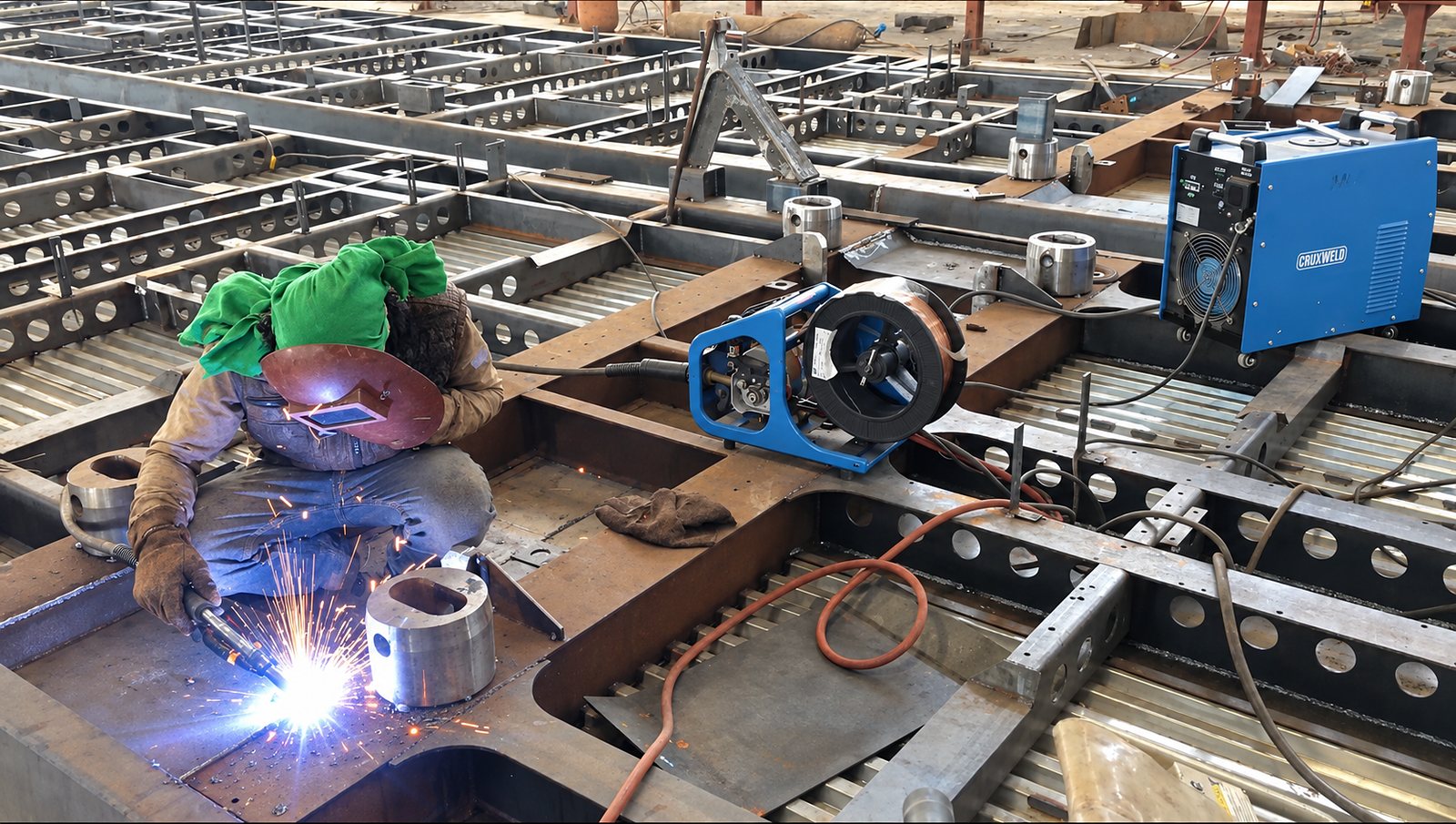

The full setup taken to the job.

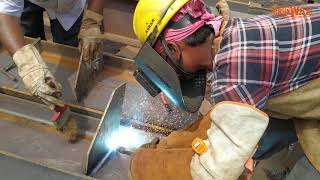

A quick look at the Cruxweld MIG welding machine laying a bead.

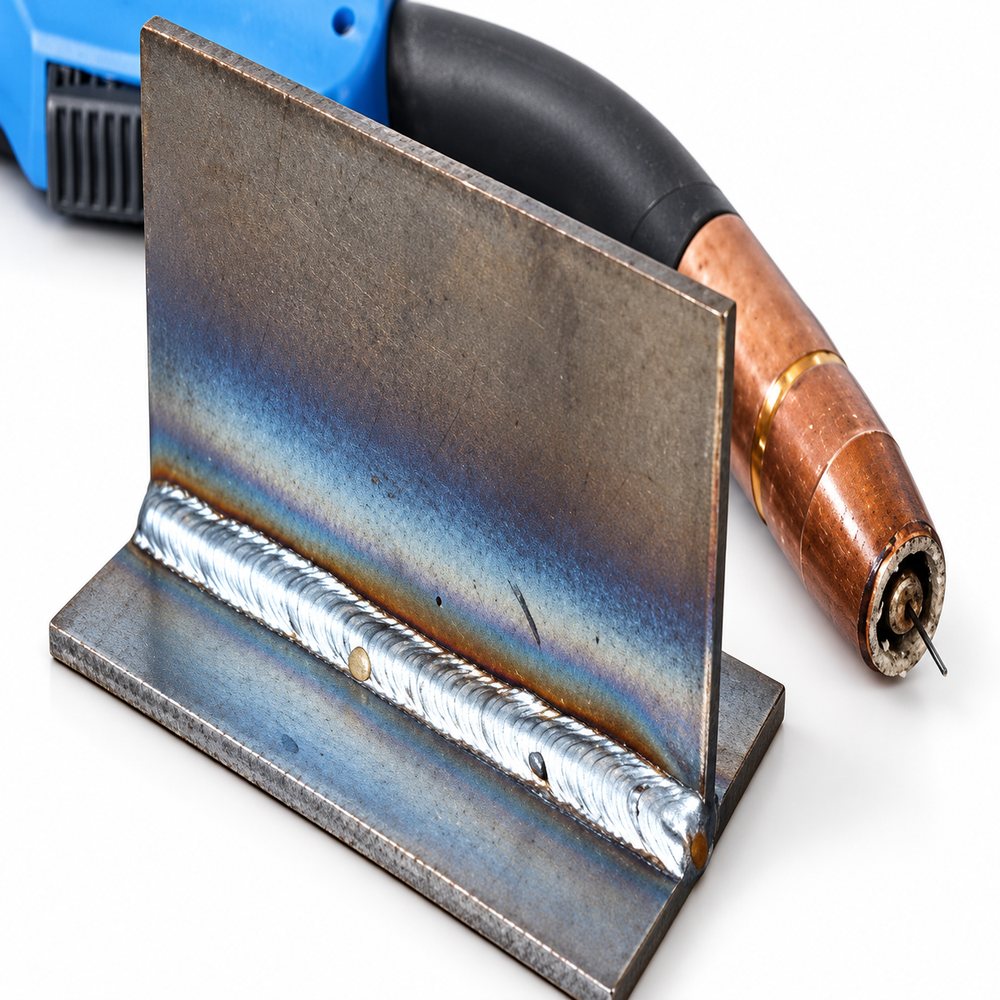

Fillet, butt and vertical welds on steel, from fabrication shops to site work.
The carriage moves the torch at a set speed and the CWMIG400iJ supplies the arc. One operator gets long, uniform welds with less spatter, less rework and less fatigue.
WeldyFiTrackless fillet carriage for stiffeners, beams and box sections.View →
Dynex 5MTrackless carriage with oscillation for long fillet and butt welds.View →
DynaTwin 200MTwo torches: double fillet and butt in one pass.View →

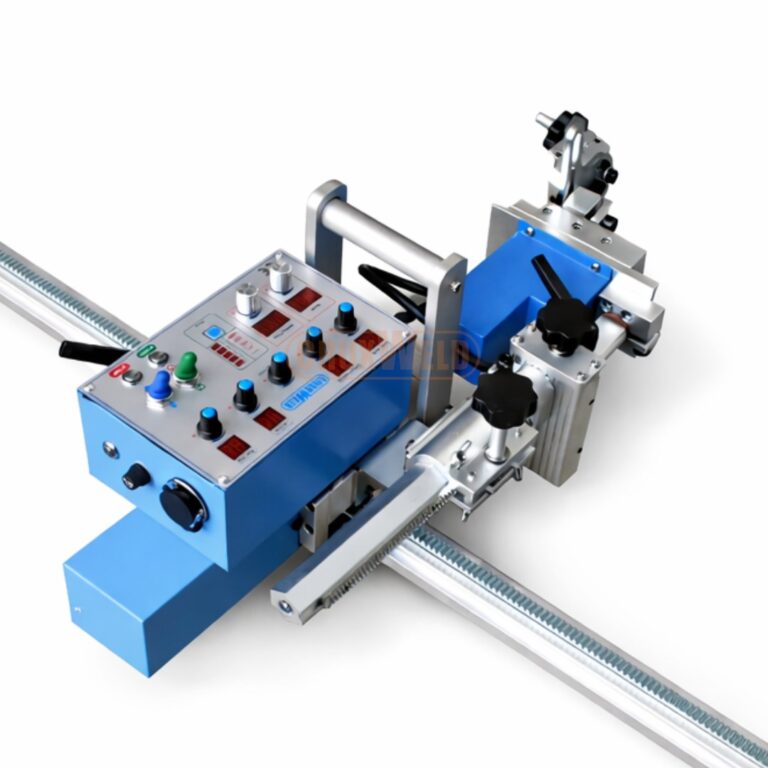

DynaSwing 100KMagnetic oscillating carriage for thick plate and multi-pass grooves.View →
DynaMove 45KRail-mounted carriage for heavy sections.View →
DynaFlex 100SFlexible track for tanks, vessels and pipes.View →
WeldOrbit 360Circular track for nozzles, flanges and round seams.View →All welding automationCarriages, oscillators and orbital systems.See the range →A stable inverter arc with inductance control lays a cleaner bead, so parts go to painting or fit-up with less dressing.
MIG for production, gasless wire for site jobs, and stick for repairs. No second machine to buy or carry.
The separate feeder moves with the welder; the power source stays near the mains.
Put the torch on a Cruxweld welding carriage when you need long, uniform welds.
CRUXWELD is a GeM Registered OEM Manufacturer. You talk directly to the team that knows this machine.
WhatsApp the material, thickness and whether you weld with gas or gasless. Our team replies with the right wire, torch and price.
| Specification | CWMIG400iJ |
|---|---|
| Input | |
| Model | CWMIG400iJ |

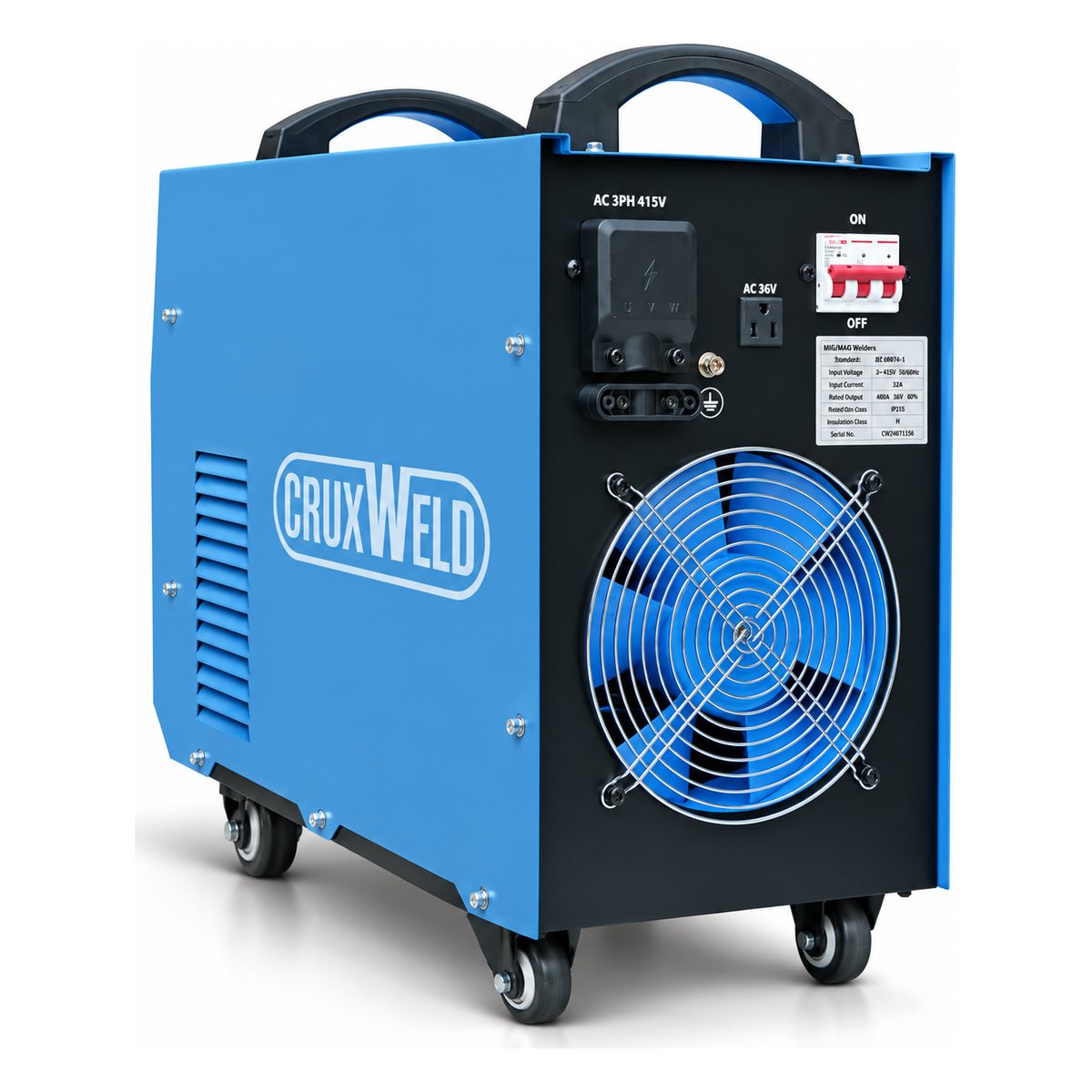

| Input supply | AC 415 V ±15% |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Max input kVA @ 100% duty cycle | 16 kVA |
| Power factor at maximum current | 0.93 |
| Efficiency at maximum current | 85% |
| Output | |
| Processes | MIG/MAG (gas), FCAW (gasless), MMA |
| Open circuit voltage | 65 V |
| Current setting range | 40–400 A |
| Voltage setting range | 16–34 V |
| Maximum welding output | 400 A |
| Welding current @ 60% duty cycle | 400 A |
| Welding current @ 100% duty cycle | 310 A |
| Wire feed | |
| Wire feed speed | 1.5–20 m/min |
| Wire feeder speed control | Stepless |
| Suitable wire diameter | 0.8–1.4 mm |
| Welding torch, rated current | 450 A |
| Weldable materials | Mild steel, stainless steel, aluminium, flux-cored wire |
| Build | |
| Technology | IGBT inverter |
| Enclosure class | IP21 |
| Insulation | H |
| Cooling | Forced air |
| Power source dimensions (H × L × W) | 525 × 590 × 295 mm |
| Wire feeder dimensions (H × L × W) | 280 × 460 × 200 mm |
| Power source weight | 56 kg |
| Wire feeder weight | 9.5 kg |
Torch and cable lengths are chosen when you order. Confirm the exact list with our team on WhatsApp.
