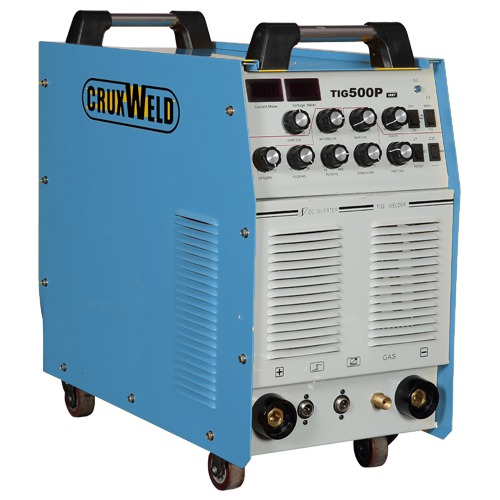

The CRUXWELD TIG 500P (CTW-TIG500P) is a 500 amp TIG welding machine with pulse, built for a 415 V three-phase supply. TIG output runs from 10 A to 500 A and stick output from 40 A to 500 A, which gives one machine the range for thin stainless sheet at the low end and thick plate or heavy electrode work at the top.
The pulse frequency (0.5–10 Hz) is set low on purpose. At these rates the weld pool grows and shrinks with each pulse, which helps the welder control penetration on root runs, out-of-position joints and heat-sensitive stainless steel. Gas post-flow is adjustable from 0.1 to 20 seconds, so the tungsten and the end of the weld stay shielded after a high-current pass.
Send your job details to our technical team on WhatsApp or book a video call. CRUXWELD is a GeM Registered OEM Manufacturer with 45+ years of welding expertise. Engineered, assembled and tested in India. Supported Worldwide.
| Specification | Unit | CTW-TIG500P |
| Input voltage | Volt | 415±15% |
| Phase | No | 3 |
| Frequency | Hz | 50/60 |
| Max input KVA@100% duty cycle | KVA | 18.5 |
| Welding current range (TIG Mode) | Amps DC | 10-500 |
| Welding current range (MMA Mode) | Amps DC | 40-500 |
| Welding current @60% duty cycle | Amps | 500 |
| Welding current @100% duty cycle | Amps | 410 |
| Efficiency | % | 85 |
| Degree of protection | Class | IP23S |
| Insulation | Class | H |
| Gas pre-flow time | sec | 0-5 |
| Gas post flow time | sec | 0.1-20 |
| Pulse frequency | Hz | 0.5-10 |
| Current upslope & down slope time | sec | 0-10 |
| Suitable electrode diameter | mm Φ | 1.6, 2.5, 3.2 intermittent 4 |
| Protections | – | Over voltage, under voltage, over temperature |
| Cooling | Type | Forced Air |
| Dimensions (LxWxH) | mm | 600x645x318 |
| Weight (approx) | Kg | 62 |
