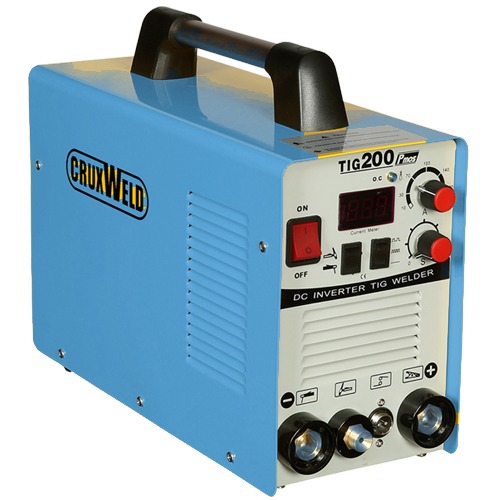

The CRUXWELD TIG 200P (model CTW-TIG200P) is a pulse TIG welding machine that runs on a 220 V single-phase supply. It gives you DC TIG from 5 A to 200 A and stick (MMA) welding from 10 A to 200 A in one MOSFET inverter, so a small fabrication shop or maintenance team can handle thin stainless sheet and everyday electrode work with the same machine.
Pulse frequency is adjustable from 0.5 Hz to 200 Hz. Low settings help you control heat on thin sheet and root runs; higher settings tighten the arc for neat, narrow beads. HF ignition starts the arc without touching the tungsten to the job, so the tip stays sharp and the weld stays free of tungsten pick-up.
Yes. It is built for a 220 V single-phase supply (±15%), 50/60 Hz. Tell our technical team about your supply on WhatsApp and they will confirm it suits your workshop.
Pulse TIG switches the current between a high and a low level many times a second. You get the penetration of the high current with less overall heat, which reduces distortion and burn-through on thin stainless steel and tube. On the TIG 200P the pulse frequency is adjustable from 0.5 Hz to 200 Hz.
Yes. MMA mode covers 10–200 A and suits 1.6, 2.5 and 3.2 mm electrodes, with 4 mm electrodes for intermittent use. Automatic hot start helps the electrode strike cleanly.
Price depends on the accessories you need and your delivery location. Message us on WhatsApp at +91 88008 82983 for a quotation and the current delivery time.
Send your job details to our technical team on WhatsApp or book a video call. CRUXWELD is a GeM Registered OEM Manufacturer with 45+ years of welding expertise. Engineered, assembled and tested in India. Supported Worldwide.
| Specification | Unit | CTW-TIG200P |
| Input voltage | Volt | AC220±15% |
| Phase | No | 1 |
| Frequency | Hz | 50/60 |
| Max input KVA@100% duty cycle | KVA | 4.5 |
| Welding current range (TIG Mode) | Amps DC | 5-200 |
| Welding current range (MMA Mode) | Amps DC | 10-200 |
| Welding current @60% duty cycle | Amps | 200 |
| Efficiency | % | 85 |
| Degree of protection | Class | IP23S |
| Insulation | Class | H |
| Gas pre-flow time | sec | 0-5 |
| Pulse frequency | Hz | 0.5-200 |
| Current upslope & down slope time | sec | 0-10 |
| Suitable electrode diameter | mm Φ | 1.6, 2.5, 3.2 intermittent 4 |
| Protections | – | Over voltage, under voltage, over temperature |
| Cooling | Type | Forced Air |
| Dimensions (LxWxH) | mm | 460x270x345 |
| Weight (approx) | Kg | 7.5 |
Load More
CAN THE MODEL CTWTIG200P WELD 0.1 MM MILD STEEL SHEET??
