What is a manual pipe gas cutting machine?

A portable carriage that clamps onto a pipe with a chain and carries an oxy-fuel torch around it as you turn a hand wheel. It gives a cleaner, more even circular cut and bevel than a free-hand torch. The CRUXWELD TUBOCUT-HG is this type of machine.

Does the TUBOCUT-HG need electricity?

No. The drive is a manual hand wheel with a worm gear, and cutting is oxy-fuel, so it works on sites with no power supply.

What pipe sizes can it cut?

Pipes from Ø100 mm upward. The 75-link chain supplied covers pipes up to about Ø600 mm; add chain links for larger diameters. Links needed = pipe OD in cm + 12.

What wall thickness can it cut?

5 to 50 mm, using G02 nozzles No. 1 (5–15 mm), No. 2 (15–30 mm) and No. 3 (30–50 mm).

Can it cut a bevel for welding?

Yes. Set the torch from 0 to 45° on the dial at the torch clamp for a square cut or a weld-ready bevel. The angle can also be adjusted during cutting.

Which gases does it use?

Oxygen with acetylene or propane. Oxygen pressure is 0.30–0.50 MPa depending on the nozzle.

What comes with the machine?

The machine body, cutting torch, G02 nozzles No. 1–3, a 75-link chain, two wheels, six M5 screws, a tool box and an inspection certificate. Gas cylinders, regulators and hoses are not included.

How do I get the TUBOCUT-HG price and delivery time?

Request a quote on this page or message +91 88008 82983 on WhatsApp with your pipe sizes and wall thickness. You will receive a GST quotation with delivery time, usually the same working day.

Manual Pipe Gas Cutting Machine TUBOCUT-HG

Name: Manual Pipe Gas Cutting Machine TUBOCUT-HG – No Power Needed
Brand: Cruxweld
SKU: TUBOCUT-HG

000° · START OF THE CUT

Free-hand pipe cuts wander. This doesn’t.

Cutting a round pipe with a hand torch means walking the flame around a curve by eye. The edge wanders, the bevel changes as your wrist tires, and the joint then needs grinding before it can be fitted up.

The TUBOCUT-HG manual pipe gas cutting machine takes the torch out of your hand. A chain holds the machine tight on the pipe, four wheels ride the surface, and a worm-gear hand wheel moves it around at a steady pace while the torch holds its height and angle. You get a square cut or a weld-ready bevel, on the shop floor or out on the line, where there is no power.

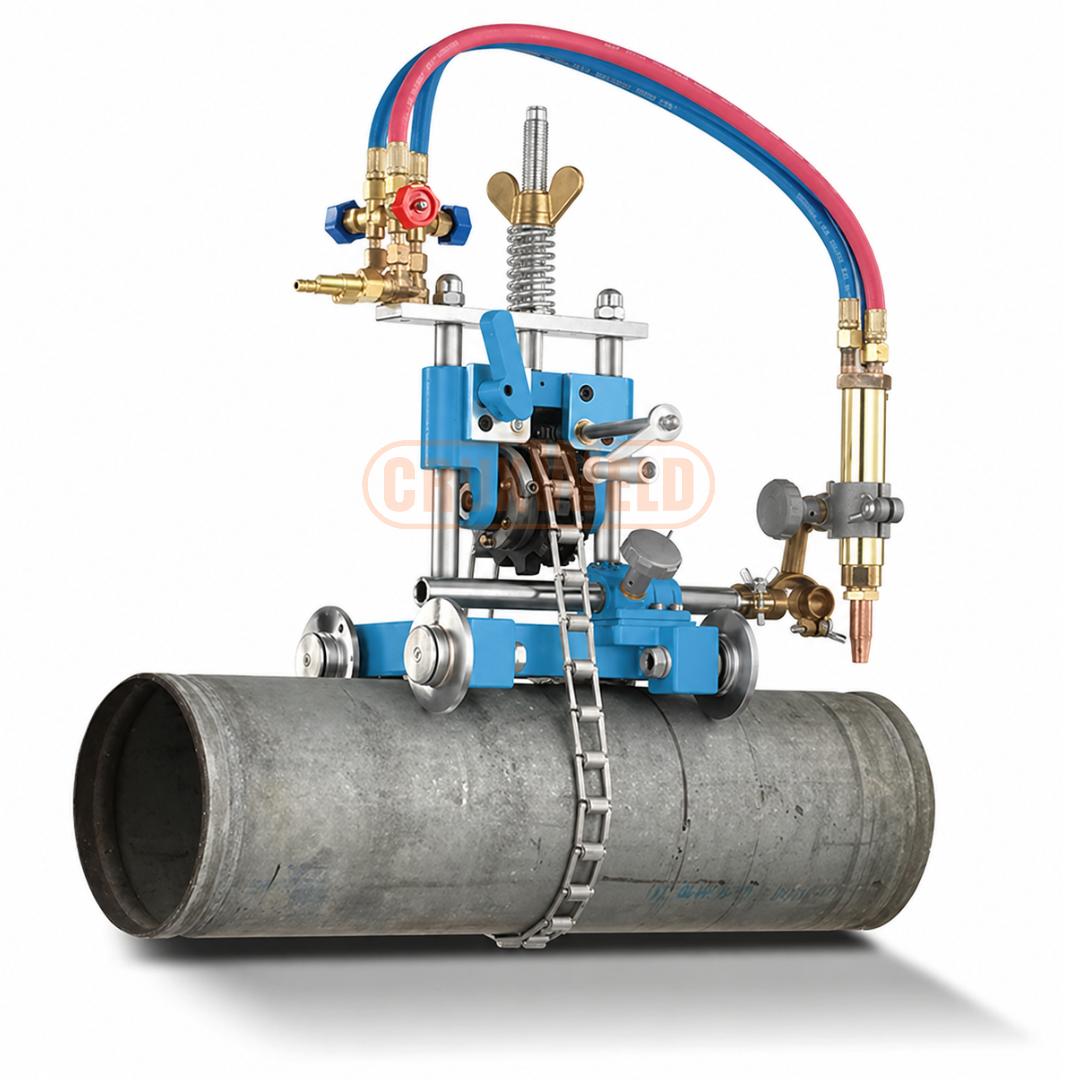

CRUXWELD TUBOCUT-HG manual pipe gas cutting machine mounted on steel pipes — TUBOCUT-HG on the pipe.

Chain guidedSquare-link chain holds the machine on the pipe.
Hand-wheel driveWorm gear moves it at an even pace.
Bevel 0–45°Set on the torch-clamp dial.
No electricityGas and a hand wheel are all it needs.

045° · WHAT RIDES THE PIPE

Six parts that do the steering for you

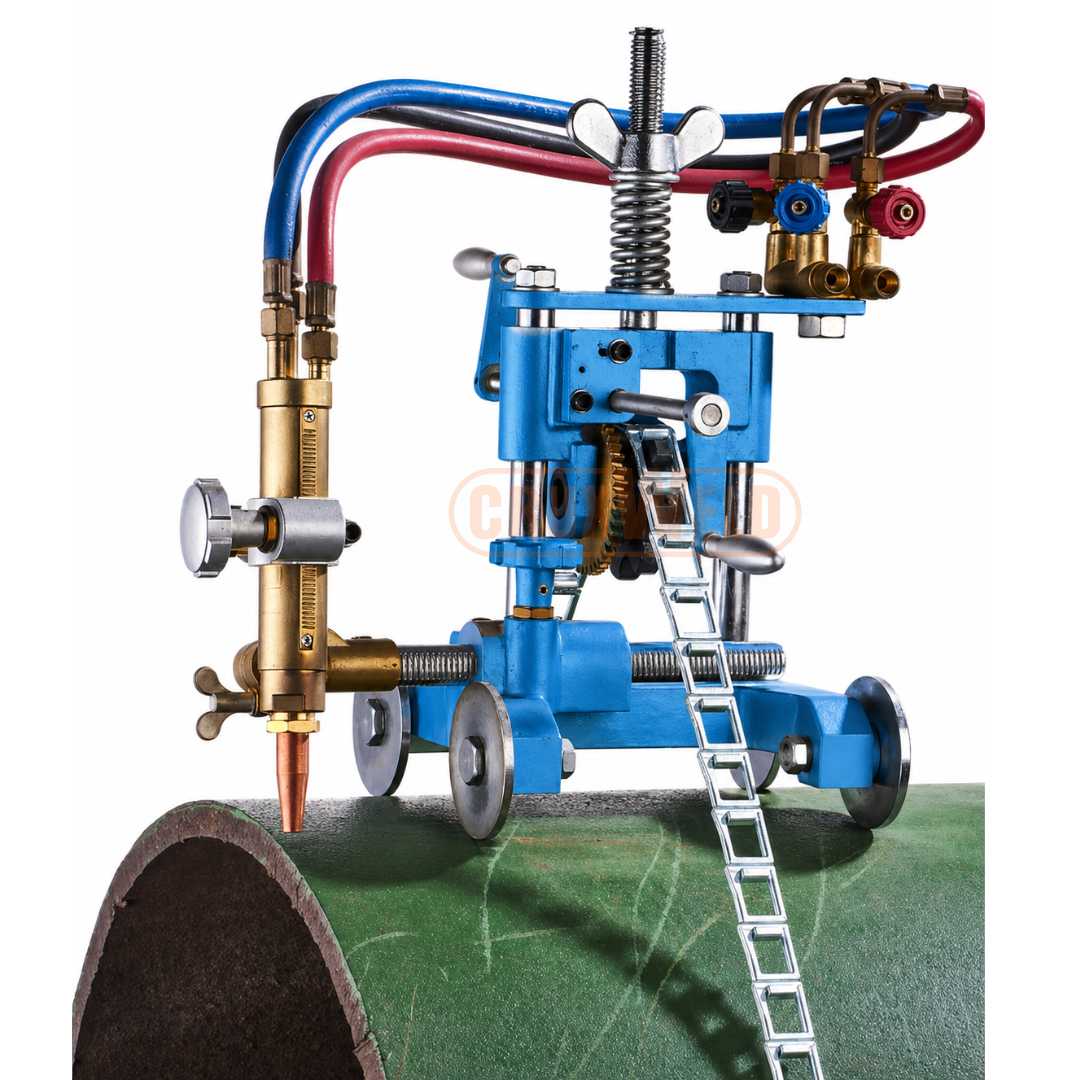

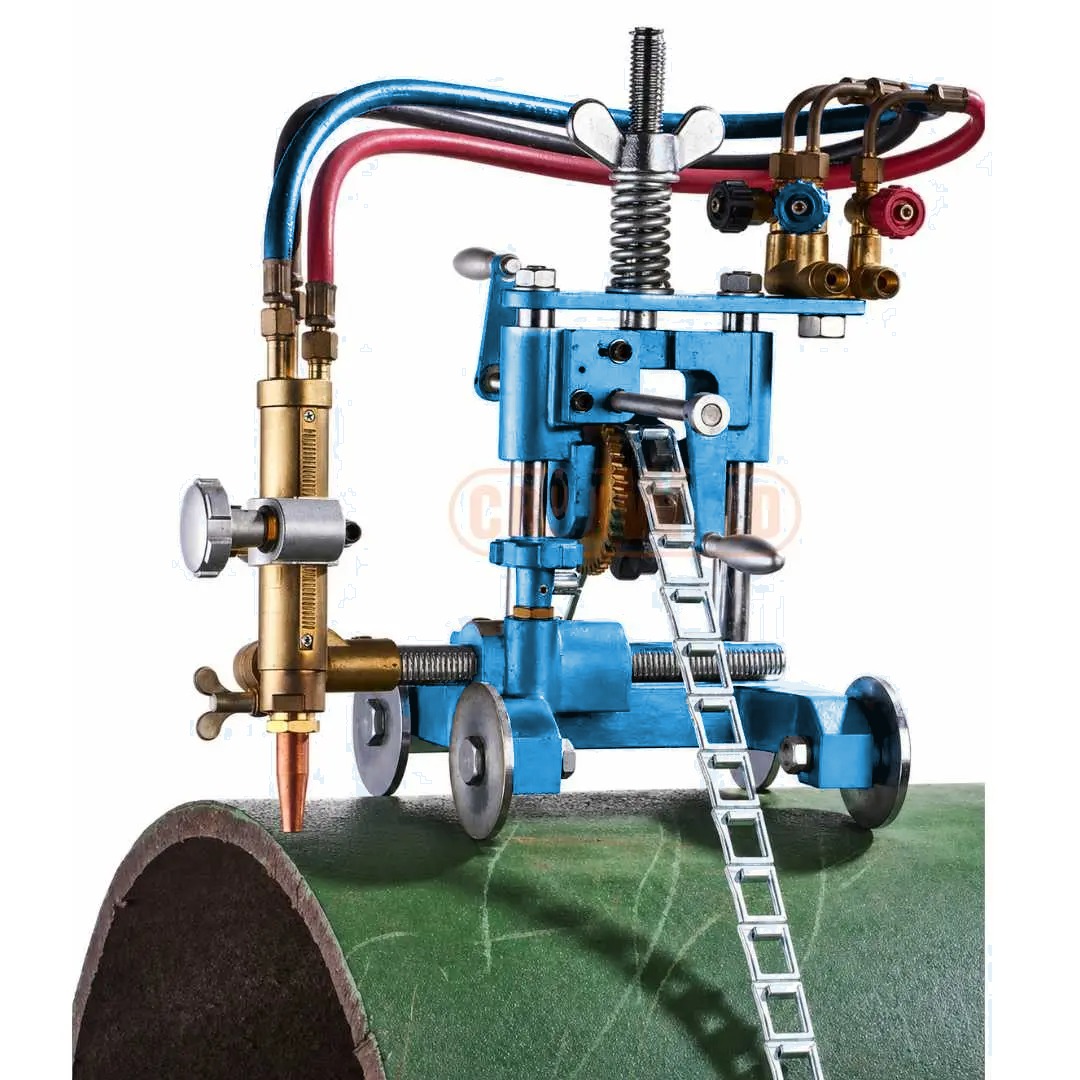

TUBOCUT-HG front view showing the cutting torch, hand wheel, wheels and chain — Front view: torch, hand wheel, wheels and chain.

01Hand wheel & worm gearTurn it clockwise to move forward, anticlockwise to move back. The worm gear keeps travel slow and even.
02Sprocket & chainThe sprocket climbs a detachable square-link chain wrapped around the pipe.
03Spring-loaded clutchPress the spring to tension the chain so the machine sits tight on the pipe.
04Four running wheelsWheels on bearing axles ride the pipe surface and carry the machine round.
05Rack & pinion torch holderMove the torch across, up and down to set its position and height.
06Bevel dial on the torch clampTilt the torch from 0 to 45°; the angle can be adjusted during cutting.

090° · MOUNT AND CUT

Five steps from bare pipe to a finished ring

1Place it on the pipeSit the machine on the pipe at the cut line, within the torch’s cross-travel range.
2Tension the chainWrap the chain round the pipe, press the spring and hook it so the machine is held tight.
3Light and set the flameLight the nozzle and regulate the preheat flame for the wall thickness.
4Set the torchMove the torch to position and height, and set the bevel angle on the dial.
5Cut and turnOpen the cutting oxygen and turn the hand wheel at the same time, at an even pace, all the way round.

Steady hand, clean edge: turn the hand wheel at an even pace while the cutting oxygen is open, all the way round.

135° · CHAIN LENGTH

How many chain links for your pipe?

The chain is made of detachable square links, so you set its length to the pipe. The rule is simple: links needed = pipe OD in cm + 12. Tap your pipe size:

4″6″8″10″12″16″18″20″

24 linksfor a 4″ pipe, Ø114.3 mm OD

11.4 cm + 12 = 23.4 → 24 links

24 of the 75 links supplied

29 linksfor a 6″ pipe, Ø168.3 mm OD

16.8 cm + 12 = 28.8 → 29 links

29 of the 75 links supplied

34 linksfor a 8″ pipe, Ø219.1 mm OD

21.9 cm + 12 = 33.9 → 34 links

34 of the 75 links supplied

40 linksfor a 10″ pipe, Ø273 mm OD

27.3 cm + 12 = 39.3 → 40 links

40 of the 75 links supplied

45 linksfor a 12″ pipe, Ø323.9 mm OD

32.4 cm + 12 = 44.4 → 45 links

45 of the 75 links supplied

53 linksfor a 16″ pipe, Ø406.4 mm OD

40.6 cm + 12 = 52.6 → 53 links

53 of the 75 links supplied

58 linksfor a 18″ pipe, Ø457 mm OD

45.7 cm + 12 = 57.7 → 58 links

58 of the 75 links supplied

63 linksfor a 20″ pipe, Ø508 mm OD

50.8 cm + 12 = 62.8 → 63 links

63 of the 75 links supplied

75 links come with the machine: enough for pipes up to about Ø600 mm
Larger pipes: add chain links to suit the diameter
Minimum pipe size: Ø100 mm

180° · NOZZLES AND BEVEL

Pick the nozzle by wall thickness, set the bevel on the dial

G02 No. 1 · 5–15 mmG02 No. 2 · 15–30 mmG02 No. 3 · 30–50 mm

5–15 mmG02 No. 1

Wall thickness for nozzle No. 1. Oxygen pressure 0.30–0.50 MPa by nozzle.

15–30 mmG02 No. 2

Wall thickness for nozzle No. 2. Oxygen pressure 0.30–0.50 MPa by nozzle.

30–50 mmG02 No. 3

Wall thickness for nozzle No. 3. Oxygen pressure 0.30–0.50 MPa by nozzle.

Acetylene for No. 1: above 0.05 MPa. Propane can be used with the matching nozzle setup. Move the torch at a uniform pace by hand.

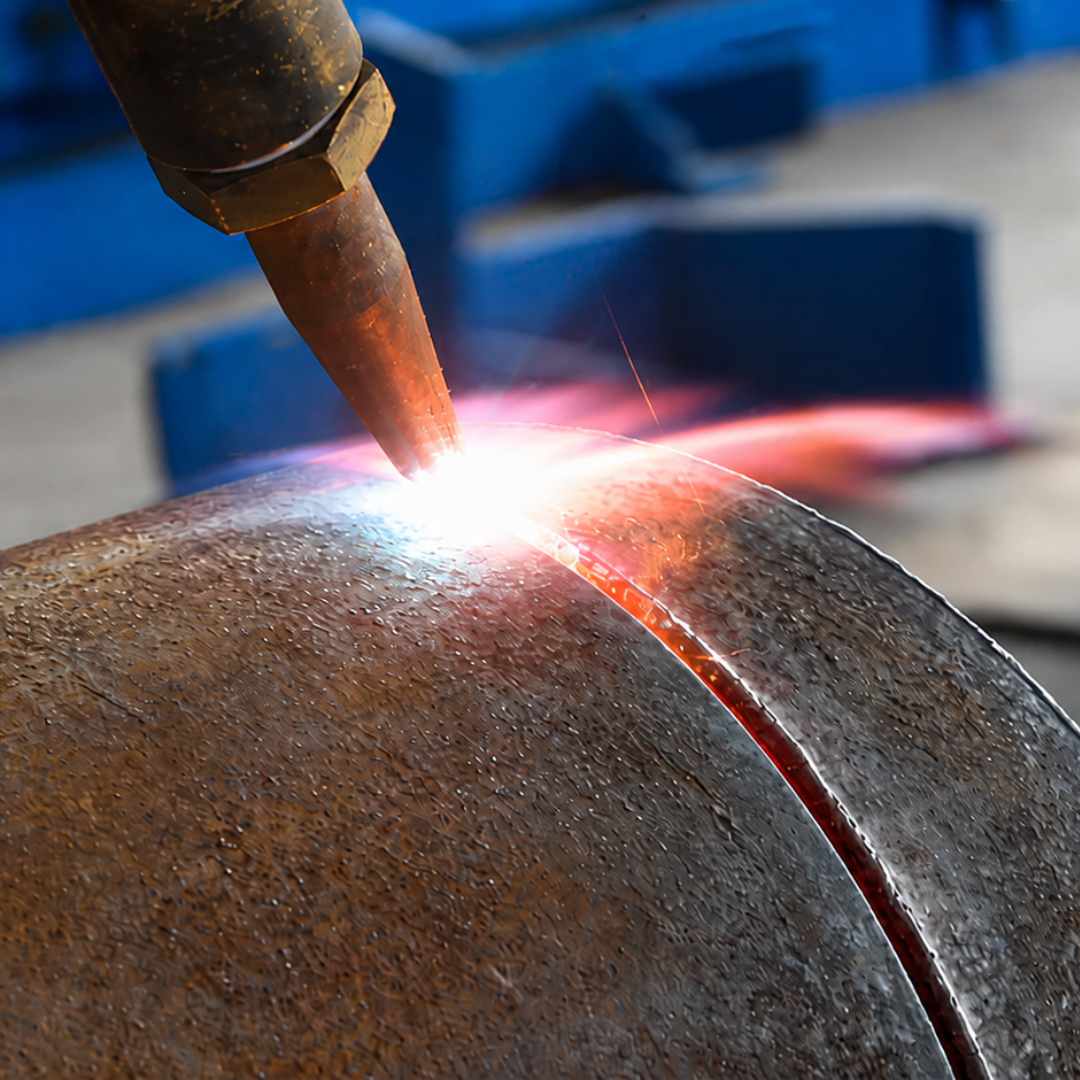

Oxy-fuel flame cutting a bevel on a steel pipe for weld preparation — Bevel cut for weld fit-up.

225° · IN THE BOX

Ready to mount on arrival

1 setMachine body
1Cutting torch
No. 1–3G02 cutting nozzles
75 linksChain
2Wheels
6M5 × 10 screws
1Tool box
1Inspection certificate

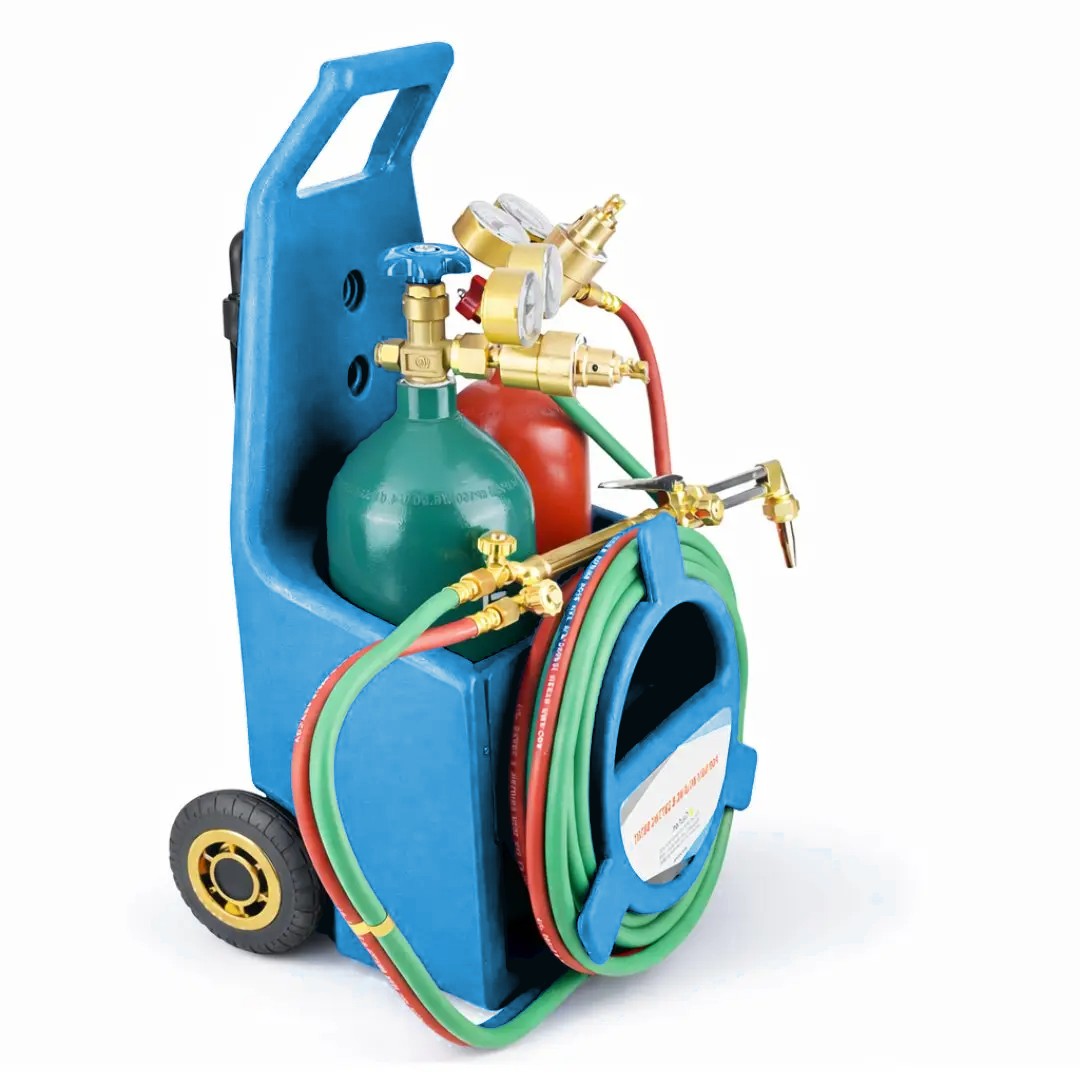

You supply the oxygen and fuel-gas cylinders, regulators and hoses with flashback arrestors. Need a complete gas set? See the Cut-n-Weld ProX oxy-acetylene kit. Your quotation lists the exact items supplied.

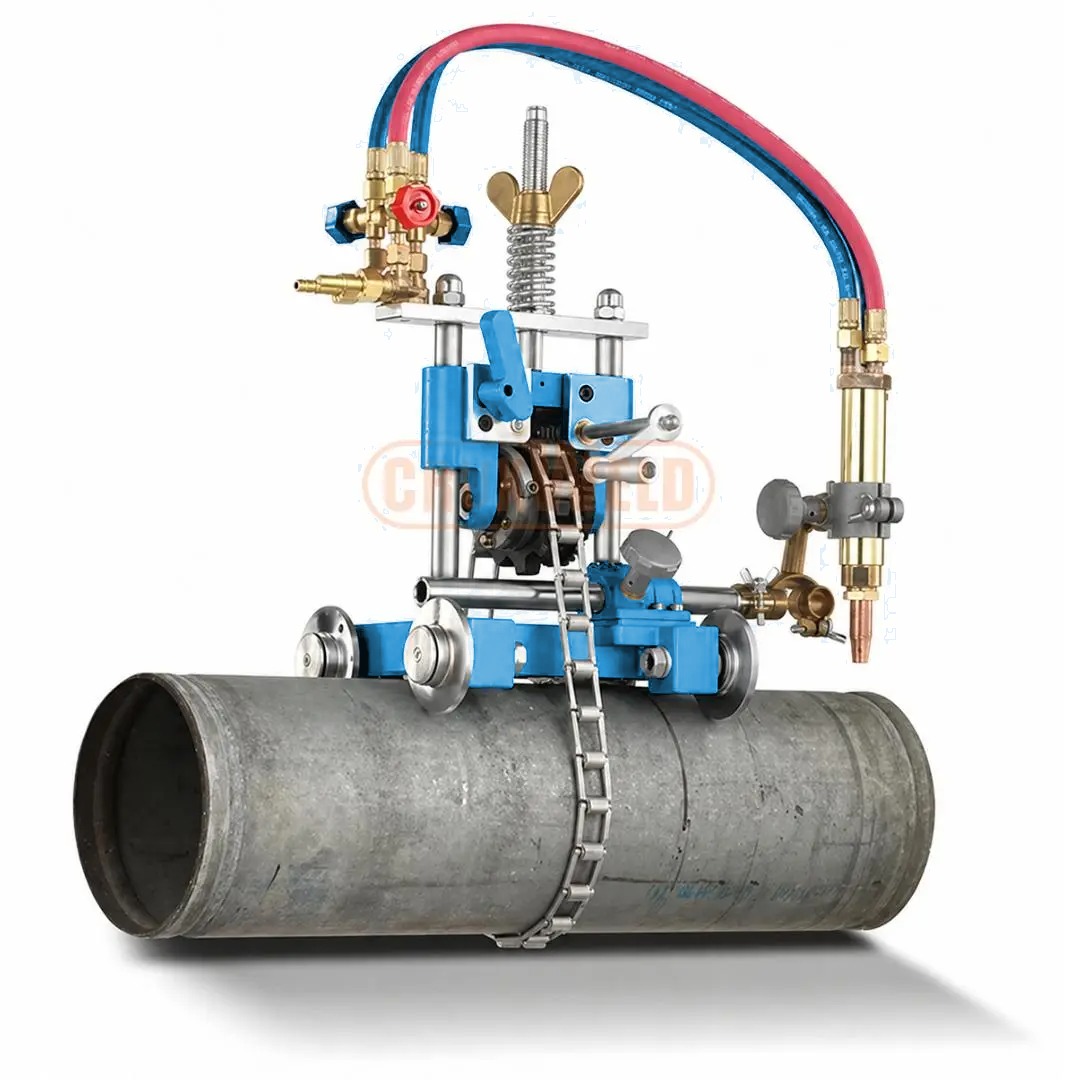

TUBOCUT-HG held on a pipe by its chain — Chain tensioned around the pipe.

270° · WHERE IT GOES

Wherever the pipe is, even without a socket

PipelinesCut-outs, tie-ins and end preparation on the line.
BoilersTube and header sections for repair and fabrication.
ShipyardsMarine piping in yards and on board.
Oil, gas & process plantsShutdown and maintenance cutting.
Power & utilitiesUtility pipe in plants and projects.
Fabrication shopsEveryday pipe cutting and beveling.

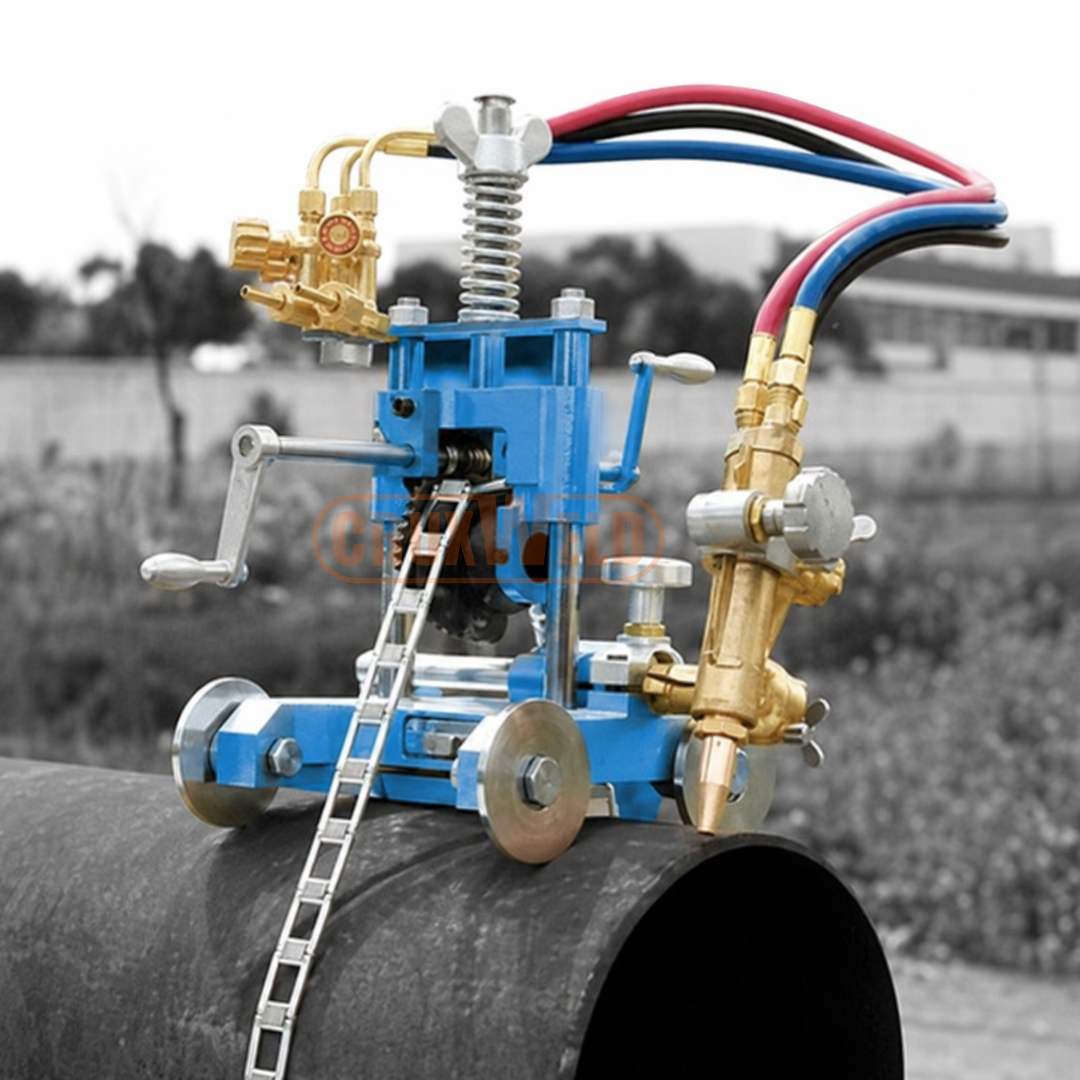

TUBOCUT-HG portable pipe cutter on a pipe at an outdoor site — Out on site: no power needed.

Which CRUXWELD pipe tool?

Manual cutting, no power on siteTUBOCUT-HG ✓

Chain-driven pipe cuttingTUBOCUT-CS →Magnetic, no chain, on steel pipeTUBOCUT-MS →Cold bevel on tube endsBEVEX 63 →ID-mounted pipe bevelingBEVO 240 →Hand cutting, brazing, heatingCut-n-Weld ProX →

See all gas cutting products.

315° · CARE AND SAFE CUTTING

Keep it running smooth, keep the crew safe

After every job

Clear slag and dirt from the wheels and chain
Put a light film of oil on the sliding parts
Store it dry, in its tool box
Keep the pipe support surface flat and leave room for the machine to travel round

Every time you cut

Fit flashback arrestors and check valves on both lines
Leak-test joints with soapy water, never a flame
Do not cut pipe with wet paint on it
Wear goggles and protective clothing; keep flammables clear

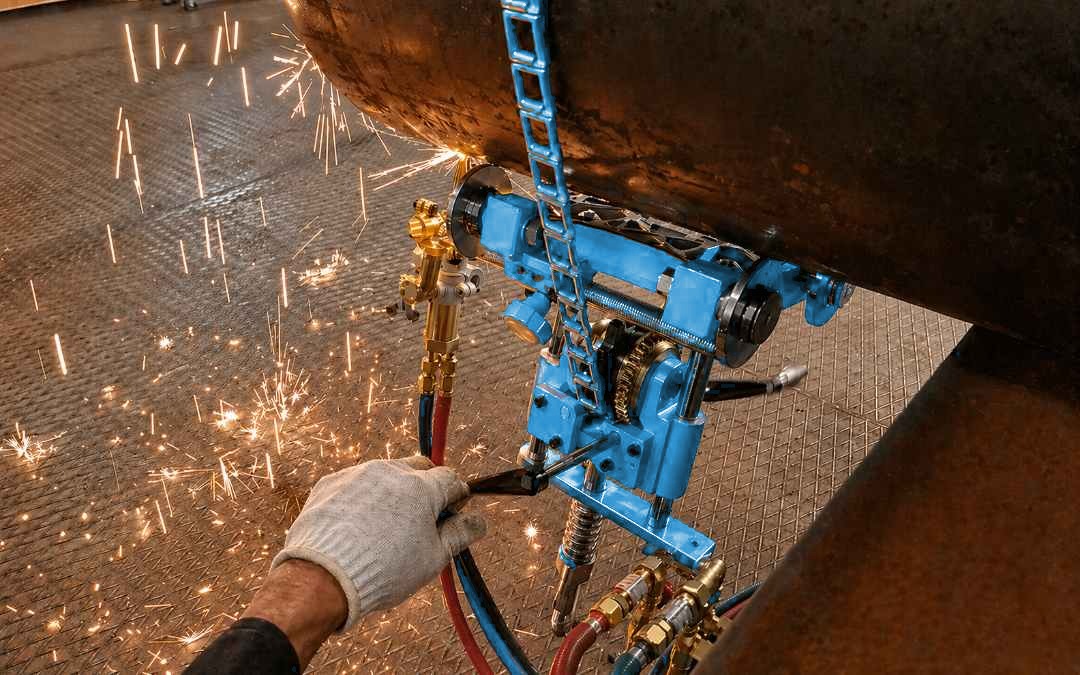

Operator cutting a large pipe with the TUBOCUT-HG manual pipe cutter — Cutting a large-bore pipe.

360° · FULL CIRCLE SUPPORT

Pipe cutting support from people who cut pipe

45+ years of welding expertiseHelp with nozzle choice, gas pressure and bevel set-up from our technical team on WhatsApp and video call.
GeM Registered OEM ManufacturerTender-ready documentation for government, PSU and institutional buyers.
Checked before dispatchEvery machine is checked before it ships, with an inspection certificate.
Supported WorldwideDispatched across India and exported, with nozzles, chain and spares on request.

Send your pipe sizes and wall thickness: we will confirm the set-up and send a quotation for the manual pipe gas cutting machine.

Request a quote →💬 WhatsApp +91 88008 82983

Having a problem with this machine? Lamps, fault codes and the checks you can do yourself: Gas cutting machine troubleshooting →
Weld or cut not right? Gas cutting problems → · Order spares →

PARAMETER	TUBOCUT-HG
General
Model	CRUXWELD TUBOCUT-HG
Type	Manual pipe gas cutting & beveling machine
Cutting process	Oxy-fuel (acetylene or propane)
Power supply	None required
Cutting
Pipe diameter	Ø100 mm and above (up to approx. Ø600 mm with the standard chain; larger with added chain links)
Cutting thickness	5 – 50 mm
Cut type	Straight (square) cut and bevel cut
Bevel angle	0 – 45°
Travel accuracy	1 mm per 1000 mm
Cutting nozzles	G02, No. 1 (5–15 mm), No. 2 (15–30 mm), No. 3 (30–50 mm)
Oxygen pressure	0.30 – 0.50 MPa (by nozzle)
Drive & build
Drive	Manual hand wheel, worm gear, chain guided
Clutch	Spring loaded
Torch	Equal-pressure torch on rack and pinion (across, up and down)
Chain	Detachable square links, 75 links supplied
Body	Cast aluminium alloy
Weight	Approx. 11 kg
