Portable MIG Welding Machine – MIG300iW 300A with Inbuilt Wire Feeder, 230 V & 415 V Portable MIG welding machine MIG300iW built in wire feeder Portable MIG welding machine MIG300iW front panel Portable MIG Welding Machine – MIG300iW 300A with Inbuilt Wire Feeder, 230 V & 415 V Portable MIG Welding Machine – MIG300iW 300A with Inbuilt Wire Feeder, 230 V & 415 V mqdefault

Portable MIG Welding Machine – MIG300iW 300A with Inbuilt Wire Feeder, 230 V & 415 V

MIG300iW
Inbuilt wire feeder · 300 A

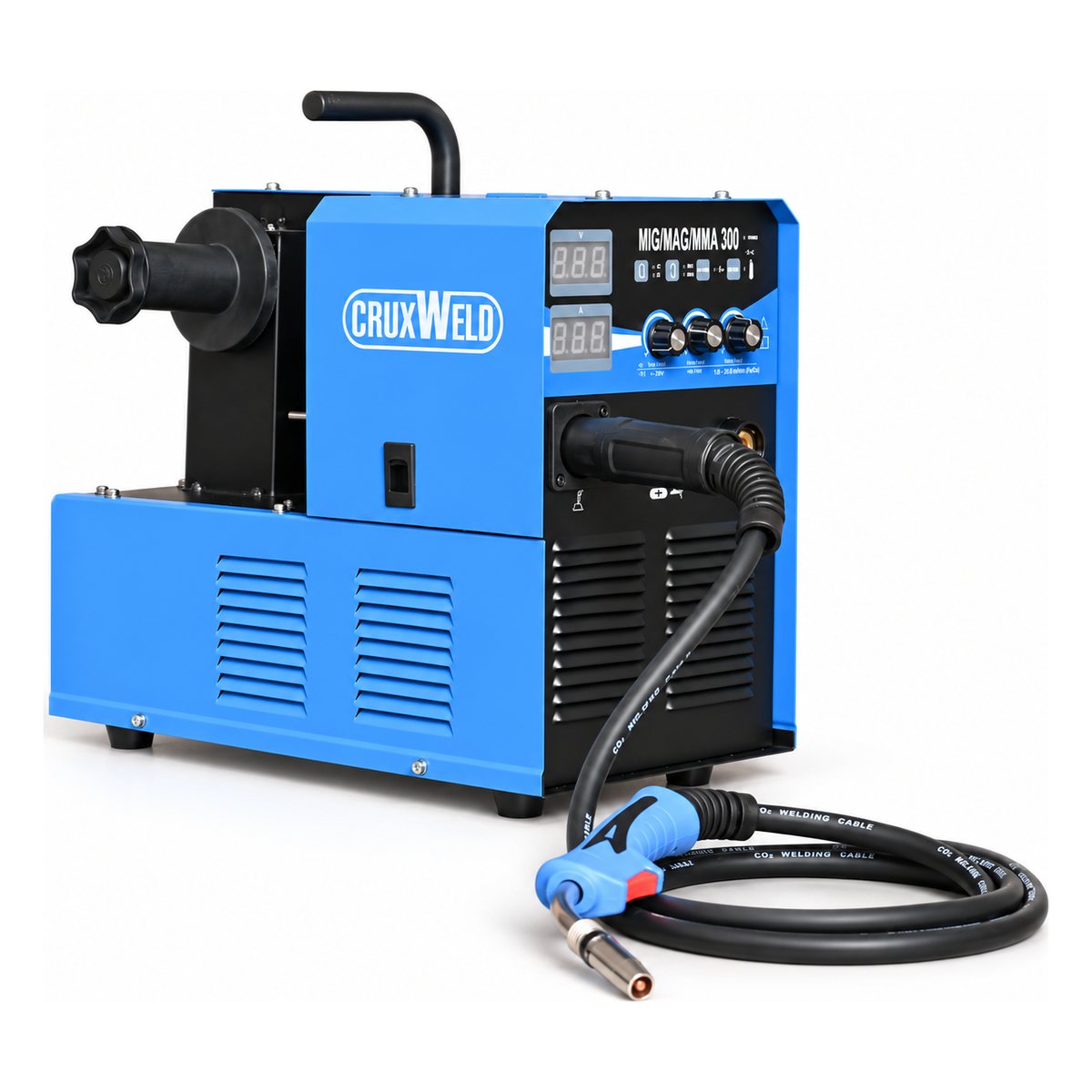

Portable MIG welding machine with inbuilt wire feeder

The CRUXWELD MIG300iW puts the power source and the wire feeder in one compact case. Weld MIG/MAG with gas, gasless flux-cored wire, or stick electrodes, on a 230 V single-phase socket or a 415 V three-phase line.

MIG / MAGGasless FCAWMMA / Stick2T / 4T
50–300 AWelding current
230/415 VSingle or three phase
0.8 / 1.0 mmWelding wire
2–18 m/minWire feed speed

GeM Registered OEM Manufacturer · Supported Worldwide · 45+ years of welding expertise

Get a Quote → WhatsApp +91 88008 82983

Price, delivery & technical help — get a fast response.

Overview

Overview

What is the MIG300iW portable MIG welding machine?

The MIG300iW is a portable MIG welding machine with the wire feeder built into the same case, so there is no separate feeder box or interconnection cable to carry around.

Inside is a 300 A IGBT inverter that welds MIG/MAG with CO₂ or mixed gas, gasless flux-cored wire (FCAW) and stick electrodes (MMA). It runs on a 230 V single-phase supply or a 415 V three-phase line, so the same machine works in the shop and on site.

Digital controls show volts and amps, while inductance, crater and burn-back control help you get a smooth bead, a clean weld end and the right wire stick-out every time.

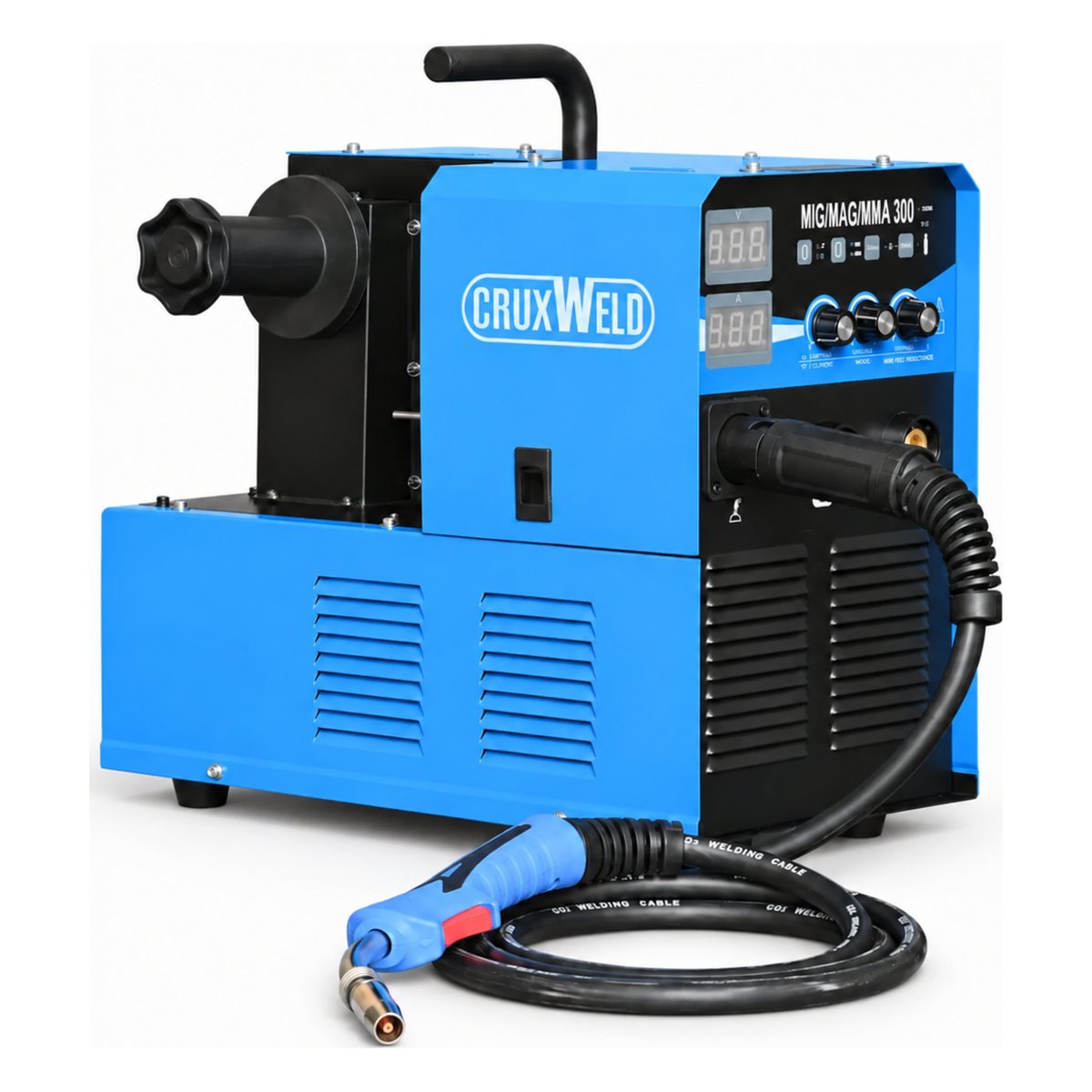

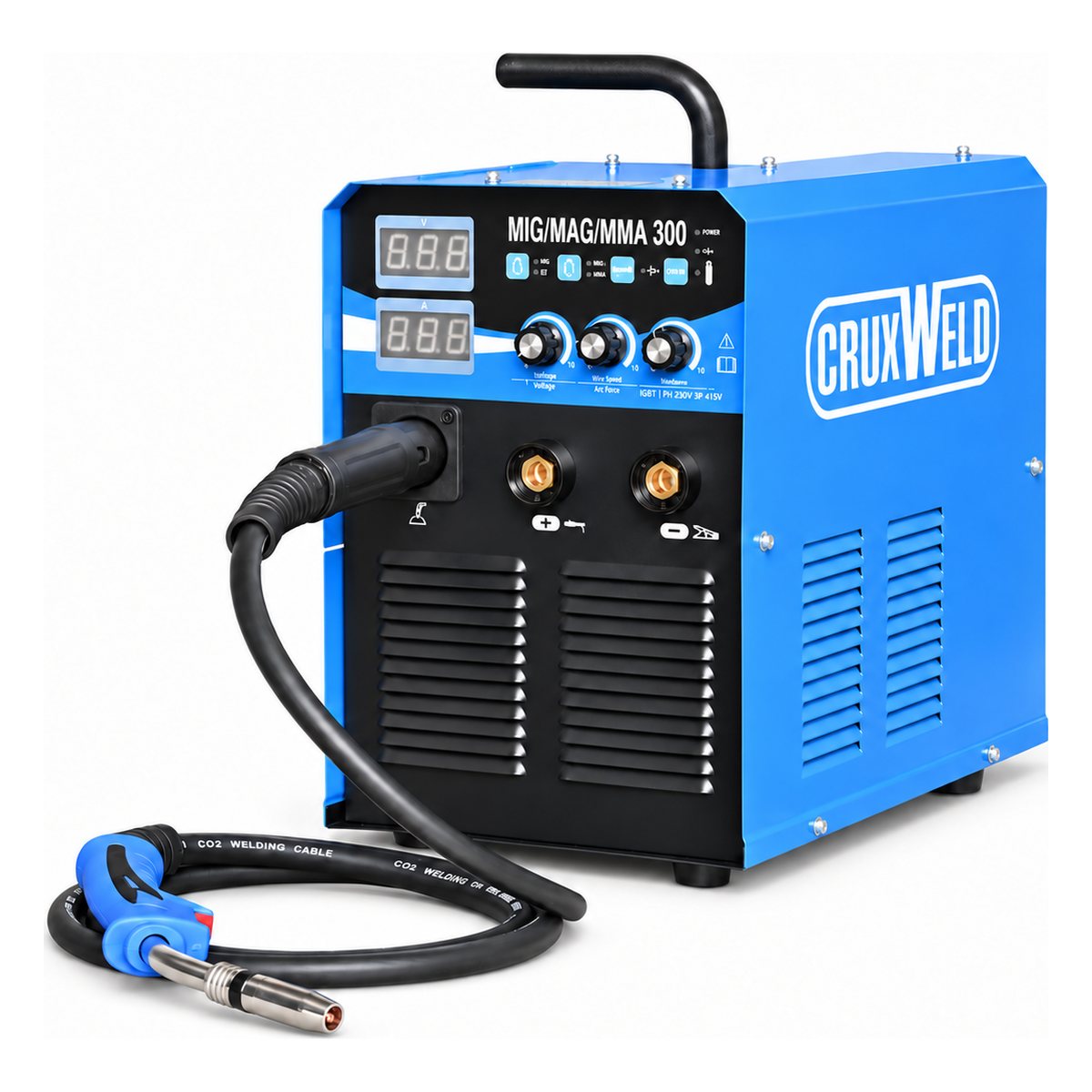

Portable MIG welding machine MIG300iW 300A with inbuilt wire feeder and MIG torch
  • One compact casePower source and wire feeder built together, with a carry handle on top.
  • 230 V or 415 VRuns on a single-phase socket or a three-phase line.
  • Three processesMIG/MAG with gas, gasless flux-cored wire and stick.
  • Digital controlsVolts and amps on two displays; inductance and crater control.
Why inbuilt

One box instead of two

A separate-feeder MIG set is two machines joined by a cable. The MIG300iW is one. Here is what that changes on the shop floor.

Separate-feeder MIG set

Power sourceWire feederinterconnection cable

  • Two units to lift, place and connect
  • Interconnection cable to route and protect
  • Best when the feeder must travel far from the power source

MIG300iW, inbuilt feeder

wire baypower + controls

  • One case and one handle: pick it up and go
  • Set up in minutes: power, gas, torch, weld
  • Fits on a bench, a trolley or a pickup

That is why a portable MIG welding machine saves set-up time on every job. Need the feeder away from the power source for big jobs? See the MIG 300 welding machine with separate wire feeder (CWMIG300iJ).

Processes

MIG, gasless and stick in one inbuilt wire feeder MIG welding machine

The MIG300iW handles MIG welding (gas metal arc welding), flux-cored welding and stick welding, so one portable MIG welding machine covers most jobs in a workshop.

  • MIG / MAG

    Welding with gas

    Solid wire with CO₂ or mixed gas for clean, fast welds on mild steel sheet, tube and plate.

    You need: 0.8 or 1.0 mm solid wire, gas cylinder, regulator

  • FCAW gasless

    Welding without gas

    Self-shielded flux-cored wire makes its own shield, so outdoor and site jobs need no cylinder.

    You need: self-shielded flux-cored wire; set polarity as the wire maker says

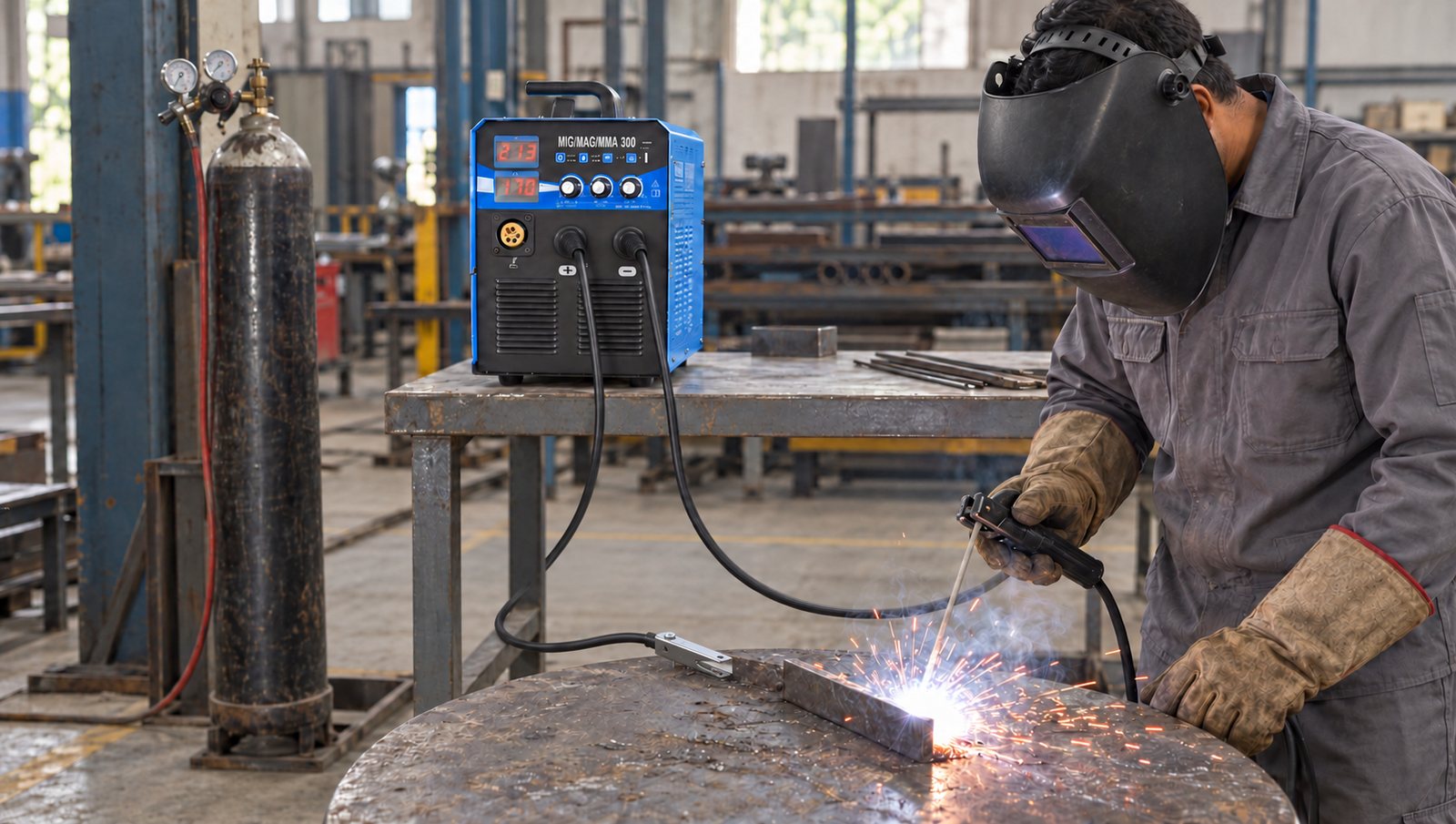

  • MMA / Stick

    Electrode welding

    Switch to MMA on the panel and plug in the electrode holder. Arc force keeps the arc strong for deeper penetration.

    You need: the electrode holder and earth clamp supplied

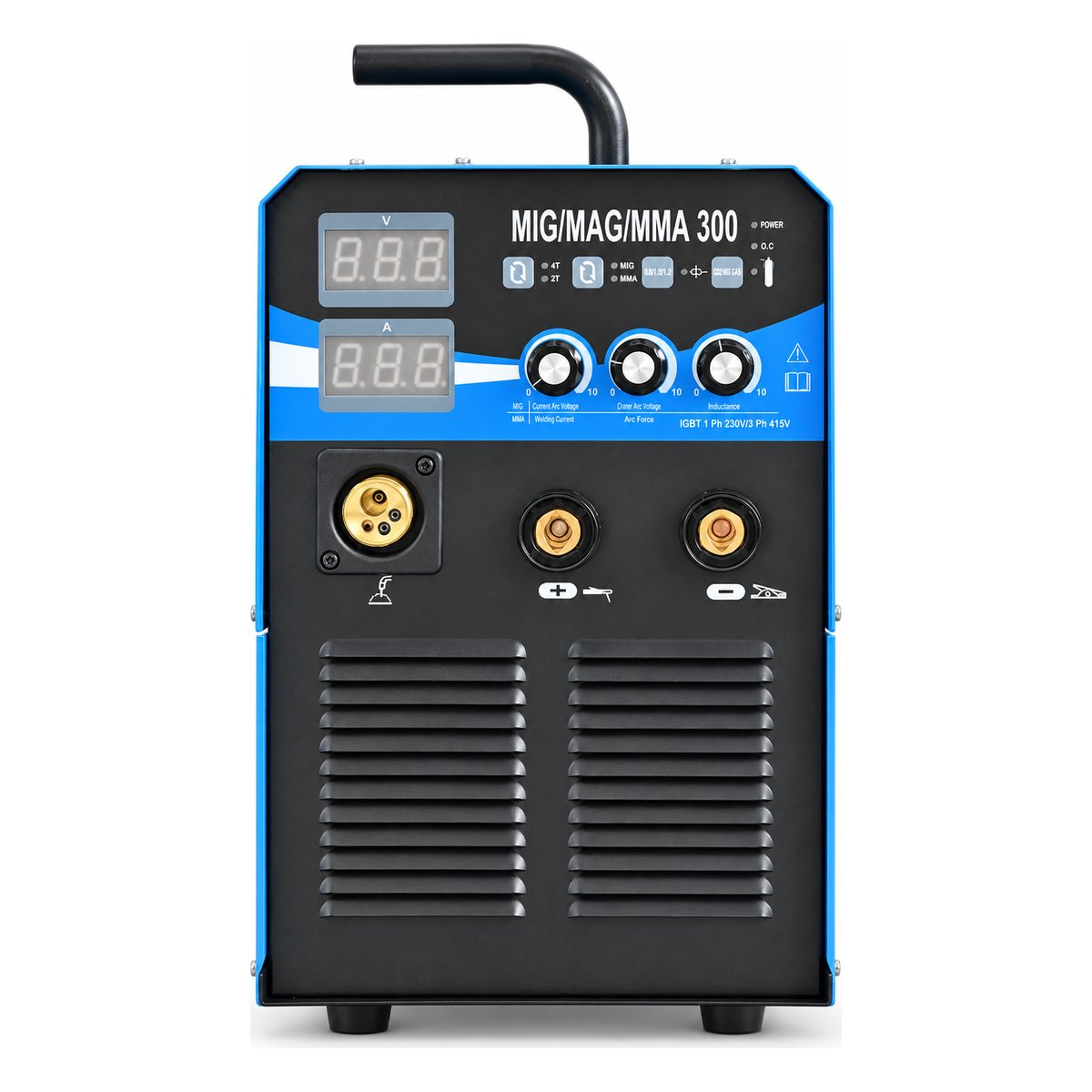

Control panel

Simple digital controls

Every setting on this portable MIG welding machine is on the front panel: two meters, four buttons and three knobs.

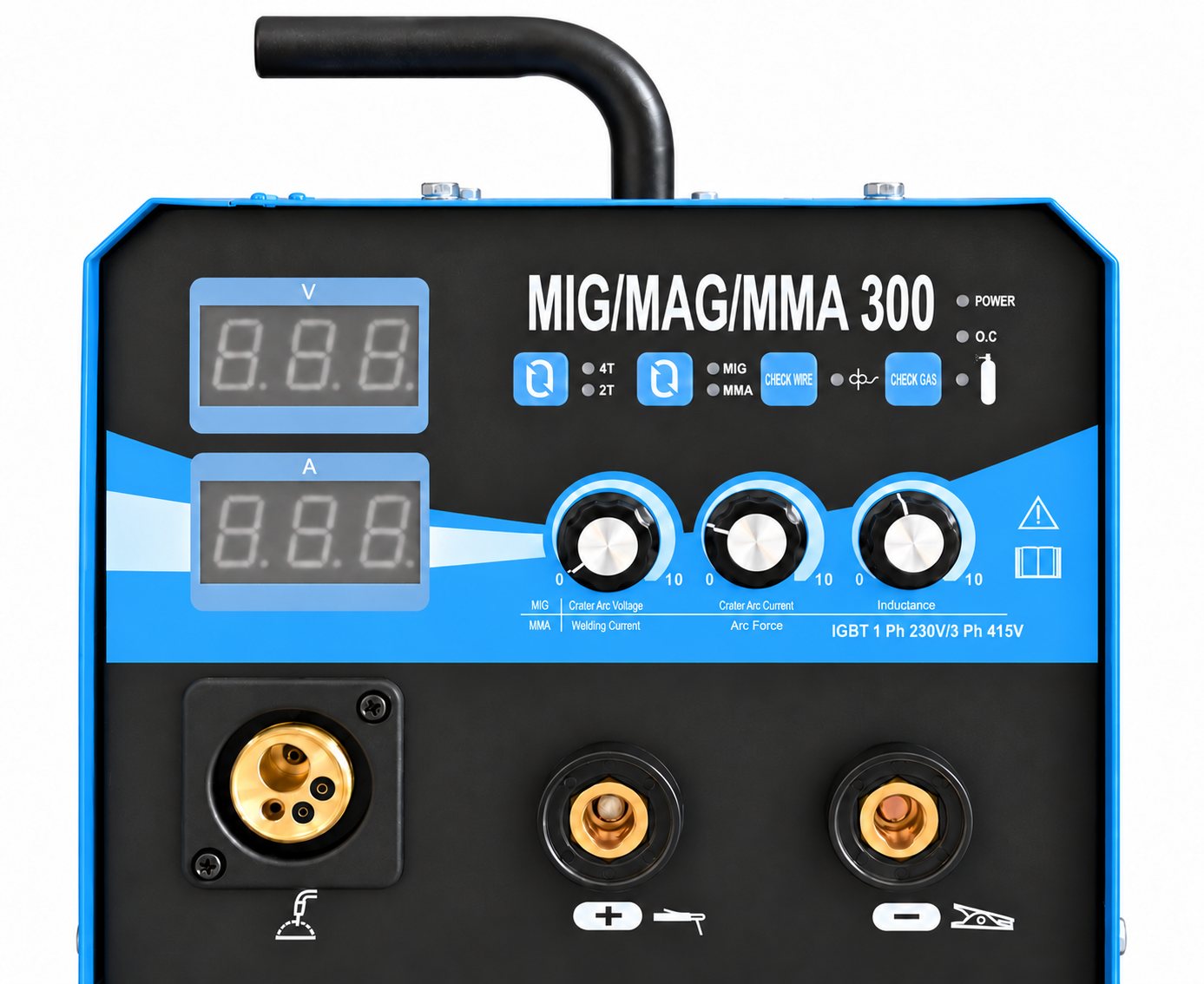

MIG300iW portable MIG welder front control panel with voltage and current displays, 2T/4T, MIG/MMA, check wire and check gas buttons
  1. 1
    V and A displaysTwo digital meters show arc voltage and welding current while you set and weld.
  2. 2
    2T / 4THold the trigger to weld (2T), or click once to start and once to stop on long seams (4T).
  3. 3
    MIG / MMAOne button switches between wire welding and stick welding.
  4. 4
    Check WireFeeds the wire up the torch without striking an arc or opening the gas.
  5. 5
    Check GasOpens the gas valve so you can set the flow on the regulator before welding.
  6. 6
    Power and fault lampsShow the machine is on, and warn if overload or overheating protection has cut in.
Knob 1MIGWelding current and arc voltageMMAWelding current
Knob 2MIGCrater setting to fill the end of the weldMMAArc force
Knob 3MIGInductance for a smoother arc and less spatter

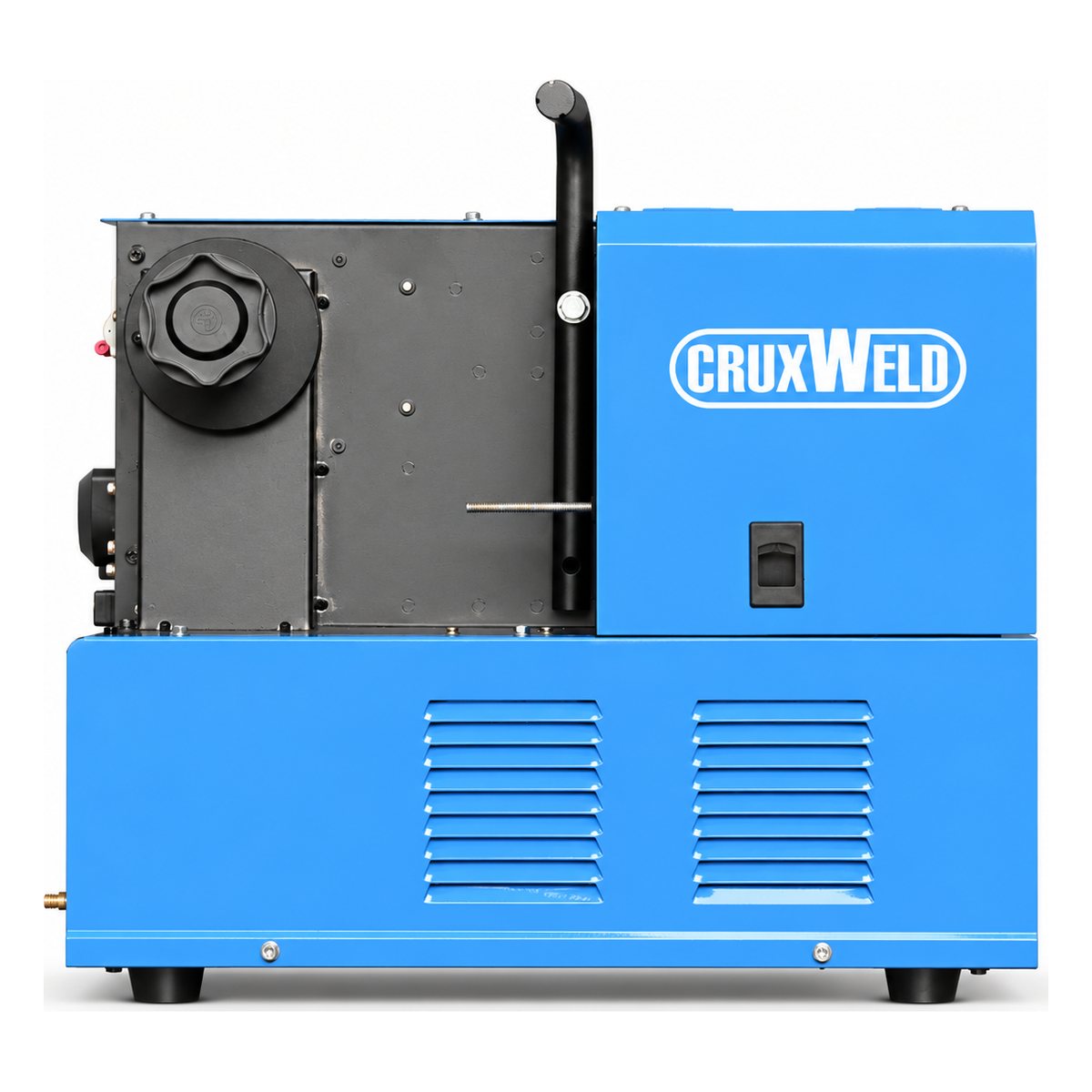

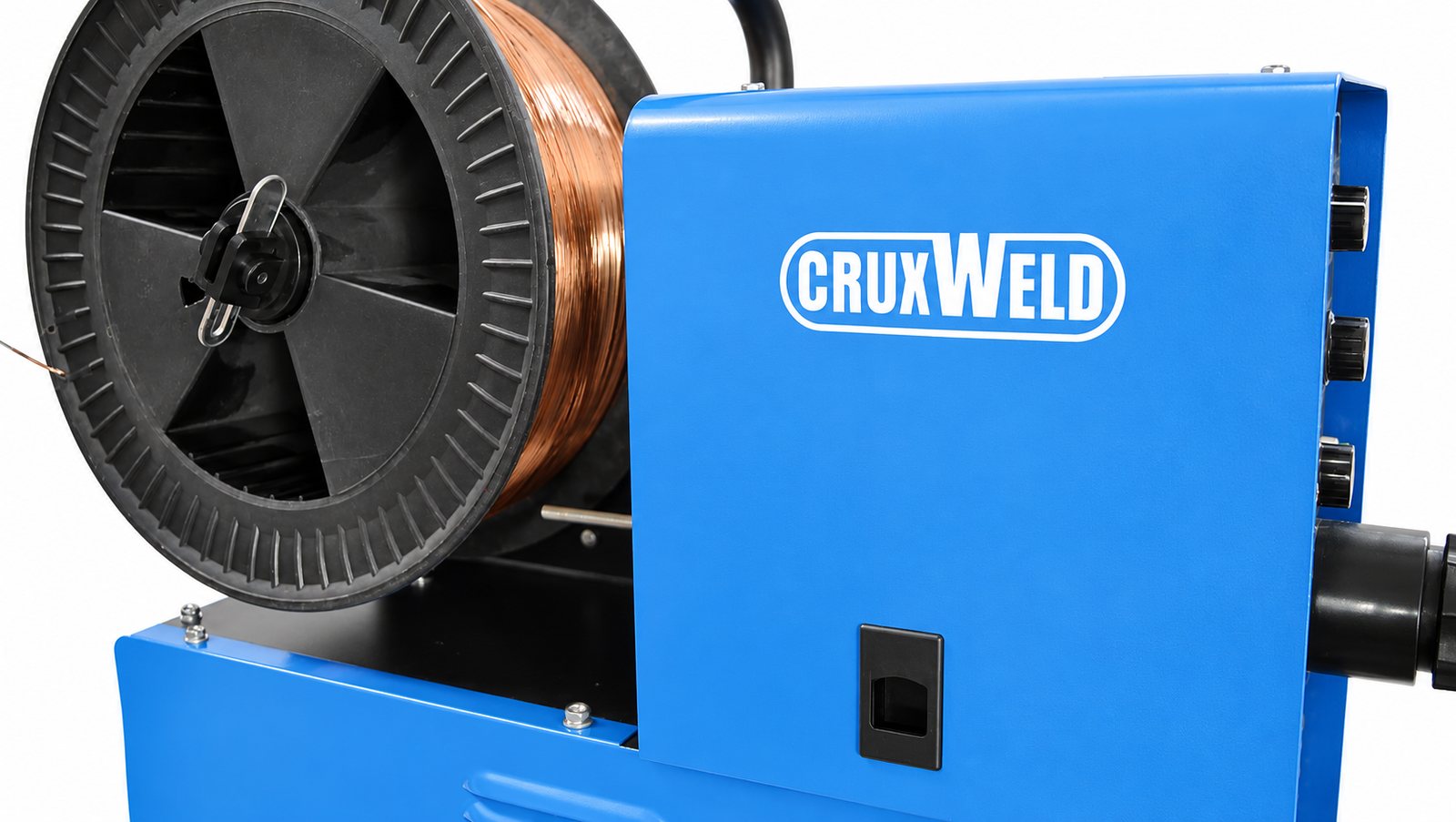

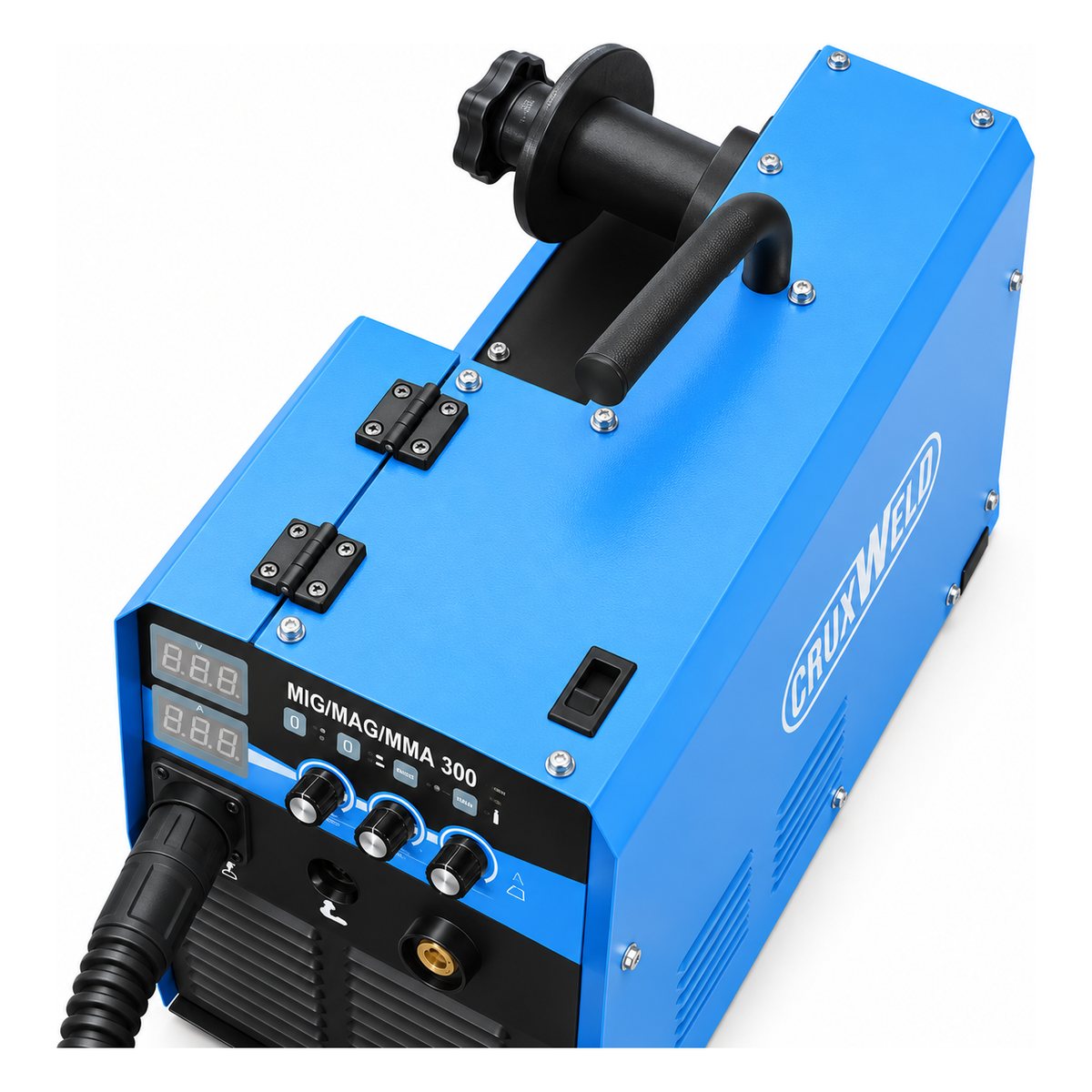

Inbuilt wire feeder of the MIG300iW portable MIG welding machine with copper-coated MIG wire spool
Wire bay

The wire feeder sits inside the machine

On this portable MIG welding machine you open the side door, drop the spool on the holder and lock it with the knob. The feeder is right next to the torch socket, so the wire path is short and the feed stays steady.

  • 0.8 / 1.0 mmWelding wire
  • 2–18 m/minWire feed speed
  • AutoWire speed follows your setting
  • Burn-backControl of wire left after the weld

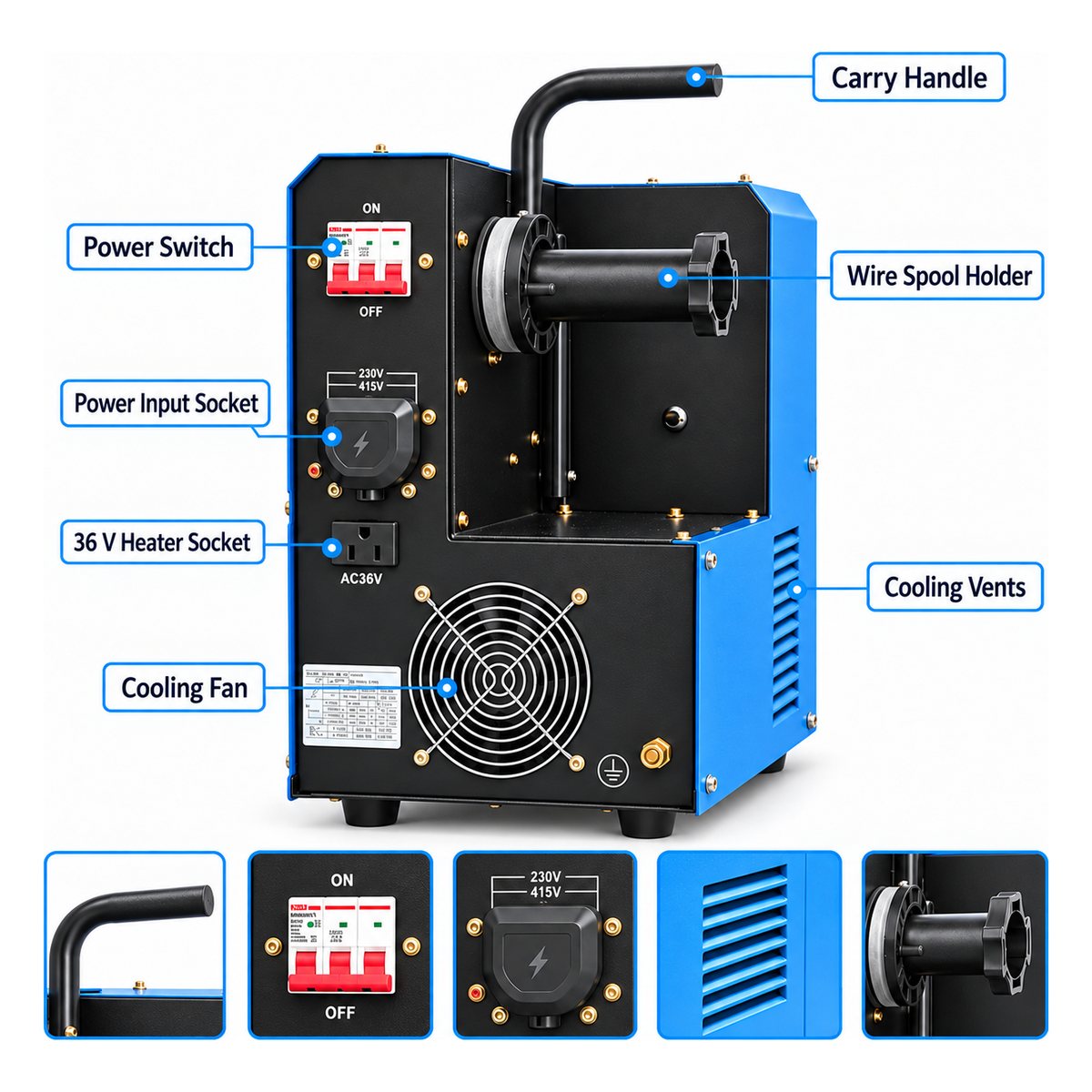

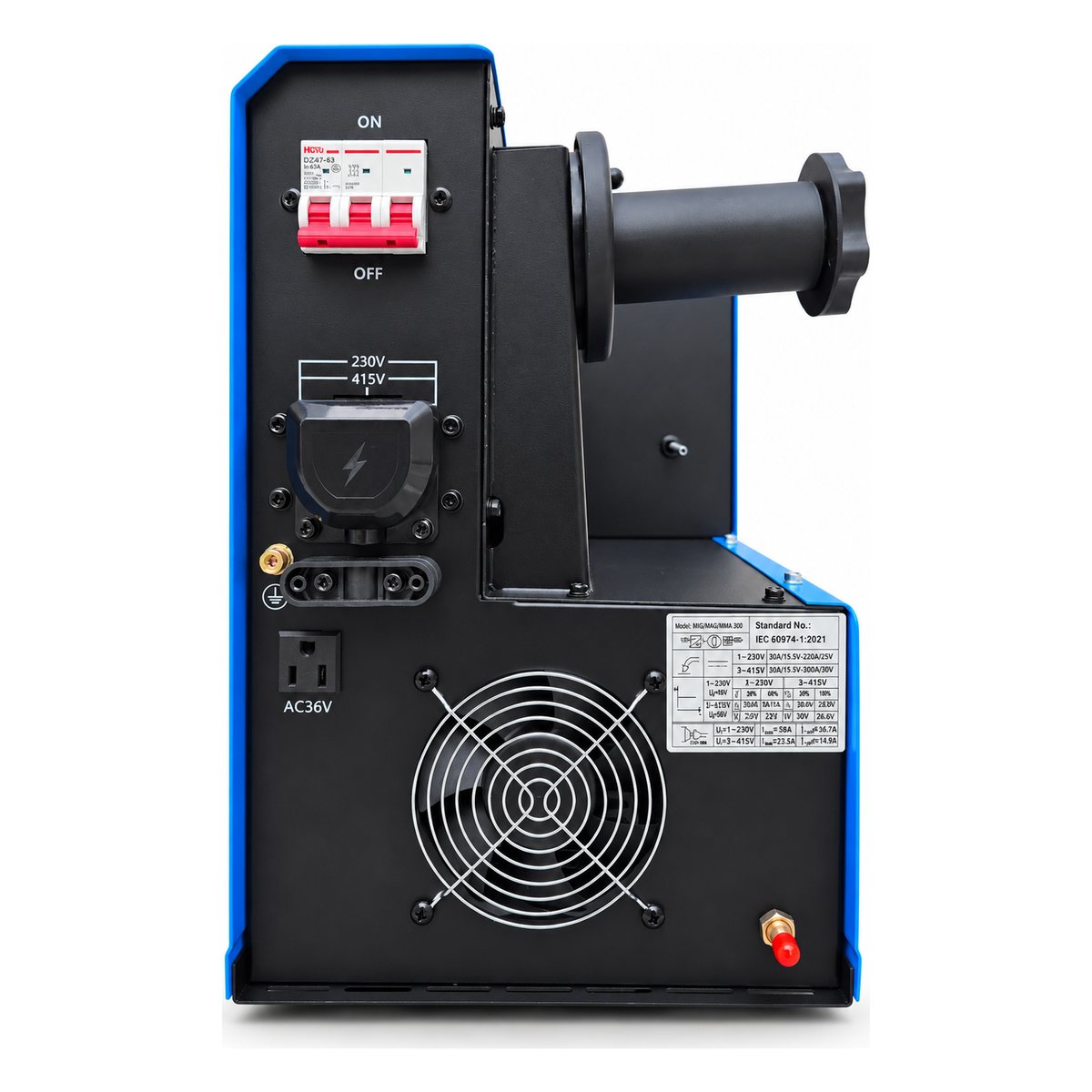

MIG300iW portable MIG welding machine rear panel: power switch, 230 V and 415 V input socket, 36 V heater socket, cooling fan and carry handle
Rear panel

A portable MIG welding machine for single and three phase

  • Power switch — a rear MCB switches the machine on and off.
  • 230 V / 415 V input — use a single-phase socket or a three-phase line.
  • 36 V heater socket — powers the CO₂ regulator heater so the gas does not freeze on long welds.
  • Cooling fan — forced-air cooling with dust-free airflow for a longer machine life.
  • Protection — overload and overheating protection, IP23 enclosure, class H insulation.
Watch

See the portable MIG welding machine at work

Portable MIG 300 with inbuilt wire feeder, single and three phase
Welding on a single-phase supply
Short: MIG welding with Cruxweld
Applications

Where a portable MIG welding machine pays off

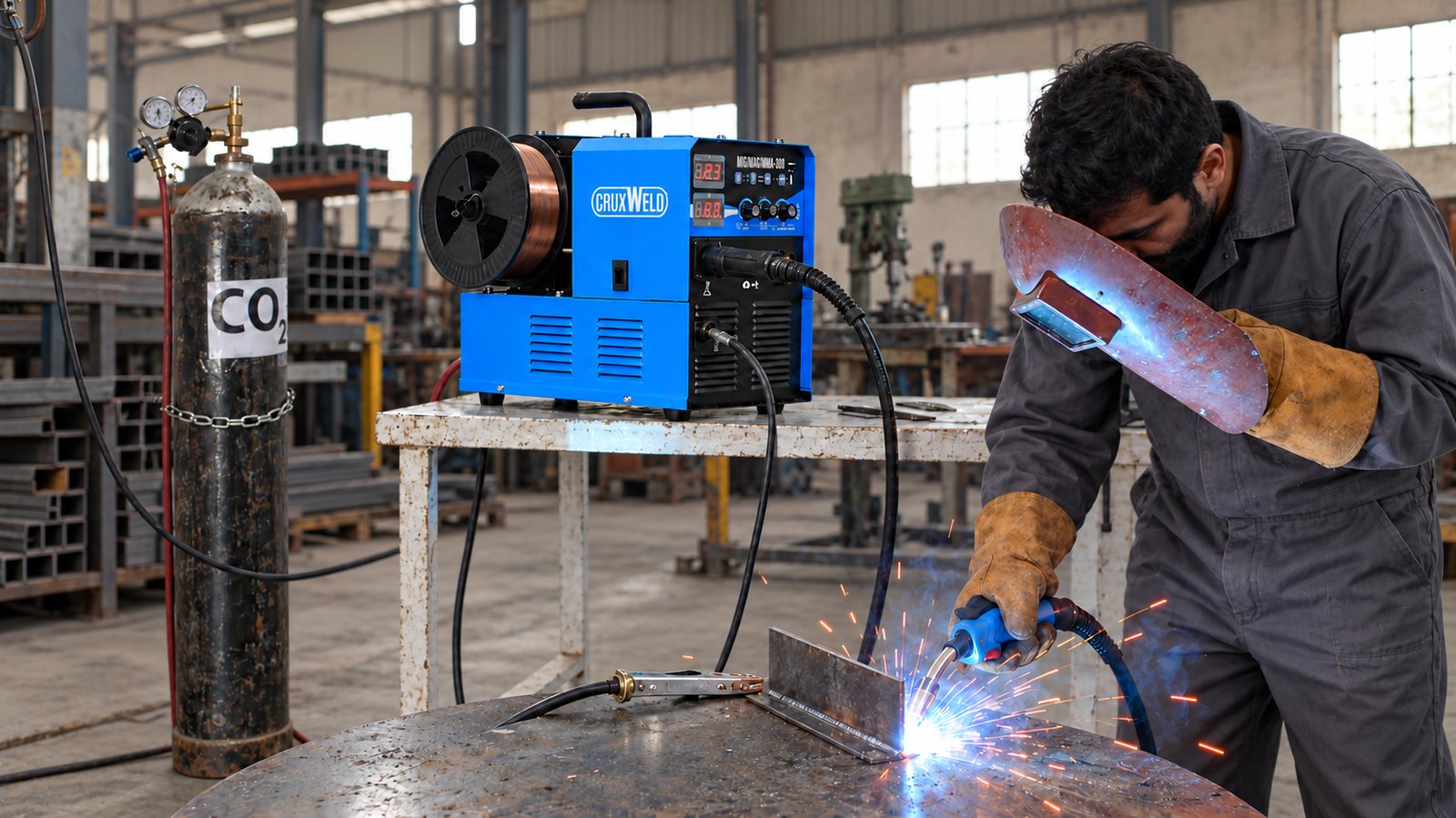

Welder using the MIG300iW portable MIG welding machine with CO2 gas on a steel fillet joint in a workshopSetting the CO2 regulator for the MIG300iW inbuilt wire feeder MIG welding machineMIG300iW used for stick MMA welding with an electrode holder in a fabrication shop
  • Fabrication shopsFrames, brackets, stands and general mild steel jobs from thin sheet to plate.
  • Gates, grills and furnitureNeat, low-spatter MIG welds on tube and sheet that need little grinding.
  • Vehicle body and trailer workPanels, chassis repairs and trailer frames with gas or gasless wire.
  • Sheds and light structuresPurlins, trusses and roofing frames; switch to stick for outdoor joints.
  • Maintenance teamsOne machine for MIG and stick repairs across the plant.
  • Site jobs on single phaseWeld where only a 230 V socket is available, then use 415 V back at the shop.
Setup

Set up your portable MIG welding machine in four steps

  1. Connect the supplyPlug into 230 V single phase or 415 V three phase and switch on the rear MCB.
  2. Load the wireFit a 0.8 or 1.0 mm spool in the wire bay, set the roller, and press Check Wire to feed it to the torch.

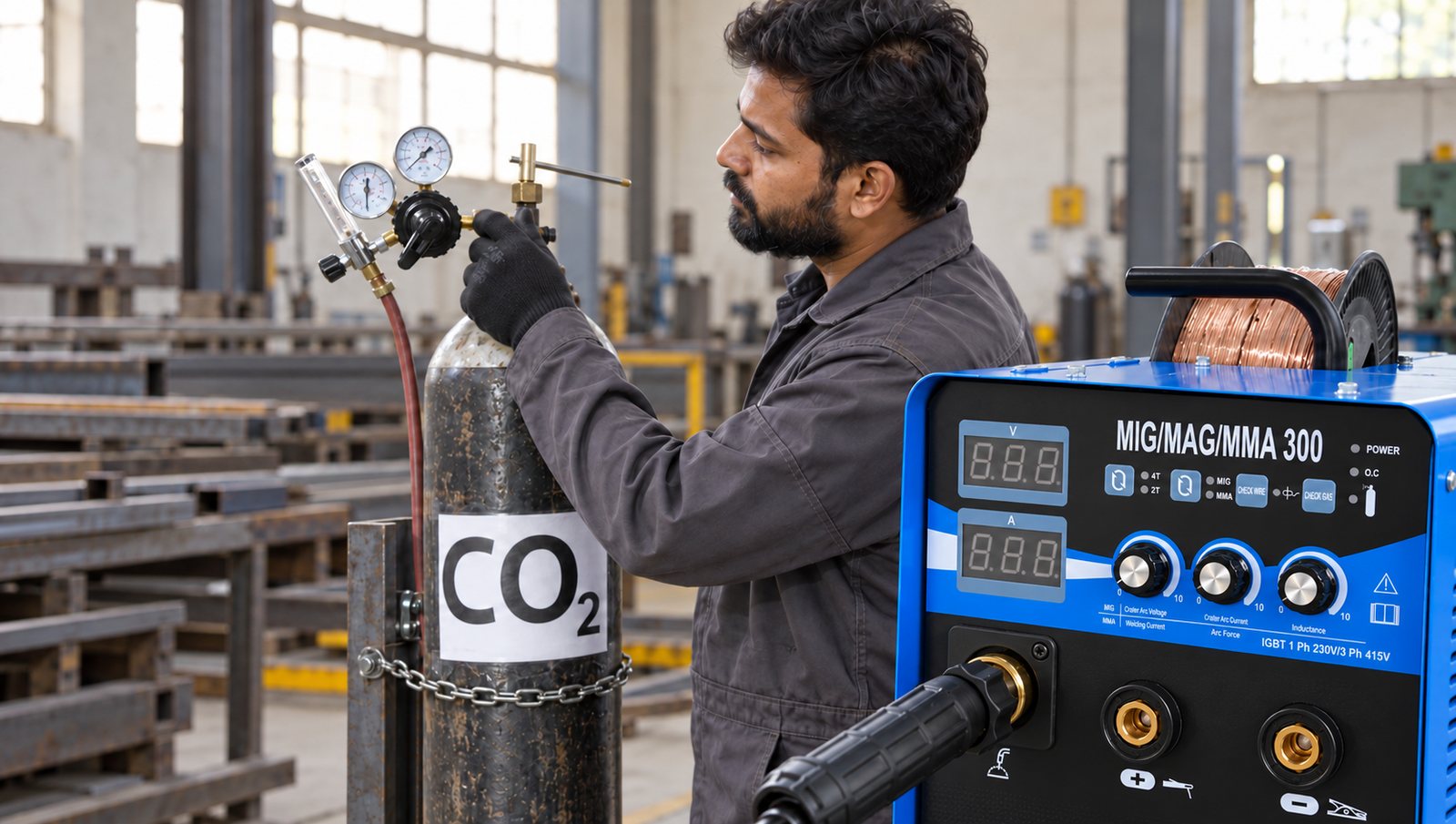

  3. Set the gasConnect the CO₂ or mixed-gas regulator and press Check Gas to set the flow. For gasless wire, skip this step.
  4. Dial in and weldChoose MIG or MMA and 2T or 4T, set current and voltage, then fine-tune inductance on a test piece.

Stuck on a setting? Our technical team can guide you on a WhatsApp video call.

Why Cruxweld

Why buy your portable MIG welding machine from Cruxweld

  • GeM Registered OEM ManufacturerBuy directly from the brand on GeM or on a regular purchase order.
  • 45+ years of welding expertiseMachines chosen and set up by people who weld for a living.
  • Supported WorldwideOur technical team helps on WhatsApp and video call, wherever you work.
  • Spares and consumablesContact tips, nozzles, liners, rollers and torches available for your machine.

Get the portable MIG welding machine price

WhatsApp the material, thickness, gas or gasless, and your supply (230 V or 415 V). Our team replies with the right wire, setup and a quotation.

📞 +91 88008 82983

Specifications

Technical data

MIG300iW portable MIG welding machine specifications

SpecificationMIG300iW
Input
ModelMIG300iW
Rated input voltage230 V single phase / 415 V three phase, ±10%
Frequency50 / 60 Hz
Rated input capacity9.2 kVA
Power factor (cos φ)0.93
Efficiency85%
Output
ProcessesMIG/MAG (gas), FCAW (gasless), MMA (stick)
Welding current typeDC
Rated output current300 A
Current range50–300 A
Operating voltage range15–29 V
No-load voltage18–34 V
2T / 4T welding modesYes
Arc force controlAdjustable
Wire feed
Feeding deviceBuilt-in
Welding wire diameter0.8 / 1.0 mm
Wire feed speed2.0–18.0 m/min
Build
TechnologyIGBT inverter
Cooling methodForced air cooling
Degree of protectionIP23
Insulation classH
Dimensions (L × W × H)500 × 290 × 490 mm
Weight25.6 kg

Key features

  • Single and three phaseWorks on 230 V or 415 V.
  • All-in-oneMIG/MAG, MMA and gasless FCAW.
  • Inbuilt wire feederNo separate feeder or interconnection cable.
  • Digital controlsVoltage and current displays.
  • Inductance adjustmentSmoother arc and less spatter.
  • Crater controlFills the end crater and prevents cracking.
  • Burn-back adjustmentControls leftover wire length after welding.
  • Auto wire feed speedWire speed follows the welding setting.
  • Arc forceDeeper penetration in MMA.
  • Overload and overheating protectionProtects the machine on long jobs.
  • Fast spool changeSide door with quick-lock spool holder.
  • Dust-free coolingFor longer machine life.

Accessories

In the box

Supplied with the MIG300iW portable MIG welding machine

  • 1MIG300iW power source with inbuilt wire feeder
  • 1MIG torch
  • 1Electrode holder
  • 1Earth clamp
  • 1Gas regulator with flowmeter and heater
  • 1Gas hose pipe
  • 1Set of gas clamps
  • ✓Spare MIG torch tips

Plug and play: connect the supply, gas and wire, and start welding. Need extra wire, a longer torch or spare tips? Ask our team on WhatsApp.

Video

cwmig400ij mig welding machine 400 amp with wire feeder

MIG Welding Machine 400 Amp – CWMIG400iJ MIG, Gasless FCAW & MMA

mig 300 welding machine cwmig300ij with wire feeder

MIG 300 Welding Machine – CWMIG300iJ MIG, Gasless FCAW & MMA, 230 V & 415 V

Plasma cutting trolley

Welding and Cutting Carriage | UNITRACK-45K Portable Multi-Purpose Tractor

Question & Answers

FAQ

Portable MIG welding machine: questions buyers ask

What is the price of the MIG300iW portable MIG welding machine?
The price depends on quantity, torch and cable options and the delivery city. WhatsApp +91 88008 82983 with these details and our team sends a GST quotation with the delivery time.
Does the MIG300iW have an inbuilt wire feeder?
Yes. The wire feeder is built into the same case as the power source, so there is no separate feeder unit or interconnection cable.
Will this portable MIG welding machine work on single phase?
Yes. The MIG300iW runs on a 230 V single-phase supply and on a 415 V three-phase supply, 50 or 60 Hz.
Can the MIG300iW weld without gas?
Yes. With self-shielded flux-cored wire (gasless FCAW) the wire makes its own shield, so no gas cylinder is needed. Set the polarity the wire maker specifies; our technical team can guide you on a video call.
Can I do stick welding with the MIG300iW?
Yes. Select MMA on the front panel and use the electrode holder supplied. Arc force control helps with penetration.
What wire sizes does the MIG300iW take?
It takes 0.8 mm and 1.0 mm welding wire, fed at 2.0 to 18.0 m/min by the inbuilt feeder.
What are 2T and 4T modes?
In 2T you hold the trigger to weld and release it to stop. In 4T you click to start, let go and keep welding, then click again to stop, which is easier on long seams.
What comes with the MIG300iW?
The machine with inbuilt wire feeder, a MIG torch, an electrode holder, an earth clamp, a gas regulator with flowmeter and heater, a hose pipe, gas clamps and spare MIG torch tips.
MIG300iW or MIG 300 with separate feeder: which should I buy?
Choose the MIG300iW if you want one compact machine to carry between jobs. Choose the CWMIG300iJ with a separate wire feeder when the feeder has to work away from the power source on large jobs.
