ARC200iS 200A Inverter Welding Machine – 230 V & 415 V

ARC200iS
200Compact stick welder

ARC 200 welding machine: small enough to carry anywhere, strong enough for 3.2 mm rods.

The CRUXWELD ARC200iS is a 200 A IGBT inverter for MMA (stick) welding. It runs on a 230 V single-phase socket or a 415 V two-phase or three-phase line, and gives you Hot Start, Arc Force and VRD on a simple digital panel.

10–200 AWelding current230 VSingle phase415 V2 & 3 phase
Hot StartArc ForceVRDDigital displayGenerator compatible
See the control panel

GeM Registered OEM Manufacturer · Supported Worldwide · 45+ years of welding expertise

Get a Quote → WhatsApp +91 88008 82983

Price, delivery & technical help — get a fast response.

Overview

Overview

A 200A inverter welding machine that goes where the job is

The ARC200iS is a compact 200A inverter welding machine for stick welding. Plug it into a normal socket at home, a three-phase line in the workshop, or a generator on site, and weld mild steel, stainless steel and cast iron with 1.6 to 3.2 mm electrodes.

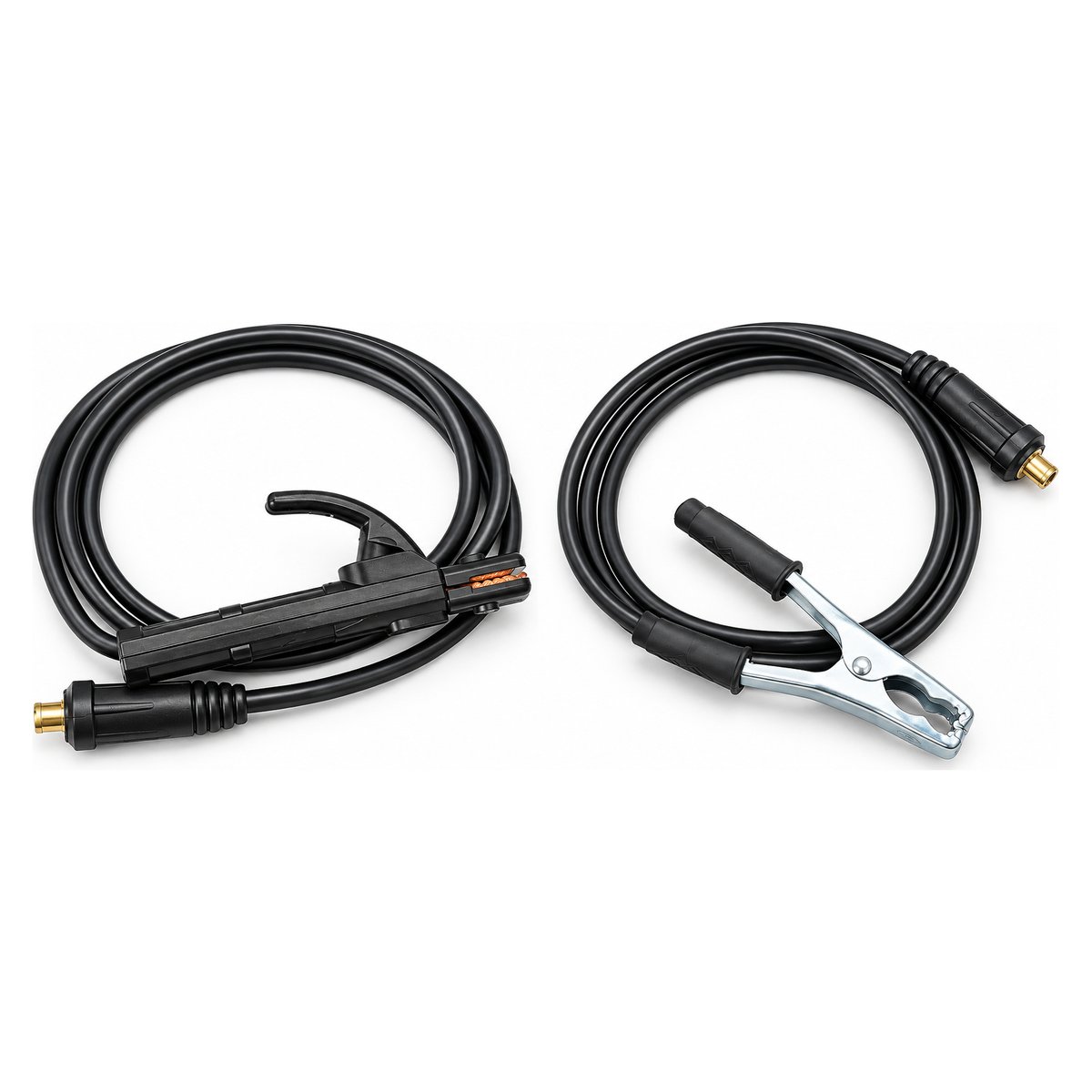

ARC200iS 200A inverter welding machine with electrode holder and earth clamp

Ready to weld

Connect the holder and earth clamp, switch on, set the current and strike.

230 V or 415 V

Runs on single phase, or on 415 V two-phase and three-phase. Lamps on the panel show which supply it is on.

Hot Start and Arc Force

Easy strikes and no sticking, set from the same knob.

VRD for safety

Lower voltage at the holder between welds, for damp and confined work.

Compact, with handle

A small case with a top handle. Carry it up a ladder or into a van.

Control panel

Ten things on the ARC 200 welding machine panel

Supply and warning lamps on the left. Weld settings and the display on the right.

  • APowerLights when the machine is on.
  • B230VRunning on a 230 V single-phase supply.
  • C415VRunning on a 415 V two-phase or three-phase supply.
  • DO.CProtection warning: overload or overheating. Let it cool; it resets itself.
ARC200iS control panel: Power, 230V, 415V, O.C lamps, display, Current, Hot Start, Arc Force, VRD and Para./Function switchABCDEFGHIJ
  • EDigital displayShows the current, or the Hot Start and Arc Force level you are setting.
  • FCurrentWelding current, 10 to 200 A.
  • GHot StartExtra current at the strike for an easy start.
  • HArc ForceKeeps the arc alive when it gets short, so the rod does not stick.
  • IVRDVoltage reduction device: low voltage at the holder between welds.
  • JPara. / Function switchPush to pick a setting, turn to change it.
Step 1

Push the knob until the Current lamp lights, then turn to set amps.

Step 2

Push again for Hot Start and set how hard the arc strikes.

Step 3

Push again for Arc Force and set it higher for vertical and overhead work.

Step 4

Use VRD on damp, confined or elevated jobs, then strike the arc.

Front, back and below

The ARC 200 welding machine front, back and below

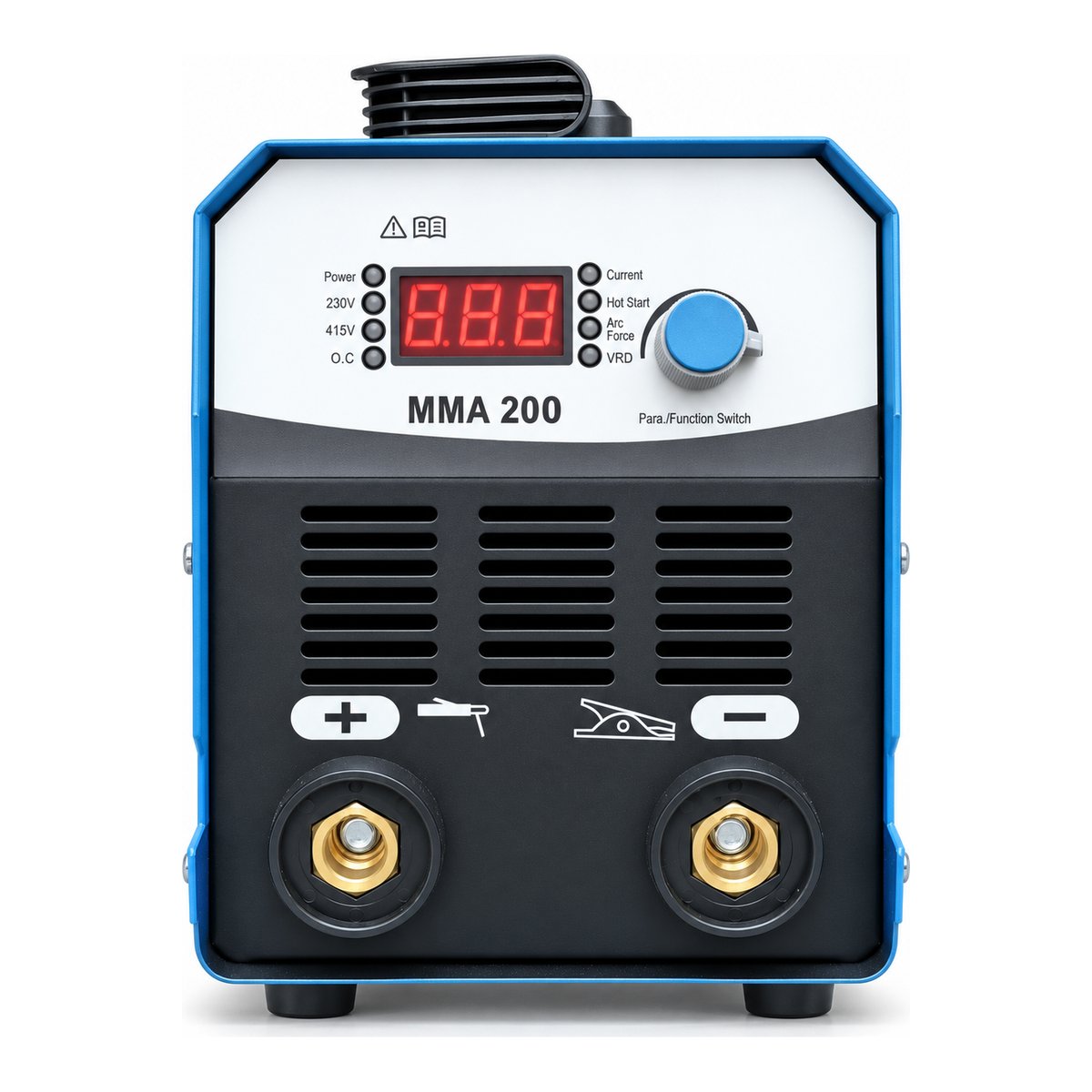

ARC200iS front with plus and minus welding sockets

Front

Welding sockets

  • Positive socket for the electrode holder
  • Negative socket for the earth clamp
  • Twist-lock cable connectors

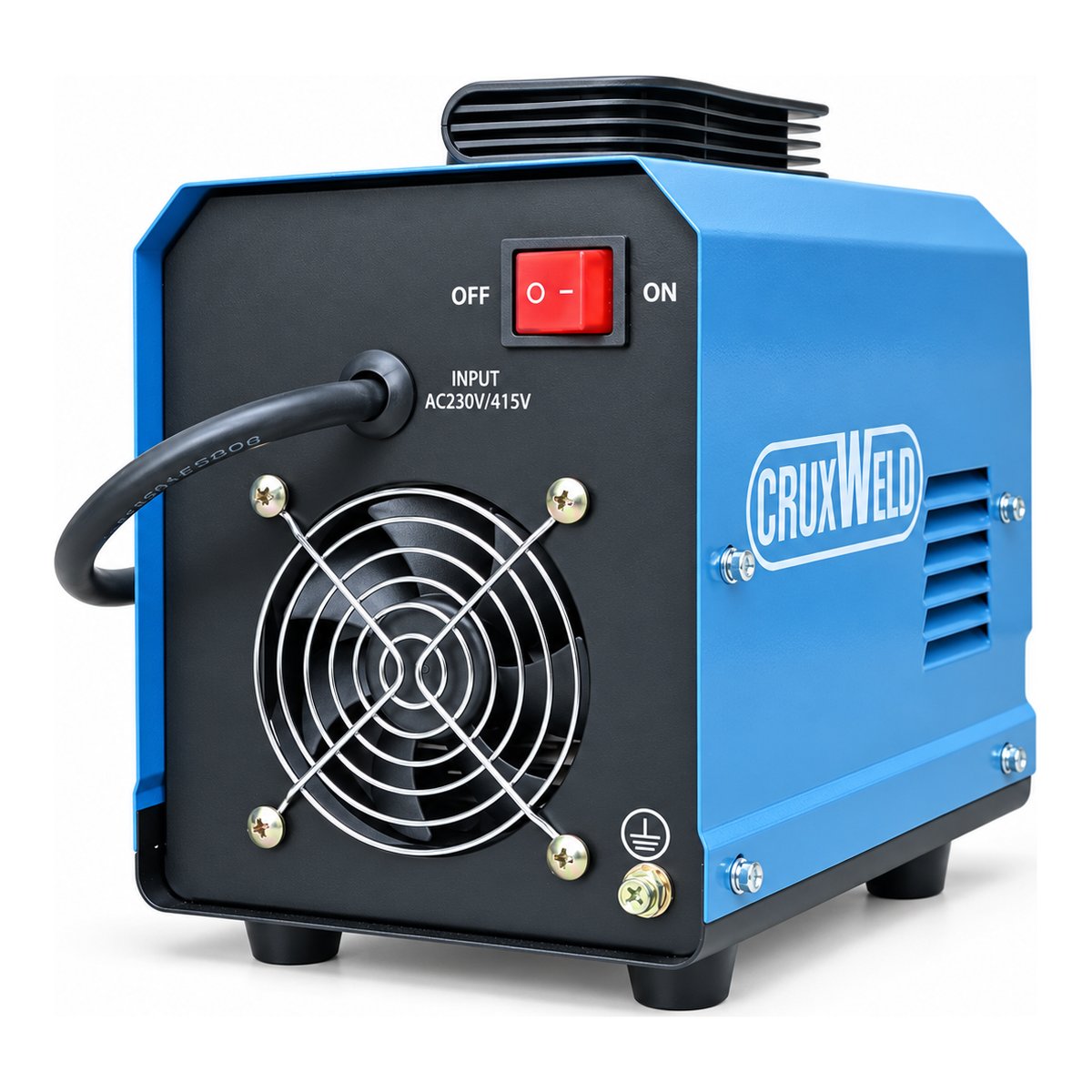

ARC200iS rear panel with on off switch, AC230V/415V input cable, cooling fan and earth stud

Back

Switch, input and fan

  • ON / OFF switch
  • Input cable marked AC230V/415V
  • Cooling fan and earth stud

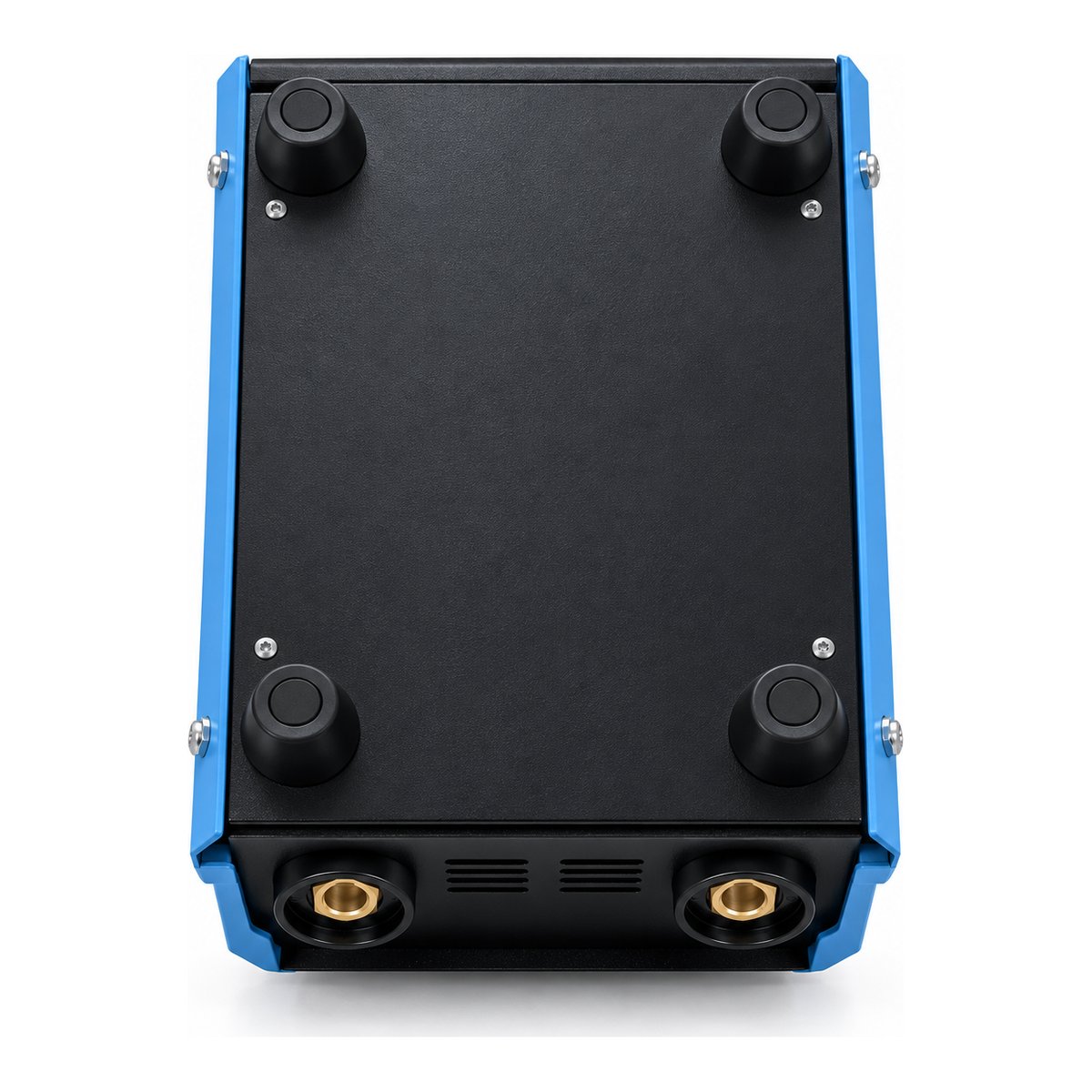

ARC200iS underside with four rubber feet

Below

Four rubber feet

  • Stands steady on the floor or bench
  • Keeps the case off wet ground
  • Air flows freely to the fan
Electrode guide

Pick the rod, set the current on your ARC 200 welding machine

Works with 1.6 to 3.2 mm electrodes, and 4 mm on intermittent work. Typical currents for mild steel rods:

1.6 mm

30–60 A

Thin sheet, light repairs

2.5 mm

60–100 A

Gates, grills, frames

3.2 mm

90–140 A

General fabrication

4.0 mm

130–180 A

Intermittent use only

Typical values. Follow the electrode maker’s range for your rod and position.

Why choose it

Four reasons welders pick this 200 amp welding machine

Any supply

230 V single phase, 415 V two-phase or three-phase, or a generator.

Strikes easily

Hot Start and Arc Force help new welders get a clean bead quickly.

Safer on site

VRD lowers the voltage at the holder when you are not welding.

Efficient inverter

An IGBT inverter with a 0.93 power factor and just 16 W idle power.

Backed by Cruxweld

45+ years of welding expertise. Supported Worldwide.

CRUXWELD is a GeM Registered OEM Manufacturer. You talk directly to the team that knows this machine.

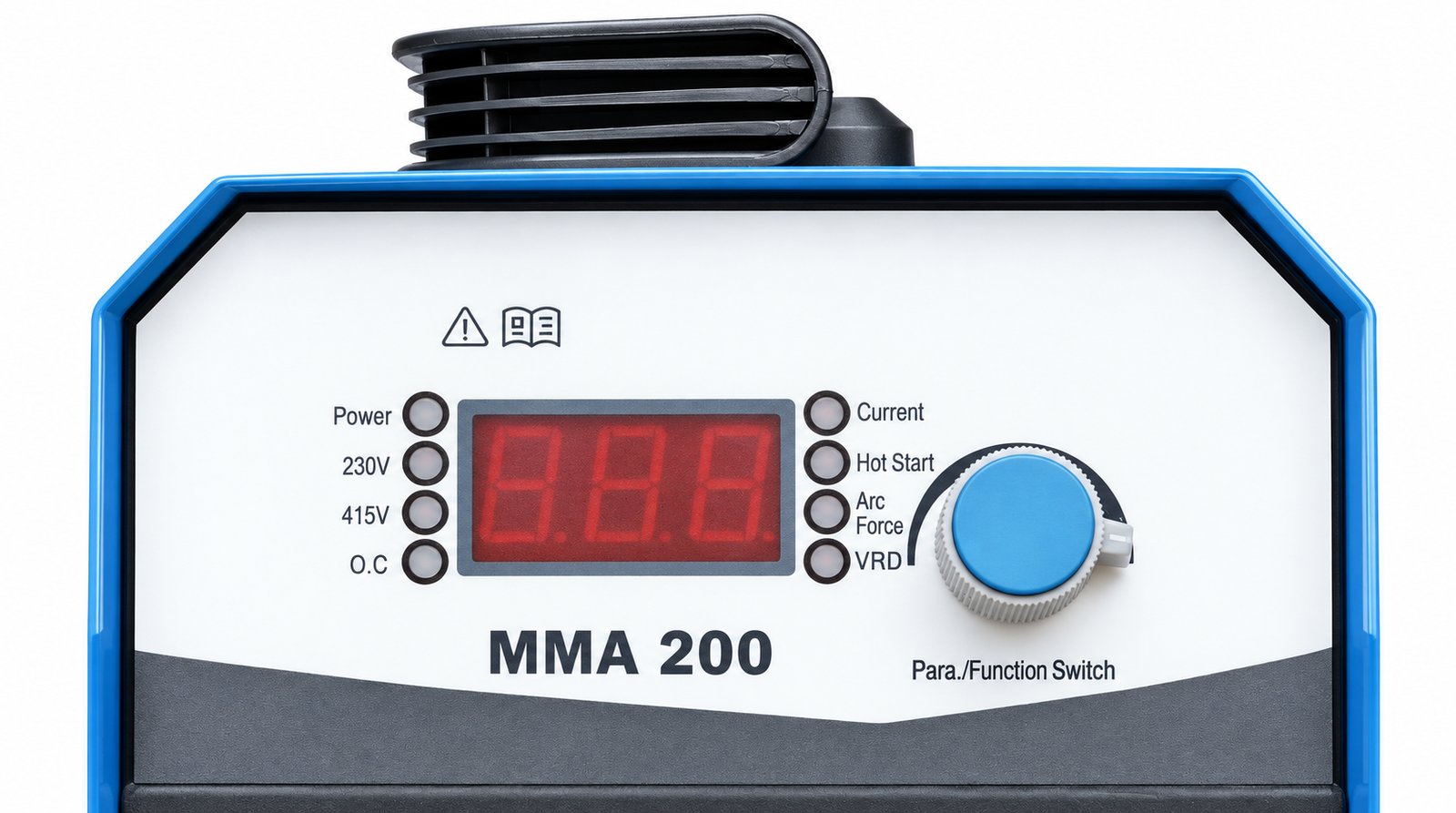

ARC200iS digital control panel and carry handle

Get the ARC 200 welding machine price

WhatsApp the material, electrode size and your supply (230 V or 415 V). Our team replies with the right setup and the price.

📞 +91 88008 82983

Specifications

Technical data

ARC 200 welding machine (ARC200iS) specifications

SpecificationARC200iS
Input
ModelARC200iS
Input voltage230 V single phase, or 415 V two-phase / three-phase; ±15%
Frequency50 / 60 Hz
Max input power @ 100% duty cycle4 kVA
Power factor0.93
Idle power16 W
Efficiency85%
Generator compatibleYes
Output
Welding processMMA / SMAW (stick), DC
Open circuit voltage65 V ±5%
Welding current range10–200 A
Welding current @ 60% duty cycle200 A
Welding current @ 100% duty cycle135 A
Suitable electrodes1.6, 2.5, 3.2 mm; 4 mm intermittent
Controls
DisplayDigital
Adjustable functionsCurrent, Hot Start, Arc Force
VRDYes
Indicator lampsPower, 230V, 415V, O.C (protection)
Build
TechnologyIGBT digital inverter
CoolingForced air
Degree of protectionIP23S
Insulation classH
Dimensions (L × W × H)410 × 150 × 300 mm
Weight (approx.)6.5 kg

Key features

  • Dual supply230 V single phase or 415 V two-phase / three-phase.
  • Hot StartEasier arc strikes.
  • Arc ForceStable arc, no stuck rods.
  • VRDReduced voltage at the holder between welds.
  • Digital displayPrecise current setting.
  • Protection lampO.C warns of overload or overheating.
  • Efficient inverterPower factor 0.93, 85% efficiency, 16 W idle.
  • Generator compatibleWorks on a suitable generator set.

Accessories

What’s in the box

Supplied with the ARC 200 welding machine

  • 1 unitARC200iS inverter welding machine
  • 1 setElectrode holder with cable
  • 1 setEarth clamp with cable
  • FittedInput cable

Confirm cable lengths and any extras with our team on WhatsApp.

Video

arc251is 250a inverter welding machine

ARC251iS 250A Inverter Welding Machine – 230 V & 415 V

arc 300 welding machine arc300is

ARC300iS 300A Inverter Welding Machine – ARC 300, 230 V & 415 V

400 amp 2 phase welding machine triphase 400is front angle

TriPhase 400iS – 400 Amp Single Phase Welding Machine, Also Runs on 2 & 3 Phase

arc400is angle

Arc Welding Machine 400A

arc630 2t dual operator arc welding machine

Dual Operator Arc Welding Machine ARC630-2T – 630A with Gouging

Question & Answers

FAQ

ARC 200 welding machine: questions buyers ask

Does the ARC200iS run on single phase and three phase?
Yes. It runs on a 230 V single-phase supply and on a 415 V two-phase or three-phase supply, 50 or 60 Hz. The 230V and 415V lamps on the panel show which supply it is running on.
Which electrodes can the ARC 200 welding machine weld?
Electrodes from 1.6 to 3.2 mm, and 4 mm on intermittent work, for mild steel, stainless steel and cast iron.
What do Hot Start, Arc Force and VRD do?
Hot Start adds a short boost when the arc strikes, for an easy start. Arc Force adds current when the arc gets short, so the rod does not stick. VRD keeps the voltage at the holder low while you are not welding. All are selected with the push-and-turn knob.
What does the O.C lamp mean?
It is the protection warning. It lights if the machine is overloaded or overheats. Let it cool with the fan running; it resets on its own.
Can I run the ARC 200 welding machine on a generator?
Yes. The ARC200iS is generator compatible.
How much power does it draw?
Maximum input is 4 kVA. At the currents used for 2.5 and 3.2 mm rods the draw is lower.
ARC200iS or ARC251iS: which one?
Choose the ARC200iS for 1.6 to 3.2 mm rods and portability. Choose the ARC251iS if you want more headroom for 3.2 mm rods at full speed and more 4 mm work.
What is the ARC 200 welding machine price and delivery time?
WhatsApp +91 88008 82983 with your quantity and city. Our team replies with a GST quotation and delivery time.
