Dual Operator Arc Welding Machine ARC630-2T – 630A with Gouging ARC630-2T front panel with two current displays and knobs, arc force knob and three output terminals ARC630-2T dual operator arc welding machine with two electrode holders and earth clamp Dual Operator Arc Welding Machine ARC630-2T – 630A with Gouging Dual Operator Arc Welding Machine ARC630-2T – 630A with Gouging

Dual Operator Arc Welding Machine ARC630-2T – 630A with Gouging

ARC630-2T
Dual operator arc welding machine · 630 A · MMA + gouging

Two welders. One 630 A machine.

The CRUXWELD ARC630-2T is a dual operator arc welding machine: one IGBT inverter with two electrode outputs, so two welders strike their own arcs at the same time. Each welder has their own current knob and digital display, and the same machine does air carbon arc gouging.

415 V · 3-PHASE INARC630-2T160AMP 1240AMP 2+1+2−WELDER 1WELDER 2one shared earth returnTwo welders, two arcs, one 630 A machineEach welder sets their own current on their own displayExample settings

2Welders at once
20–630 ADC output
3.2–6 mmElectrodes
415 VThree phase
MMA + gougingHot startArc forceAnti-stickVRDGenerator compatible
See how two welders share it →Full specifications

GeM Registered OEM Manufacturer · Supported Worldwide · 45+ years of welding expertise

Get a Quote → WhatsApp +91 88008 82983

Price, delivery & technical help — get a fast response.

Overview

01

Two welders, one machine

How a dual operator arc welding machine runs two welders

Most fabrication bays run two stick welders side by side: two machines, two power drops, two sets of cables across the floor.

The ARC630-2T replaces both. Welder 1 and welder 2 each get their own output, current knob and display, and share one earth return to the job.

  • One machineto buy, move, connect and maintain.
  • One power dropinstead of two on the shop floor.
  • Two bays workingfrom a single 630 A station.

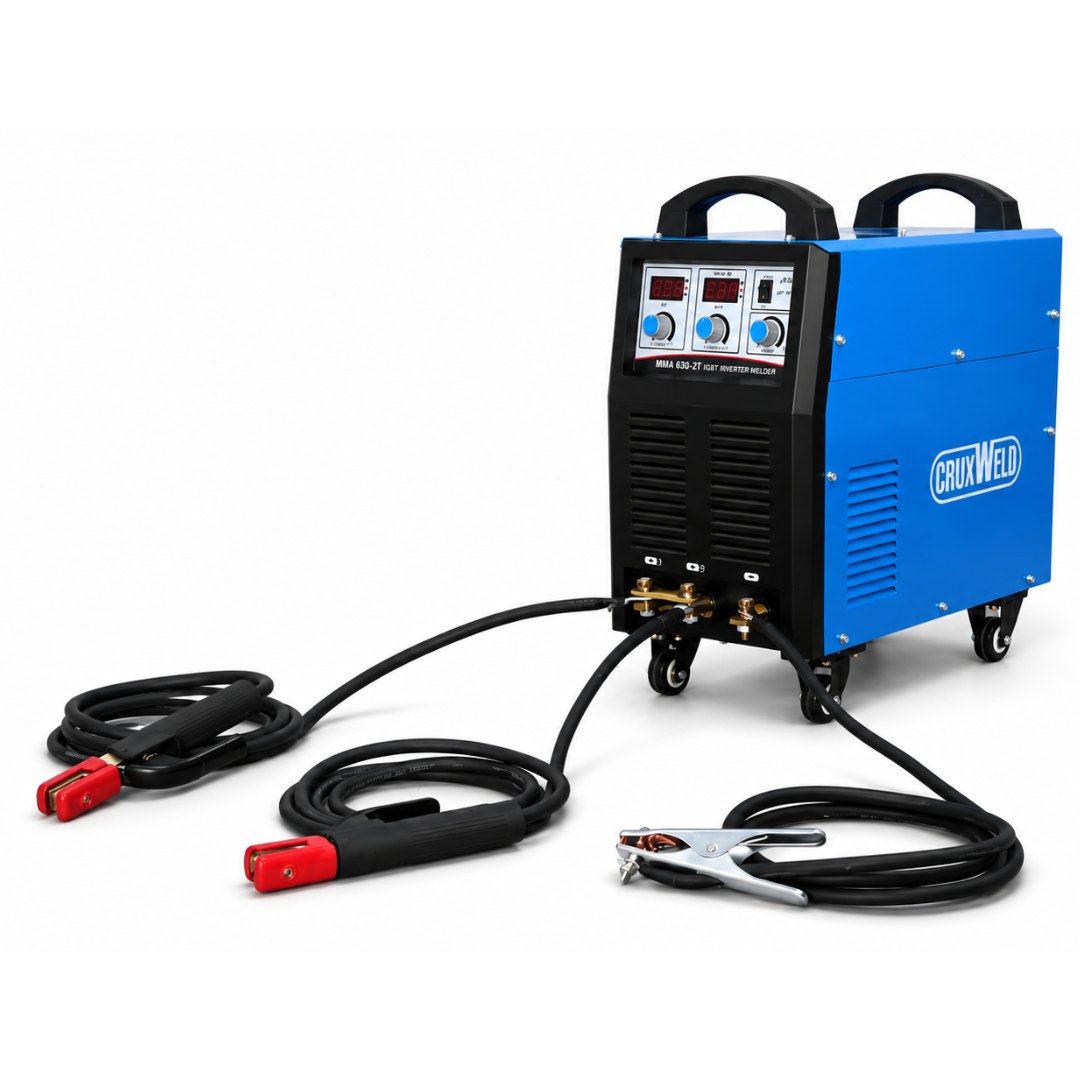

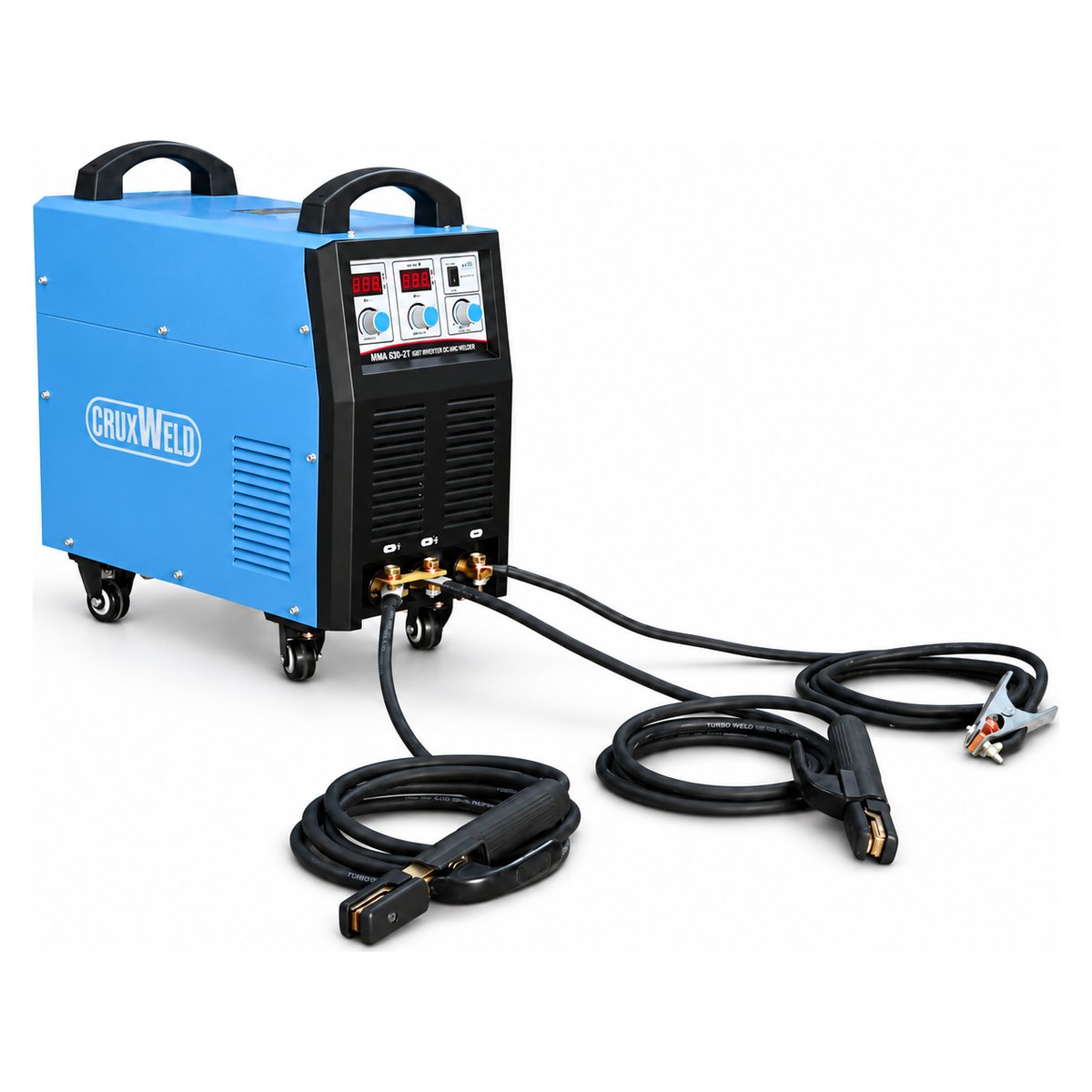

ARC630-2T dual operator arc welding machine with two electrode holders and one earth clamp
Two holders on +1 and +2. One earth clamp on −.
02

Electrode guide

Where each electrode sits on the 630 A scale

The ARC630-2T takes 3.2, 4, 5 and 6 mm electrodes. Pick a rod for each welder to see the typical current:

WELDER 1

WELDER 2

WELDER 13.2 mm · 90–140 A4 mm · 140–220 A5 mm · 190–300 A6 mm · 250–380 AWELDER 23.2 mm · 90–140 A4 mm · 140–220 A5 mm · 190–300 A6 mm · 250–380 A0100200300400500630A (20–630 A DC)
  • 3.2 mm · 90–140 ARoot runs, general fabrication
  • 4 mm · 140–220 AStructural fillets, 6 mm plate and up
  • 5 mm · 190–300 AHeavy sections, multi-pass
  • 6 mm · 250–380 AThick plate, high deposition

Typical ranges. Follow the electrode maker’s data and your welding procedure. Both welders on heavy electrodes at the same time? Send us the electrode sizes and our technical team will confirm the set-up.

03

Control panel

The dual operator arc welding machine panel: one side per welder

Welder 1 controls on the left, welder 2 in the middle, shared settings on the right.

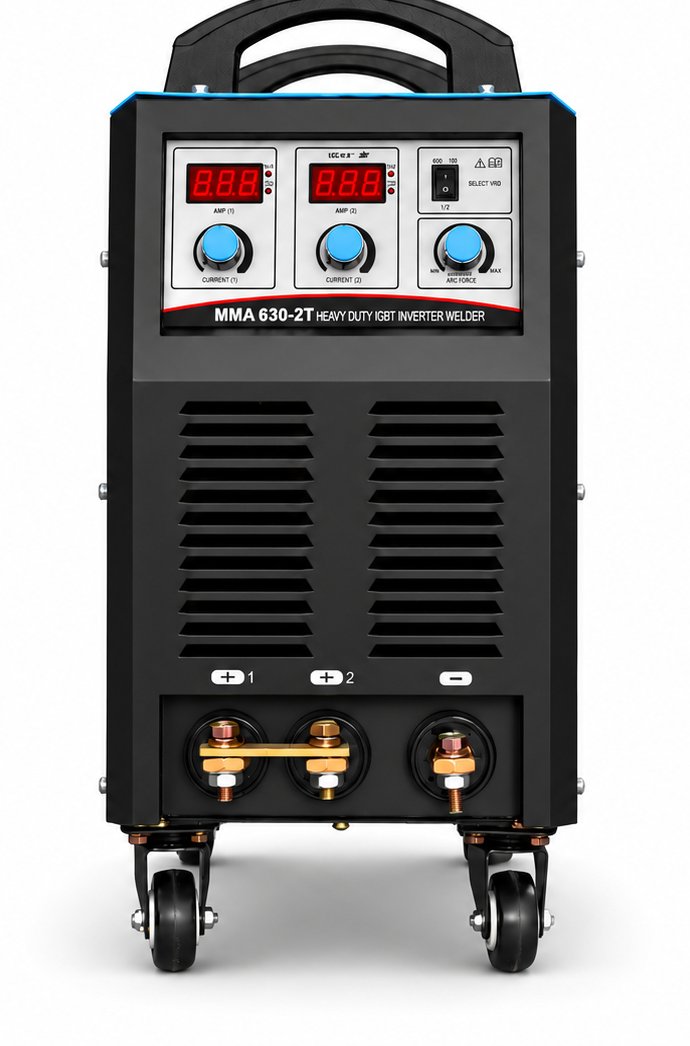

ARC630-2T front panel map with AMP 1 and AMP 2 displays, current knobs, VRD switch, arc force knob and outputs

Welder 1

  • AAMP (1) displayShows the current set for welder 1.
  • BCURRENT (1) knobWelder 1 sets their own current.
  • H+1 outputElectrode holder for welder 1.

Welder 2

  • CAMP (2) displayShows the current set for welder 2.
  • DCURRENT (2) knobWelder 2 sets their own current.
  • I+2 outputElectrode holder for welder 2.

Shared

  • ESelect VRD switchTurns the voltage reduction device on or off.
  • FArc force knobMIN to MAX (0–100%) for a steady arc that does not stick.
  • J− outputCommon work return to the earth clamp.
  • GFront air intakeForced-air cooling with dual fans.
  • KSwivel castorsRoll it to the job across the shop floor.

Hot start and anti-stick are built in. Change settings and switches with the arc off.

04

Output terminals

Three heavy brass studs on the dual operator arc welding machine

Cables are bolted on, not plugged in, so the connection stays tight through long shifts at high current.

  • +1Welder 1Electrode holder cable for the first operator.
  • +2Welder 2Electrode holder cable for the second operator.
  • −Work returnOne earth clamp to the job, shared by both welders.

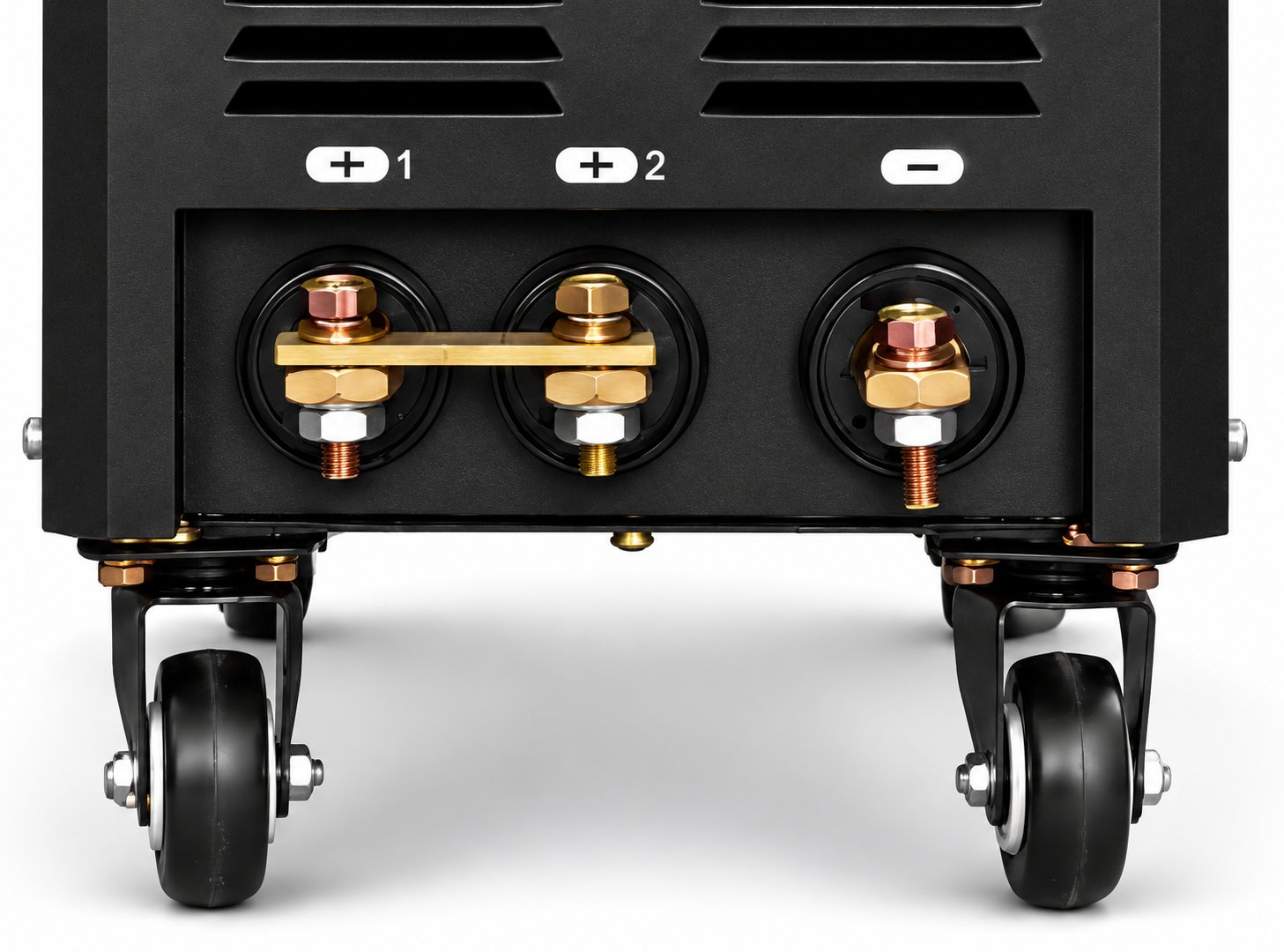

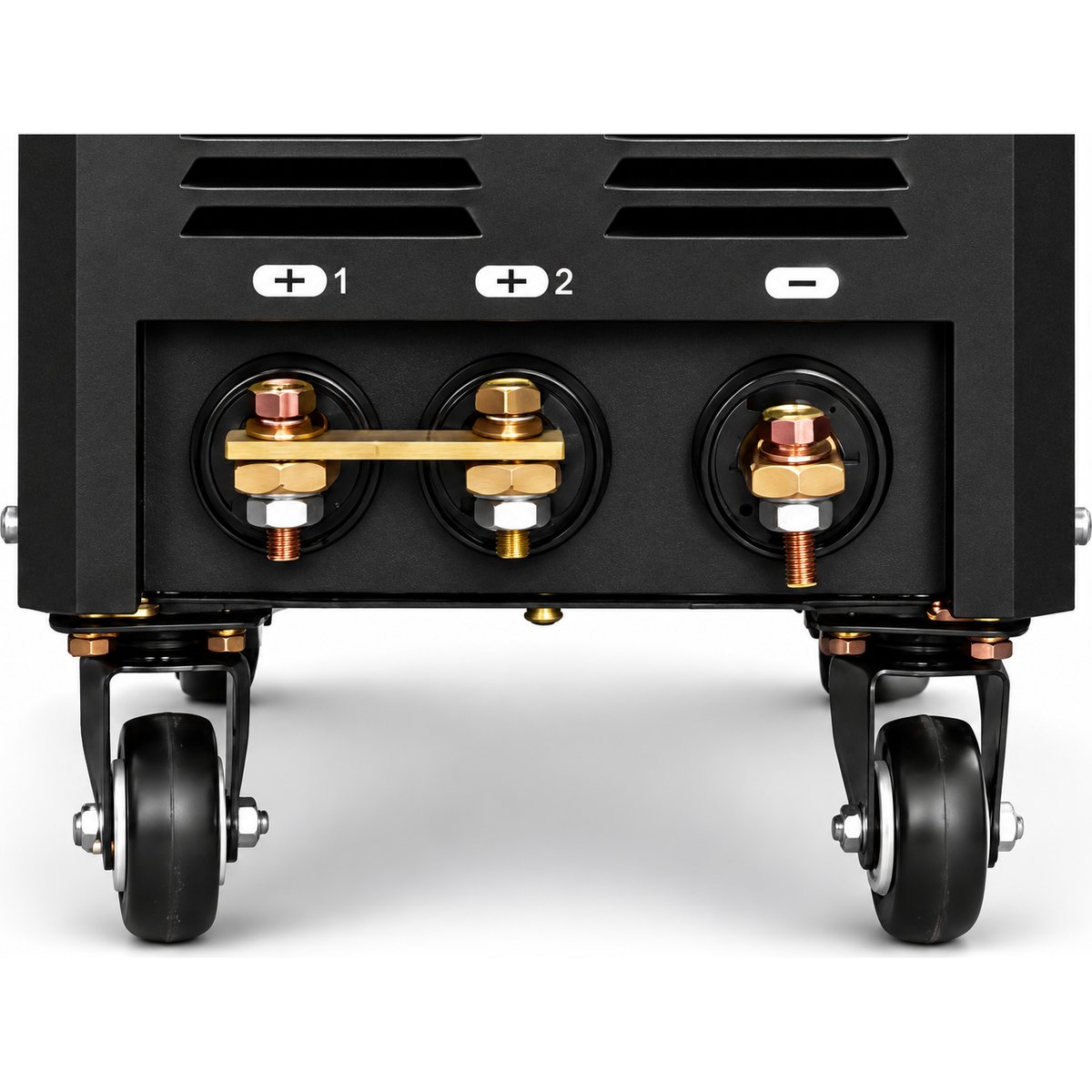

ARC630-2T output terminals +1, +2 and minus
05

Gouging

Back-gouge and repair without a second machine

Air carbon arc gouging strikes an arc between a carbon electrode and the job, then blows the molten metal away with compressed air, leaving a clean groove. The ARC630-2T powers it as well as MMA welding.

Carbon electrode + compressed airThe arc melts, the air blows it out: a clean groovePLATE SECTION
  • Back-gougingOpen the root of a double-sided weld to sound metal.
  • Defect removalCut out cracked or porous welds for repair.
  • Joint preparationGroove plate edges before welding.
  • Site repairGenerator compatible for work away from the shop.

Gouging also needs: a gouging torch, carbon electrodes and compressed air.

06

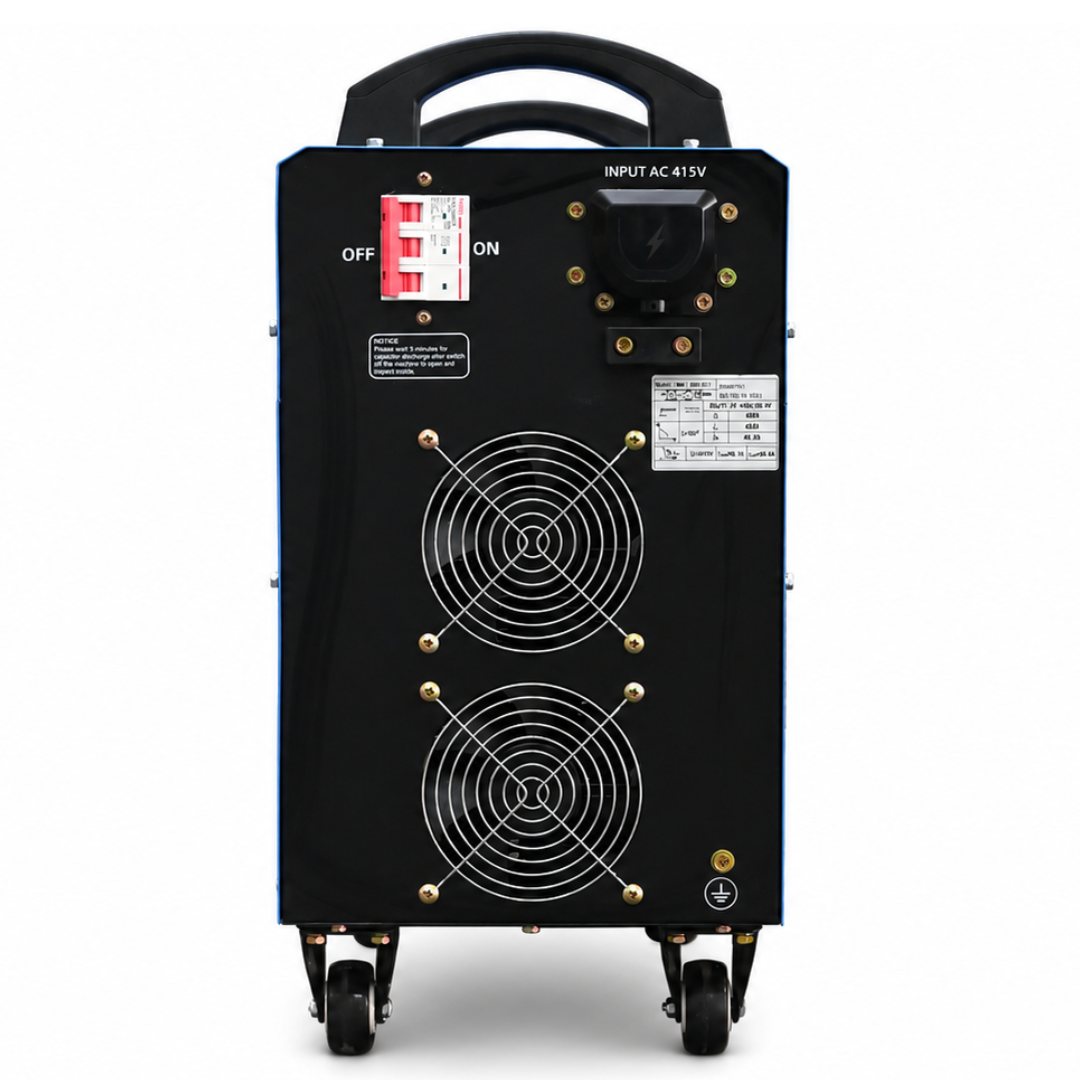

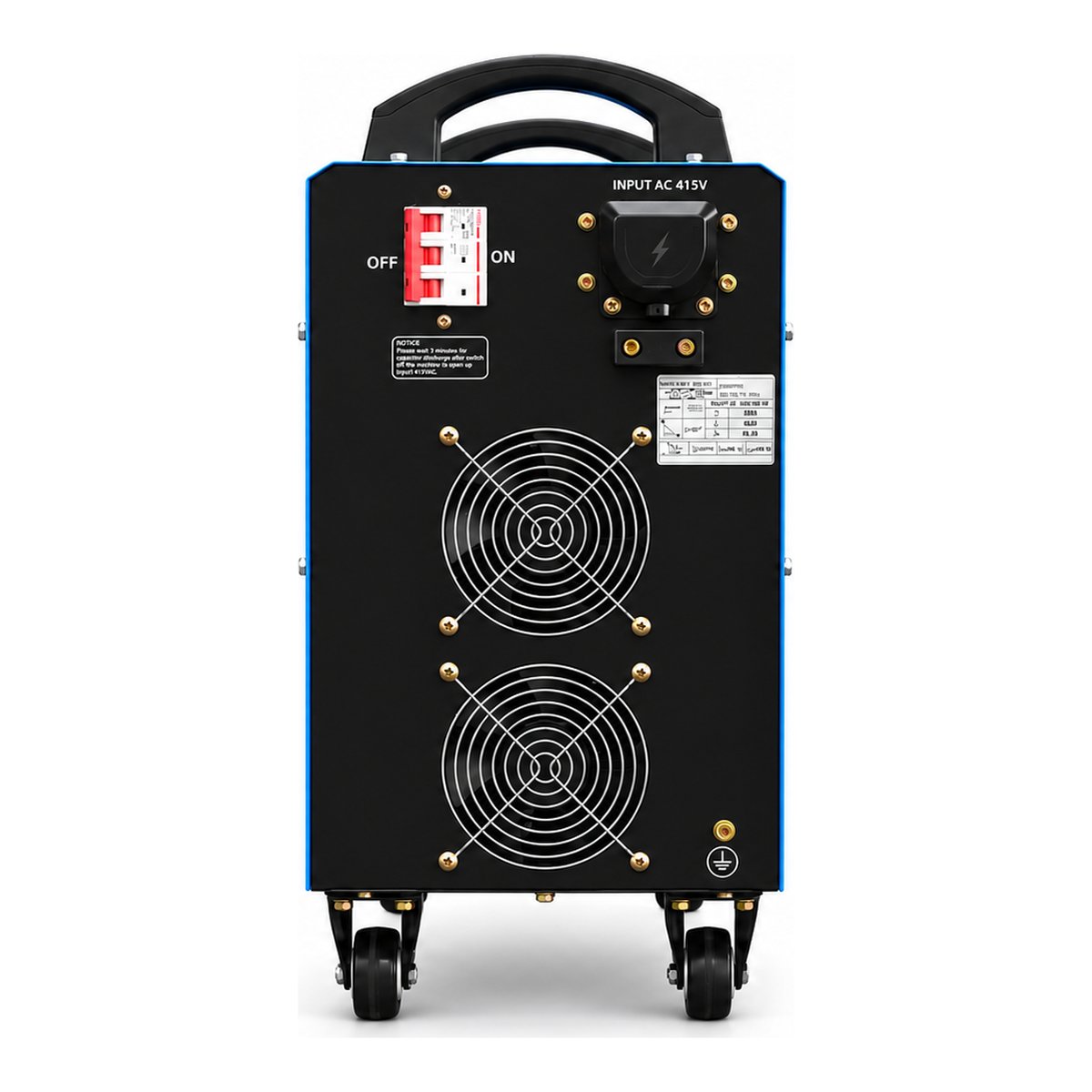

ARC630-2T rear panel with MCB, 415 V input and two cooling fans
Rear panel and installation

One 415 V connection at the back

  • MCB ON / OFF switch, which also protects the input
  • INPUT AC 415V connection
  • Two cooling fans behind guards
  • Earth terminal for the machine body
  • Supply415 V AC ±15%, three-phase, 50/60 Hz
  • Rated input32 kVA, 54 A
  • GeneratorCompatible
  • EnclosureIP21: keep it out of rain and snow
  • CoolingForced air; keep the vents clear
07

Walk around it

The dual operator arc welding machine from every side

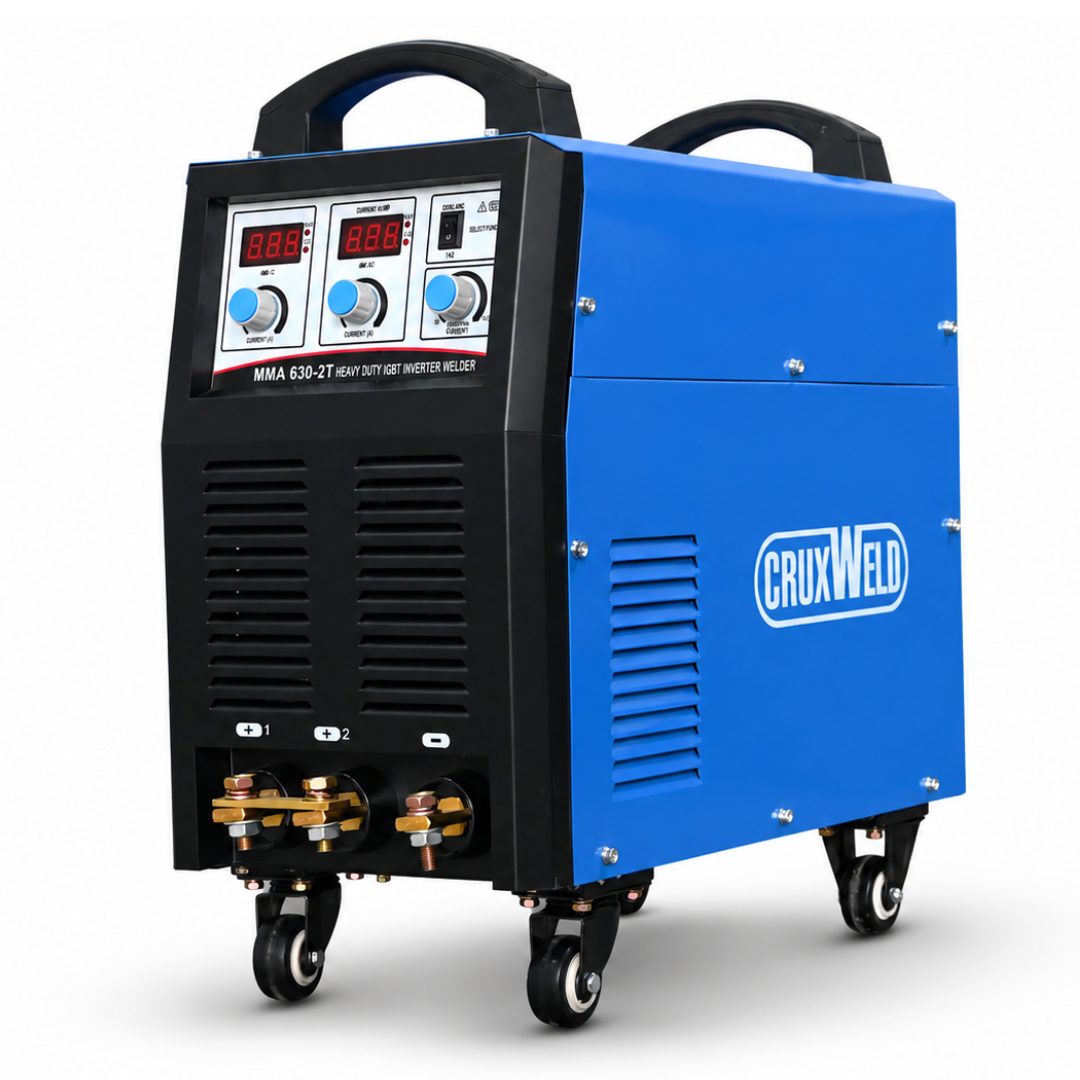

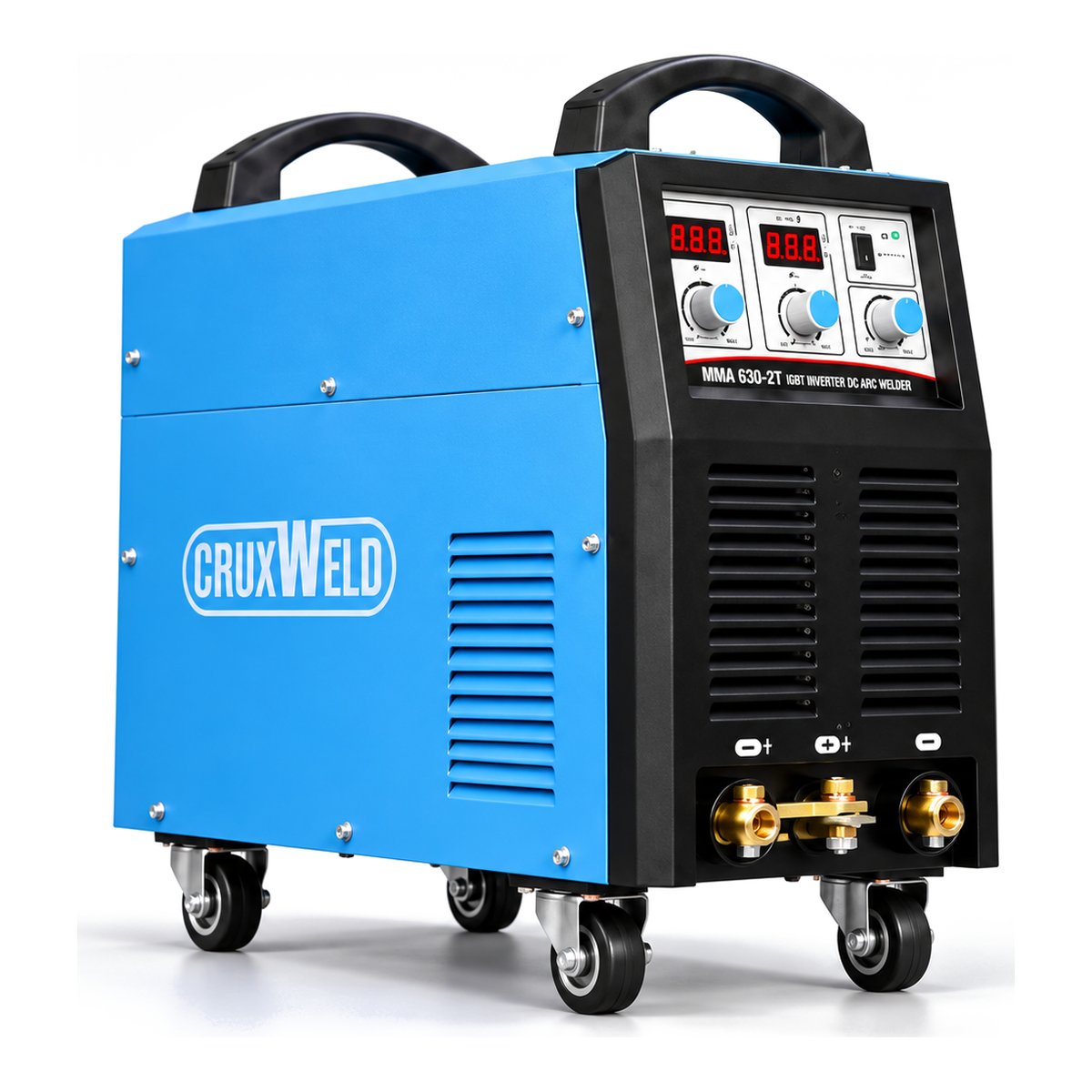

ARC630-2T front and side
Right sideFront and sidePanel, outputs and the side louvres.

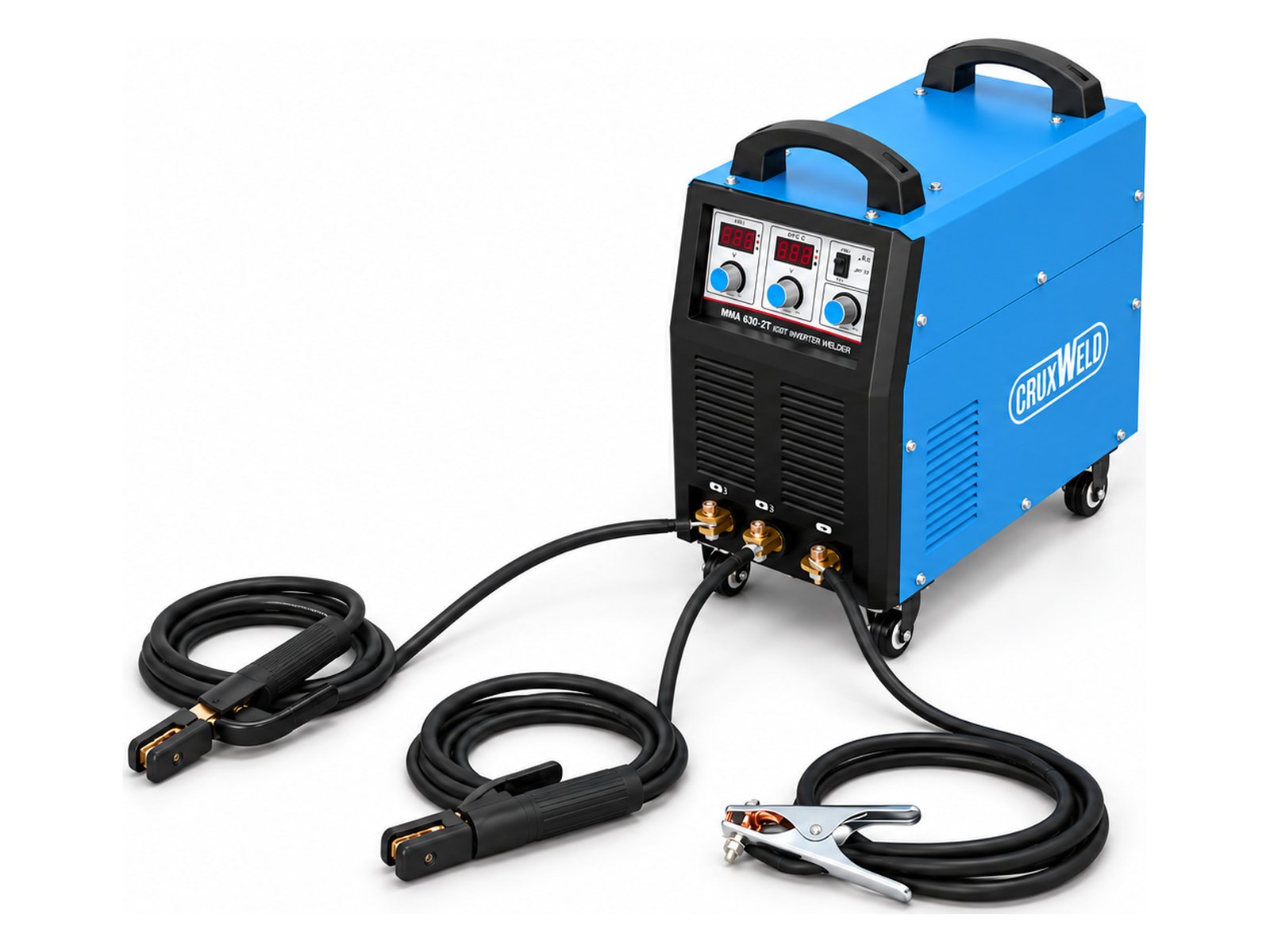

ARC630-2T set up for two welders
Rear leftSet up for two weldersTwo holders and one earth clamp connected.

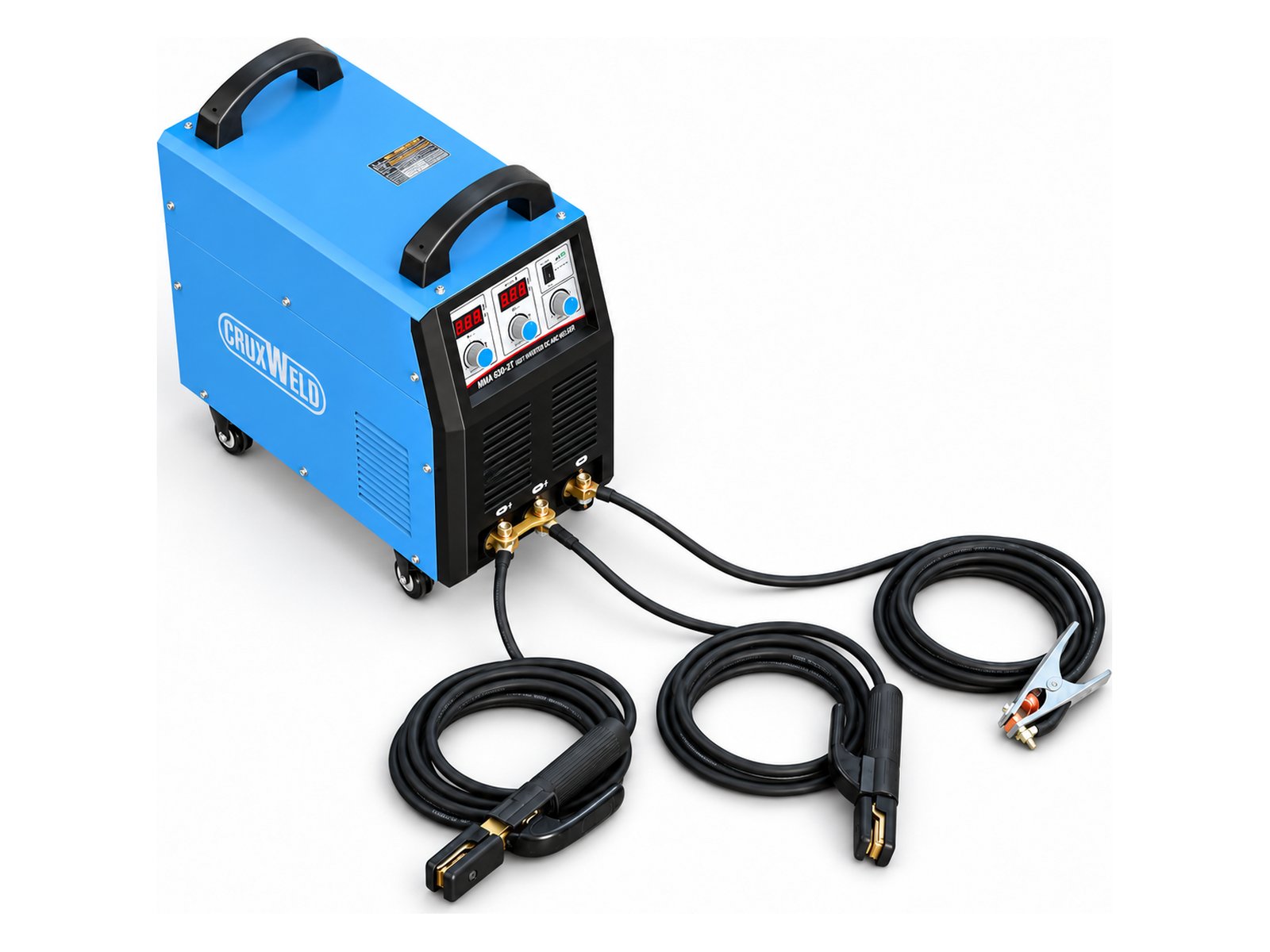

ARC630-2T from above the front
OverheadFrom above the frontCables leave the front low and clear of the panel.

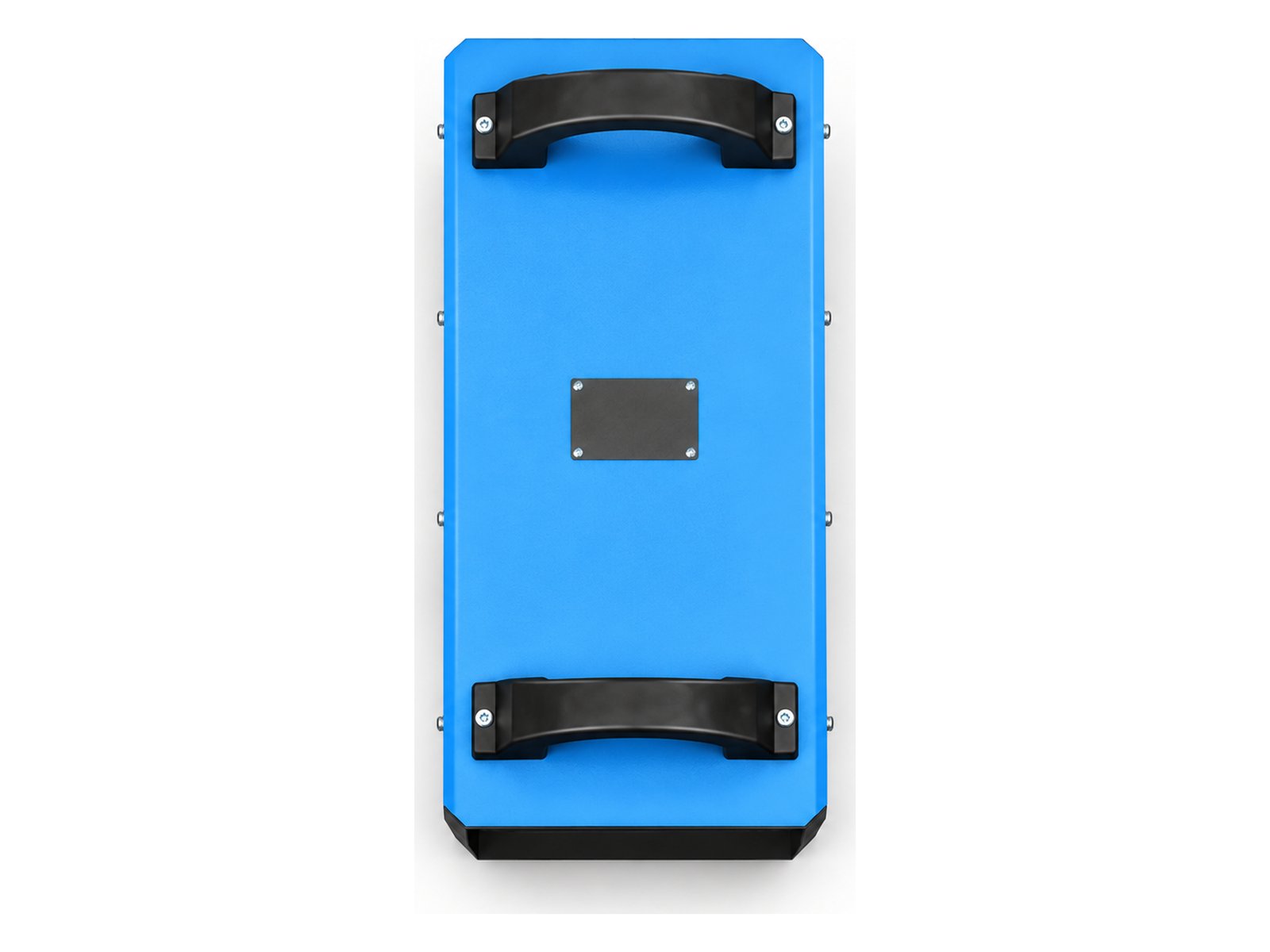

ARC630-2T two lifting handles
TopTwo lifting handlesFront and rear handles for lifting and loading.

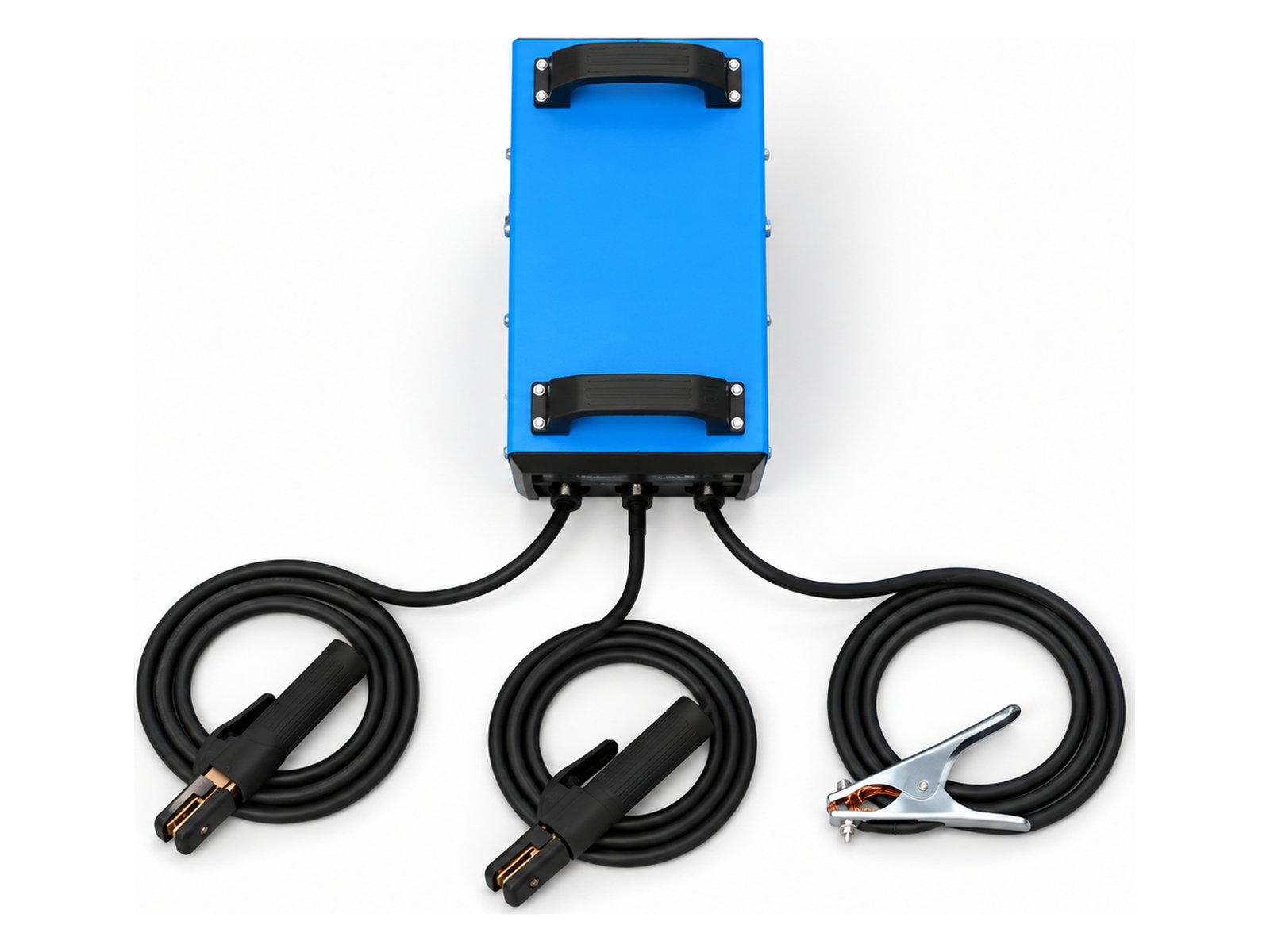

ARC630-2T three cables, one machine
Top + cablesThree cables, one machineWelder 1, welder 2 and the common return.

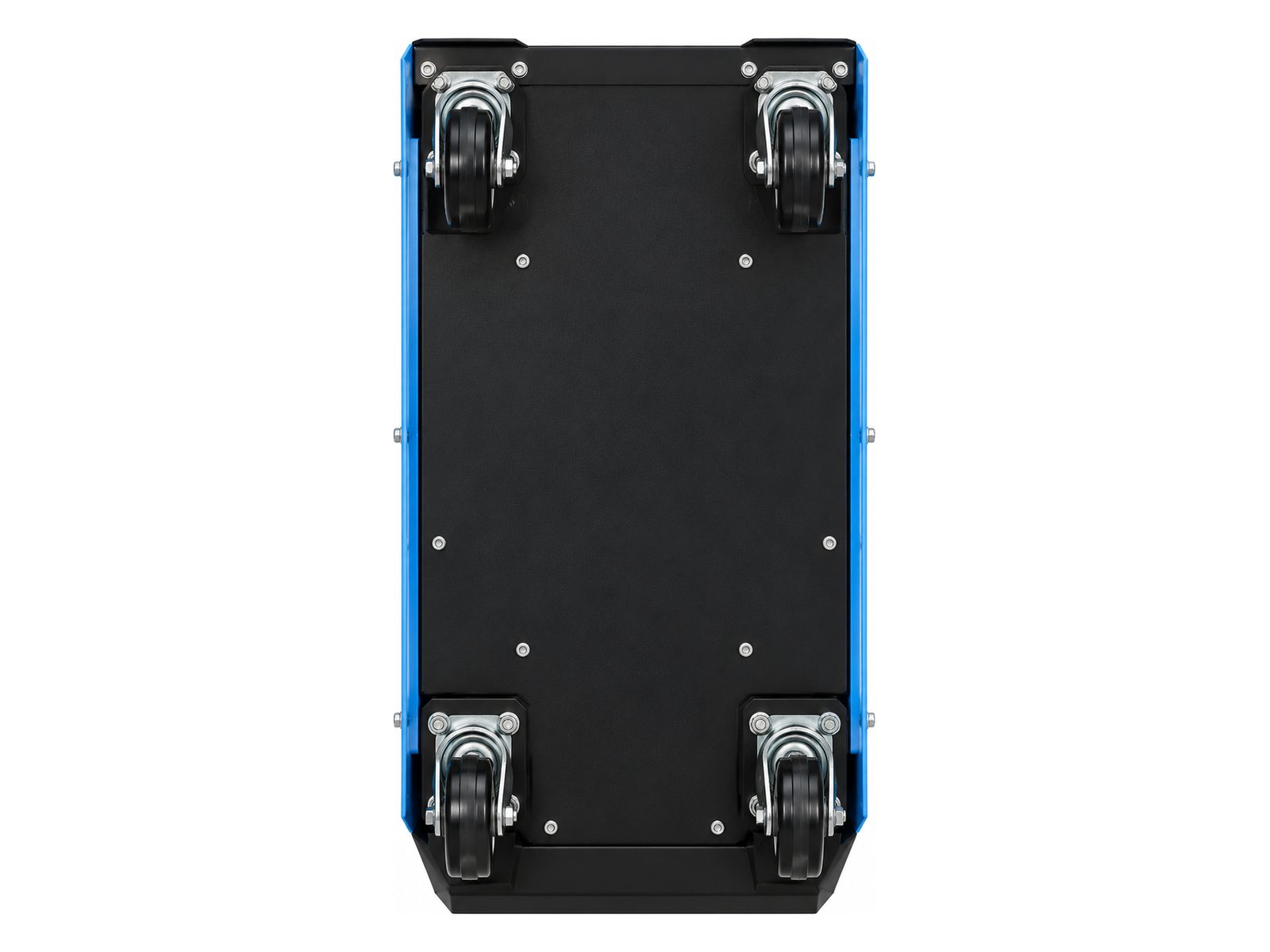

ARC630-2T four swivel castors
UndersideFour swivel castorsBolted castors under a flat steel base.
08

Where it works

Where a dual operator arc welding machine fits

  • Structural steelTwo welders on columns, beams and base plates.
  • ShipbuildingHeavy plate, long shifts and back-gouging.
  • Pipelines and plantSite work from a generator.
  • Pressure vesselsRoot gouge and fill on double-sided welds.
  • Mining and earthmovingRepair, build-up and gouge-out.
  • Repair shopsWeld and gouge from one machine.
09

Why the ARC630-2T

Four reasons fabricators choose this dual operator arc welding machine

  • Two operatorsSeparate current control and display for each welder.
  • 630 A DC20–630 A output for 3.2 to 6 mm electrodes.
  • Weld and gougeMMA welding and air carbon arc gouging from one power source.
  • Efficient inverterIGBT inverter with 90% efficiency and a 0.93 power factor.
11

CRUXWELD support

45+ years of welding expertise. Supported Worldwide.

CRUXWELD is a GeM Registered OEM Manufacturer. Every machine is tested before dispatch, and you talk directly to the team that knows it.

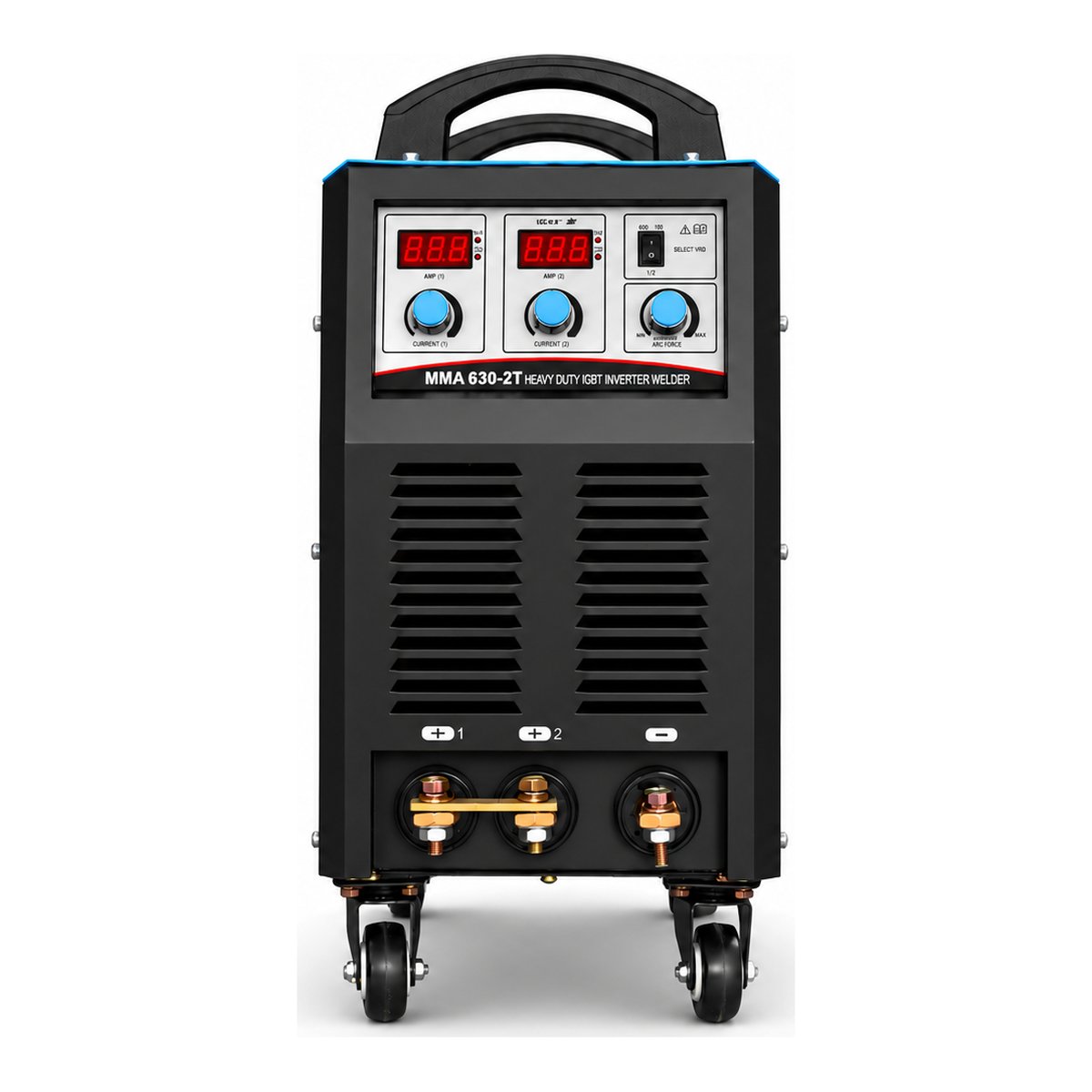

ARC630-2T dual operator arc welding machine front control panel

Get the dual operator arc welding machine price: WhatsApp your electrode sizes, whether you need gouging, and your city. Our team replies with the configuration and the price.

📞 +91 88008 82983

Specifications

DATATechnical specifications

ARC630-2T dual operator arc welding machine specifications

SpecificationARC630-2T
Input
ModelARC630-2T
Input voltageAC 415 V ±15%, three-phase
Frequency50 / 60 Hz
Rated input capacity32 kVA
Rated input current54 A
Power factor (cos φ)0.93
Efficiency90%
Generator compatibleYes
Output
Output current range20–630 A
Output current modeDC
Rated output voltage44 V
Open circuit voltage80 V
OperatorsTwo, with separate current control and display
ModesMMA welding / air carbon arc gouging
Controls
Arc force0–100%, adjustable from the front panel
Hot startYes
Anti-stickYes
VRDYes
Electrodes
Suitable electrode diameter3.2 / 4 / 5 / 6 mm
Build
TechnologyIGBT inverter
CoolingForced air, dual cooling fans
ProtectionMCB, overload and overheat protection
Enclosure classIP21
Insulation classH
Dimensions (L × W × H)510 × 305 × 508 mm
Weight48 kg

Key features

  • Two operatorsTwo arcs at the same time from one machine.
  • Separate controlsOwn current knob and digital display per welder.
  • MMA and gougingStick welding and air carbon arc gouging.
  • Arc forceAdjustable 0–100% from the front panel.
  • Hot start and anti-stickEasy strikes; a stuck rod is released.
  • VRDVoltage reduction device, selected on the panel.
  • ProtectionMCB, overload and overheat protection.
  • Generator compatibleRuns on a suitably rated generator set.

Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents.

Accessories

BOXSupplied with

What comes with the dual operator arc welding machine

  • 1 unitARC630-2T dual operator power source
  • 2 setsElectrode holder with cable
  • 1 setEarth clamp with cable
  • On requestGouging torch and carbon electrodes

Cable lengths for each welder are set on your quotation. Confirm them with our team on WhatsApp.

arc200is 200a inverter welding machine

ARC200iS 200A Inverter Welding Machine – 230 V & 415 V

arc251is 250a inverter welding machine

ARC251iS 250A Inverter Welding Machine – 230 V & 415 V

arc 300 welding machine arc300is

ARC300iS 300A Inverter Welding Machine – ARC 300, 230 V & 415 V

400 amp 2 phase welding machine triphase 400is front angle

TriPhase 400iS – 400 Amp Single Phase Welding Machine, Also Runs on 2 & 3 Phase

arc400is angle

Arc Welding Machine 400A

Question & Answers

FAQBuyers ask

Dual operator arc welding machine: questions buyers ask

What is a dual operator arc welding machine?
It is one welding power source that two welders can use at the same time. The ARC630-2T has two electrode outputs (+1 and +2), each with its own current knob and digital display, and a common work return.
Can both welders set different currents on the dual operator arc welding machine?
Yes. Welder 1 uses CURRENT (1) and the AMP (1) display; welder 2 uses CURRENT (2) and the AMP (2) display.
What is the output current range of the dual operator arc welding machine?
20 to 630 A DC, for 3.2, 4, 5 and 6 mm electrodes. If both welders will run heavy electrodes at the same time, send us the sizes and our technical team will confirm the set-up.
Does the dual operator arc welding machine do air carbon arc gouging?
Yes. It supports MMA welding and air carbon arc gouging. Gouging also needs a gouging torch, carbon electrodes and compressed air, which we can quote with the machine.
What power supply does the dual operator arc welding machine need?
AC 415 V ±15%, three-phase, 50/60 Hz. Rated input is 32 kVA and 54 A. It is generator compatible.
Does it have hot start, arc force, anti-stick and VRD?
Yes. Arc force is adjustable from 0 to 100% on the front panel, hot start and anti-stick are built in, and VRD is selected with a switch on the panel.
How is it cooled and protected?
Forced air with dual cooling fans. It has an MCB on the rear panel plus overload and overheat protection. The enclosure is IP21, so keep it out of rain and snow.
How do I move the dual operator arc welding machine around the shop?
It stands on four swivel castors and has two handles on top for lifting and loading.
What is the dual operator arc welding machine price and delivery time?
WhatsApp +91 88008 82983 with the quantity, cable lengths for each welder, whether you need a gouging torch, and your city. Our team replies with a quotation and delivery time.
