Plasma cutter with inbuilt air compressor · 40 A · 230 V single phase
Plug In. Cut 12 mm Steel. No Compressor to Carry.
The CRUXWELD FINELINE 40C is a plasma cutter with inbuilt air compressor: a 40 A IGBT inverter and a 4–5 bar compressor in one 25 kg case that runs from any 230 V single-phase socket. Pilot-arc start, 10–40 A stepless control and a digital ammeter give clean, fast cuts in mild steel, stainless, aluminium and copper up to 12 mm — on site, on the roof, in the shop, wherever there is a plug. Engineered, assembled and tested in India by a GeM Registered OEM Manufacturer.
The Plasma Cutter with Inbuilt Air Compressor for Site and Shop
Every plasma cutter needs clean, dry compressed air — and on most jobs that means dragging a compressor, a hose and a second power lead to wherever the plate is. The FINELINE 40C plasma cutter with inbuilt air compressor removes that from the equation. Its own 4–5 bar compressor sits inside the case, so the only things you carry are the machine, the torch and the earth clamp. Plug into a 16 A single-phase socket, switch on, set the current and cut.
Inside is a 40 A IGBT inverter with pilot-arc starting: the arc is struck without touching the plate, so painted, rusty or expanded metal cuts cleanly and consumables last longer. A microprocessor controls the air sequence — pre-flow, cut, post-flow cooling — and the digital display shows the set current, with LED indicators for power and thermal protection.
Compressor inside
4–5 bar inbuilt compressor: no external air, no hose, no second machine to move.
40 A pilot arc
Non-contact start on any surface; 10–40 A stepless, 12 mm maximum cut in mild steel.
230 V, 16 A socket
5.5 kVA single-phase input with ±15% tolerance — works from a site board or a generator.
25 kg, one hand
A 400 × 190 × 400 mm case with a moulded top handle: carry it up a ladder or across a yard.

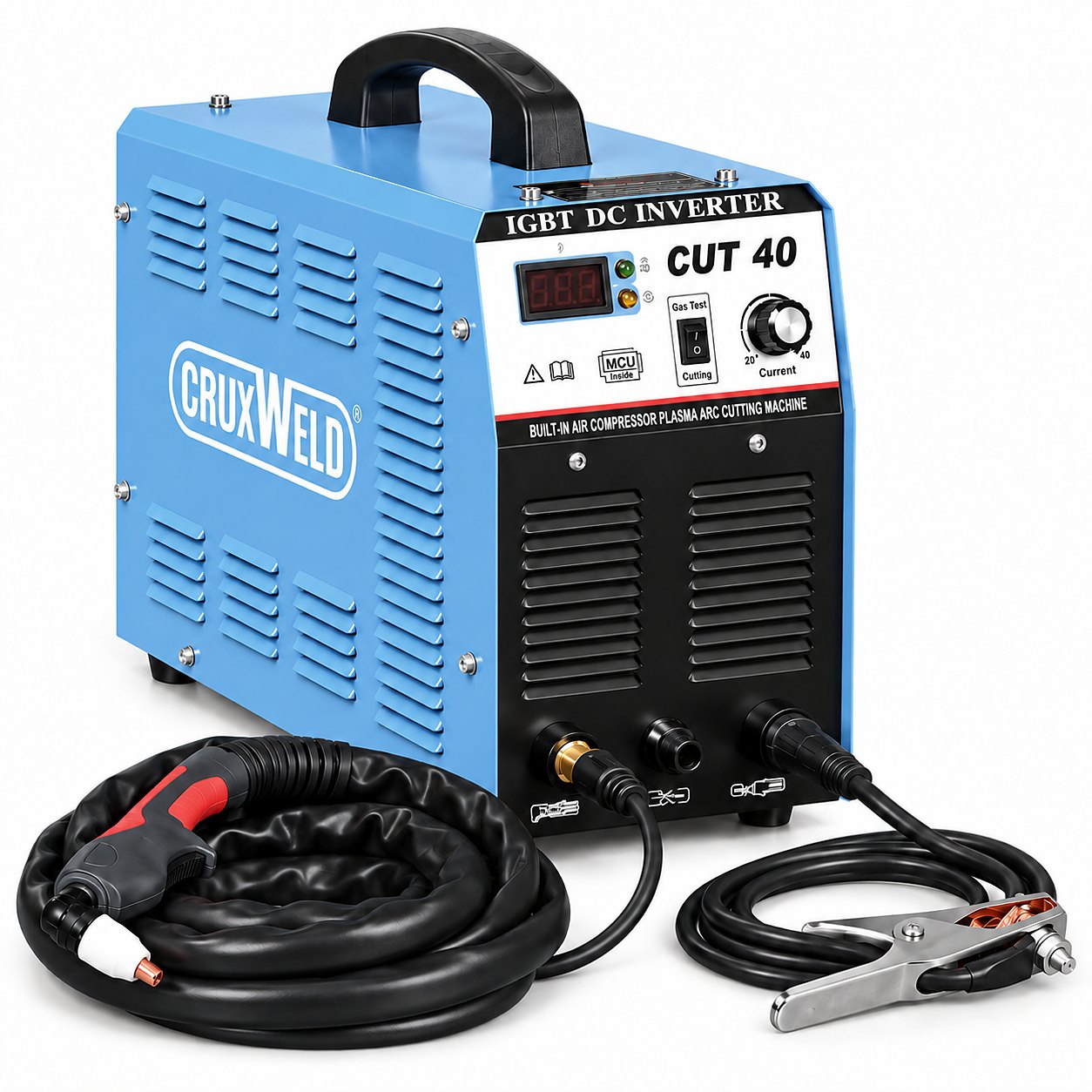

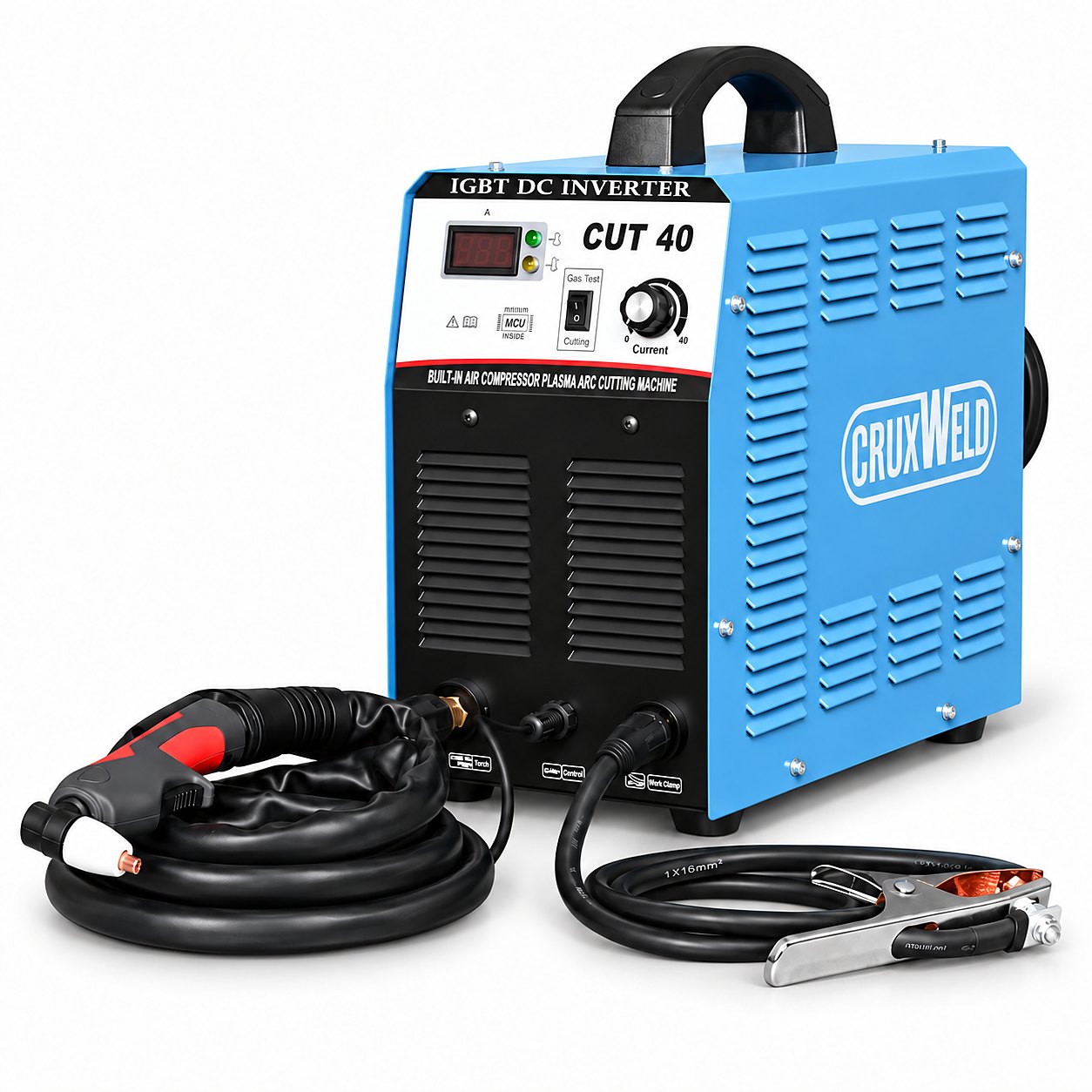

FINELINE 40C: 40 A inverter and compressor in one 25 kg case.
See it cut
FINELINE 40C Plasma Cutter with Inbuilt Air Compressor in Action
What you will see
1
Set-up in a minute: plug in, clip the earth, switch on — the inbuilt compressor builds pressure by itself.
2
Gas test and current setting on the front panel; the digital ammeter shows the amps.
3

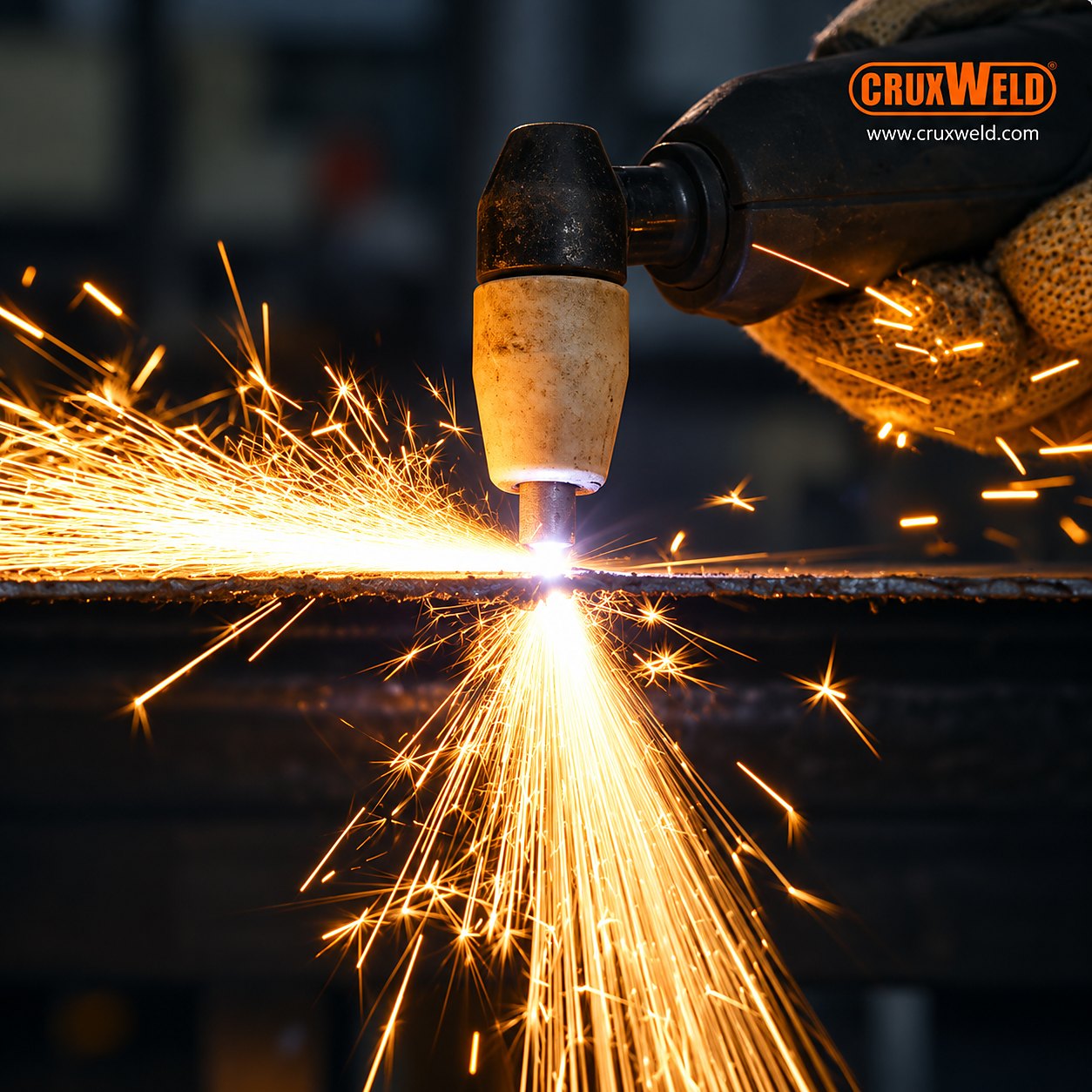

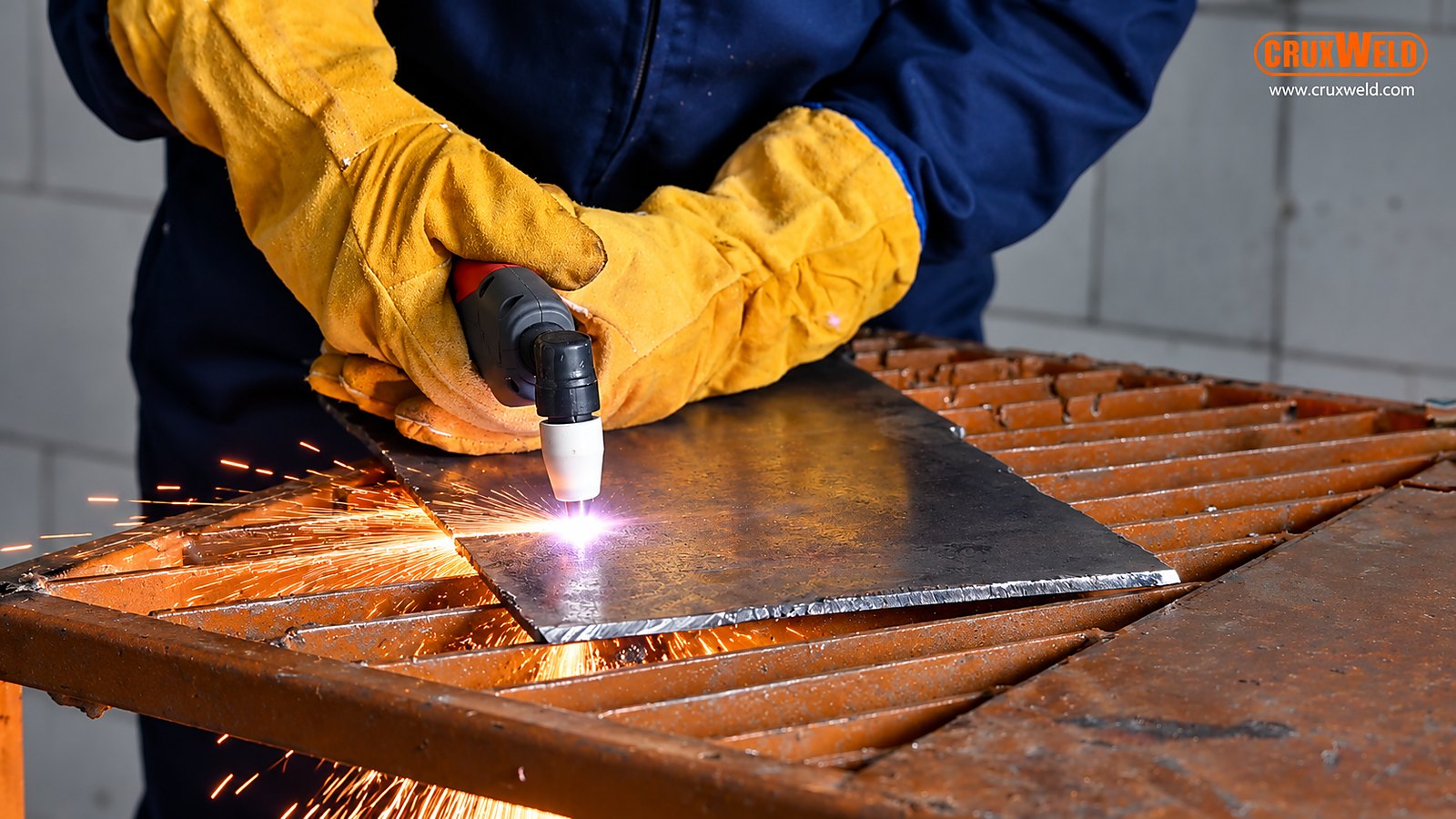

Pilot-arc start and a straight cut through mild steel plate with a narrow, clean kerf.
4
Freehand shape cutting and the finished edge: minimal dross, ready for welding.
Filmed on a production FINELINE 40C. Ask us on WhatsApp for a demonstration on your own material.
What you are looking at

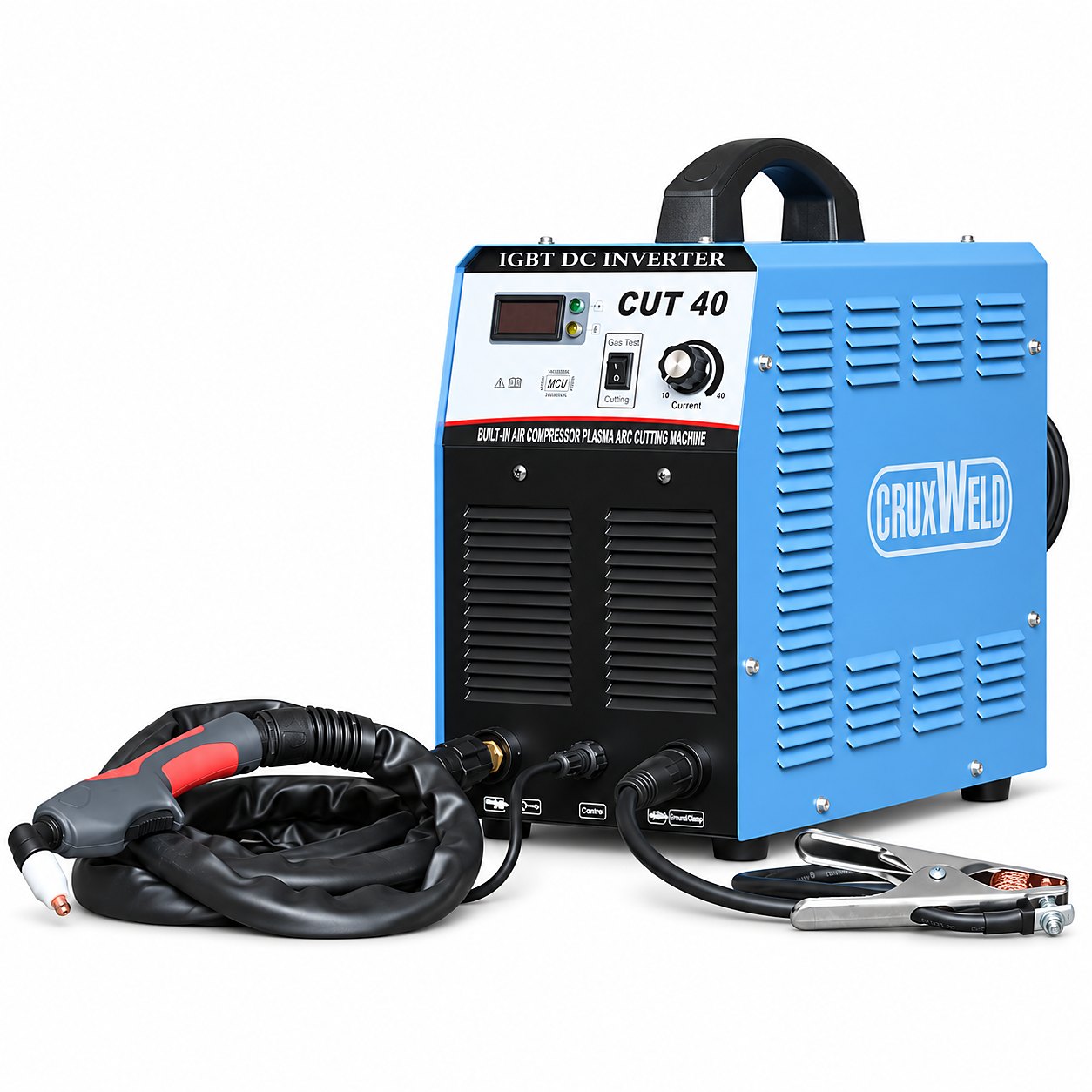

Front Panel, Torch, Earth Clamp

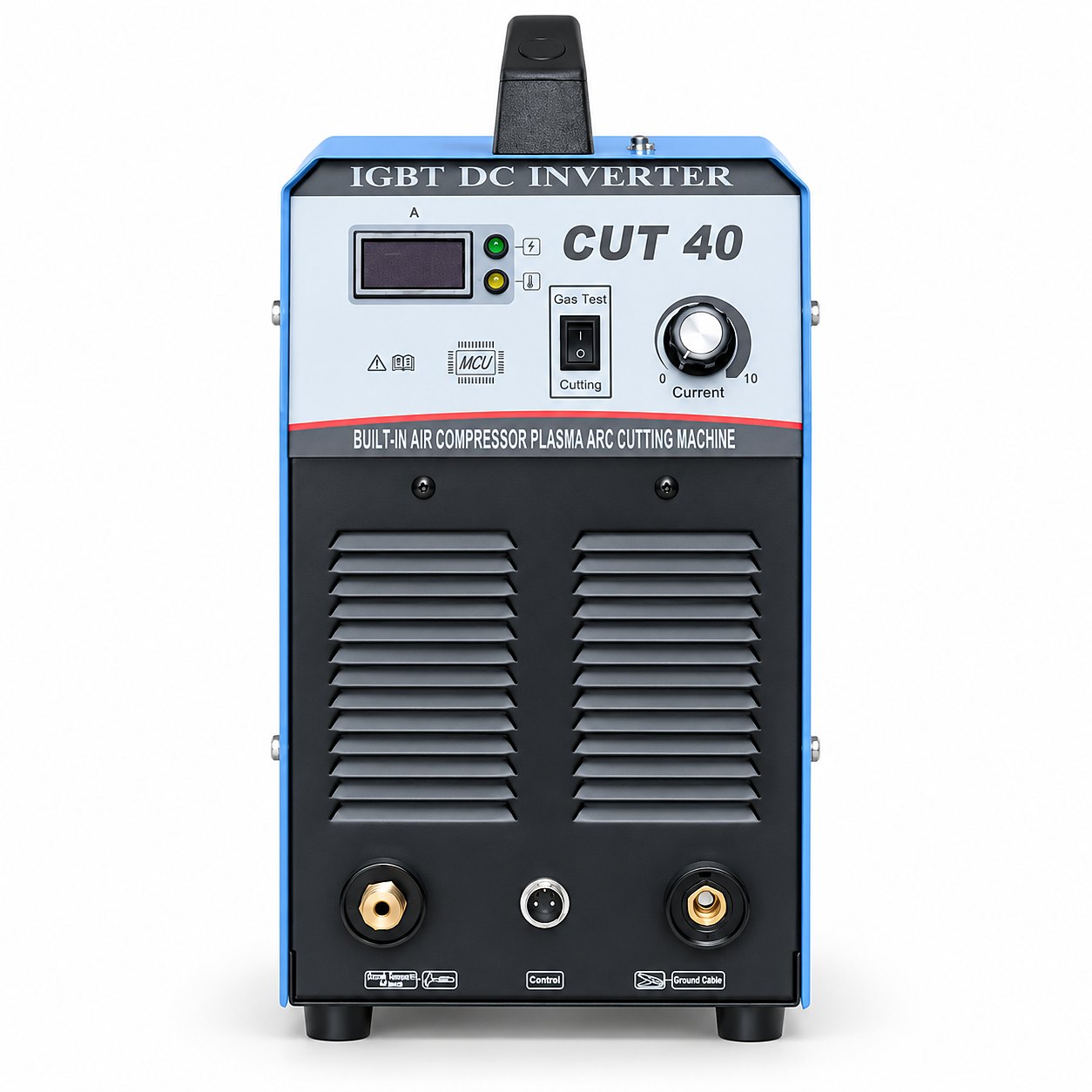

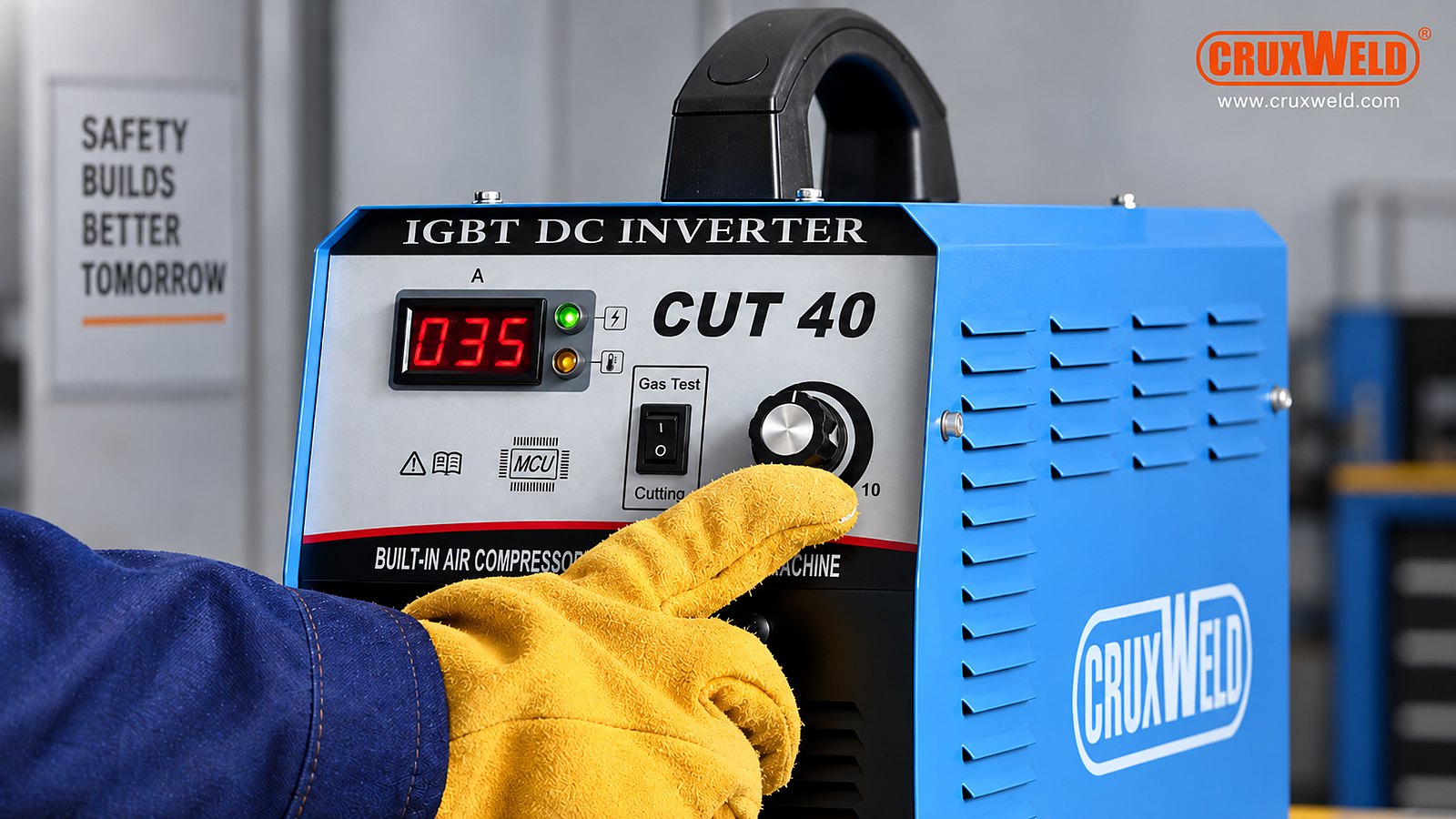

1Digital front panel
Three-digit ammeter, power and thermal LEDs, gas-test / cutting switch and a 10–40 A current knob. Nothing to configure.

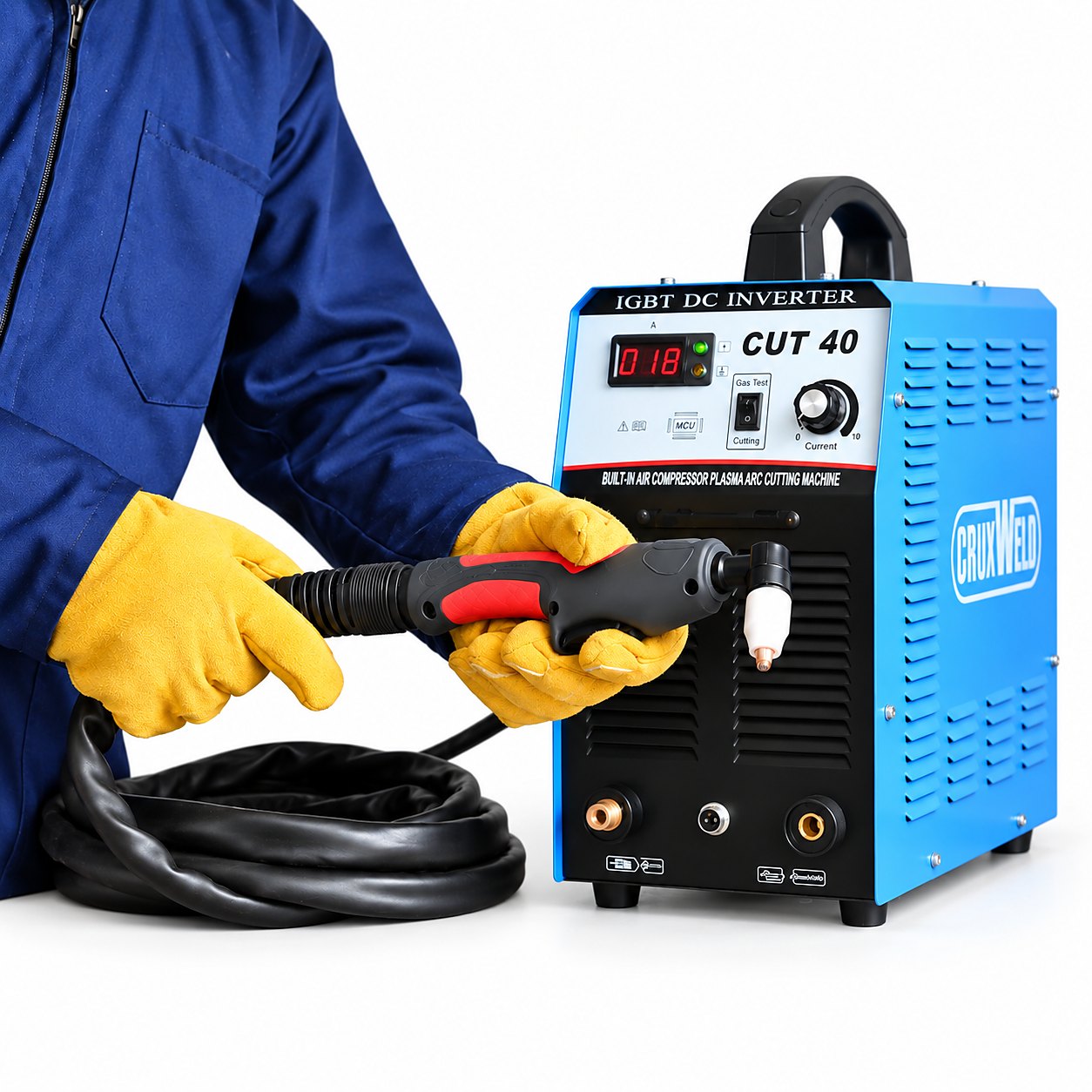

2Pilot-arc plasma torch
Hand torch with ceramic shield cup and copper tip, on a flexible leather-sleeved cable; quick connector and control plug on the front.
3Earth clamp and connections
16 mm² earth lead with spring clamp; torch, control and work connections side by side on the lower panel.

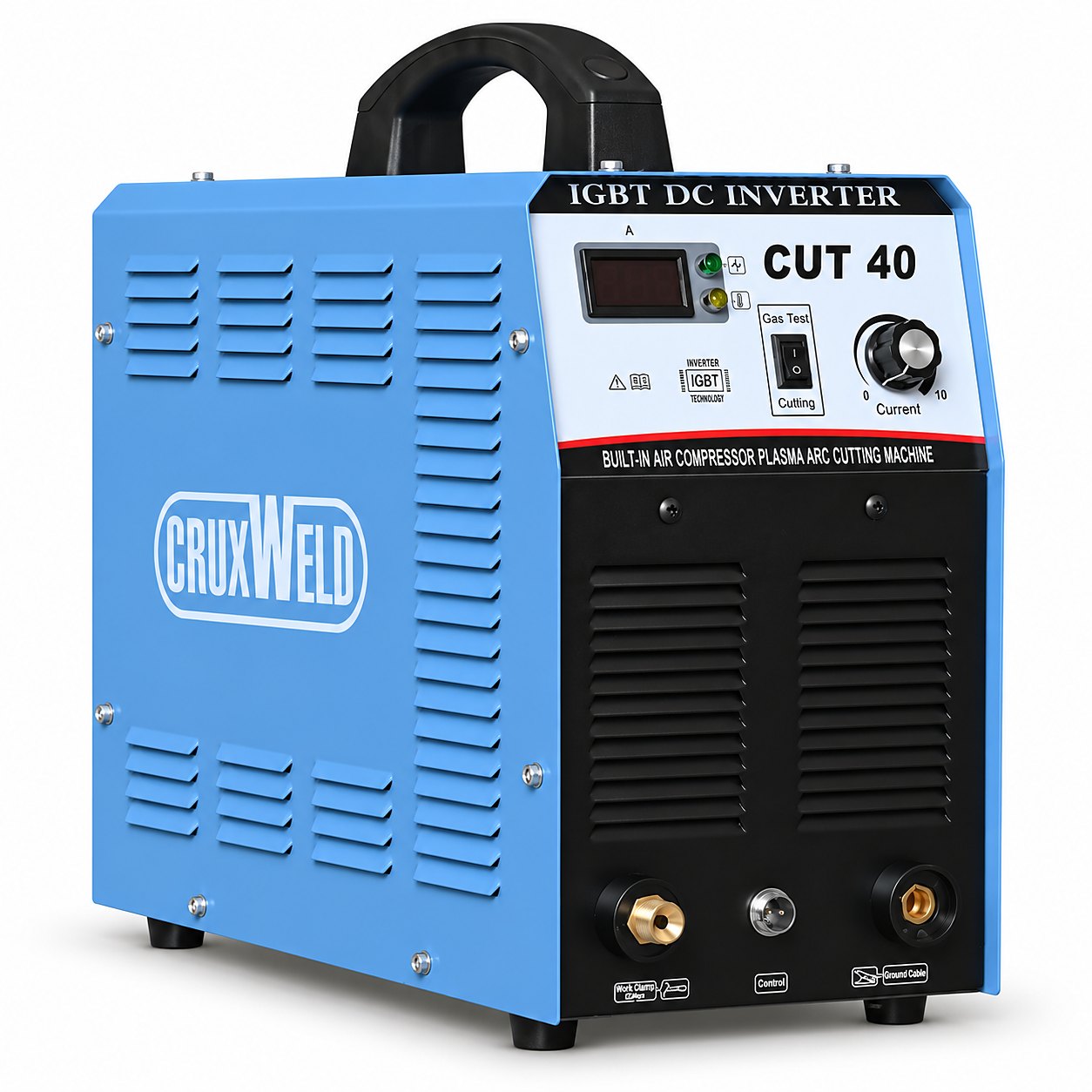

The plasma cutter with inbuilt air compressor has a louvred steel enclosure (IP21S) with forced-air cooling on both the inverter and the compressor; class H insulation; built-in over-current and over-temperature protection with LED warning.
How it works
From Socket to Cut in Four Steps
1Plug in and clip on
A 230 V, 16 A socket is all the plasma cutter with inbuilt air compressor needs. Clip the earth clamp to the plate; the inbuilt compressor charges in seconds.
2Set the current
Thin sheet 10–20 A, 6 mm around 30 A, 10–12 mm at 40 A. Flip the switch to gas test to check air flow.

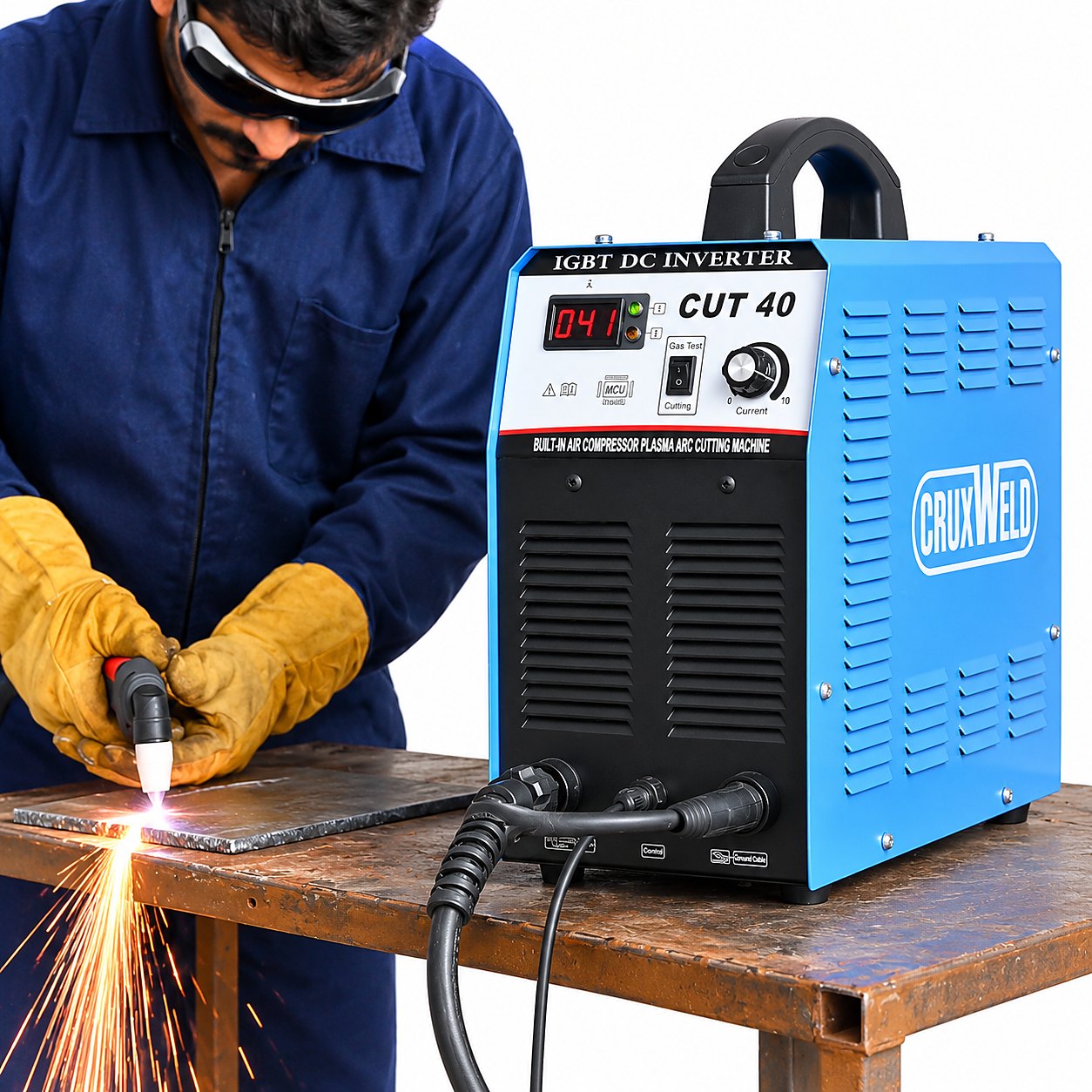

3Pilot arc and cut
Press the trigger: the pilot arc lights, transfers to the plate and the air jet blows the molten metal through.
4Straight or freehand
Follow a straight edge or cut shapes freehand; the narrow kerf leaves little dross to grind.
Clean-cut figures are for production-quality edges at normal hand speed with the standard torch; severance is the maximum the plasma cutter with inbuilt air compressor will part at slow speed. Rated maximum cutting thickness 12 mm.
Why fabricators choose it
What Changes When the Compressor Is Inside
One machine, one plug
No compressor, no 10 m hose, no regulator and filter to drag around. Set-up time drops to a minute.
Site, roof, vehicle
At 25 kg it travels in a car boot and runs from a site board or a 5 kVA generator.
Faster than oxy-fuel
No pre-heat, no gas bottles, no heat distortion on thin sheet; cuts stainless and aluminium that a gas torch cannot.
Pilot arc on anything
Starts on painted, rusty, galvanised or expanded metal without scratching for contact.
Low running cost
85% efficiency, 0.93 power factor; electrode and tip are the only consumables.
Safe by design
Over-current, over-temperature and over-voltage protection with LED indication; IP21S enclosure.
Key features
Built In, Point by Point
Inbuilt air compressor
Oil-free compressor delivering 4–5 bar, with automatic pre-flow and post-flow cooling of the torch.
IGBT inverter
High-frequency inverter for a stable arc and 85% efficiency; 5.5 kVA from a 16 A fuse.
Pilot-arc start
Non-contact HF-free arc starting for consistent cuts and long consumable life.
Stepless 10–40 A
Dial the current to the thickness; 96 V rated output, 280 V no-load.
Digital display
Three-digit ammeter with power and fault LEDs; gas-test switch on the panel.
Dual-voltage tolerance
230 V ±15% input; stable on generators and weak site supplies.
Compact and light
400 × 190 × 400 mm, 25 kg, moulded carry handle.
Protected
Thermal and overload protection, class H insulation, IP21S.
Applications
Where the FINELINE 40C Earns Its Keep

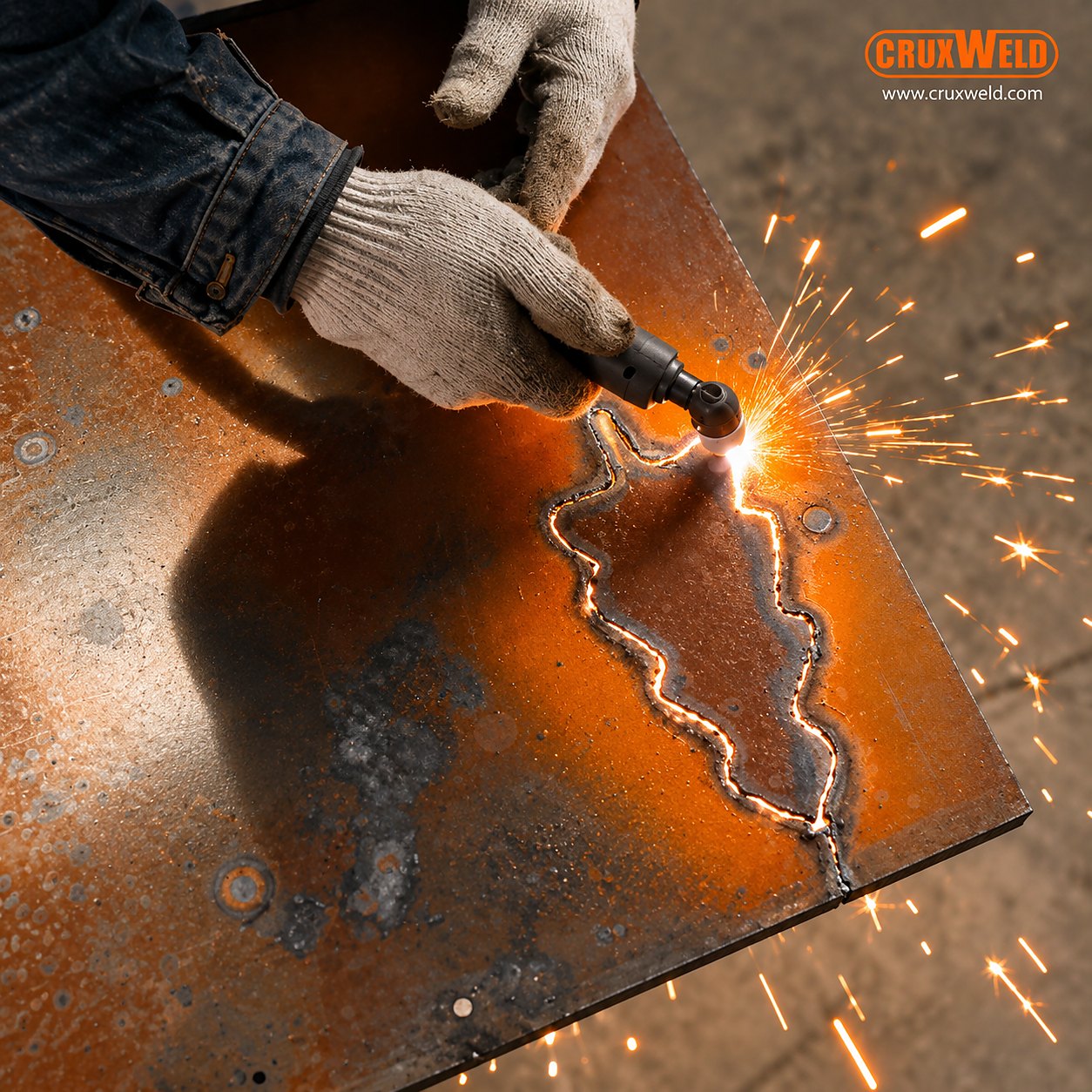

Clean cut on rusty plate with no pre-cleaning.
Site fabricationHVAC & ductingAutomotive body & exhaustSteel furnitureRoofing & claddingMaintenance & repairScrap & demolitionSignage & artTraining institutesFarm & workshop
Any job where the plate is away from the compressor: the FINELINE 40C goes to the work instead of the work coming to it. For thicker plate and shop production see the FINELINE 100IC (100 A, 30 mm) or the FINELINE 120.
Scope of supply
What Arrives with the FINELINE 40C
✓FINELINE 40C plasma cutter with inbuilt air compressor, 40 A
✓Pilot-arc hand torch with cable and consumable set fitted
✓Earth clamp with 16 mm² lead
✓Mains lead for 230 V single-phase supply
✓Operation manual and test certificate
Spare electrodes, tips and shield cups are available from stock; the exact scope is confirmed on the quotation. See the full range on our products page.
Machine, torch and earth clamp: ready to cut.
Why buy from CRUXWELD
Engineered in India, Supported Worldwide
45+ years of welding expertise
This plasma cutter with inbuilt air compressor is engineered, assembled and tested by CRUXWELD engineers in India; our technical team answers on WhatsApp.
ISO 9001:2015
Every plasma cutter with inbuilt air compressor is load tested and cut tested before dispatch.
GeM Registered OEM Manufacturer
Tender-ready documentation for government, PSU and institutional buyers.
Pan-India supply, export ready
Dispatched across India and exported; torches, electrodes and tips in stock.
FINELINE 40C Plasma Cutter with Inbuilt Air Compressor — Technical Data
Parameter
FINELINE 40C
Model
FINELINE 40C
Type
Plasma cutter with inbuilt air compressor, IGBT inverter
Input voltage
230 V ±15%
Phase
Single
Frequency
50 / 60 Hz
Rated input capacity
5.5 kVA
Rated input current
25.6 A
Main fuse
16 A
Cutting current range
10 – 40 A
Rated output voltage
96 V
No-load voltage
280 V
Max cutting thickness
12 mm
Arc starting
Pilot arc
Compressor
Inbuilt, 4 – 5 bar
Power factor
0.93
Efficiency
85%
Degree of protection
IP21S
Insulation
Class H
Cooling
Forced air
Torch type
Handheld
Dimensions (L × W × H)
400 × 190 × 400 mm
Weight
25 kg
Specifications are subject to improvement without notice; the quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.
Plasma Cutter with Inbuilt Air Compressor — Frequently Asked Questions
What is a plasma cutter with inbuilt air compressor?
A plasma cutter that carries its own compressor inside the case, so it needs only a power socket to work. The FINELINE 40C combines a 40 A IGBT inverter with a 4–5 bar compressor in one 25 kg unit — no external compressor, hose or air filter.
How thick can the FINELINE 40C cut?
The FINELINE 40C plasma cutter with inbuilt air compressor is rated for 12 mm in mild steel (clean cut up to about 10 mm). Stainless and aluminium cut cleanly to about 8 mm, copper and brass to about 5 mm.
What power supply does it need?
A 230 V single-phase socket on a 16 A fuse, 50 or 60 Hz. Rated input is 5.5 kVA and 25.6 A at full current, and the machine tolerates ±15% voltage variation, so it also runs from a 5 kVA or larger generator.
Does it really need no external air at all?
Correct. The inbuilt compressor supplies 4–5 bar with automatic pre-flow and post-flow. For continuous production cutting at the top of the range you may prefer the larger FINELINE 100IC, which can also take external air.
What is pilot-arc starting and why does it matter?
The torch strikes a small arc inside the nozzle before touching the plate, then transfers it to the work. Cuts start on painted, rusty or expanded metal without contact, and the electrode and tip last longer than with scratch starting.
Which materials can it cut?
A plasma cutter with inbuilt air compressor cuts any electrically conductive metal: mild steel, stainless steel, aluminium, copper, brass and galvanised sheet. Unlike oxy-fuel it does not depend on oxidation, so non-ferrous metals cut as easily as steel.
What is included with the machine?
The plasma cutter with inbuilt air compressor, pilot-arc hand torch with fitted consumables, earth clamp with 16 mm² lead, mains lead, operation manual and test certificate. Spare electrodes, tips and shield cups are quoted separately.
How do I get the FINELINE 40C price and delivery time?
Request a quote on this page or message +91 88008 82983 on WhatsApp with your material and thickness. You will receive a GST quotation with delivery time, usually the same working day.
