FINELINE 120 Air Plasma Cutting Machine

Name: FINELINE 120 Air Plasma Cutting Machine
Brand: Cruxweld

FINELINE 120

FINELINE 120 · air plasma cutting machine

120 A of plasma. 30 mm of plate. Hand torch today, CNC table tomorrow.

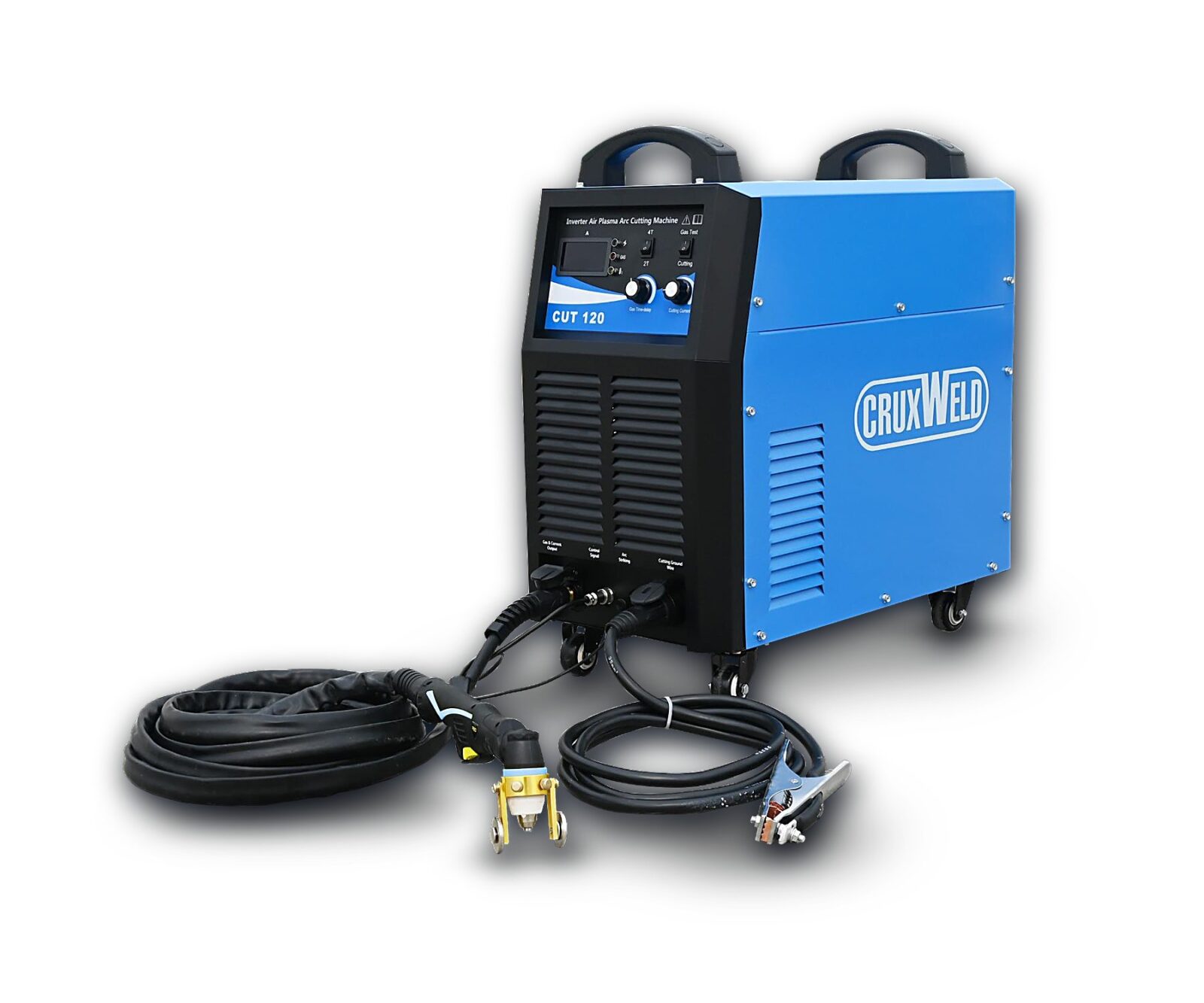

The FINELINE 120 is a 415 V three-phase inverter air plasma cutting machine that makes quality cuts from 0.3 to 30 mm, pierces 30 mm and severs up to 35 mm on compressed air. HF pilot-arc start, 2T/4T trigger, gas test, adjustable post-flow and a CNC interface on the rear panel.

120 ARated output
30 mmQuality cut
35 mmMaximum cut
415 V3-phase input

Get a Quote → WhatsApp +91 88008 82983

Price, delivery & technical help — get a fast response.

Overview
Specifications
Related Items
Question & Answers

Overview

Cut depth

How much plate does an air plasma cutting machine with 120 A cut?

Three numbers matter on every plasma datasheet. Pick one to see what it means on the plate.

0.3–30 mmQuality cut30 mmPierce35 mmMaximum cut

30mm

Quality cutting thickness: 0.3 to 30 mm

The range where the edge is square and clean enough to weld without grinding. On 1 mm sheet the 20 A low end stops burn-through; on 30 mm plate the full 120 A keeps the kerf narrow and the dross light.

30mm

Perforating thickness: 30 mm

Piercing starts a cut in the middle of the plate instead of from an edge. The FINELINE 120 pierces 30 mm, which is what a CNC table needs for inside holes and nested parts.

35mm

Maximum cutting thickness: 35 mm

The severance limit. The plate parts, with more dross and a rougher edge. Use it for scrap, demolition and one-off cuts, not for production parts.

See it cut

FINELINE 120 air plasma cutting machine in action

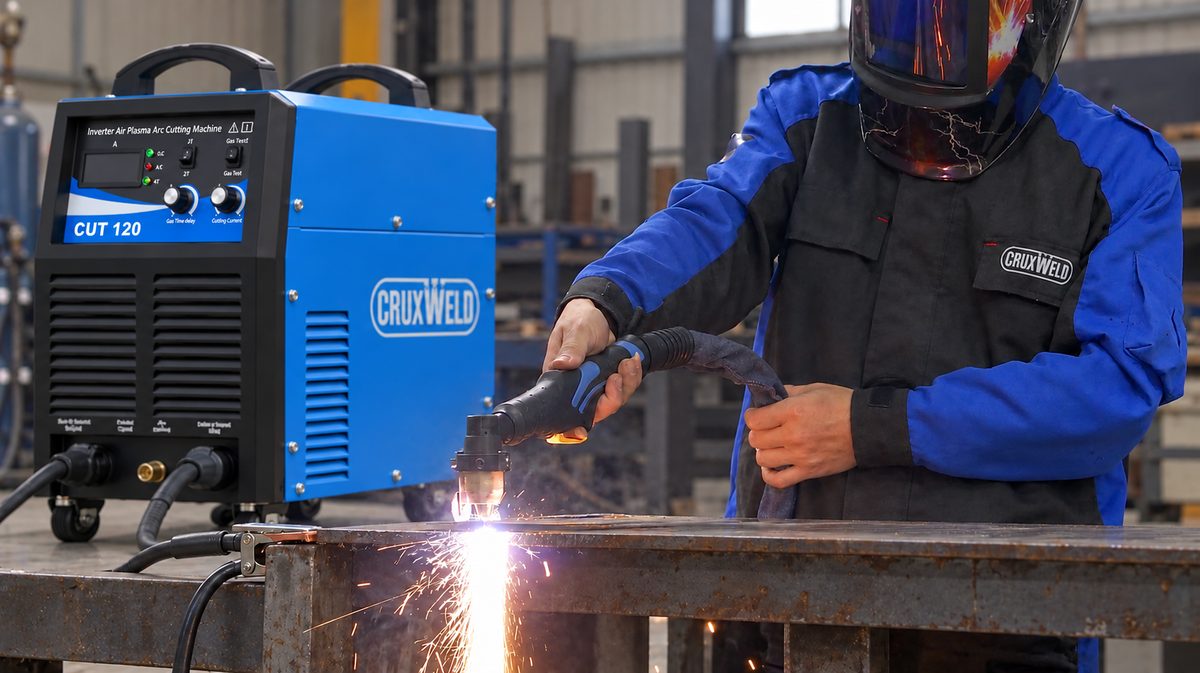

Operator cutting steel plate with the FINELINE 120 in a fabrication workshop

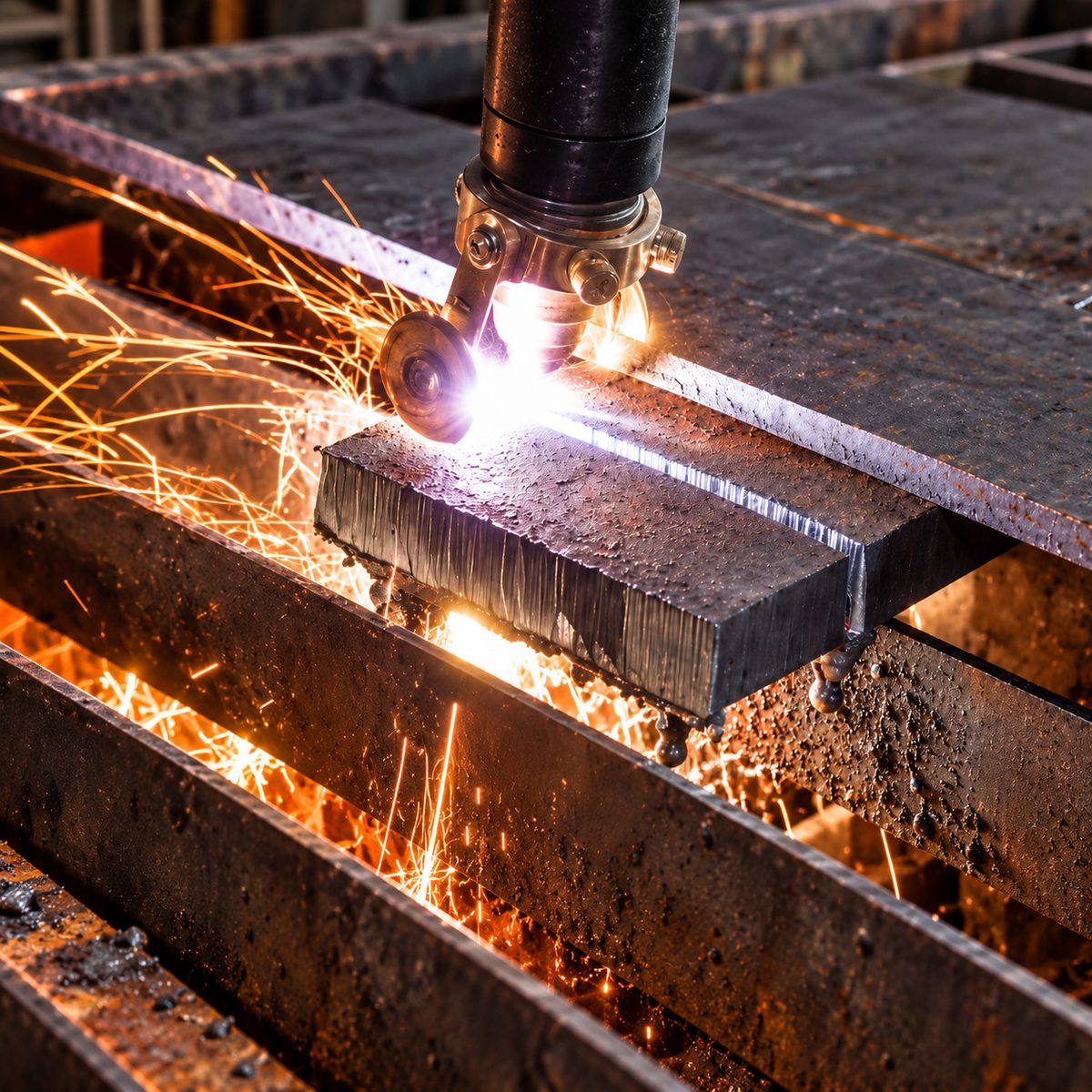

FINELINE 120 machine torch cutting thick steel bar on a CNC table

1234567

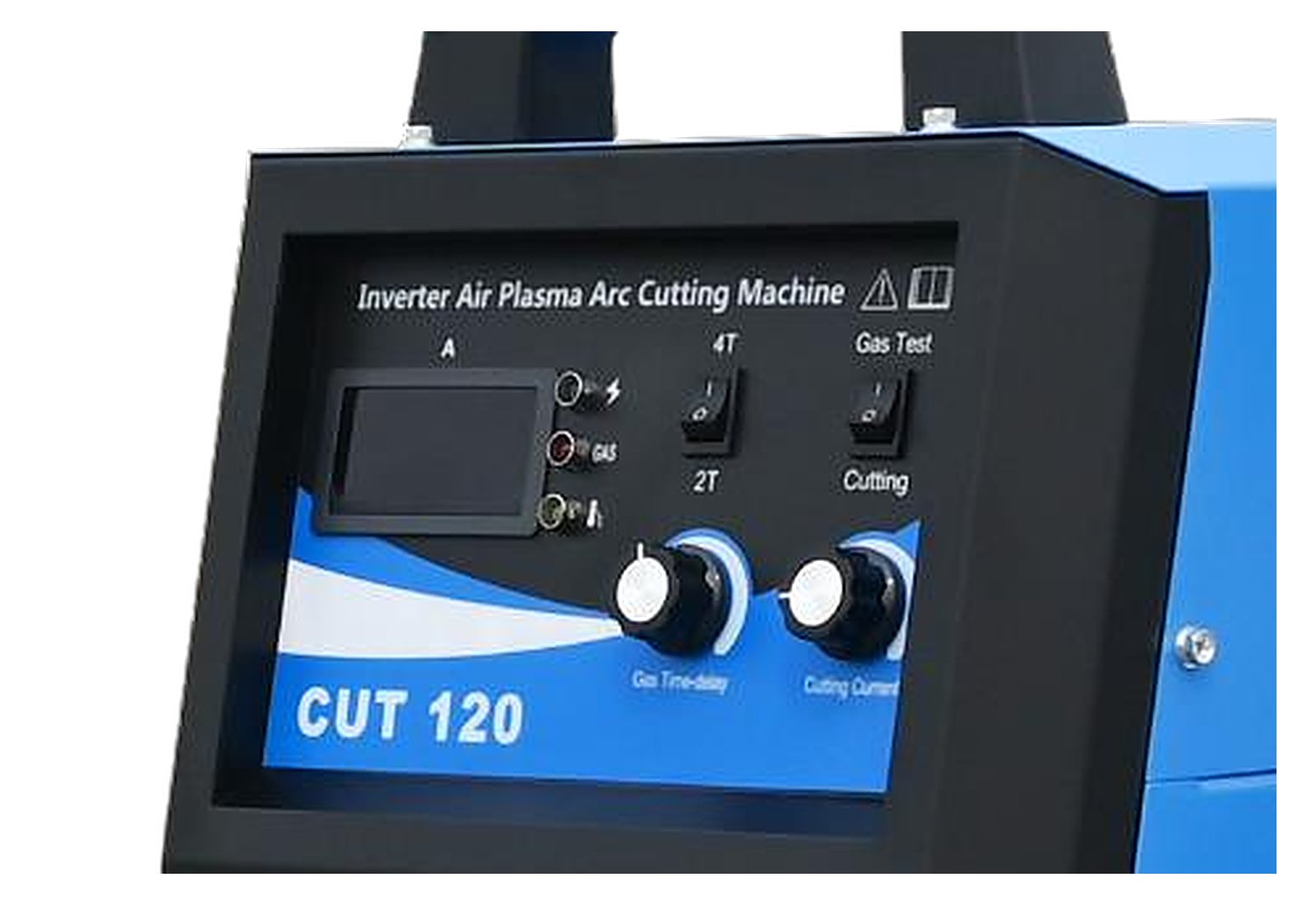

Front panel

Every control a plasma operator needs, nothing to menu through

1
Digital ammeterSet the cutting current from 20 to 120 A and read it before you strike the arc.
2
2T / 4T switchHold-to-cut for short cuts, latch mode for long straight runs without trigger fatigue.
3
Gas testAir flows through the torch without an arc so you can set 4.5–5.5 bar on the regulator.
4
Gas delay (post-flow)Adjustable post-flow keeps air flowing after the arc stops to cool the nozzle and electrode.
5
Cutting current knobFine control across the whole 20–120 A range.
6
Torch and gas connectionsCentral torch connector with air and control signal on the front.
7
Earth returnDinse socket for the work clamp cable.

12345678

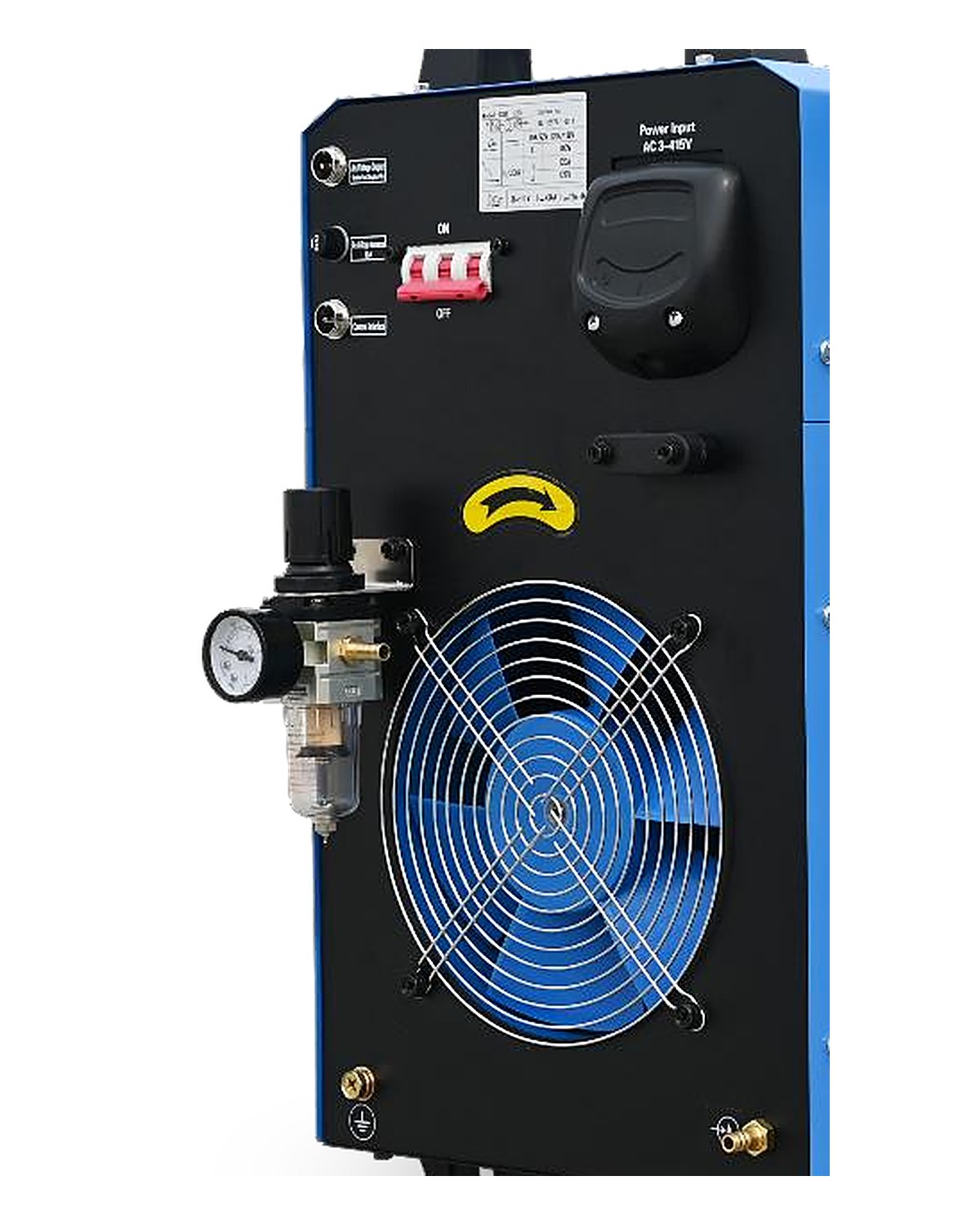

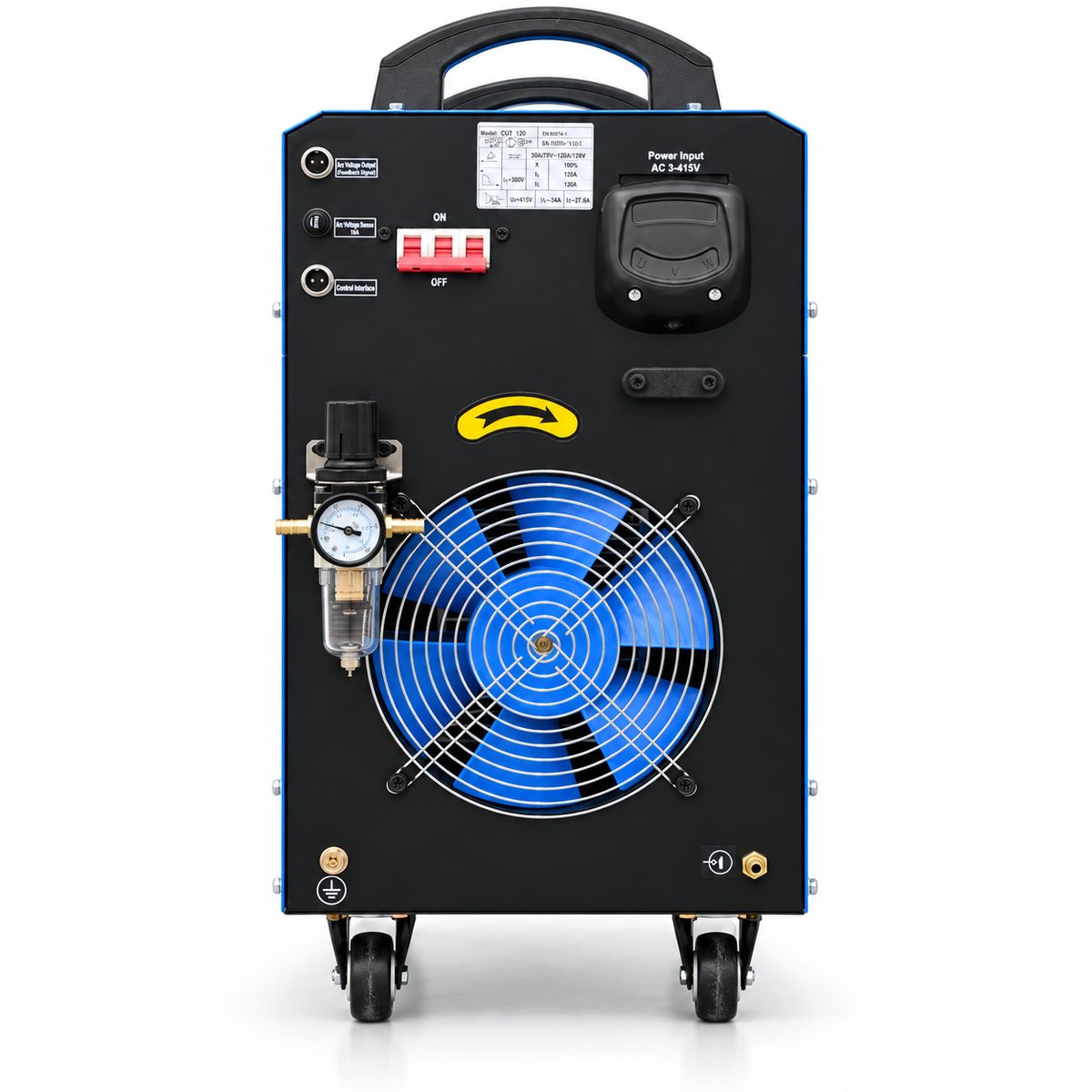

Rear panel

CNC ready from the back: arc voltage, control interface, air regulator

1
Arc voltage outputFeedback signal for torch height control on a CNC table.
2
Arc voltage senseDedicated sensing socket for the controller.
3
Control interfaceStart/stop and arc-OK signals for the CNC or a portable cutting carriage.
4
Mains breakerOn/off three-phase breaker on the machine, no separate switchboard needed.
5
Power input, 415 V 3-phaseRated 15 kW, 25.6 A, fused 3 x 20 A.
6
Air filter regulator with gaugeWater separator and regulator built on; set 4.5–5.5 bar and watch it on the dial.
7
Cooling fanIP23 cabinet with forced cooling for all-day shop work.
8
Castor wheelsFour castors plus two carry handles; 54 kg moves on one person.

Air and arc

What happens between the compressor and the cut

The FINELINE 120 runs on dry shop air, 15 l/min at 4.5–5.5 bar. The filter regulator on the rear panel takes out water and sets the pressure; the gas test button lets you set it without striking an arc.

2T or 4T: the trigger works your way

HF pilot arc, not scratch start

High-frequency ignition lights a pilot arc inside the nozzle before the torch reaches the plate. The main arc transfers to the work the moment it is close enough, so cuts start on paint, rust and mill scale, and the electrode is never dragged on the plate. On a CNC table the same pilot arc gives repeatable starts for every pierce.

The numbers behind the arc

Open-circuit voltage 275 V, no-load voltage 350 V, rated input 15 kW at 25.6 A, power factor 0.93, efficiency 85%. IP23 cabinet, class H insulation, noise below 72 dB. CE and ISO certified.

Full specification table below.

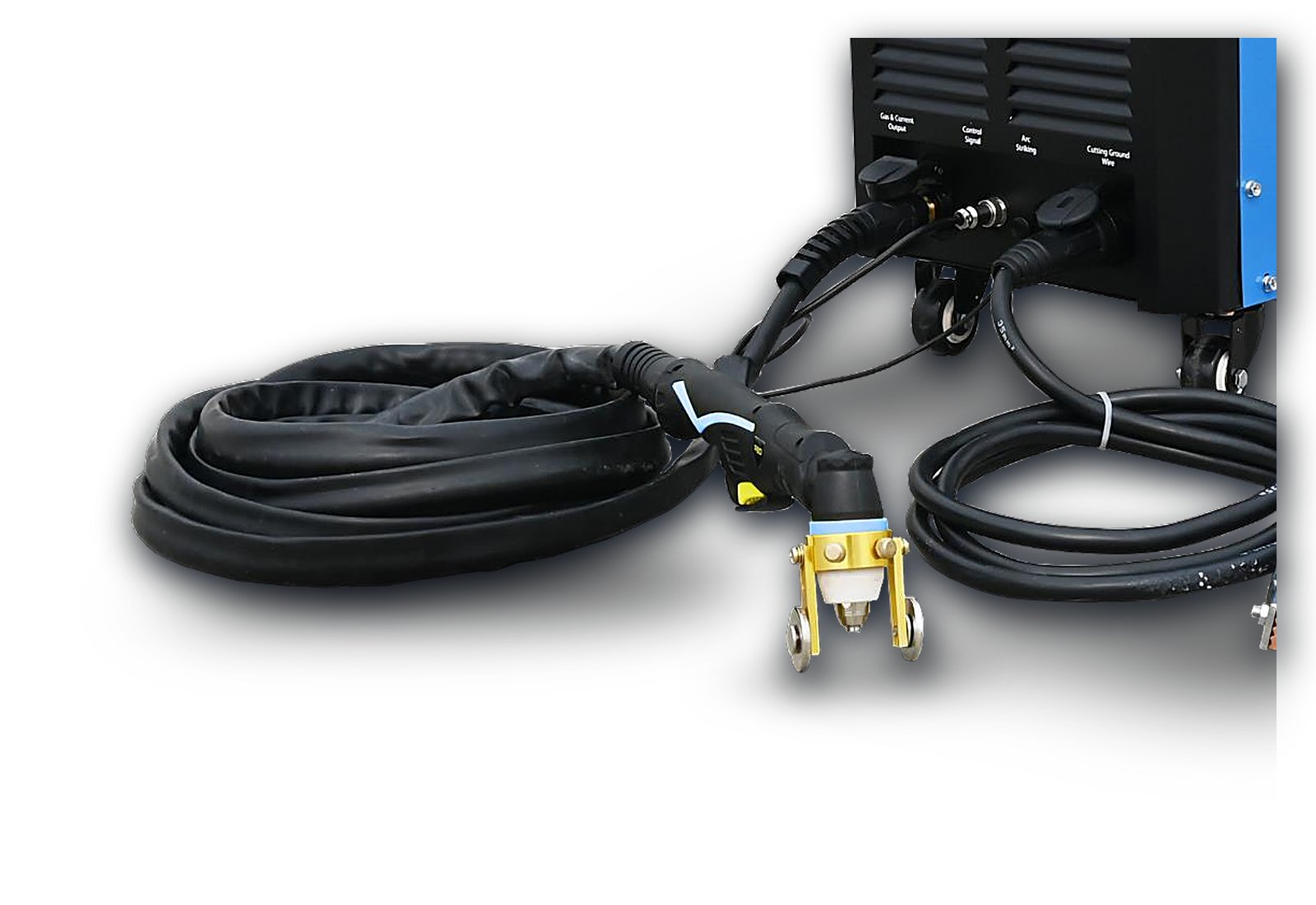

Hand torch

The torch that comes with the air plasma cutting machine

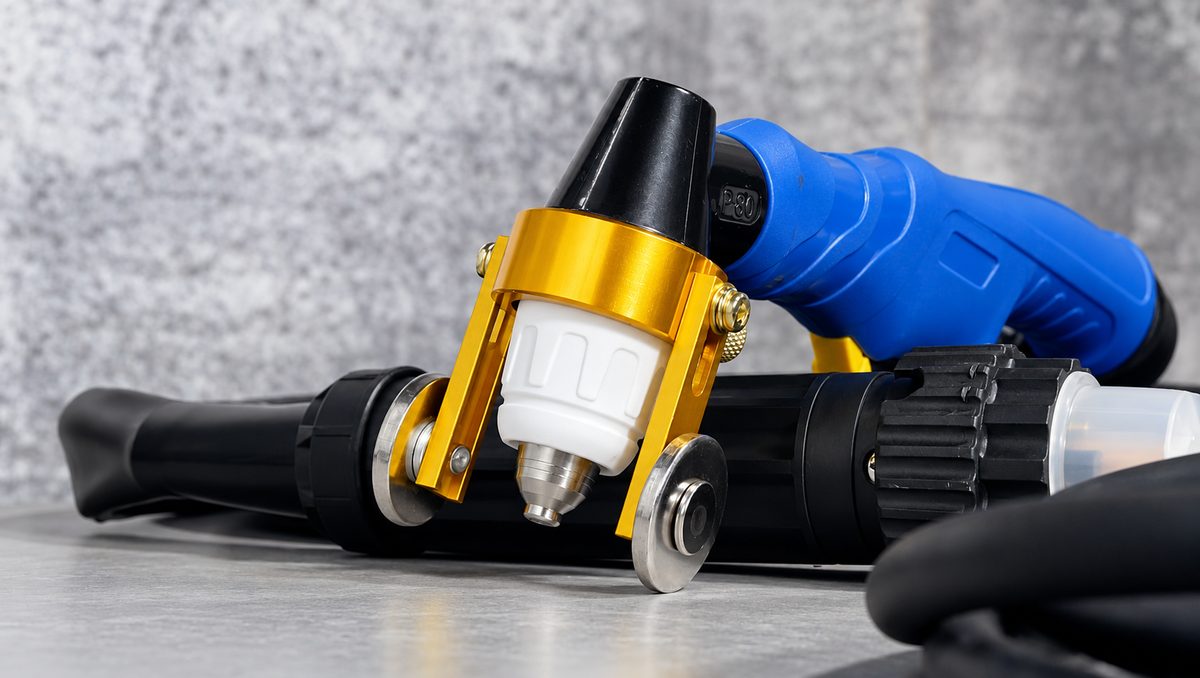

FINELINE 120 plasma torch with roller guide, cable and connectors — Torch with roller guide and cable

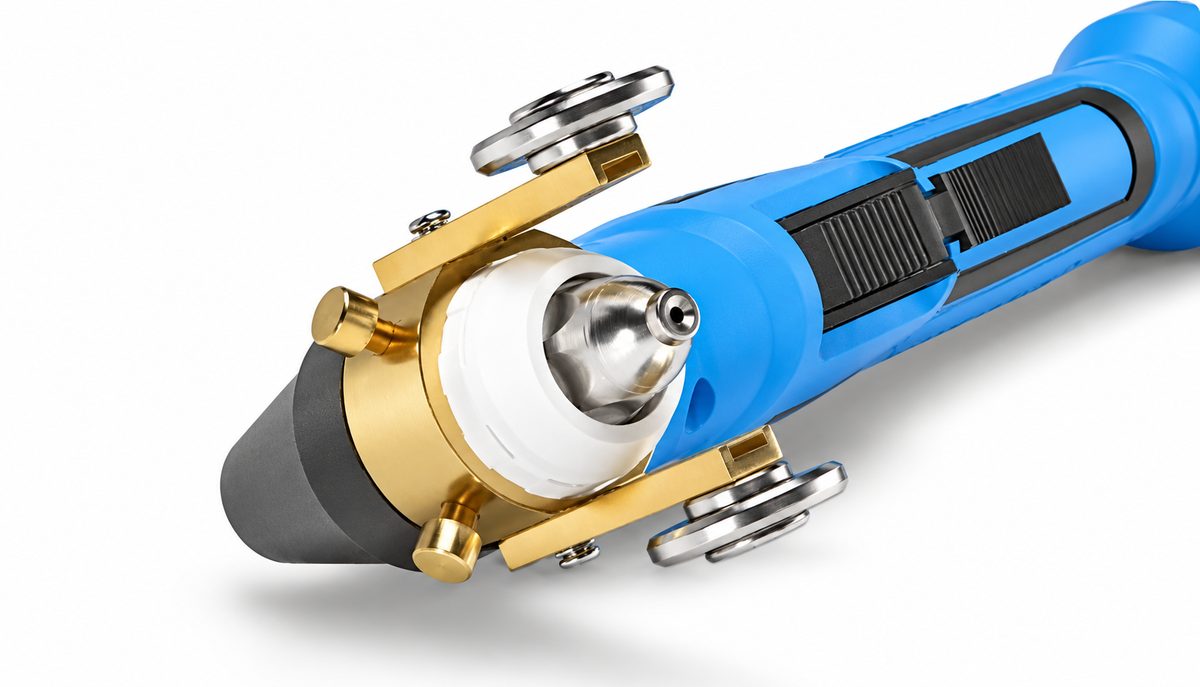

Close-up of the plasma torch head with brass roller guide — Brass roller guide

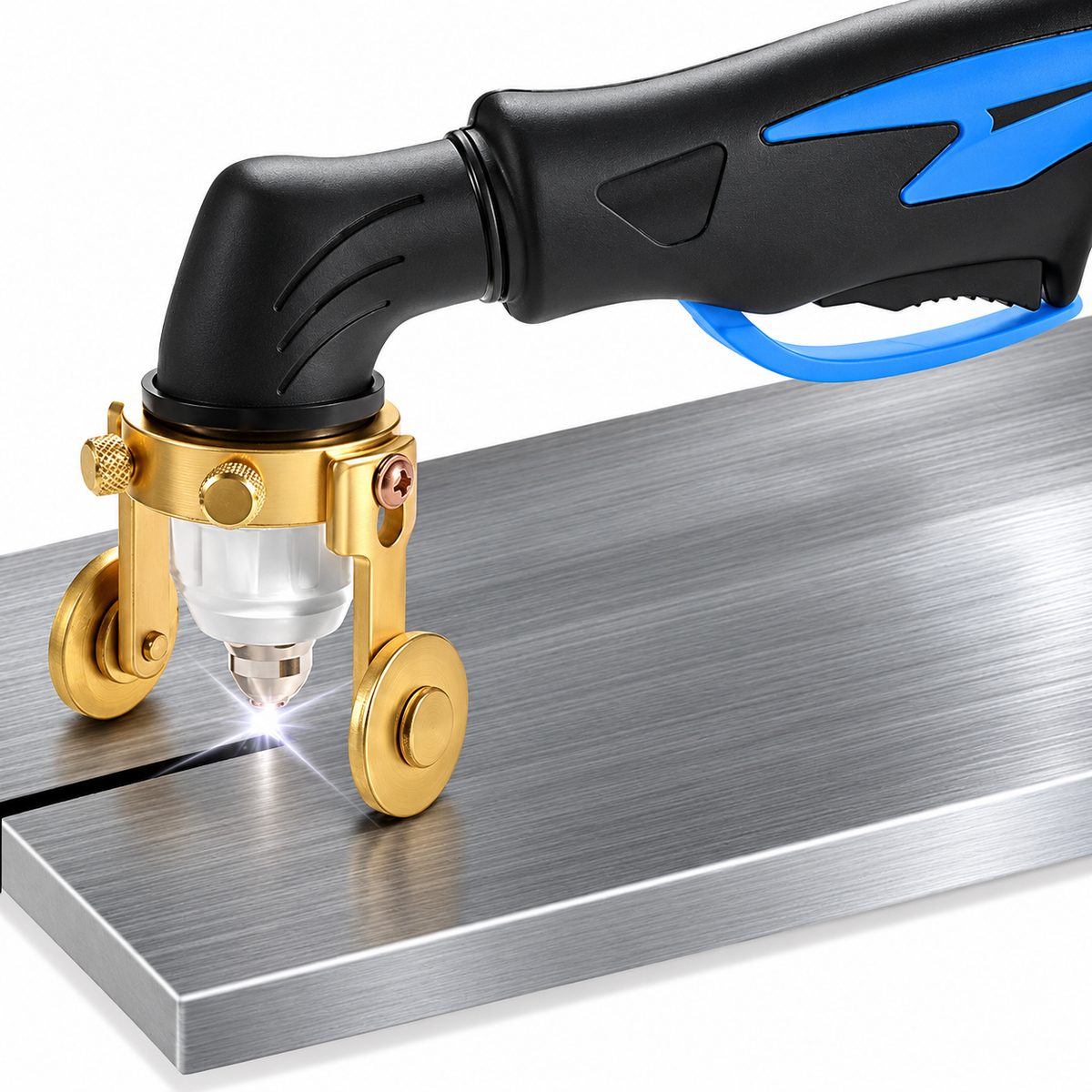

Roller guide torch cutting a straight line on steel plate — Constant stand-off on plate

Roller guide fittedTwo wheels keep the nozzle at a constant height, so the kerf stays even on long straight cuts.
HF pilot arcStarts on painted, rusty or scaled plate without touching the tip to the work.
Standard consumablesElectrodes, nozzles and shields are stocked on our spares page.

Materials

Mild steel, stainless, aluminium: one air plasma cutting machine cuts them all

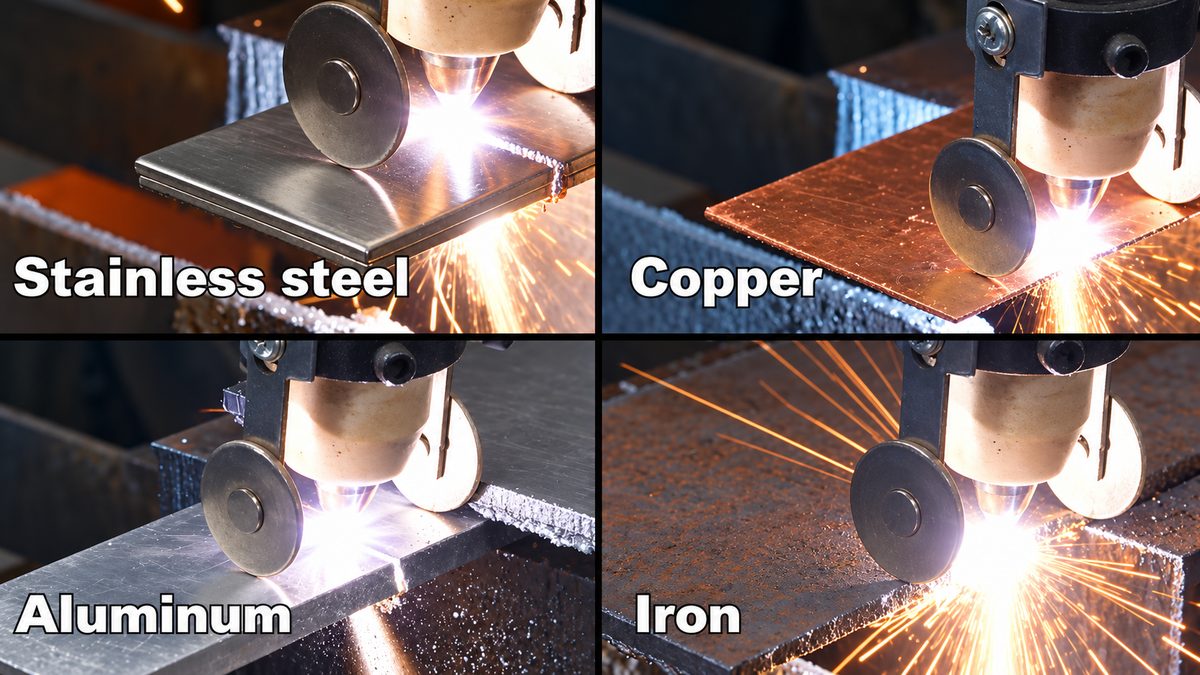

Plasma cutting stainless steel, copper, aluminium and iron with the FINELINE 120

Mild steel0.3–30 mm quality cut, 35 mm maximum
Stainless steelCuts without oxygen, so no oxide burn on the edge
AluminiumPlasma cuts it where oxy-fuel cannot
Copper and other conductive metalsAny metal that conducts electricity can be plasma cut

Thickness figures are for mild steel. Stainless and aluminium cut slightly thinner at the same edge quality. Send us your material and thickness on WhatsApp and we will confirm the setting.

In the workshop

Where the FINELINE 120 earns its keep

Swipe or scroll sideways.

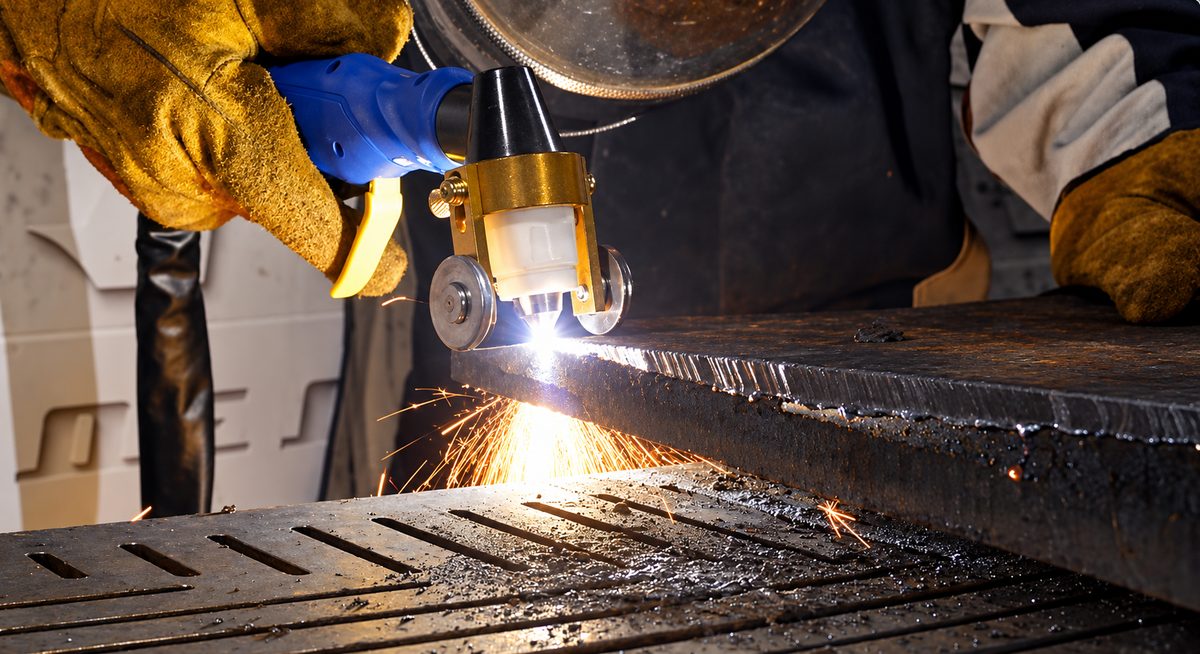

Cutting thick steel plate — Thick plate, hand torch

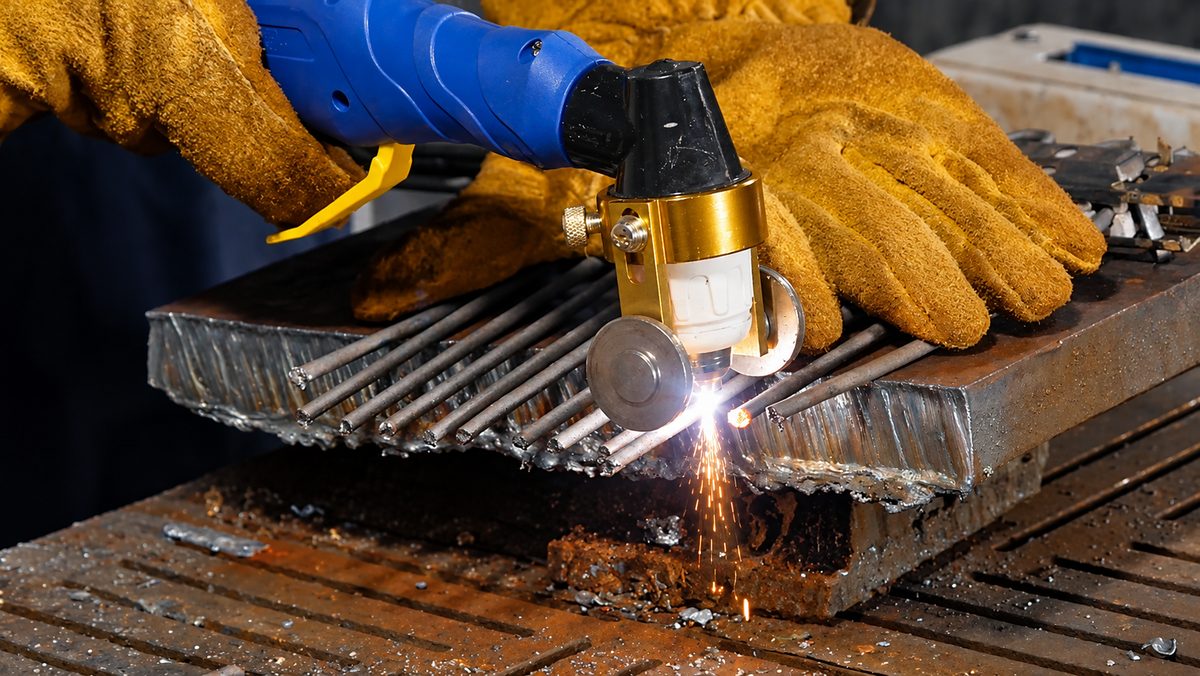

Cutting a bundle of steel rebar — Rebar and bar stock

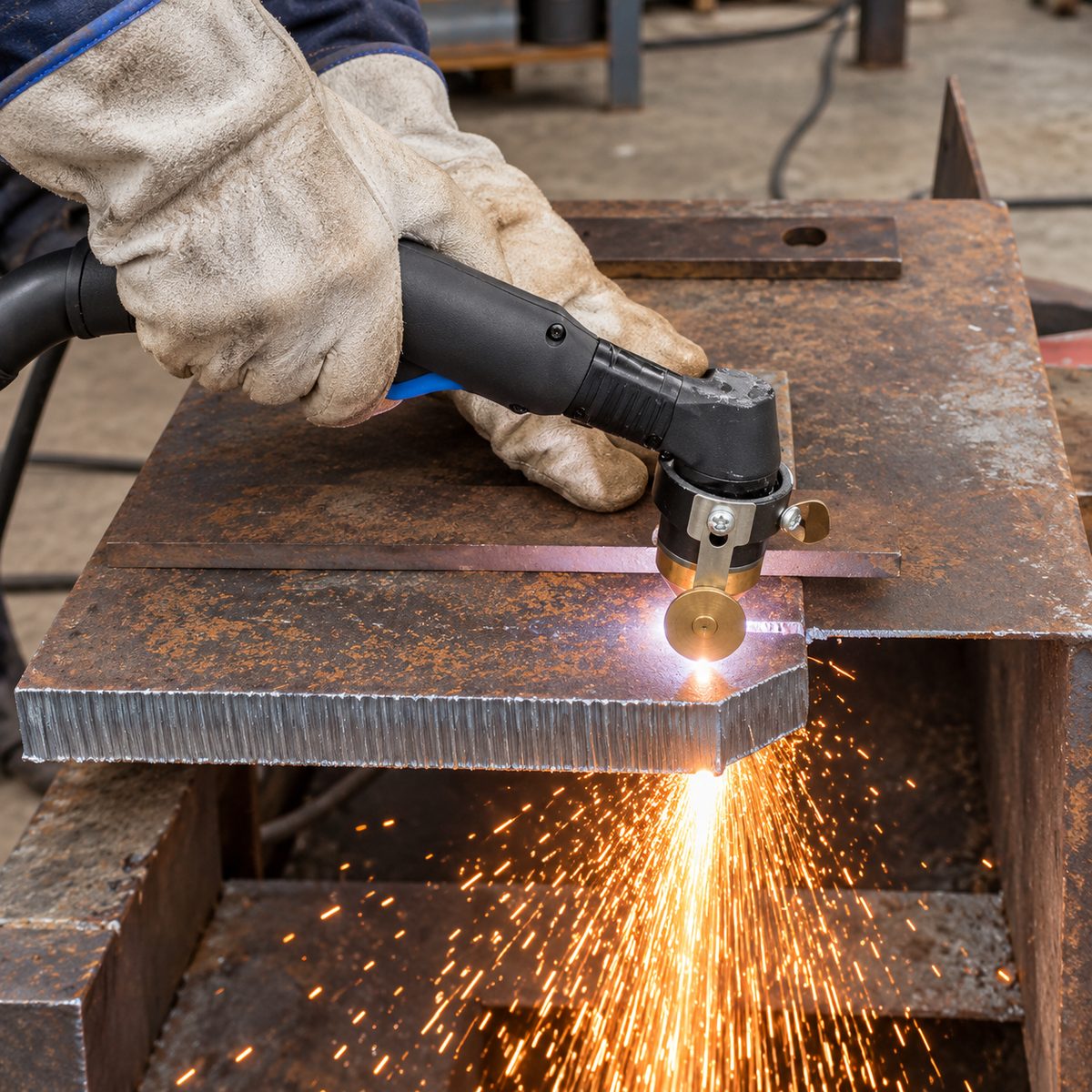

Cutting a rusty steel plate on a bench — Rusty plate, pilot-arc start

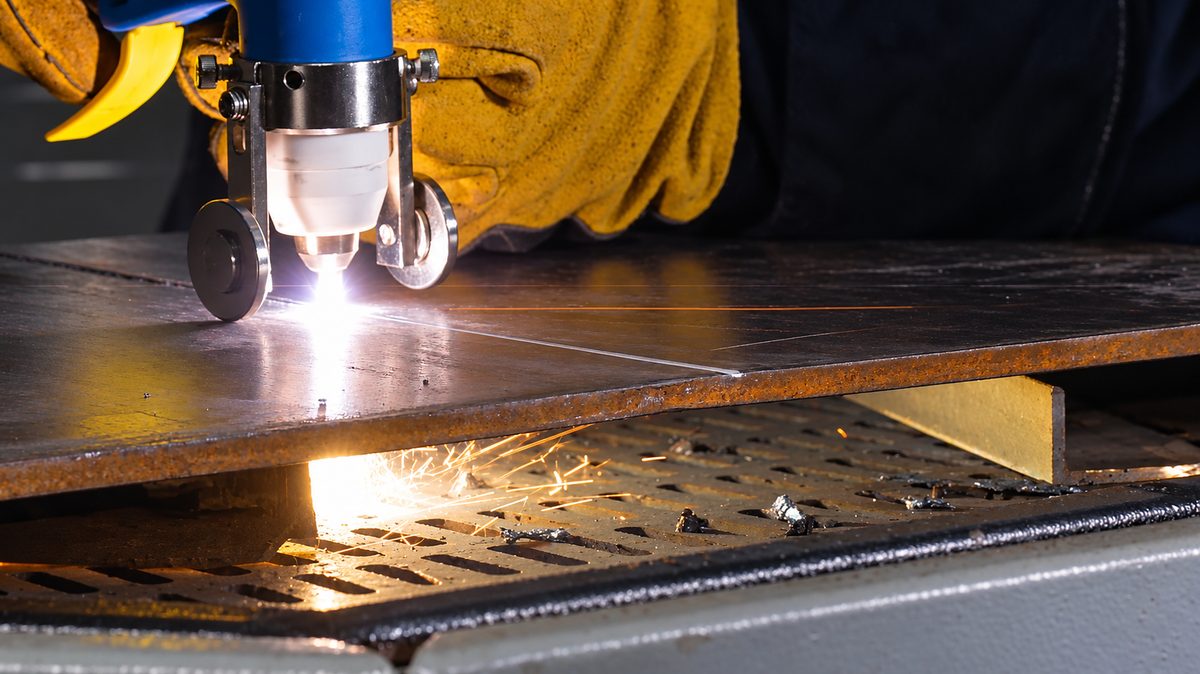

Straight cut across a steel sheet with the roller guide — Straight cuts with roller guide

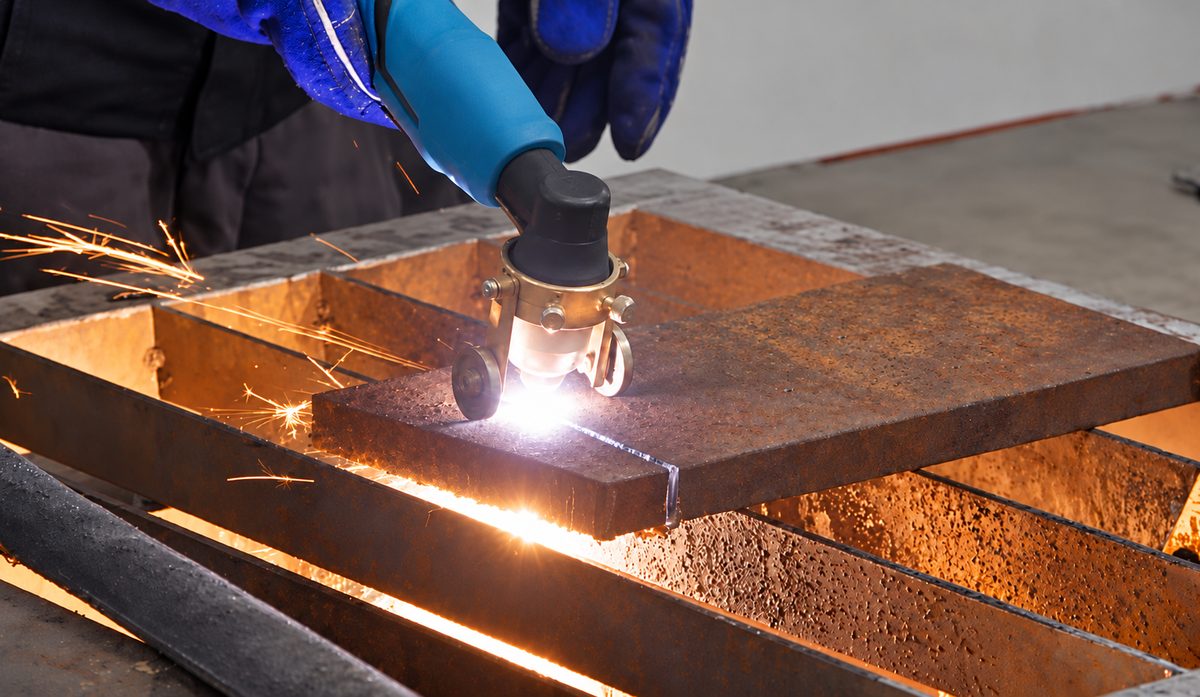

Cutting a plate on a slat rack — Plate on a slat rack

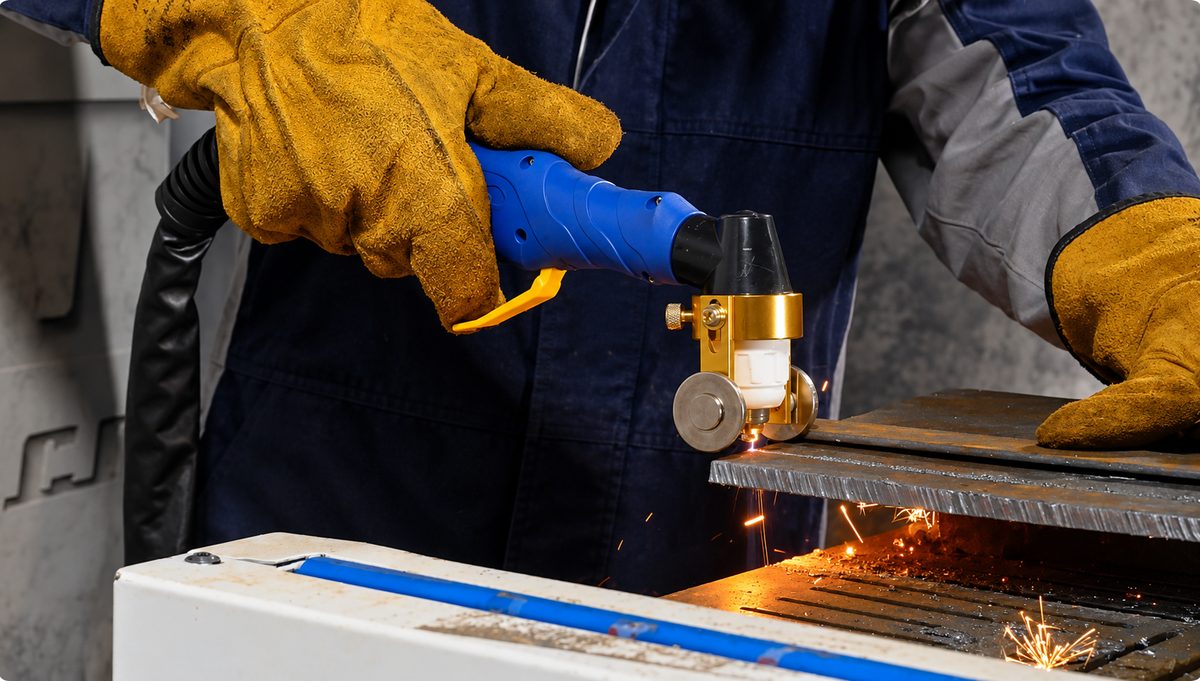

Trimming plate on a workbench — Trimming on the bench

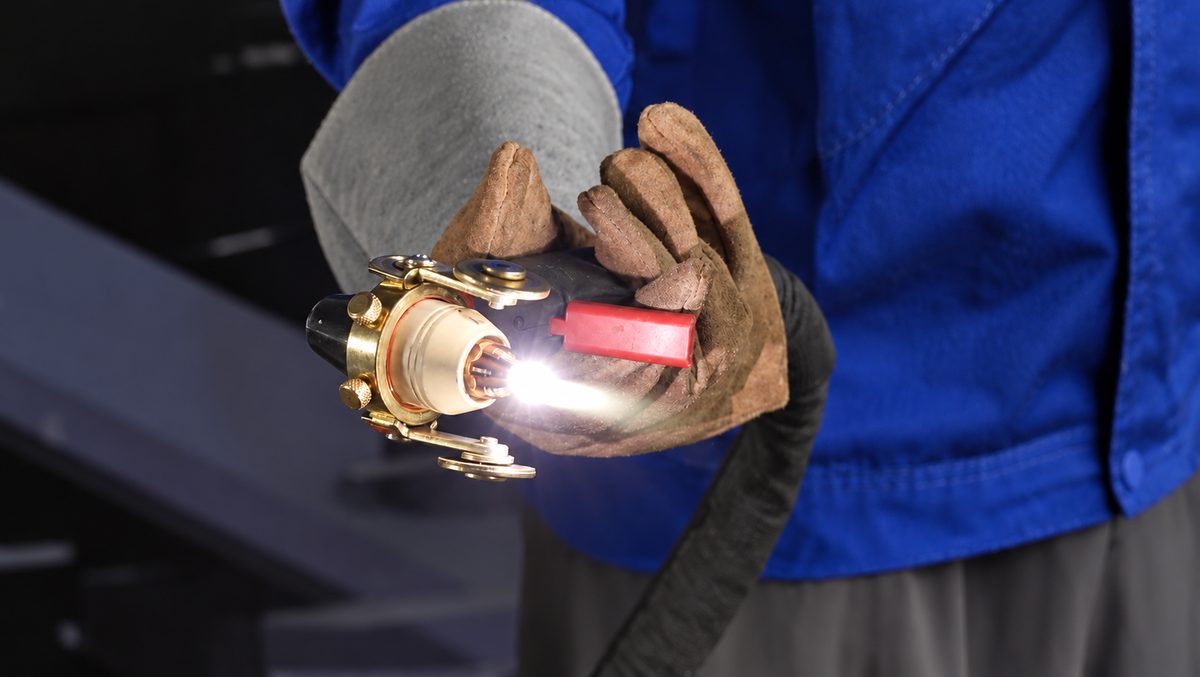

Pilot arc visible at the torch tip — Pilot arc at the tip

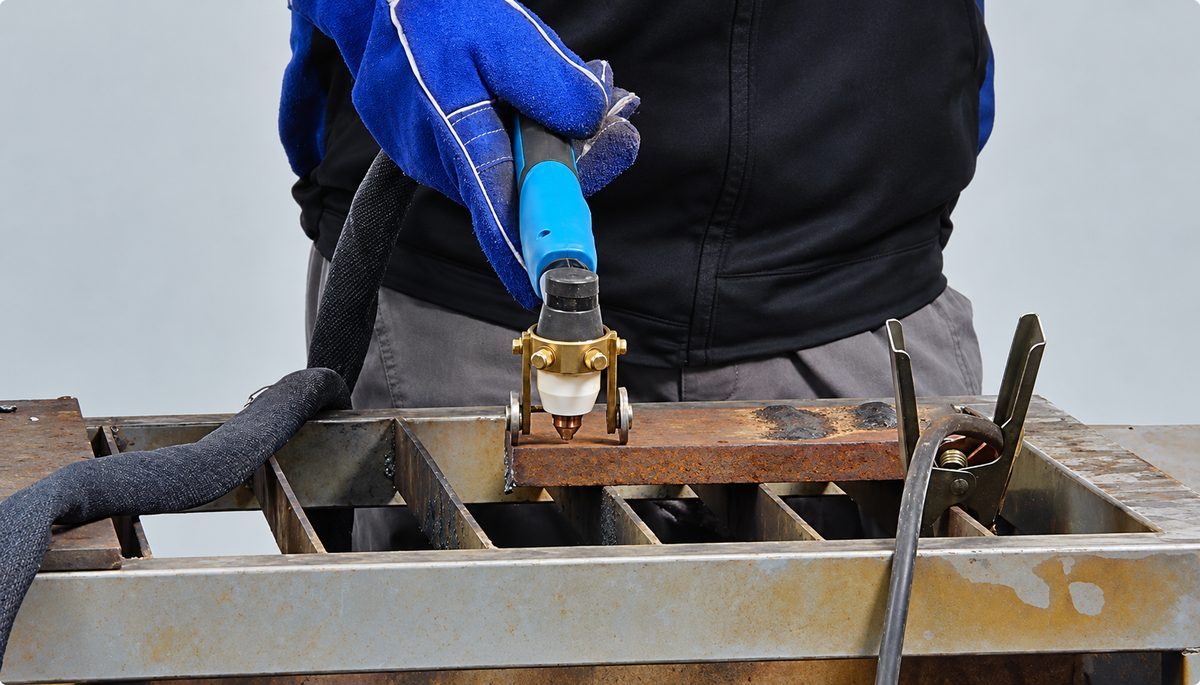

Hand torch on rusty plate — Repair and maintenance cuts

Applications

Who buys a 120 A air plasma cutting machine

Fabrication shopsPlate, angle, channel and pipe up to 30 mm with a hand torch, no oxy-fuel bottles.
CNC cutting servicesArc voltage and control interface on the rear; pierces 30 mm for nested parts.
Structural steelGusset plates, base plates and beam ends cut on site from a three-phase supply.
Stainless and aluminium workAir plasma cuts both; oxy-fuel cuts neither.
Shipyards and heavy repairRusty, painted and scaled plate starts with the HF pilot arc.
Scrap and dismantling35 mm severance for cutting up old structures and machinery.

Plasma range

Which Cruxweld plasma cutter is right for you?

See the full range of air plasma cutting equipment, or put the FINELINE 120 on a portable CNC plasma cutter or a gantry CNC table.

FINELINE 40CUp to 12 mm

230 V single phase
Built-in compressor
Site and maintenance

FINELINE 80ICUp to 20 mm

220 V single / 380 V 3-phase
Built-in twin compressor
Workshop and site

FINELINE 100ICUp to 25 mm

380 V 3-phase
Built-in compressor
Cut + MMA

This pageFINELINE 120Up to 30 mm

415 V 3-phase, 15 kW
External air, CNC interface
Hand torch and CNC table

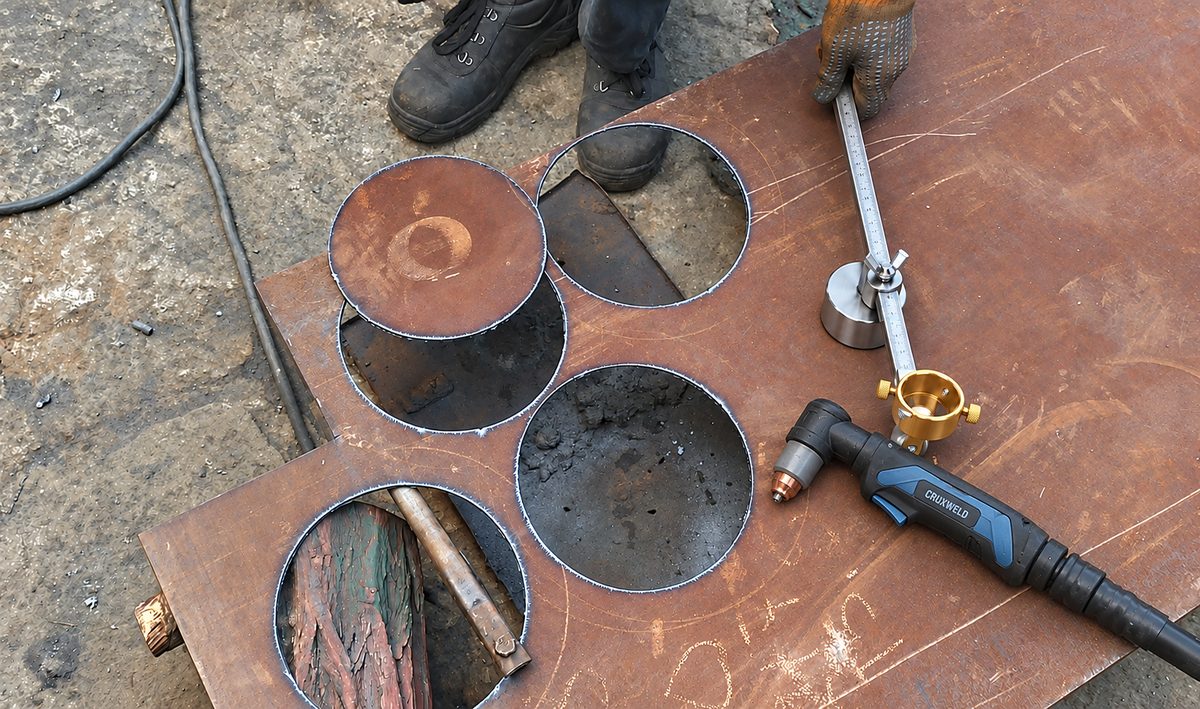

Round holes and discs cut in steel plate with the ROTO circle cutting guide and a FINELINE 120 plasma torch

Recommended add-on

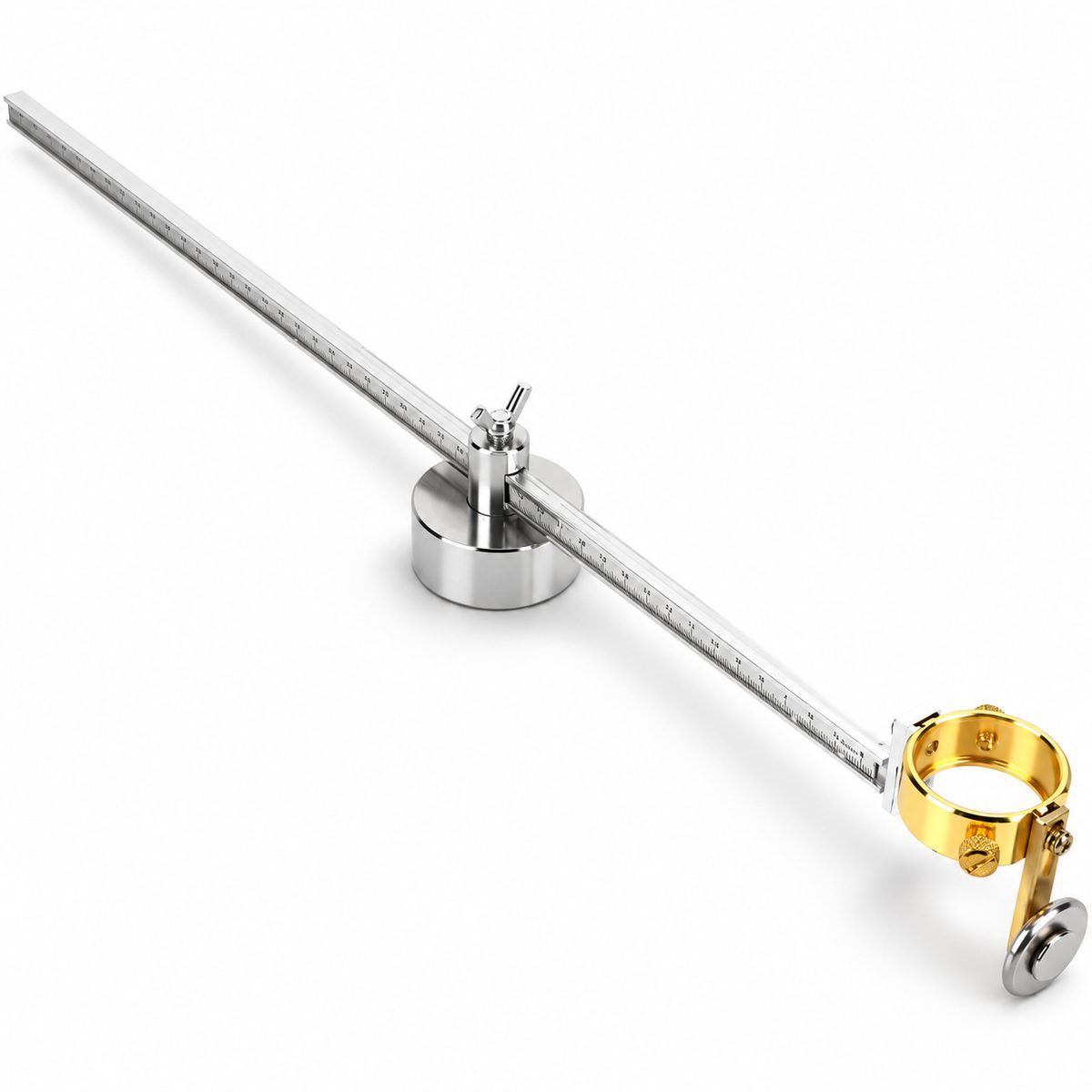

Cutting circles with your FINELINE 120? Add the ROTO.

The ROTO 1000M circle cutting guide holds your plasma torch at a fixed radius from a magnetic centre, so holes, discs and flange blanks come out round instead of wobbly.

100–1,000 mm circles
Six permanent magnets hold the centre
36.5 mm holder plus two adapter rings
Fits selected plasma and gas torches

See the ROTO 1000M →💬 Add ROTO to my quote

Why Cruxweld

Why buy your air plasma cutting machine from Cruxweld

GeM Registered OEM ManufacturerBuy direct from the manufacturer, with GST invoice and test certificate.
Supported WorldwideSetup, cut-chart and troubleshooting help from our technical team on WhatsApp and video call.
Consumables in stockElectrodes, nozzles, shields and torches shipped from stock, so the machine keeps cutting.

Get the FINELINE 120 price

WhatsApp the material, thickness and whether it goes on a hand torch or a CNC table. Our team replies with the right setup and a quotation.

💬 WhatsApp for price 📞 +91 88008 82983

Specifications

FINELINE 120 Technical Specifications

PARAMETER	FINELINE 120
Model	FINELINE 120
Input voltage	AC 415 V ±15%
Phase	3 phase
Frequency	50/60 Hz
Rated input power	15 kW
Rated input current	25.6 A
Rated output current	120 A
Cutting current range	20 – 120 A
Open circuit voltage	275 V
No load voltage	350 V
Ignition type	High frequency (HF)
Arc starting	Pilot arc
Post flow time	10 s (adjustable)
Power factor	0.93
Efficiency	85%
Degree of protection	IP23
Insulation	H
Fuse protection	3 × 20 A
Quality cutting thickness	0.3 – 30 mm
Perforating thickness	30 mm
Max cutting thickness	35 mm
Air consumption	15 l/min
Gas supply	Compressed air
Gas pressure	4.5 – 5.5 bar
Operation modes	2T / 4T
Gas flow optimisation	Yes
Control method	Digital
Material compatibility	Mild steel, steel, aluminium, etc.
Noise level	< 72 dB
Certifications	CE, ISO
Dimensions (L × W × H)	581 × 310 × 545 mm
Overall weight	54 kg

CRUXWELD plasma range	Rated current	Quality cut	Best for
CUT 70	70 A	see page	Sheet and light fabrication
FINELINE CUT-100	100 A	see page	General fabrication
FINELINE 120	120 A	0.3–30 mm	Heavy fabrication, CNC tables
FINELINE CUT-160	160 A	see page	Thick plate, production CNC

Specifications from the CRUXWELD FINELINE 120 datasheet; subject to improvement without notice. The quotation and test certificate supplied with the machine are the governing documents. Warranty terms are stated on the quotation / invoice.

80 amp plasma cutter fineline 80ic built in air compressor

FINELINE 80IC – 80 Amp Plasma Cutter with Built-in Air Compressor and MMA Welding

FINELINE 100IC – Plasma Cutter with Built-in Air Compressor, 100 A Cut + MMA

FINELINE CUT-160 Plasma Cutter

FINELINE 40C Plasma Cutter with Inbuilt Air Compressor

ROTO 1000M Magnetic Circle Cutting Guide for Plasma and Gas Cutting Torches

Question & Answers

FAQ

Air Plasma Cutting Machine — Frequently Asked Questions

?What is an air plasma cutting machine?

A plasma cutter that uses ordinary compressed air as the plasma and shielding gas. An electric arc ionises the air into a plasma jet that melts and blows the metal out of the cut. The FINELINE 120 does this at up to 120 A on mild steel, stainless steel and aluminium.

?How thick can the FINELINE 120 cut?

Quality cuts from 0.3 mm to 30 mm, piercing to 30 mm and a maximum severance cut of 35 mm on mild steel with dry air at 4.5–5.5 bar.

?What compressor do I need for this air plasma cutting machine?

Any compressor that delivers 15 l/min of dry air at 4.5–5.5 bar continuously. Fit a dryer or water separator in the line — moisture is the main cause of short consumable life.

?Can I use this air plasma cutting machine on a CNC table?

Yes. It has a CNC interface and HF pilot-arc starting, so it works with portable CNC plasma cutters and gantry tables as well as the hand torch.

?What do 2T and 4T mean?

2T: hold the trigger to cut, release to stop — for short cuts. 4T: press once to start and once to stop — for long cuts without holding the trigger.

?What power supply does it need?

415 V ±15%, three-phase, 50/60 Hz; rated input 15 kW / 25.6 A with 3 × 20 A fuse protection.

?Does it cut stainless steel and aluminium?

Yes — plasma cuts any conductive metal, which is the main advantage of an air plasma cutting machine over oxy-fuel. Stainless and aluminium cut slightly thinner than mild steel at the same quality.

?How do I get the price and delivery time?

Request a quote on this page or message +91 88008 82983 on WhatsApp with the material, thickness and whether you cut by hand or on a CNC table. You will receive a GST quotation with delivery time, usually the same working day.

Tell us your material and thickness — we will confirm the right plasma cutter and send a quotation today.
