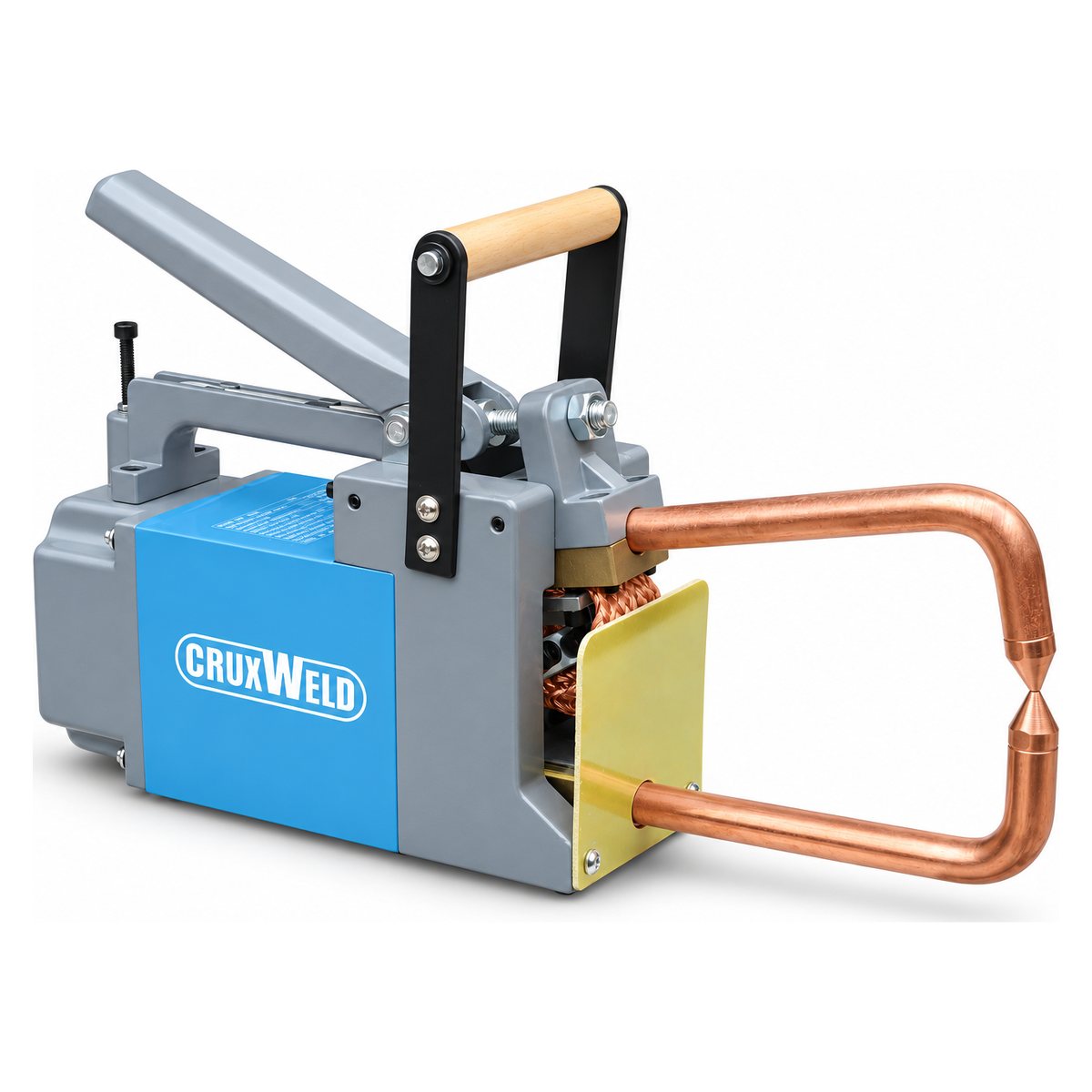

The CRUXWELD ProSpot 6K is a 6 kVA portable, hand-operated spot welder that runs on a 220–240 V single-phase supply. It welds mild steel, galvanised and stainless steel sheet from 0.25 + 0.25 mm up to 1.6 + 1.6 mm, and rods up to 3 + 3 mm. Place the work between the copper tips, pull the lever, and the spot is made. No wire, no gas, no filler.
GeM Registered OEM Manufacturer · Supported Worldwide · 45+ years of welding expertise
Price, delivery & technical help — get a fast response.

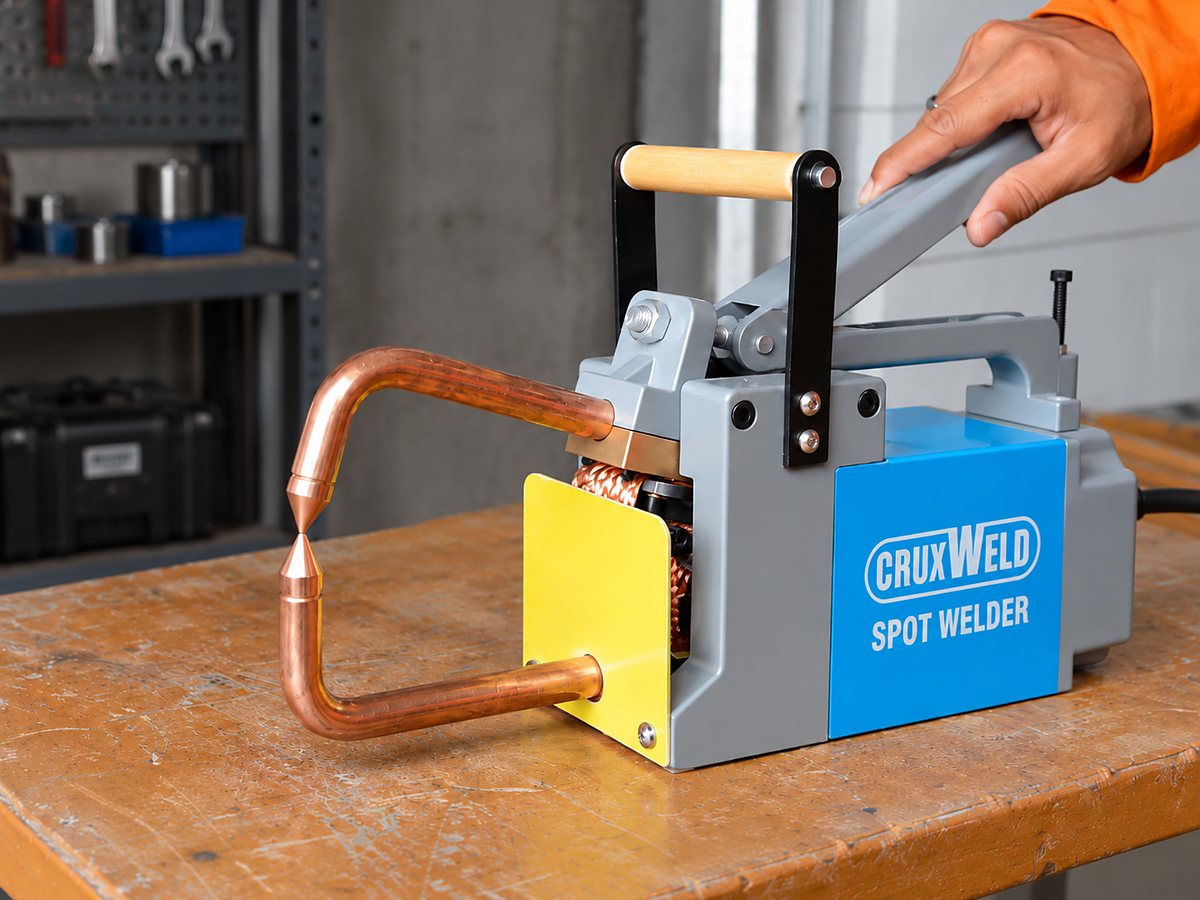

A portable spot welder joins two overlapping steel sheets in one squeeze. The ProSpot 6K brings 6 kVA of spot welding to any workbench: no fixed station, no air line, no foot pedal, and a normal single-phase supply.
It suits repair shops, sheet-metal and wire-product makers, and maintenance teams who need neat lap joints in sheet up to 1.6 + 1.6 mm, or cross joints on rods up to 3 + 3 mm, without a MIG torch, wire or gas.
220–240 V AC, 50/60 Hz on a 20 A delayed fuse. Up to 6,550 A welding current.
From 0.25 + 0.25 mm thin sheet. Mild steel, galvanised and stainless steel.
Cross and lap joints on rods and wire from 0.3 + 0.3 mm.
Synchronous electronic timer with SCR for a repeatable weld time.
Simple, mechanical and easy to look after. Here is what each part does.
123456789Resistance spot welding joins overlapping sheets without filler metal. The heat is made right where the two sheets touch.

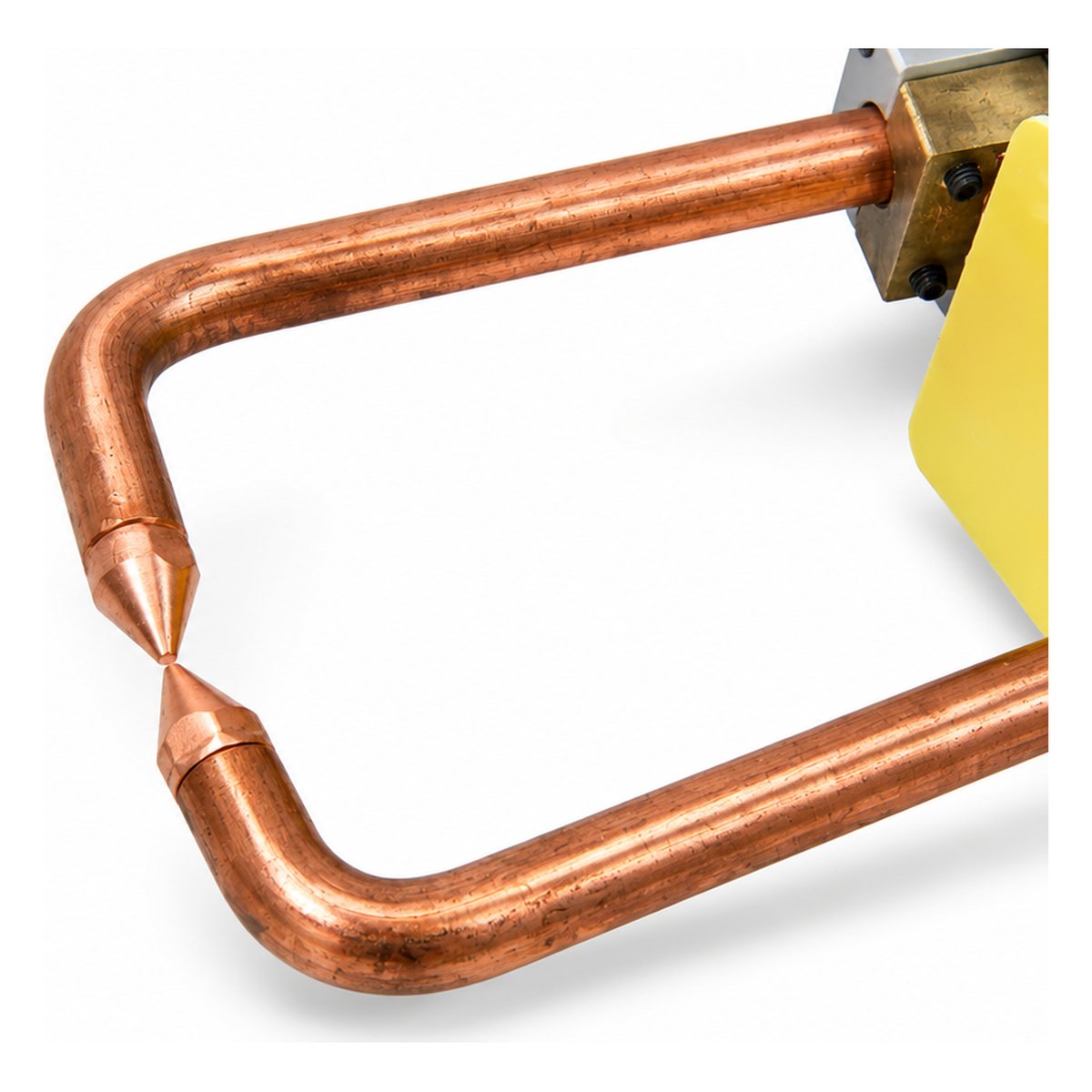

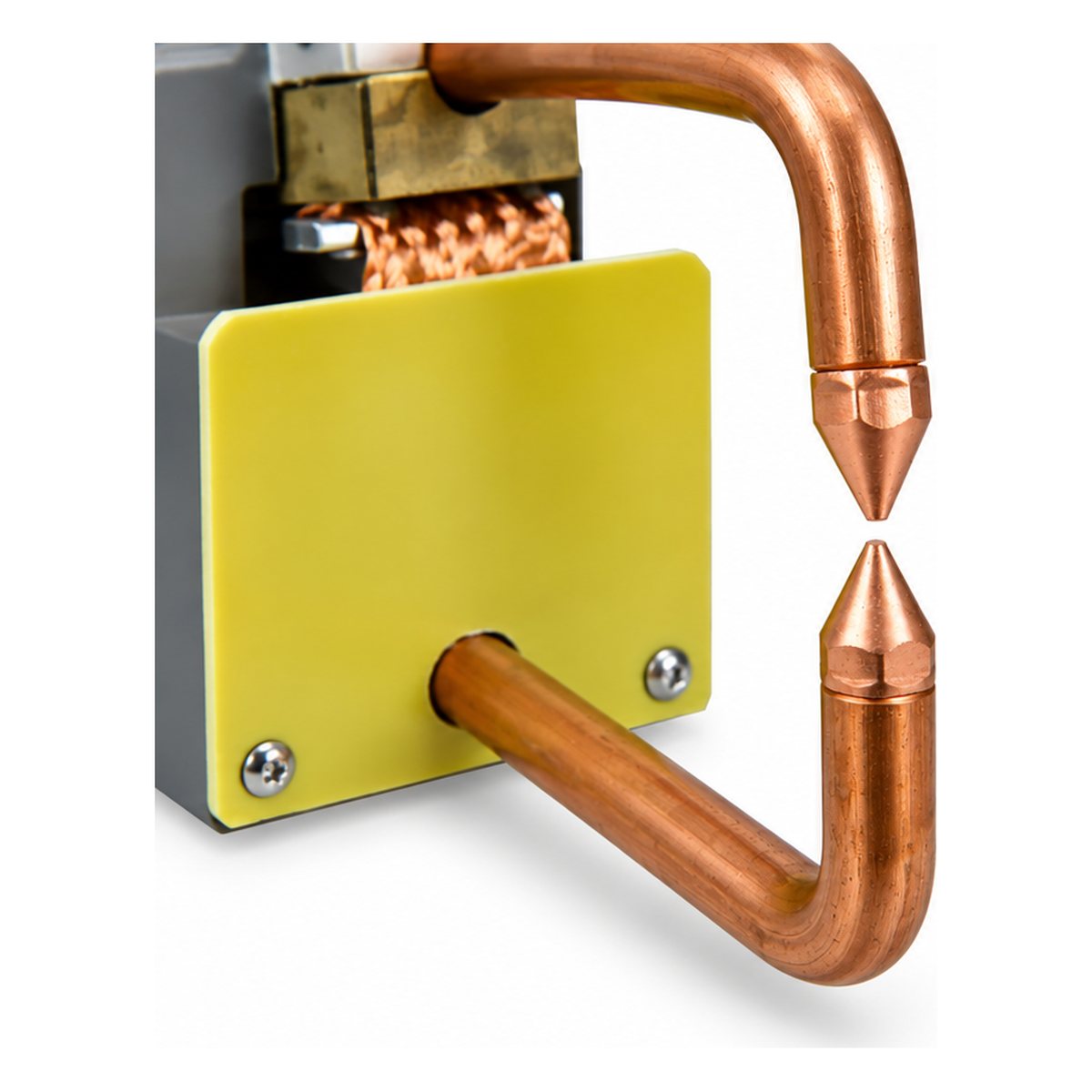

Two copper tips press the overlapping sheets together, so the sheets touch firmly at one point.
A high current passes from tip to tip. The contact point between the sheets has the highest resistance, so that is where the heat builds.
The metal melts into a small nugget. Pressure is held for a moment while it cools, and the two sheets are now one.

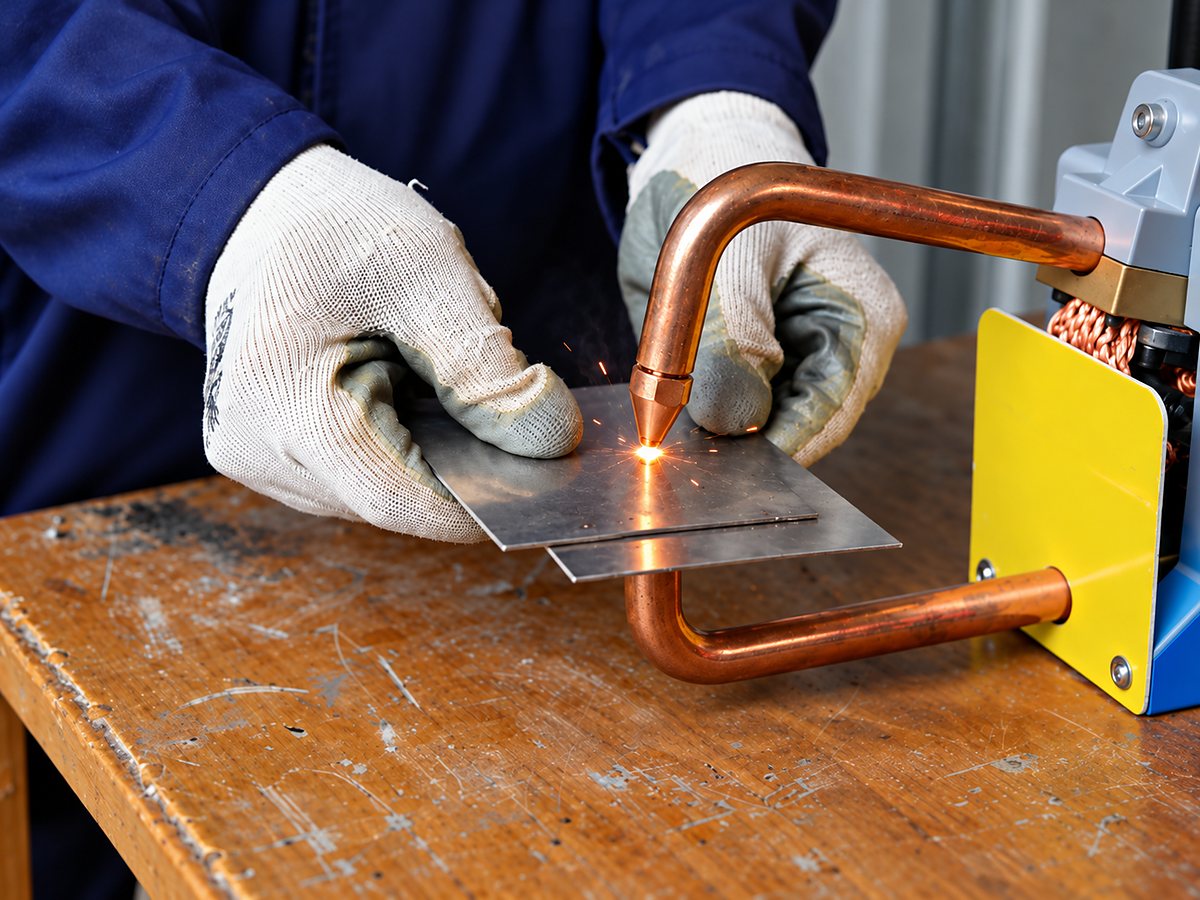

A small, portable spot welder doing real sheet-metal work. Watch for:

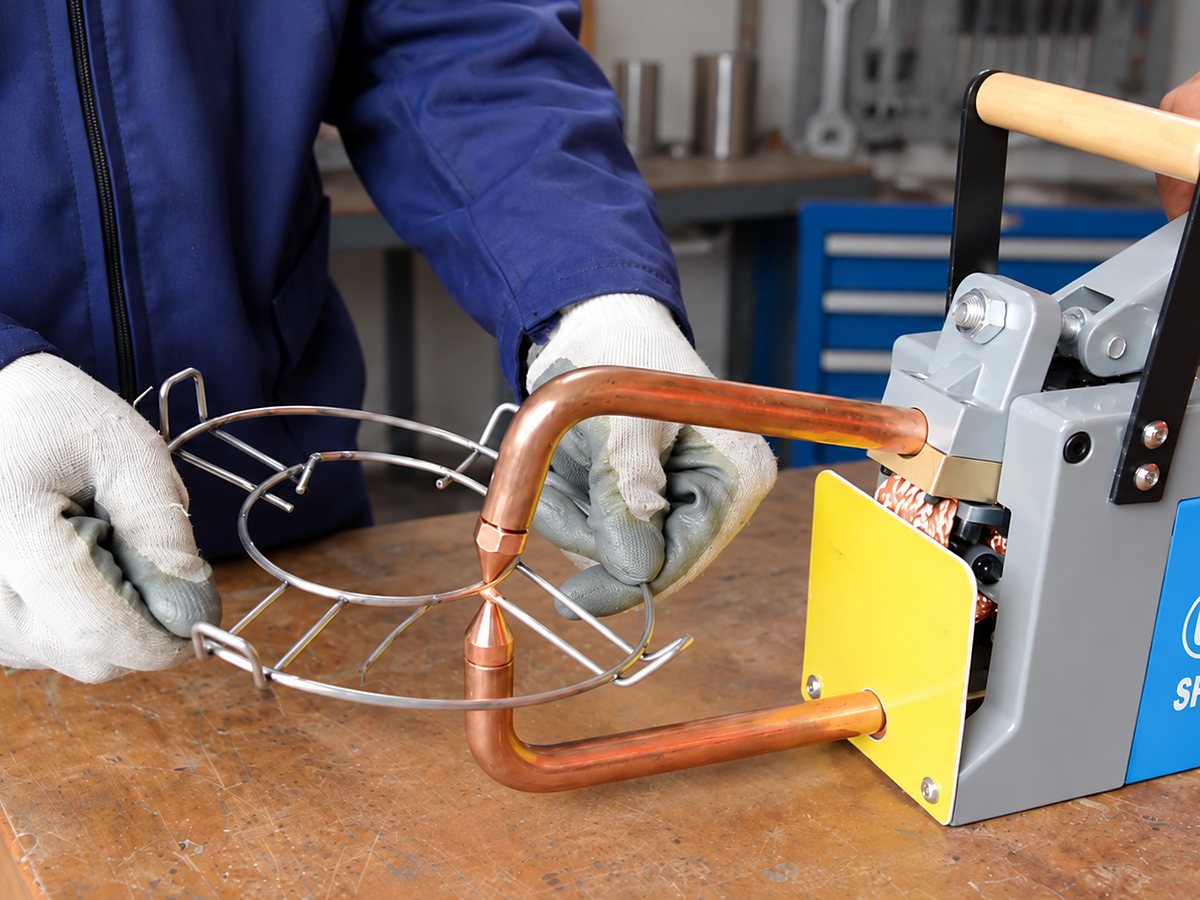

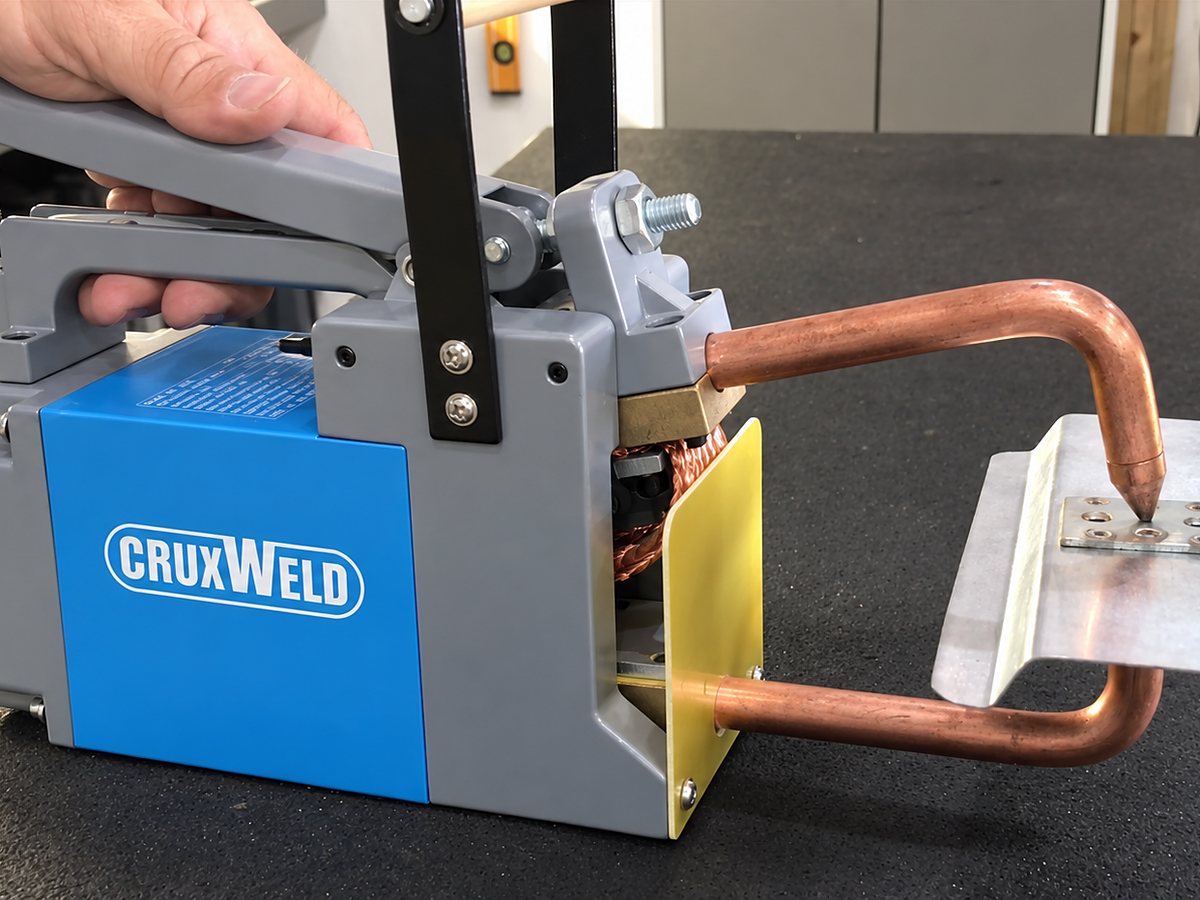

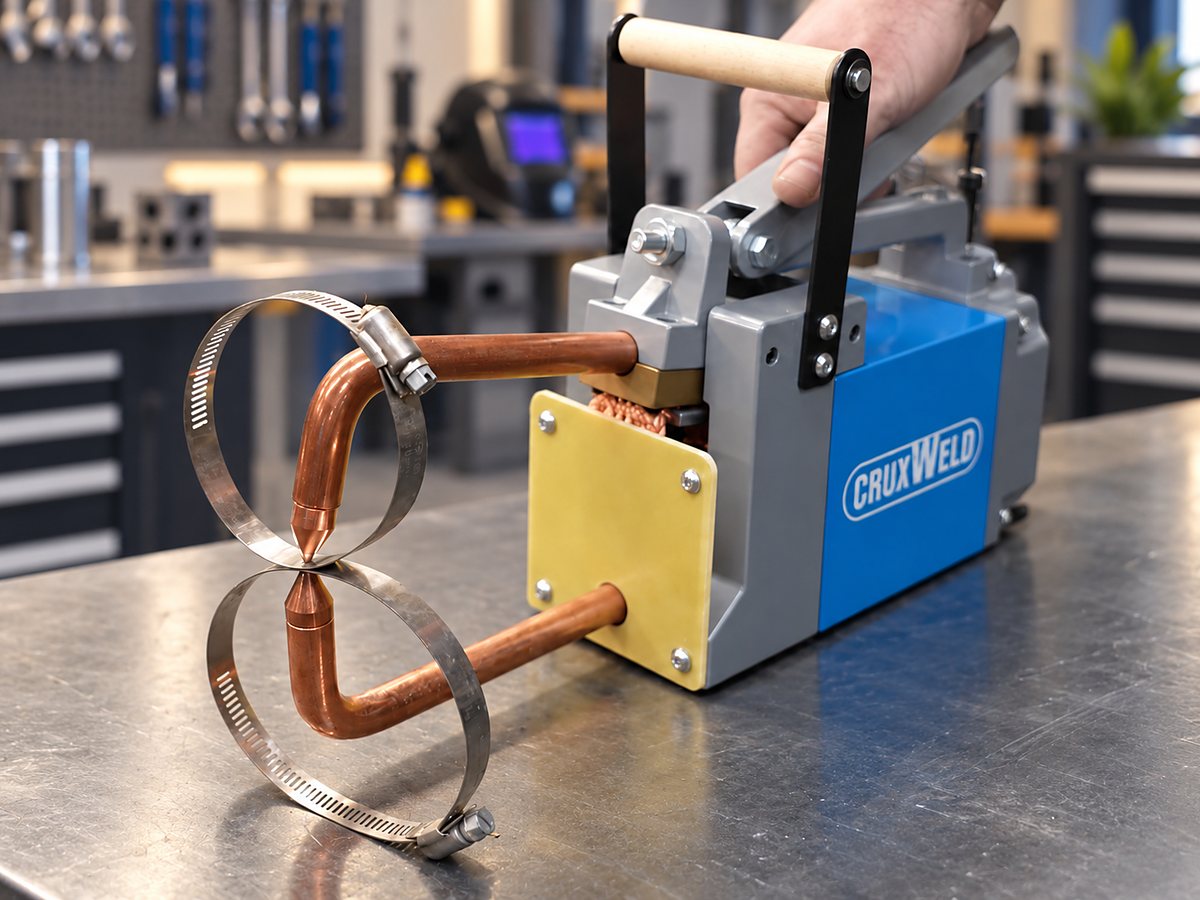

Anywhere steel sheet or rod overlaps and needs a quick, neat joint: sheet from 0.25 + 0.25 mm to 1.6 + 1.6 mm, rods from 0.3 + 0.3 mm to 3 + 3 mm.

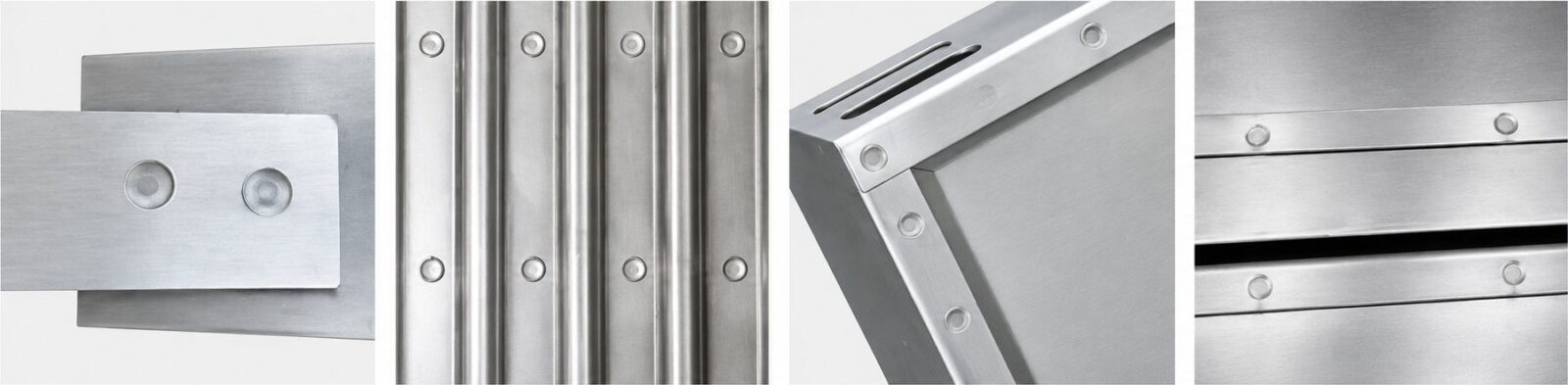

Typical spot welds on stainless steel sheet: a lap joint, a ribbed panel, a box corner and overlapping strips.

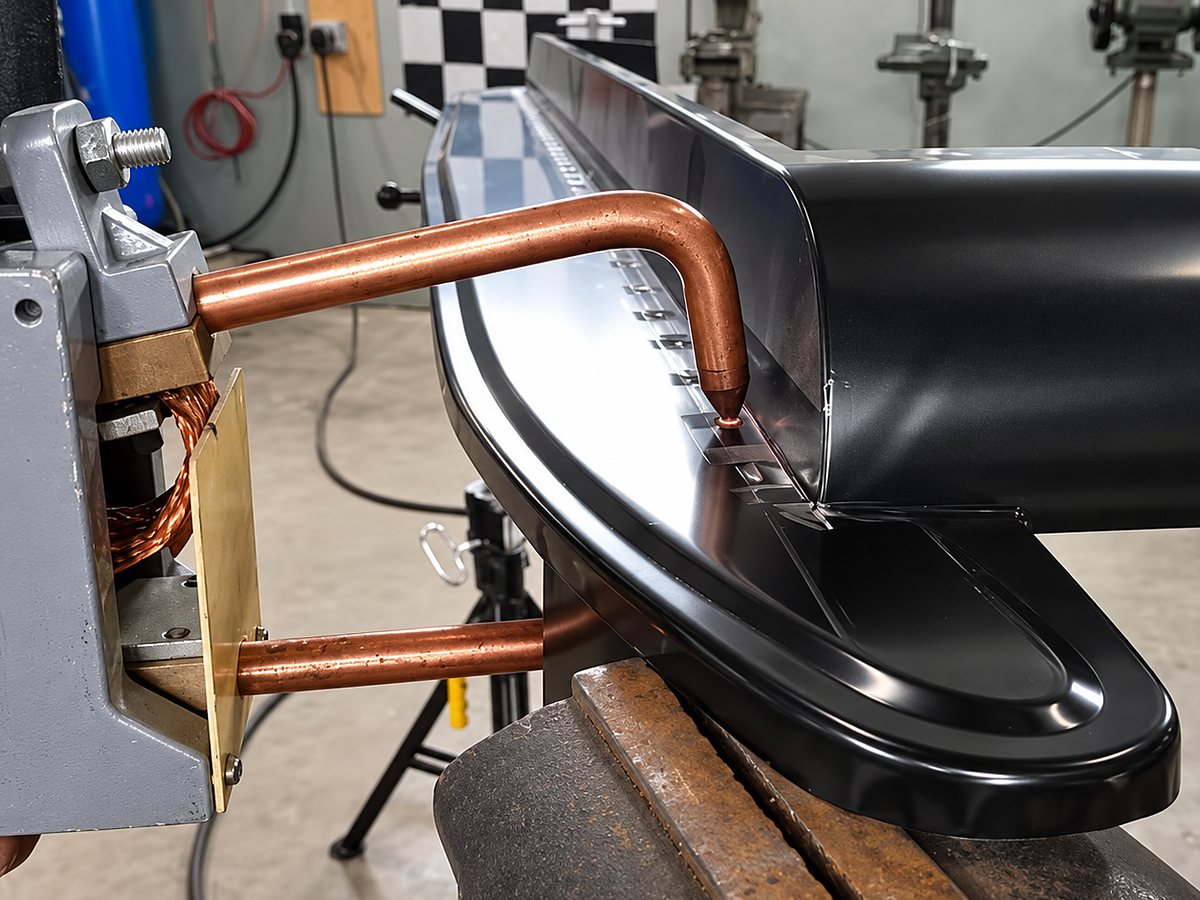

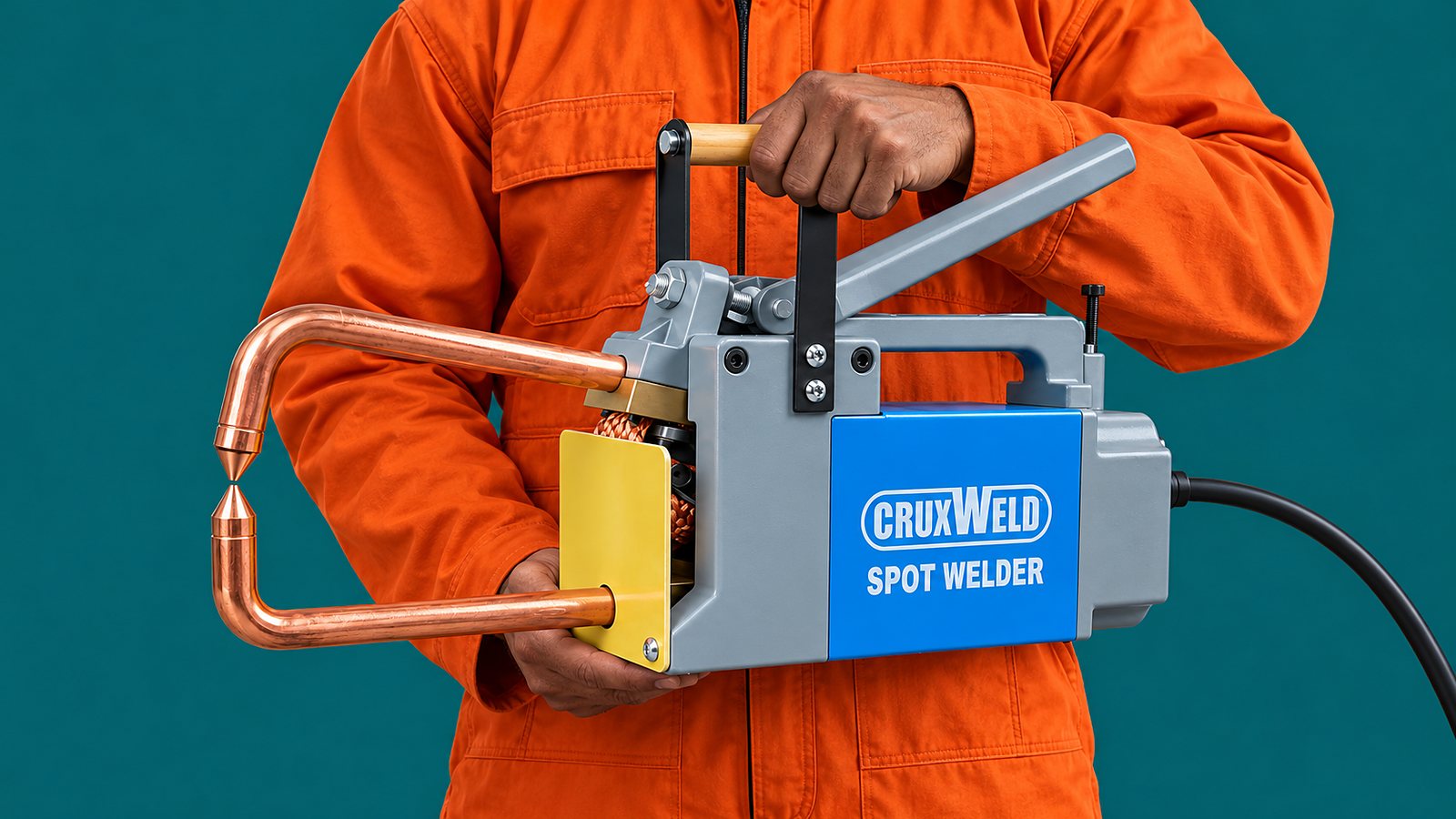

Lift it by the handle and weld at the bench, on the assembly or on the vehicle. No fixed station, no foundation.
A spot weld uses only current and pressure. There is no wire, rod or shielding gas to buy, and almost no fume.
Place the sheets between the tips and squeeze. A new operator makes good spots after a short practice run.
Small, tidy spot marks instead of a bead, so most parts need little or no grinding before painting.
Wipe off oil and grease. The compensation circuit copes with oxidised sheet, paint residue and black sheet, but take off thick paint and heavy scale where the spot goes.

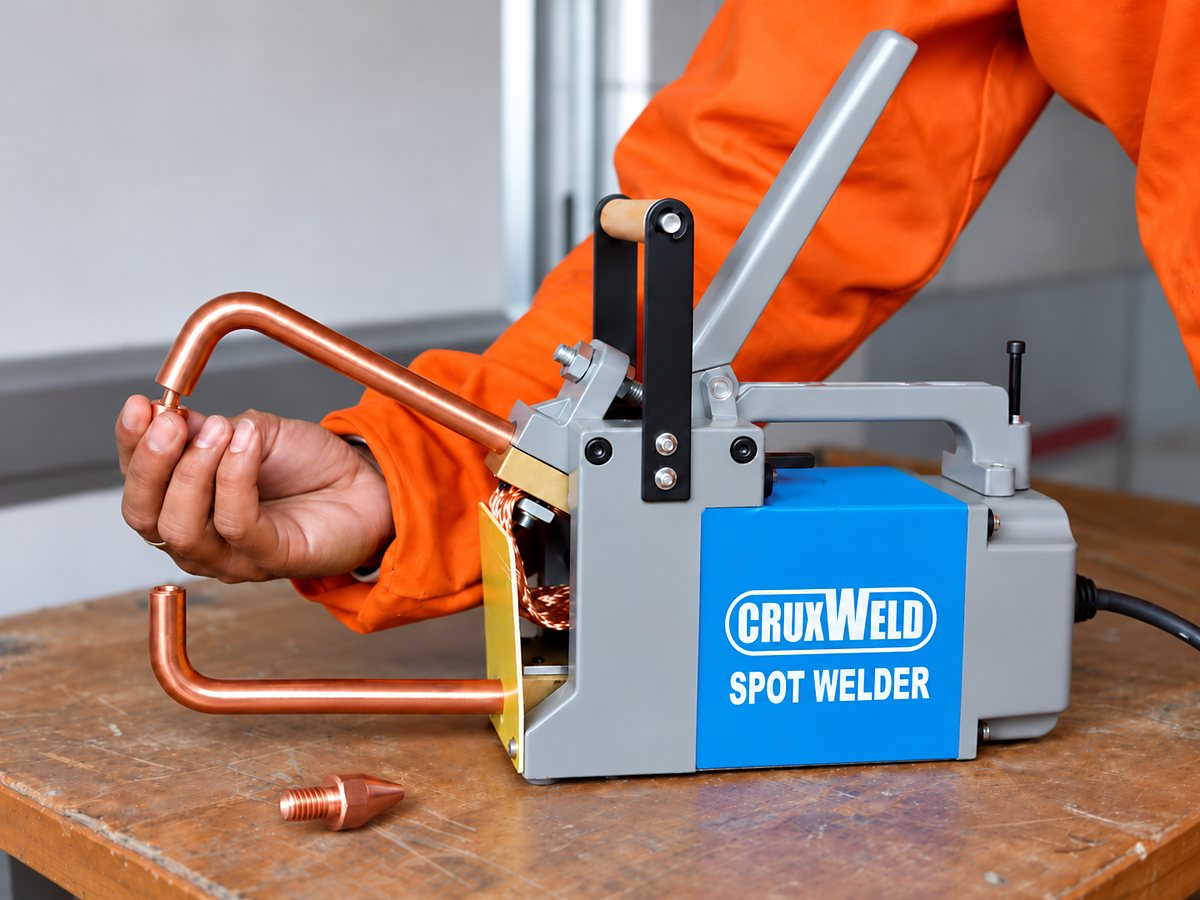

A flattened tip spreads the current and gives a weak spot. Dress it back to shape, or fit a new tip.
Use the daN force scale and the 2–65 cycle timer. Thicker sheet needs more force and more cycles; check on a test piece first.
Weld two offcuts of the same sheet and peel them apart. A good spot tears a button out of one sheet.
Weak spots or sparking? See spot welder troubleshooting and spot welding problems and solutions.
The ProSpot 6K is the portable, hand-operated choice. For other jobs, see these Cruxweld machines:
CRUXWELD is a GeM Registered OEM Manufacturer. You talk directly to the team that knows this machine.
WhatsApp the material, the thickness of each sheet and how many spots a day. Our team replies with the right setup and the price.
| Specification | ProSpot 6K |
|---|---|
| Electrical | |
| Model | ProSpot 6K |
| Power @ 50% duty cycle | 6 kVA |
| Supply voltage | 220–240 V AC, single phase, 50/60 Hz |
| Delayed fuses @ 220 V AC | 20 A |
| Output voltage | 2–3 V AC |
| Max welding current | 6,550 A |
| Welding range | |
| Sheet metal | (0.25 + 0.25) mm to (1.6 + 1.6) mm |
| Rods | (0.3 + 0.3) mm to (3 + 3) mm |
| Materials | Mild steel, galvanised steel, stainless steel |
| Arms and electrodes | |
| Throat depth | Adjustable, 125–250 mm |
| Throat clearance | 92 mm |
| Arms supplied | 125–150 mm |
| Max electrode force | 120 daN |
| Electrode diameter | 14 mm |
| Electrode material | Copper alloy |
| Control | |
| Timer | Synchronous electronic timer with SCR, 2–65 cycles |
| Current control | Phase shift adjustment |
| Compensation circuit | Yes, for oxidised, painted or black sheet |
| Cos Ø control | Yes |
| Force adjustment | Manual, with scale in daN |
| Build and safety | |
| Insulation | Class F, transformer tested at 4000 V |
| Cooling system | Air-cooled |
| Safety features | Overheat and short circuit protection |
| Certification | CE, ISO 9001, RoHS |
| Dimensions | 520 × 155 × 255 mm |
| Weight | 15 kg |
Set the weld time from 2 to 65 cycles. The same setting gives the same spot, weld after weld.
Makes sure the current flows properly before the timer starts, so it welds oxidised sheet, sheet with paint residue and black sheet.
Fine control of the current for difficult welds on very thin sheet, small-diameter rods and stainless steel.
Improves welding precision and performance.
Set the electrode force, up to 120 daN, and read it on the scale for repeatable results.
Throat depth from 125 to 250 mm. Additional arm couplings give a larger opening between the arms for awkward parts.
All transformers are coated with Class F insulation material and tested at 4000 V for safety and durability.
Supplied with 125–150 mm arms, ready to use. A wide choice of other arms and electrodes is available.
