Handheld Spot Welder

Portable Spot Welder
1 Star2 Stars3 Stars4 Stars5 Stars (5 votes, average: 4.40 out of 5)

The Cruxweld portable single-phase spot welder can weld mild steel, stainless steel, and galvanized iron sheets from 0.2mm+0.2mm to 2mm+2mm thickness. This handheld spot welder incorporates a micro-timer controller that the user can set to accommodate metal thickness ranging from 0.1 seconds to 1.2 seconds.

Features

This professional and versatile handheld spot welder is best suited for auto body shops and maintenance shops. The welding electrode has a mixture of copper, chromium, and zirconium, which is durable and perfectly welds thicker materials. Thanks to the top lever, operating functions are effortless, and an insulating material handle has secured the device. Adjust the arm pressure according to the thickness of the plate, 40-130 kg is optional.

The Cruxweld CHS series portable air-cooled spot welders provide fast and durable spot welding on various materials, including stainless steel, mild steel, cast iron, galvanized iron, etc. This portable spot welder is also very efficient on complex structures and very thin thicknesses of sheet metal or rods with adjustment of the phase shift of the current control. This portable spot welder is ideal for multiple applications, including automotive, aerospace, metal furniture, electronics, kitchen appliance, maintenance shops, etc.


Benefits

  • Manual operation, no need to connect to the air compressor to impede movement.
  • The diameter of the electrode is 12mm.
  • Force control is adjustable.
  • 6-inch tongs hold firmly to the material.
  • Complete control of welding time and power.
  • The handle design allows you to apply high pressure to the electrodes with minimal squeezing.
  • Robust spot welding on mild steel, galvanized steel, or stainless steel.
  • It works perfectly with mild steel, galvanized, or stainless steel sheet.
  • It allows you to quickly insert materials and press to weld due to its simple welding mechanism.
  • The attached carrying handle lets you promptly transport your spot welder to different locations.
  • Due to the simple lever function, apply pressure and depress the lever to perform the welding operation.
  • Custom electrode designs and arm-length extensions are available upon request.
  • The transformers are coated with class H insulation and tested at 4000 volts.

Specifications

Model CHS-2.5 CHS-5H CHS-10H
Rating @ 50% duty cycle, kVA 2.5 5 10
Operation type Portable handheld Portable handheld Portable handheld
Throat depth, mm 250 250 250
Nominal throat clearance, mm 92 92 92
Max welding thickness, mm 1.0+1.0 1.5+1.5 2+2
Insulation H H H
Cooling for arms and electrodes Air  Air  Air
Mains supply voltage, V/Hz 240v-50/60 240v-50/60 240v-50/60
Main fuse, A 16 25 25
Electrode diameter, mm 9.5 12 12
Weldable material  Mild steel, galvanized iron, stainless steel Mild steel, galvanized iron, stainless steel Mild steel, galvanized iron, stainless steel
Dimensions (LxWxH), mm 450x100x203 450x150x210 450x150x210
Weight (approx.), kg 13.5 18.5 20.5

Description

Portable hand-operated spot welder – Cruxweld spot welding machine manufacturers in India and suppliers for the most extensive range of welding machines, cutting machines, spot welding machines, stud welding machines, and CNC machines. The device is manufactured with a genuine raw material of different thicknesses. The spot welding machine price is the sole concern of everyone. Cruxweld is a company where quality is a real concern. As welding machine manufacturers, we supply portable hand-operated spot welding machines in India and overseas. Resistance welding is the domain of Cruxweld, where resistance welding is designed to make it more stable, compact, and with less maintenance.

A portable hand-operated spot welder we supply is helpful in industries where a spot in a small workpiece is required. The spot welder has an integrated transformer and controller and works for sectors. The Cruxweld has been operating since 1997 as a quality welding machine. A trained, dedicated, informed, enthusiastic, and hard-working team technical crew controls the manufacturing. The team works tirelessly for better design, portability, energy saving, and economical with the best spot welding machine price to the client without compromising the welding machine’s quality.

The welding machine manufacturing at Cruxweld is a mission, not a business. Here we are as a team very much concerned about the quality and welding machine price as we supply our welding equipment all over India and overseas. We have registration with NSIC for our welding machine manufacturer in India. The machine we make are the latest in design and equipped with all the newest technology like VRD, IGBT, and soft switch technology. The international manufacturing standard is taken care of as these standards are very high and challenging to adhere to. But we at Cruxweld take care of these standards to make us a brand Cruxweld as the most popular, competitive, stable, and economical brand.

TRANSFORMER Structured for low impedance with immense short circuit current and minor damage, proper cooling, padding, and winding impregnation to strengthen reliability and service life.
CONSTRUCTION Construct with a streamlined exterior, properly stabilized at points of a spot. Also, the transformer is fixed directly onto the frame.
ELECTRONIC CONTROL AND GUN Solid-state precision electronic timers implemented in hand-operated machines and Guns are designed for maximum flexibility & to produce high pressure on electrodes with minimum user force.
ADJUSTMENT OF ELECTRODE STROKE  By the up-and-down arrangement of the electrode, a massive range of alternative arms and electrodes is possible.
APPLICATIONS Spot welding, electro-brazing, cross-wire welding, resistance heating, and soldering. The machine can also weld stainless steel, brass, phosphor, bronze, alloy steel, etc.

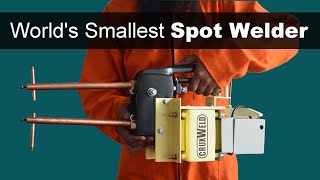

Video
