Oscillating Welding Carriage – Powerful DynaMove 45K

Why a rail-guided oscillating carriage improves consistency

In fabrication environments, quality variation typically comes from two sources:

1. Inconsistent travel speed (fast/slow travel during long passes)

2. Inconsistent torch path (hand-controlled weave, varying angles, fatigue effects)

These fluctuations can lead to uneven bead geometry, inconsistent heat input, irregular cut edges, and increased rework. A mechanized carriage reduces these variables by maintaining stable motion and guiding the torch along a controlled path. Adding oscillation extends capability for groove work and applications requiring controlled bead width and sidewall coverage.

Practical advantages in production

• More uniform bead appearance and geometry across operators and shifts

• Repeatable oscillation patterns for consistent coverage

• Reduced rework and post-weld cleanup due to stable travel and controlled torch motion

• Improved fit-up results when bevel preparation is done mechanically

• Better repeatability on straight lines and circular profiles compared to freehand cutting

If your shop frequently deals with long seams, repetitive joints, bevel preparation, or circular cut-outs, a mechanized oscillation carriage typically delivers strong process consistency improvements.

Multi-process capability: welding + plasma + oxy-fuel cutting

This oscillating welding carriage supports stable travel for MIG/MAG and TIG welding automation, with cutting configurations available for plasma and oxy-fuel.

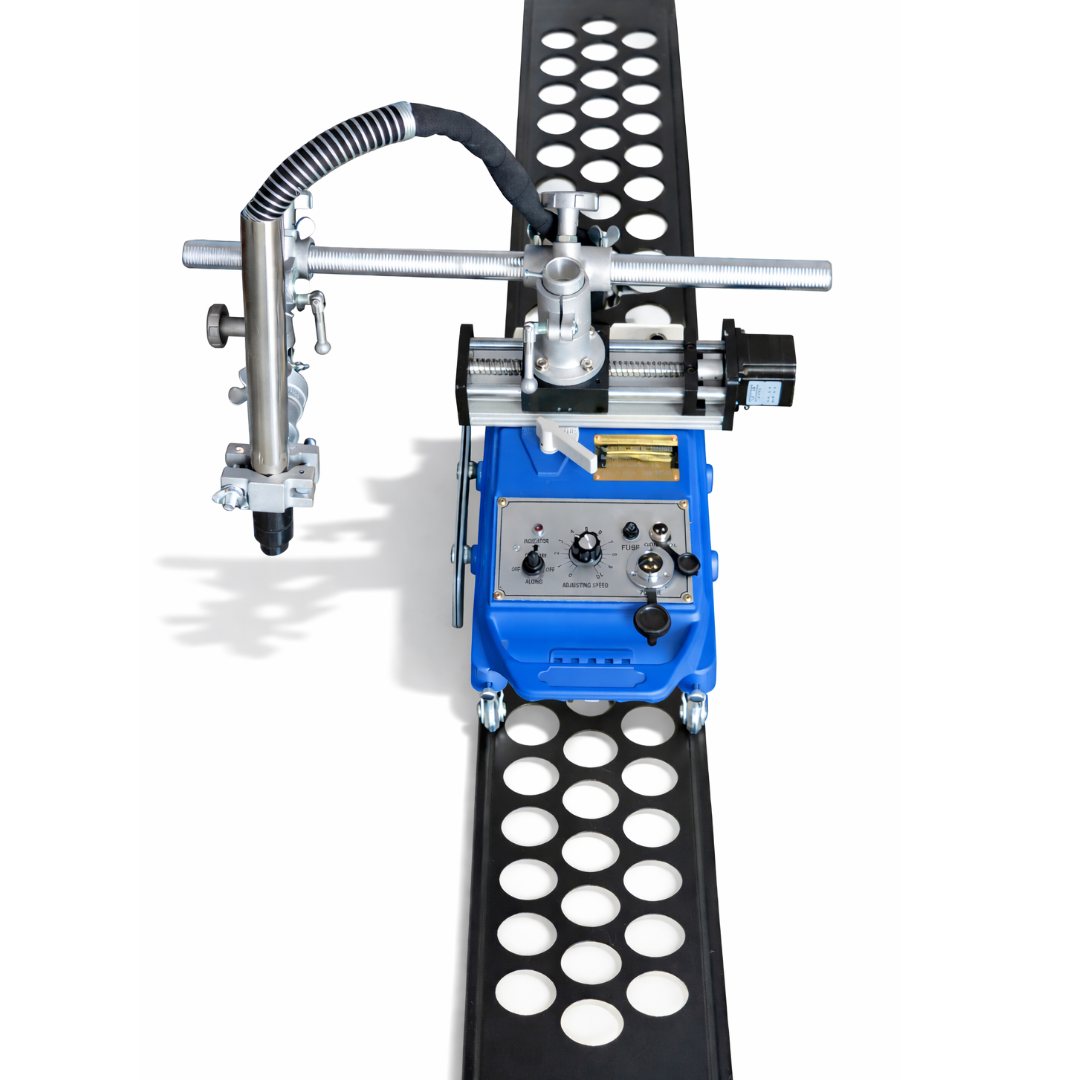

1) Mechanized MIG/MAG and TIG welding with linear oscillation (weaving)

DynaMove 45K supports MIG/MAG and TIG welding automation where consistent travel and controlled weaving matter. Linear oscillation is useful when:

• a joint is wider than a straight pass can cover,

• sidewall coverage is essential in groove joints,

• multi-pass work must stay uniform,

• overlay/cladding type passes require stable patterns.

Oscillation parameters such as width and speed can be adjusted to suit different joints while rail travel maintains steady forward movement. For projects that require a dedicated circumferential/oscillation automation approach, you may also review Automated Oscillation Welding Carriage.

2) Plasma cutting on rail (straight lines, circular cut-outs, bevel work)

With a compatible torch holder, DynaMove 45K can be used for plasma cutting with guided travel—helpful when you need repeatable profiles without a full CNC cutting table. Typical use cases include:

• straight-line plate cutting,

• circular cut-outs for openings and layouts,

• controlled bevel cutting (configuration dependent).

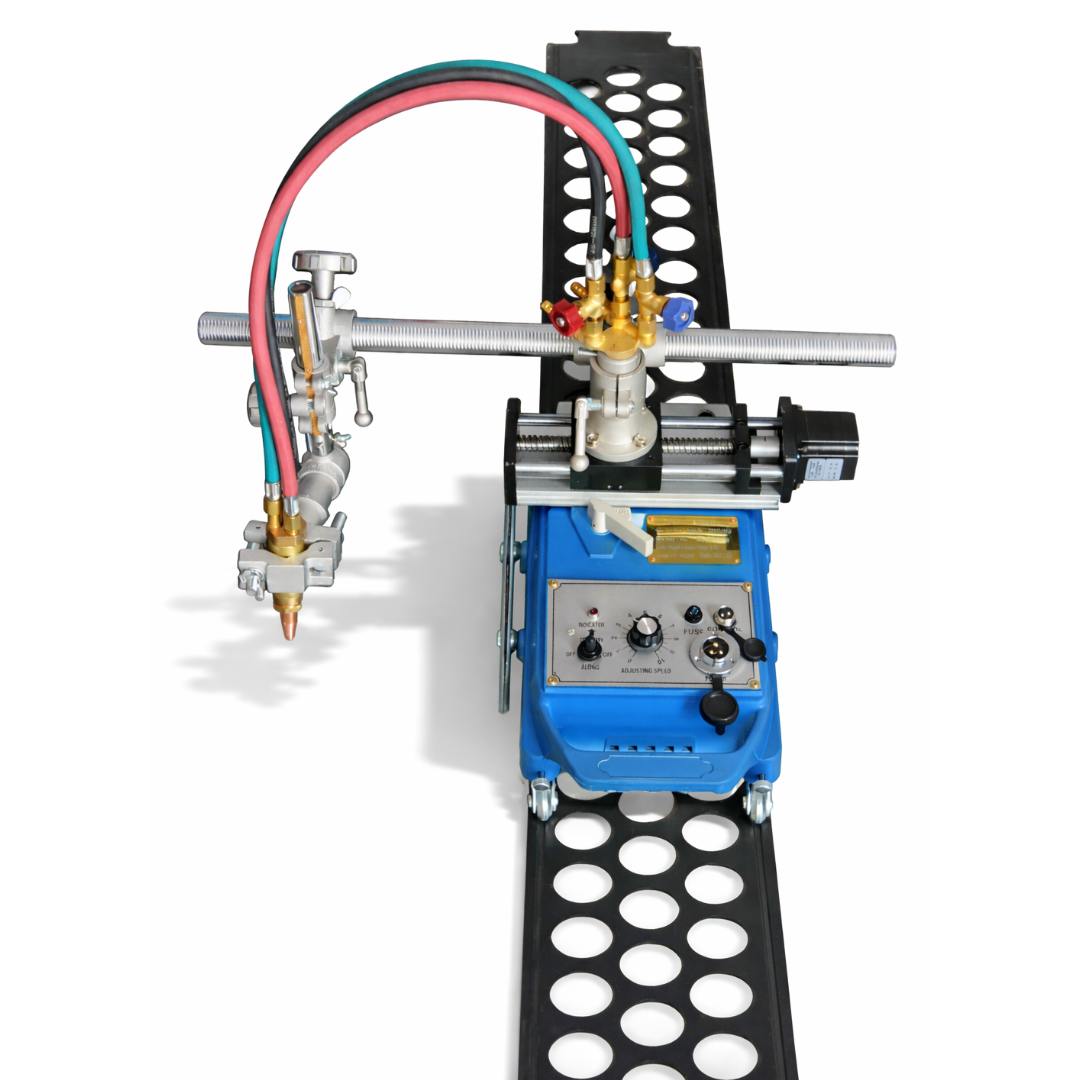

3) Oxy-fuel cutting for heavy plate (up to 150 mm)

For thicker carbon steel plate, oxy-fuel cutting is widely used. DynaMove 45K supports oxy-fuel cutting and is rated for cutting thickness up to 150 mm (process and setup dependent). Mechanized motion helps maintain more consistent travel compared to manual cutting, especially over longer lengths.

If pipe cutting is also part of your workflow, consider the complementary category solution Magnetic Pipe Cutting Machine (Plasma/Oxyfuel).

Bevel cutting (0–45°) and circular cutting (200–2000 mm)

Bevel preparation for consistent fit-up

Fit-up quality depends heavily on bevel consistency. DynaMove 45K supports 0–45° groove/bevel angles, enabling more uniform bevel geometry along longer plate edges. This can reduce manual grinding effort and help teams maintain consistent joint preparation.

Circular cutting for repeatable openings and layouts

For tanks, manholes, openings, flanges, and repeated plate layouts, DynaMove 45K supports 200–2000 mm circle cutting diameter (configuration dependent). This supports repeatability and reduces variation compared to manual marking and cutting.

For straight-line cutting in a dedicated product category, compare Portable Pug Cutting Machine.

Extendable rail: scalable working length for longer seams

With extendable rail sections, the oscillating welding carriage can run longer seams with fewer stops and realignments. DynaMove 45K runs on a rail system that is extendable, allowing working length to be increased using additional rail sections. This is especially valuable for:

• long seam welding on plates and stiffeners,

• long straight-line cutting on larger sheets,

• reducing the need to stop, reposition, and re-align.

Rail length options can be supplied based on your required working length and typical job profiles.

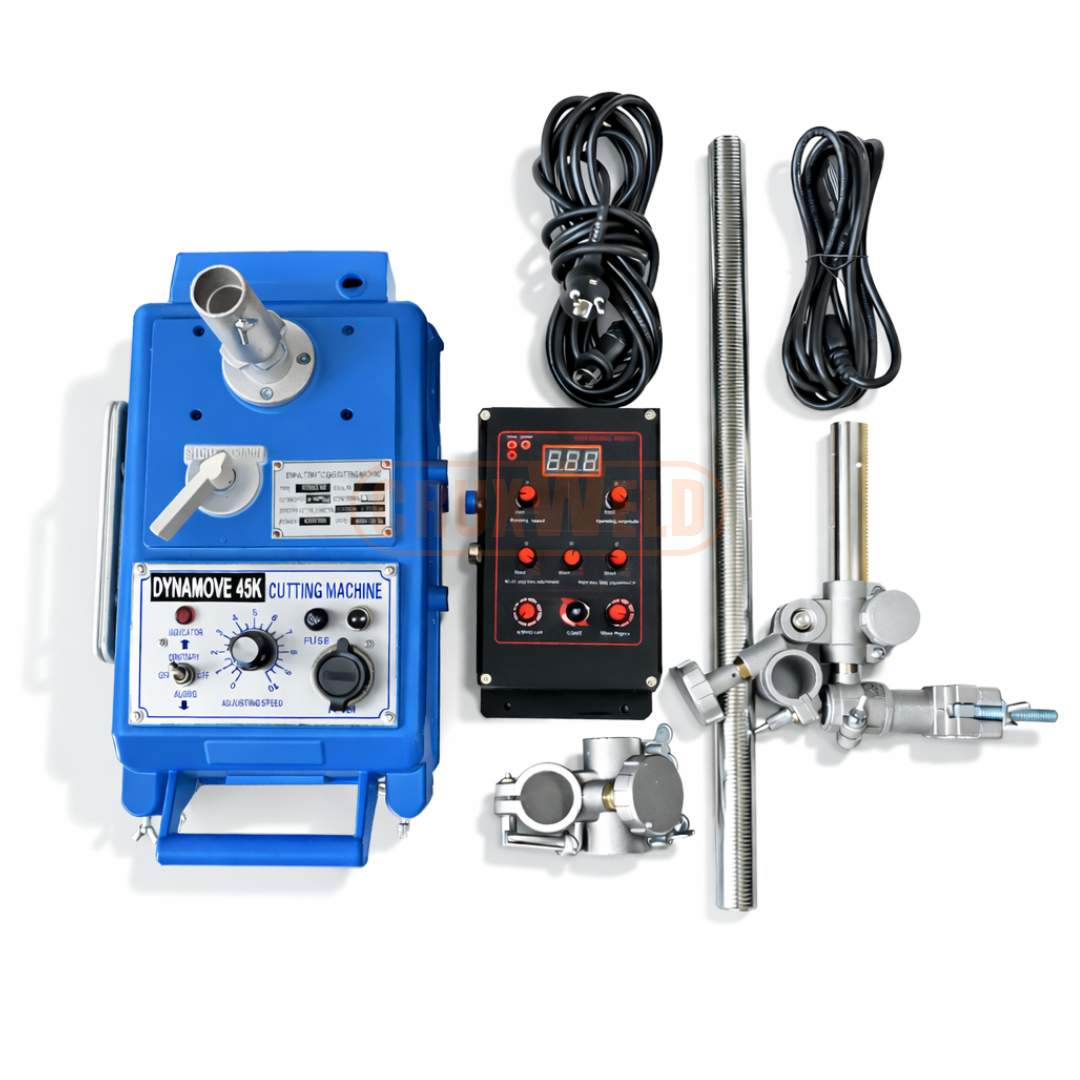

Micro-processor controller: consistent operation for production teams

DynaMove 45K uses a micro-processor controller designed for stable control of direction, speed, and oscillation. Typical functions include forward/neutral/reverse, run/stop, manual/auto speed control, and oscillation control. This helps production teams maintain:

• stable travel speed,

• repeatable oscillation patterns,

• consistent output across operators and jobs.

Typical application areas

For long seams and repetitive joints, an oscillating welding carriage helps maintain uniform bead geometry across shifts.

Fabrication and structural steel

• Long seam welding on plates, stiffeners, and frames

• Repeatable bevel preparation for groove welding

• Guided plasma cutting for consistent geometry

Tanks, vessels, and heavy fabrication

• Circular openings and repeated cut-outs

• Controlled bevel prep to improve fit-up consistency

• Mechanized weld travel for uniform seams over longer distances

Maintenance and site fabrication

• Portable mechanized setup where full CNC equipment is not practical

• Repeatable straight cuts, circles, and bevel prep for repair work

• More consistent results in variable site conditions (setup dependent)

Installation, Setup and Operating Notes (for Production Use)

The DynaMove 45K is designed for fast deployment in fabrication environments requiring repeatable travel and controlled torch motion. Set-up typically involves aligning the rail to the weld seam or cutting line and selecting the required working length. The rail is extendable, so longer seams can be handled by adding rail sections and connectors, reducing frequent repositioning.

For welding, the torch holder is adjusted for torch angle and travel alignment. Travel speed and linear oscillation parameters (width/speed) are set according to the joint profile and desired bead coverage. For cutting, stable travel speed supports consistent edge quality for plasma cutting and oxy-fuel cutting (process dependent). For bevel preparation, torch angle adjustment helps maintain uniform edge geometry, improving fit-up and reducing manual correction.

For related automation options, see Welding Automation Solutions. For magnetic traction on steel surfaces, evaluate the Magnetic Oscillating Welding Carriage. For pipe cutting workflows, refer to the Magnetic Pipe Cutting Machine (Plasma/Oxyfuel). For straight-line cutting comparisons, see the Portable Pug Cutting Machine.

For thermal cutting quality classification, a widely recognized reference is ISO 9013:2017.

FAQs

Is DynaMove 45K only for welding?
No. It supports mechanized welding with oscillation and can be configured for plasma and oxy-fuel cutting depending on torch setup and accessories.

Does it support bevel cutting and circular cutting?
Yes. Bevel/groove angles are supported from 0–45°, and circular cutting supports 200–2000 mm diameter (configuration dependent).

What cutting thickness is supported?
Oxy-fuel cutting is rated up to 150 mm (process dependent). Plasma cutting thickness depends on your plasma power source and torch configuration.

What oscillation type is used?
Linear oscillation with adjustable width, speed, and stroke. An oscillating welding carriage uses controlled weaving (linear oscillation) to improve coverage and repeatability compared to travel-only systems.

Is the rail extendable?
Yes. Rail length can be extended using additional rail sections for longer welding/cutting runs.
